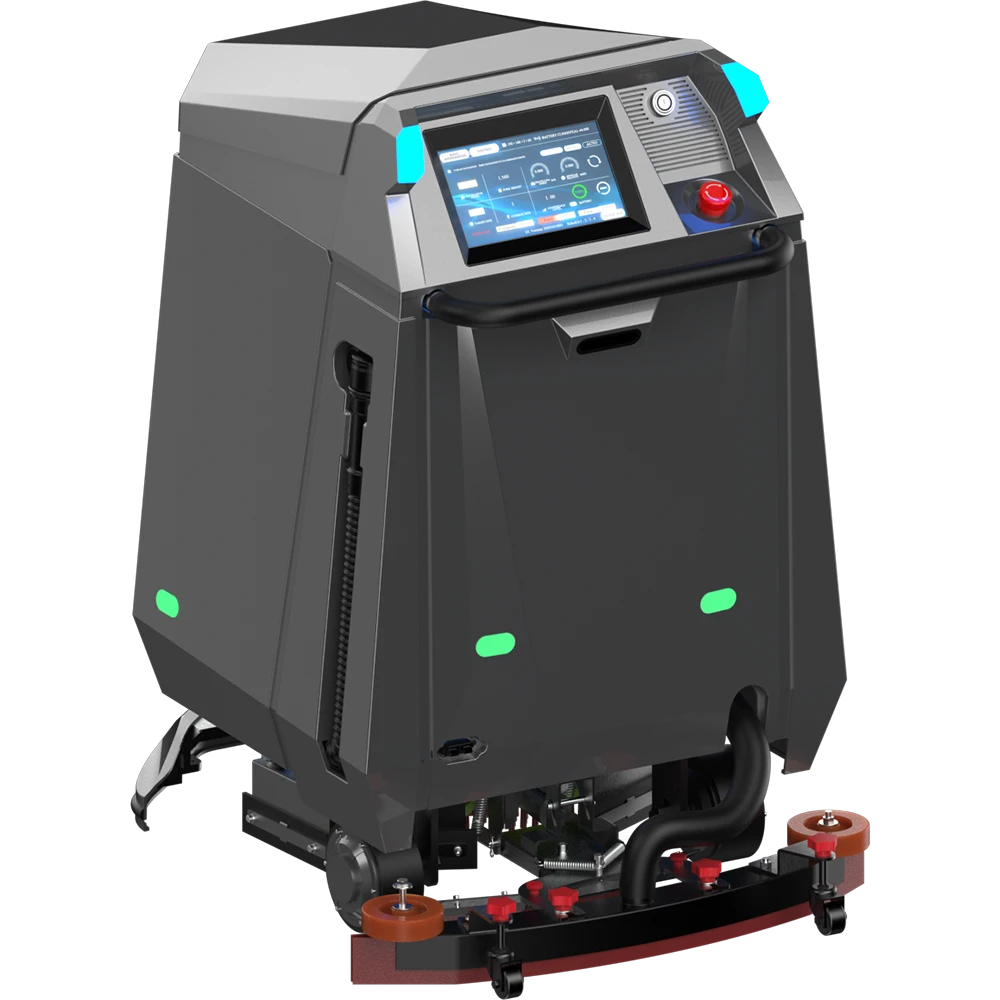

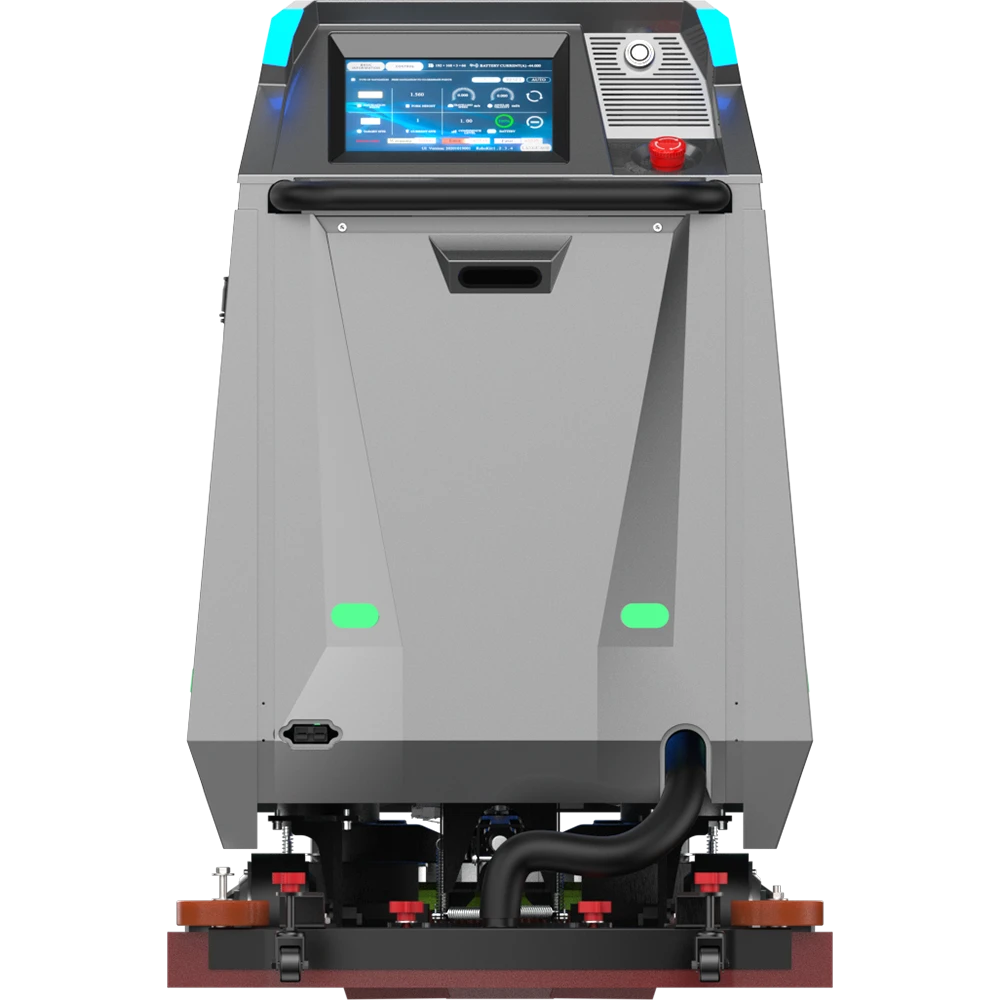

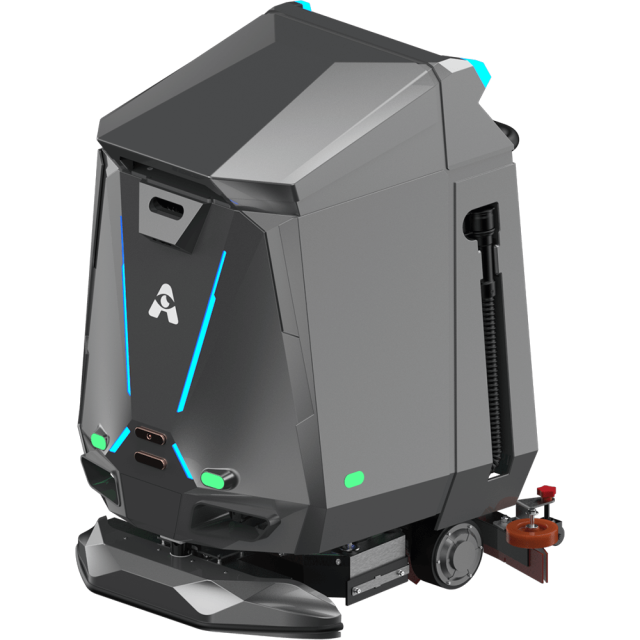

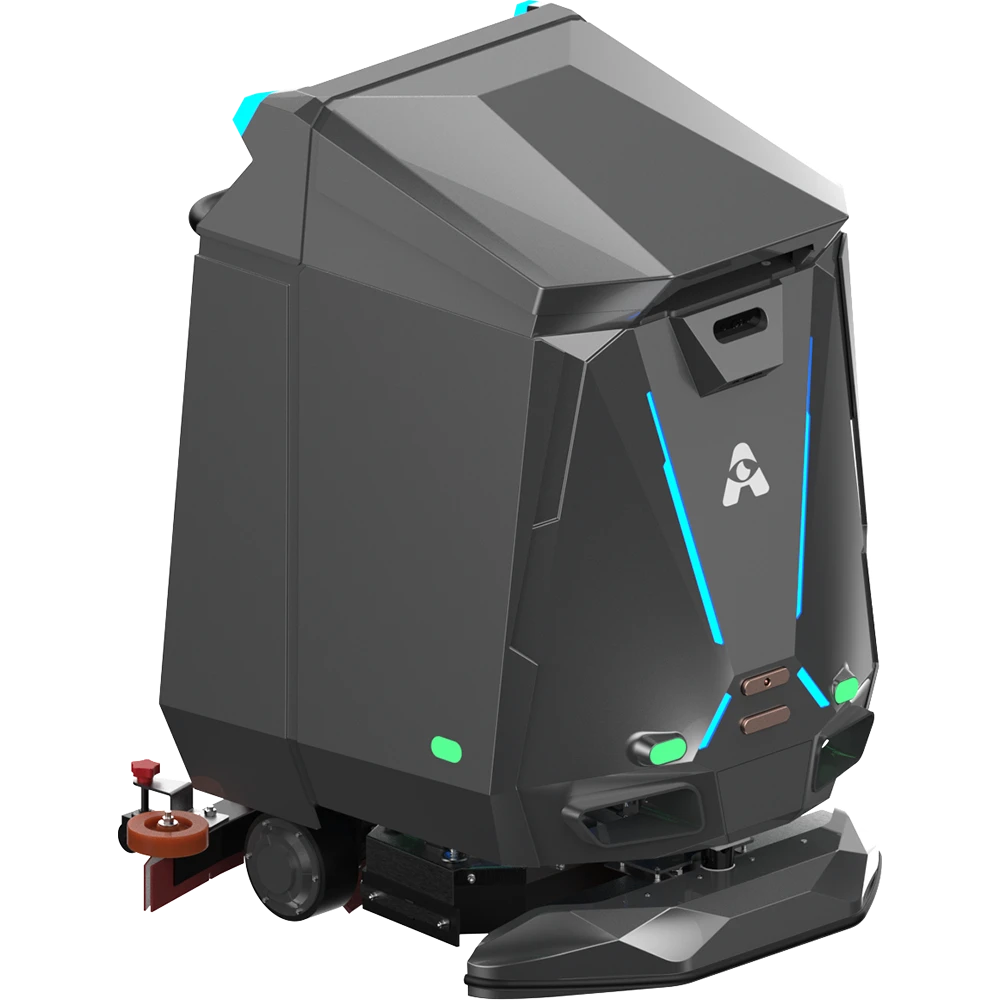

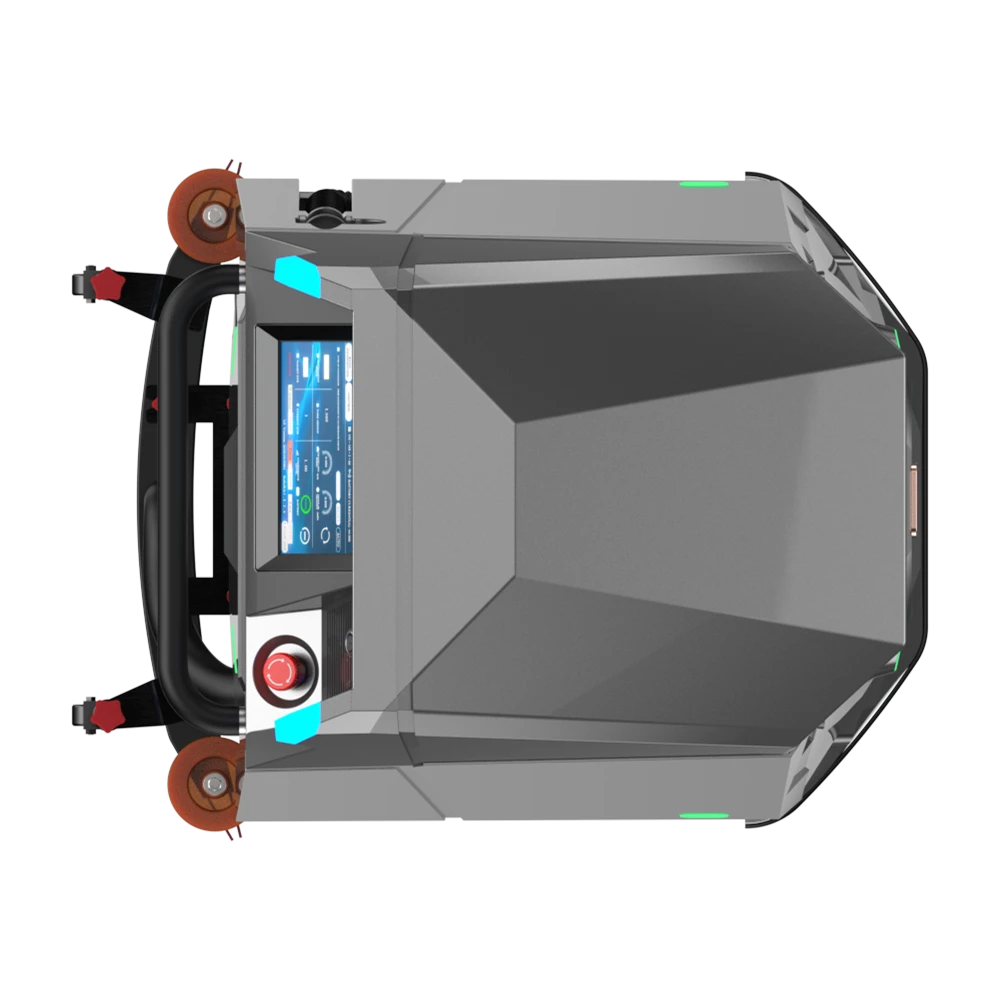

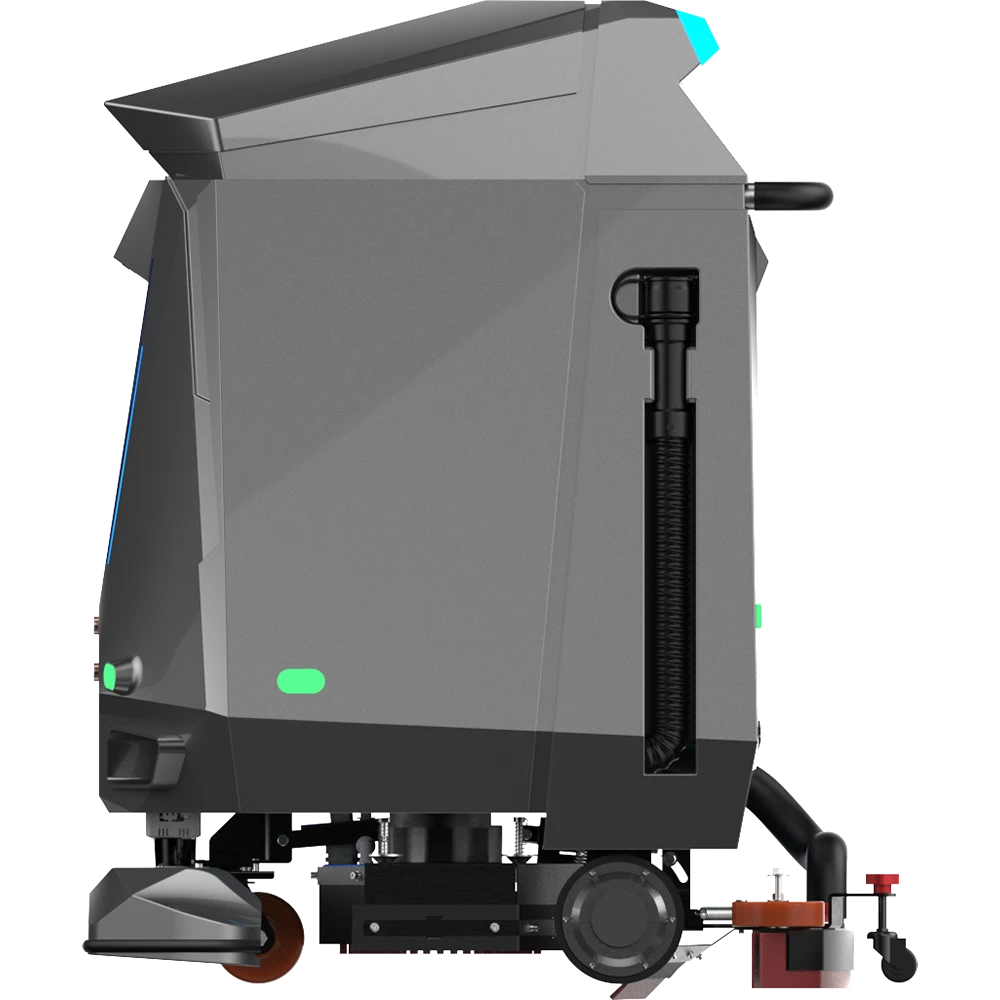

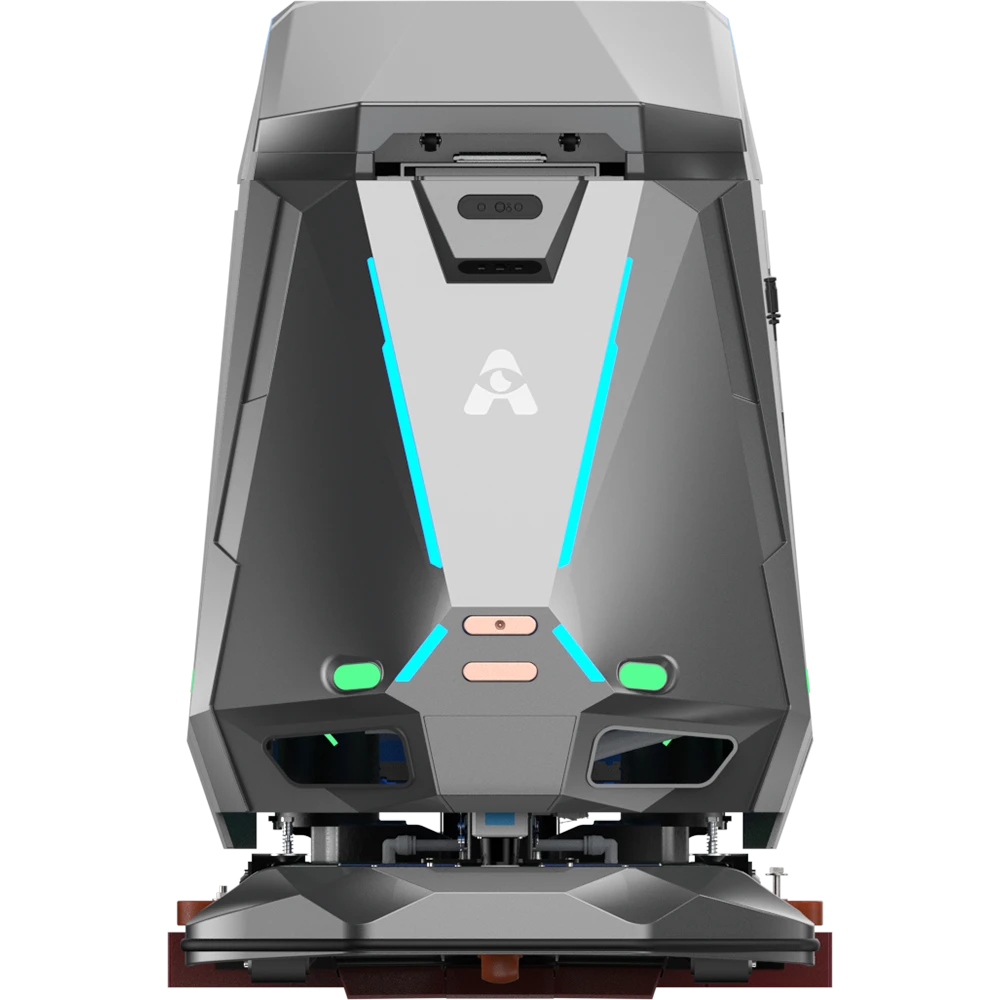

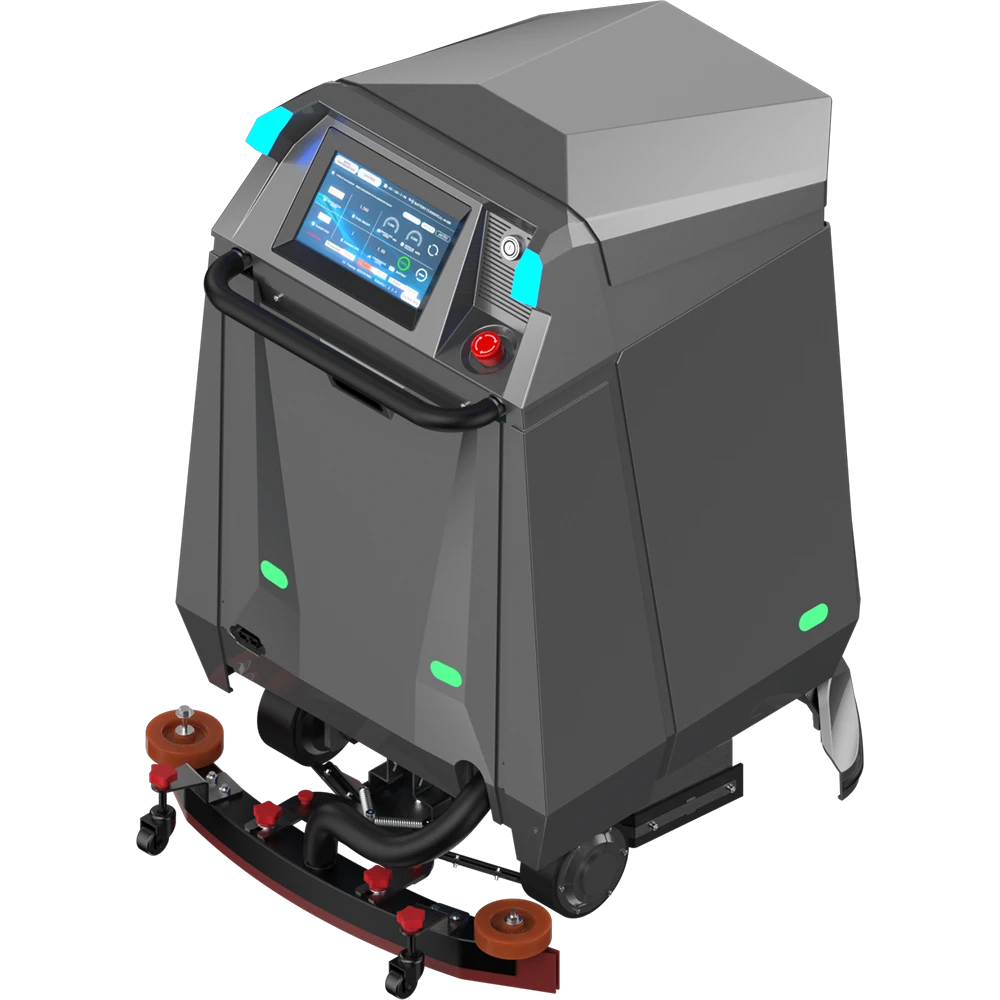

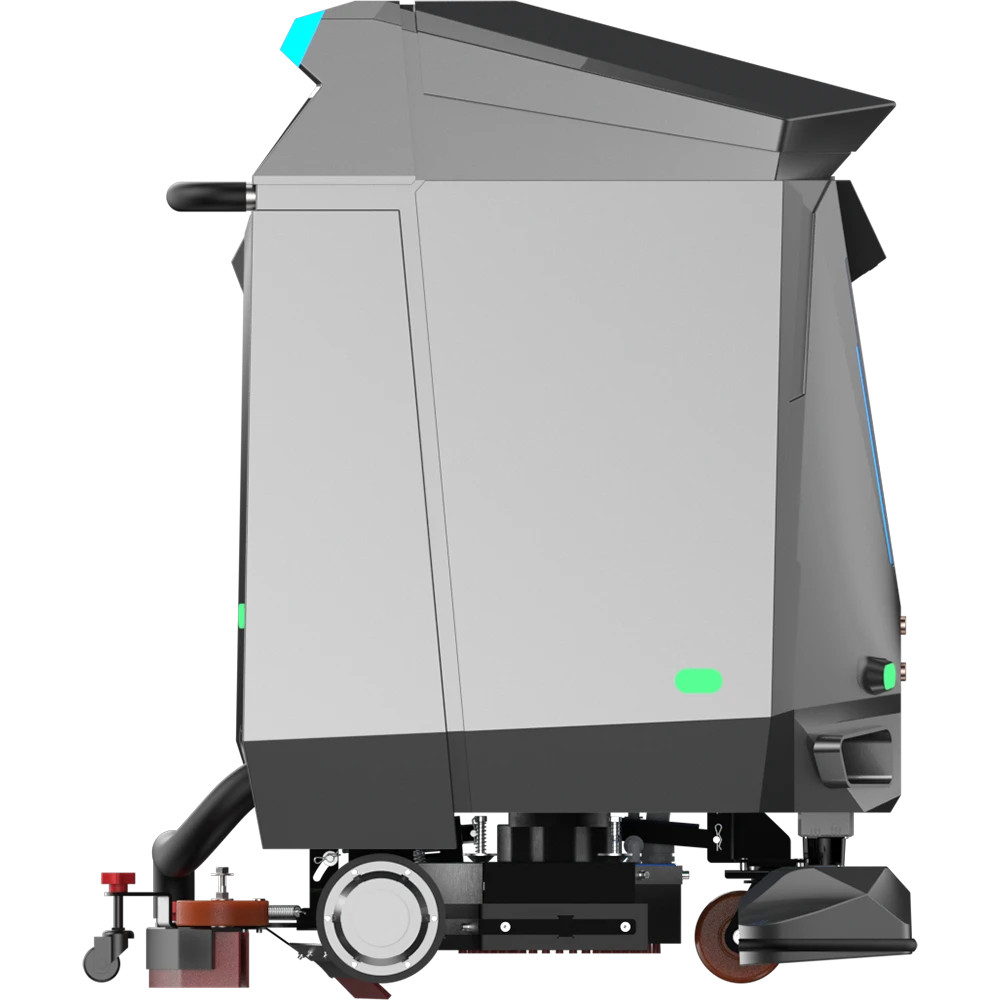

Laser SLAM
Cleaning Robot
CLR-500
Industrial Scenarios, Compact and Agile Exceptional Cleaning Power
CLR-500
140kg
Weight
< 70 dB
Noise
500 mm
Cleaning width
3.6km/h
Driving speed
Precision, punctuality, safety
Laser SLAM Cleaning Robot
Dramatically reduce costs and improve handling efficiency
Intelligent Management
The cleaning robot, perfectly integrated with our dispatching system (RDS), demonstrates a deep comprehension of industrial scenarios.
Enhanced Safety
With a combination of 3D camera and laser sensors, the robot can dynamically recognize obstacles, instantly stop, avoid obstacles, and prevent falling.
Superior Ground Adaptability
Equipped with a high-powered motor, it can effortlessly conquer 8° slopes.
1-Hour Rapid Charge
Powered by a robust 24V/50 Ah lithium battery, the robot is capable of reaching fullcharge in a swift one-hour span.
Experience Full Autonomy
Designed to autonomously complete recharging, fresh water refill, and wastewater discharge tasks.
Compact and Agile
With a minimum aisle width of 900 mm, mopping width of 500 mm, and dust pushing width of 670 mm, our cleaning robot ensures maximal efficiency in a compact size.
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Cleaning Robot |
| Navigation type | Laser SLAM |
| L × W × H | 900 × 676 × 1080 mm |
| Weight | 140 ± 10kg |
| Clean water tank capacity | 34 L |
| Dirty water tank capacity | 34 L |
| Network | Ethernet / Wi-Fi |
| Noise | < 70 dB(A) |
| Battery parameters | |
|---|---|
| Battery Specifications | 24 V / 50 Ah (lithium iron phosphate) |
| Charging time | 1 h |
| Comprehensive battery life | Dust push: 8h to 10 h / Mopping: 2 h to 4 h |
| Performance parameters | |
|---|---|
| Minimum aisle width | 900 mm |
| Cleaning width | 500 mm |
| Cleaning e ciency | Up to 2400 m² / h |
| Driving speed | 3.6 km / h |
| Cleaning distance along the edge | 10 cm to 20 cm |
| Maximum braking distance | < 20 cm (related to the ground material) |
| Passibility of slope | < 8° |
