Laser SLAM
Autonomous Pallet Truck
- 1.6-Ton Payload Capacity
- 880 mm vehicle width
- Accuracy up to ±10 mm
- 360° Safety Protection
FB-1600
1600 kg
Rated load capacity
600 mm
Load center distance
205 mm
Standard lifting height
Open pallet
Pallet type

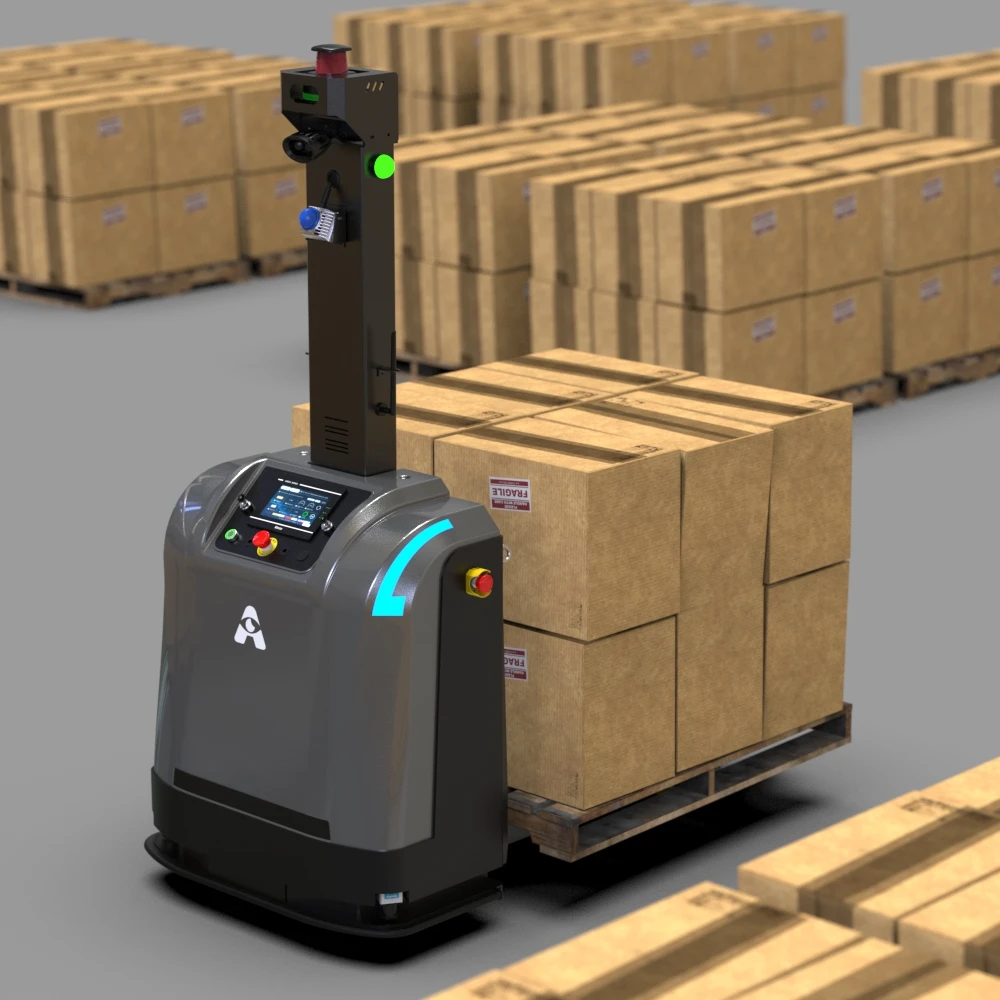

Small size big load
1600kg Capacity

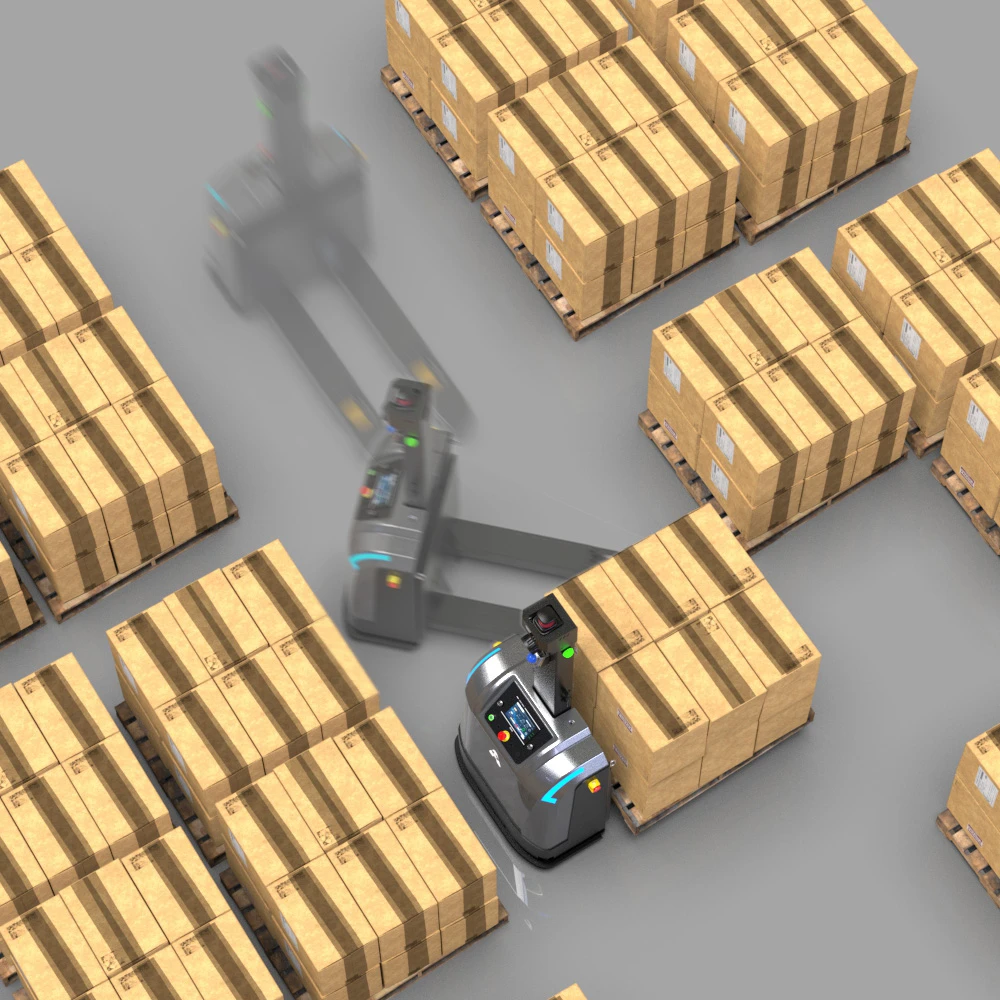

More flexibility for field applications
1329 mm turning radius
Precision, punctuality, safety

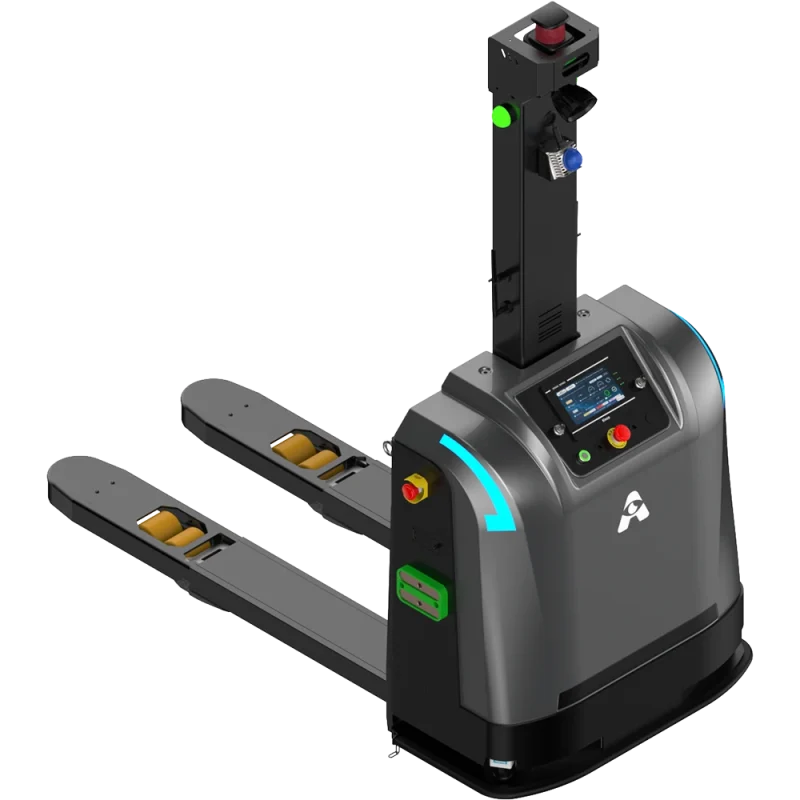

Laser SLAM Autonomous Pallet Truck
Dramatically reduce costs and improve handling efficiency
1.6 T Load Capacity with Slim-profile, Enhanced Precision and Stability
With a 1.6 tons load capacity and a compact vehicle width of just 880 mm, it offers a minimum turning radius of 1329 mm, making it perfect for narrow aisles. Featuring standard servo drive and steering, dual-spring shock absorbers on the drive wheels, and enhanced hydraulic cylinders, it delivers superior stability and precision, eliminating slipping concerns.

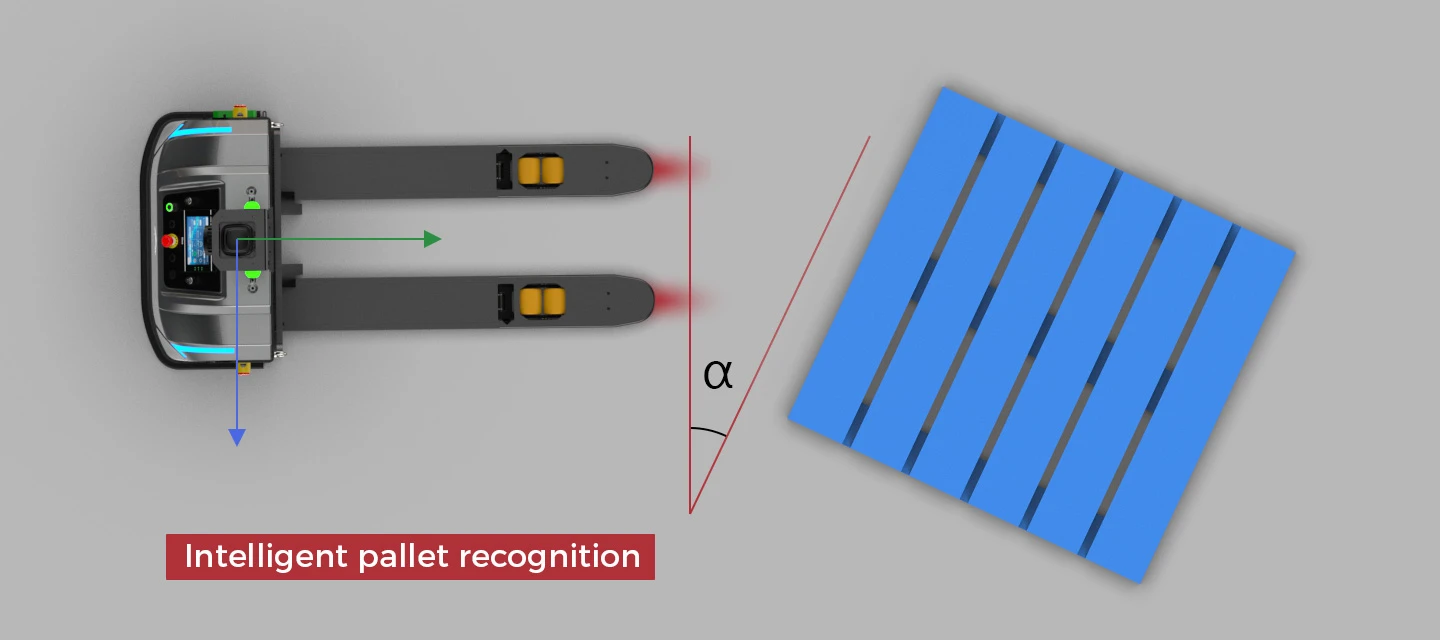

AI Deep Learning, Improved Recognition Ability
Based on AI deep learning, it boasts the capability to recognize pallets and racks in different colors and sizes with unparalleled precision and adaptability from multiple angles. Experience seamless and stable handling and transfer of goods.
Rich Options, Tailored to Your Needs
Choose from a variety of laser navigations, pallet recognition, and 3D obstacle avoidance features. Tailor the fork width between 550 to 680 mm, and the fork length between 950 to 1500 mm. personalize it with your own logo integration.
3 Navigation Options, Accuracy up to ±10 mm
Harnessing the power of SLAM, reflector, and NFL navigation modes, offering a remarkable ±10 mm positioning accuracy, it effortlessly caters to diverse business navigation needs, including secondary positioning, high dynamic environments, and non-modified environments.
Multiple Sensors, 360° Safety Protection
Equipped with dual obstacle avoidance lasers, photoelectric sensors in fork tips, and bumper strips as standard features. Optional 360° comprehensive safety protection lasers ensure the safety of human-machine interaction scenarios.
AI adaptive recognition and fork lifting
obstacle avoidance and ensure safety
360° Protect
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Autonomous Pallet Truck |
| Operation type | Automatic navigation |
| Navigation type | Laser SLAM |
| Pallet type | Open pallet |
| Rated load capacity | 1600 kg |
| Load center distance | 600 mm |
| Weight (with battery) | 460 kg |
| Standard lifting height | 205±5 mm |
| Forklift dimensions: L × W × H | 1681 × 880 ×1896 mm |
| Fork dimensions: L × W × H | 1220 × 173 × 60 mm |
| Fork outer width | 600 / 680 mm |
| Minimum turning radius | 1329 mm |
| Performance parameters | |
|---|---|
| Driving speed: full load / no load | 1.5 / 1.8 m/s |
| Passability (slope / step / gap) | ＜ 5% / 10 mm / 30 mm |
| Navigation position accuracy | ±10 mm |
| Navigation angle accuracy | ±1° |
| Battery parameters | |
|---|---|
| Battery specifications | 51.2 V / 40 Ah（lithium iron phosphate) |
| Comprehensive Battery life | 8 h |
| Charging time （10% to 80% ） | 1 h (Automatic charging) |
| Charging method | Manual / Automatic |
| Function configurations | |
|---|---|
| Lidar number | 1 (H1) + 2 (H2) |
| Wi-Fi roaming | ● |
| 3D obstacle avoidance | ○ |
| Pallet recognition | ○ |
| HMI display | ● |
| Safety configurations | |
|---|---|
| E-stop button | ● |
| Sound and light indicator | ● |
| Braking distance: 1m/s / 1.5 m/s | ≤ 30 cm / ≤ 50cm |
| 360° laser protection | ○ |
| Bumper strip | ● |
| Fork height protection | ● |
