Laser SLAM
Stacking Smart Forklift AMR Series
- AI-Enhanced Precision
- Ultra-Compact Footprint
- Hybrid Agility
- Scalable Efficiency

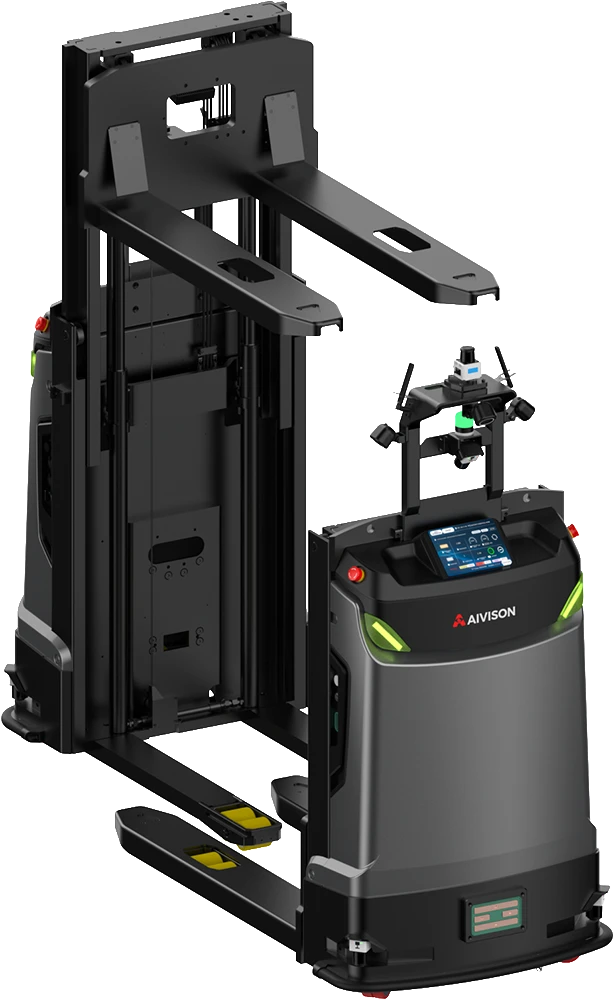

FM-H Series
1500/2000 kg
Rated load capacity
600 mm
Load center distance
1600 mm
Standard lifting height
Open pallet
Pallet type
Hybrid Flexibility

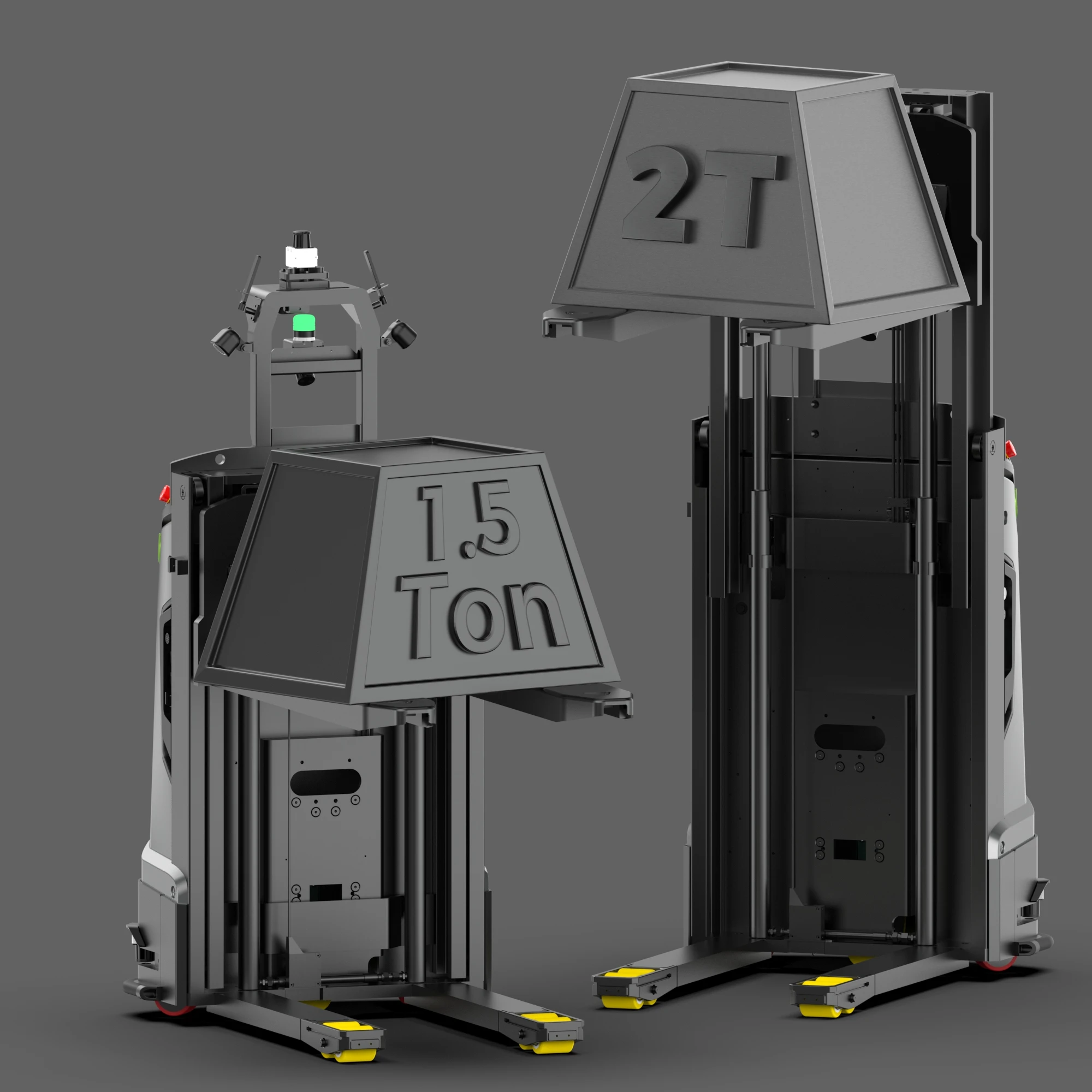

1500kg/2000kg Payload Capacity
Designed for heavy-duty stacking tasks, the FM series provides robust payload options of 1.5T (FM-1500H) and 2T (FM-2000H), ideal for manufacturing plants, bulk material warehouses, and large-scale distribution centers.
Hybrid Flexibility
Tri-LiDAR Adaptive Navigation
- 3 Laser Radars:
- 2 front-facing side radars (mounted at the chassis’s lower sides) for detecting obstacles in lateral blind zones.
- 1 top-mounted radar (angled downward) to monitor frontal ground areas.
- Coverage: 360° environmental perception, with a ±10cm accuracy, ensuring safe operation in narrow aisles and dynamic environments.
Precision, punctuality, safety
Stacking Smart Forklift AMR Series
Dramatically reduce costs and improve handling efficiency
Clustered Dispatching
The Handling robot supports multi-machine collaborative operation. The dispatching system has been customized specifically for the Handling robot.
High-Performance Battery System
The robot features autonomous charging and continuous 24/7 operation with long-lasting
endurance. A single charge supports up to 8 hours of operation.
Standard Physical Anti-Collision Device
The Robot comes with standard
multi-dimensional safety protection hardware. Its detection range reaches up to 30 meters, with a safety distance of up to 5 meters.
Tote Recognition (Optional)
The Handling robot can be optionally equipped with an end-assist positioning system to significantly improve the efficiency of placing items at the robot’s end.
10 h Endurance, 3-min Fast Battery Swap
The robot uses multi-sensor fusion technology to accurately identify the precise location of materials.
Hybrid Flexibility
Stacking Performance & Scenarios
- Stacking Height: 1600 mm for efficient low-to-medium rack access.
- Typical Applications:
- Factory Material Handling: Loading/unfeeding production lines with bulk components (e.g., automotive assembly).
- Retail Logistics: Transporting palletized goods in backstock areas with limited vertical space.
- Cross-Docking: Rapid transfer of standardized pallets between trucks and staging zones.
Hybrid Flexibility
AI-Driven Pallet Recognition System
Combines deep learning algorithms and 3D cameras to:
- Autonomously identify pallet positions and orientations, even if skewed or misplaced.
- Auto-correct fork alignment to compensate for non-standard placement (e.g., shifted cargo or tilted pallets), reducing manual intervention by 70%.
Hybrid Flexibility
Compact Design & Maneuverability
- Dimensions: 1635 × 990 × 1590 mm (optimized for confined spaces).
- Minimum Turning Radius: 1160 mm, enabling agile U-turns in high-density layouts.
- Adjustable Fork Width: 570mm / 680mm to accommodate common pallet types (e.g., EUR, ISO industrial pallets).
Fleet Management System
manage dispatching system for mobile robots and factory automation logistics equipment in a unified manner.
Get Rid of Empty Load Anxiety
Consider Hitchhiking and Pre-order Task Dispatching
High Adaptation
Dynamic Global Collaborative Planning
What You See is What You Operate
Panoramic Business And Scheduling Simulation
Keep Track of The Whole Progress
Visualisation of The Task Process
Intuitive and Simple UI Interaction
Mobile Terminal APP Configu ration Customisation
Easy to Handle
Robot Alert Handling
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | ||
|---|---|---|
| Rated load capacity | 1500 kg | 2000 kg |
| Load center distance | 600 mm | 600 mm |
| Standard lifting height | 1600 mm | 1600 mm |
| Fork outer width | 570 / 680 mm | 570 / 680 mm |
| Minimum Turning Radius | 1160 mm | 1160 mm |
| Right-angle stacking aisle width | 1985 mm | 1985 mm |
| Minimum Ground Clearance | 30 mm | 30 mm |
| Forklift dimensions: L × W × H | 1635 × 990 × 1590 mm | 1635 × 990 × 1590 mm |
| Fork dimensions: L × W × H | 1150 × 180 × 70 mm | 1150 × 180 × 70 mm |
| Maximum Climbing Capacity ( full load / no load ) | 10% / 5% | 10% / 5% |
| Operating Speed | 1.5 m/s / 1.0 m/s | 1.5 m/s / 1.0 m/s |
| Navigation type | Laser SLAM | Laser SLAM |
| Navigation position accuracy | ±10 mm | ±10 mm |
| Safety Distance | 5 m | 5 m |
| Battery specifications | 24V / 60Ah | 24V / 150Ah |
| Communication Module | WiFi 2.4G / 5.8G | WiFi 2.4G / 5.8G |
