Laser SLAM
Counterbalanced Autonomous Forklift
FP-2000
Compactin Size, yet capable of carring 2T Load
Load Type：
FP-2000
2000 kg
Rated load capacity
500 mm
Load center distance
3000 mm
Standard lifting height
Open pallet / Closed pallet
Pallet type
Precision, punctuality, safety

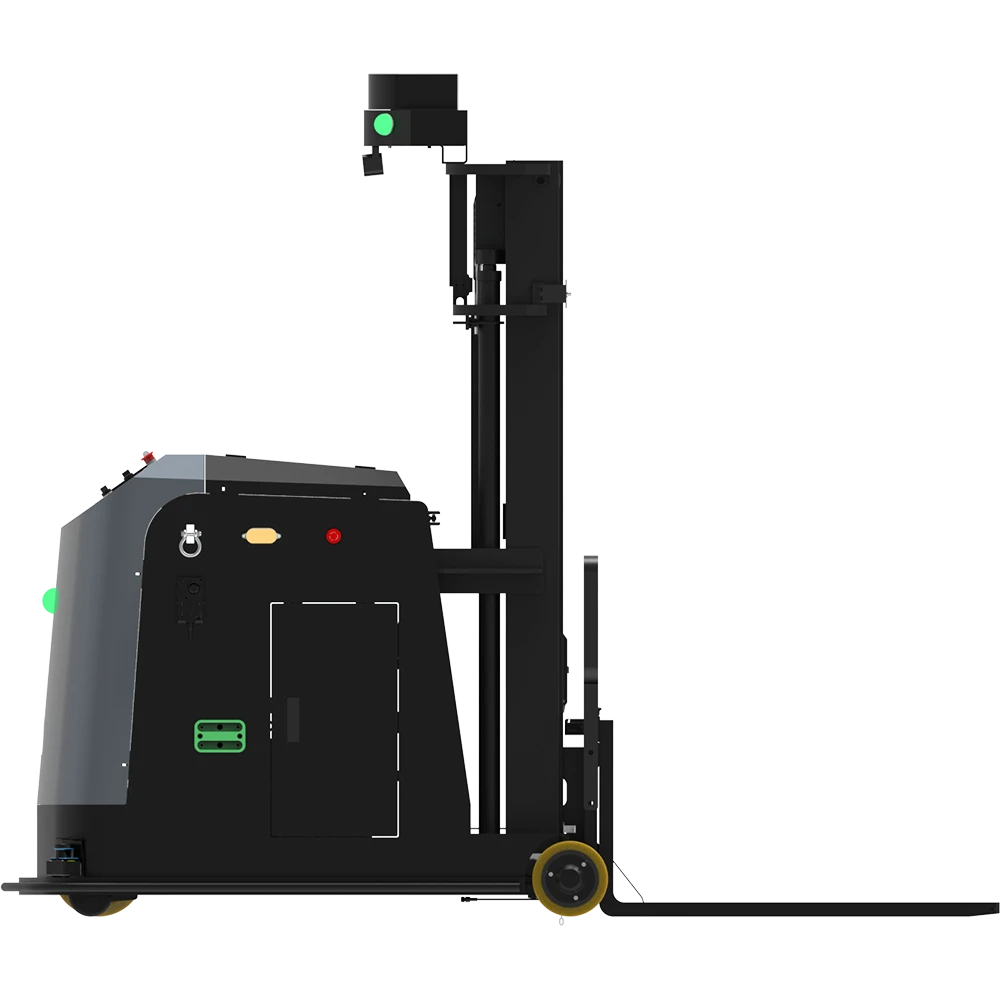

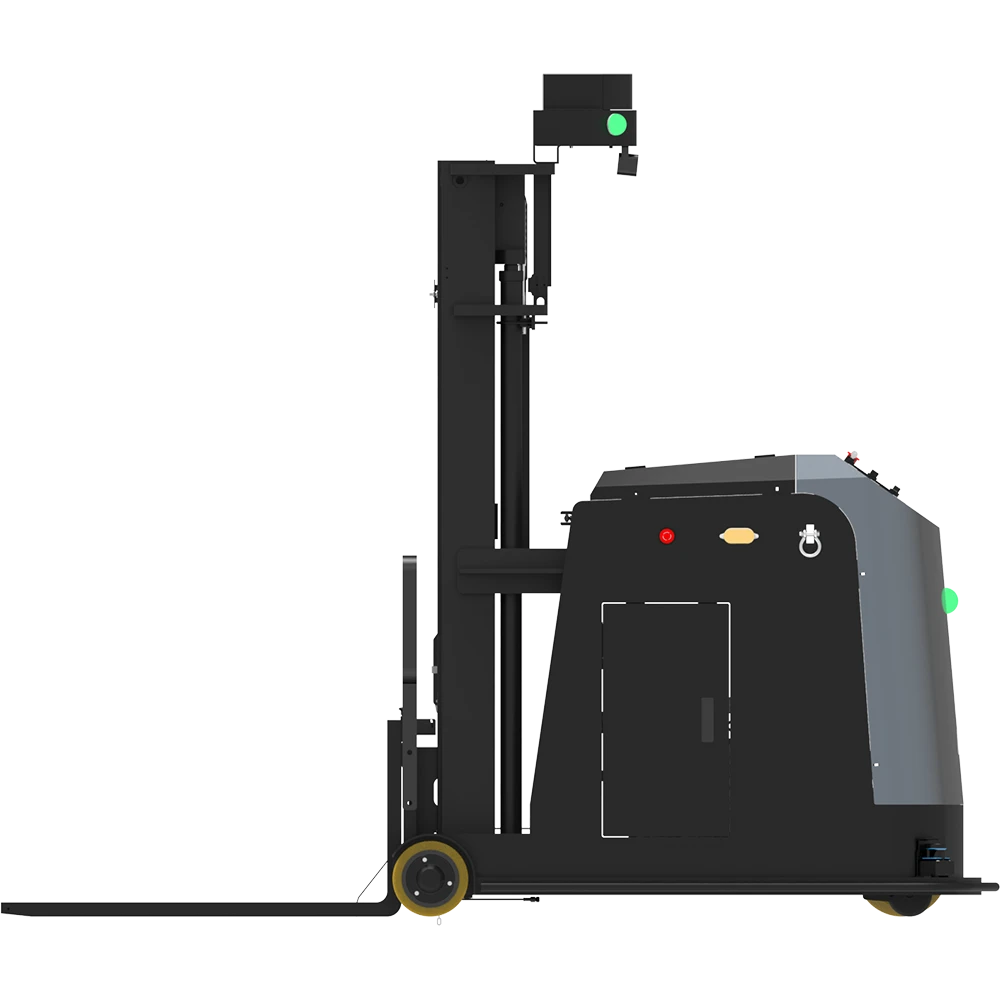

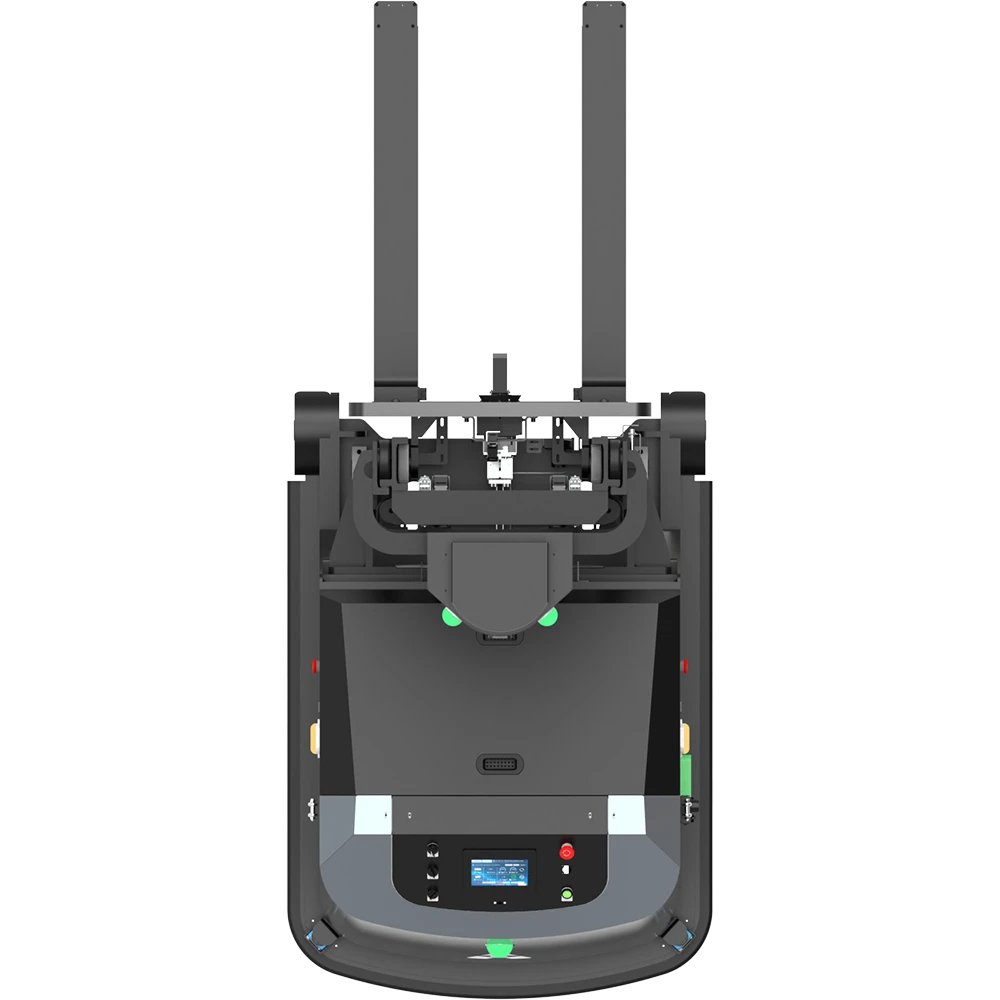

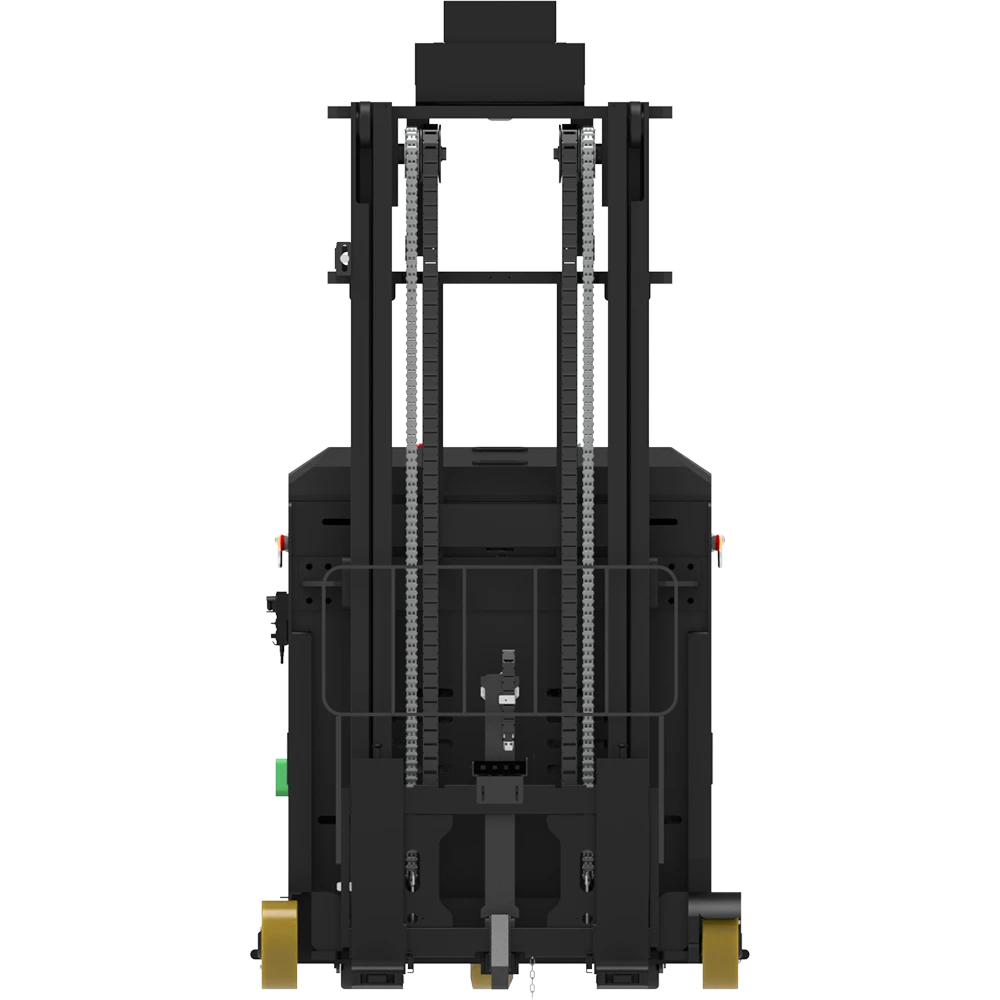

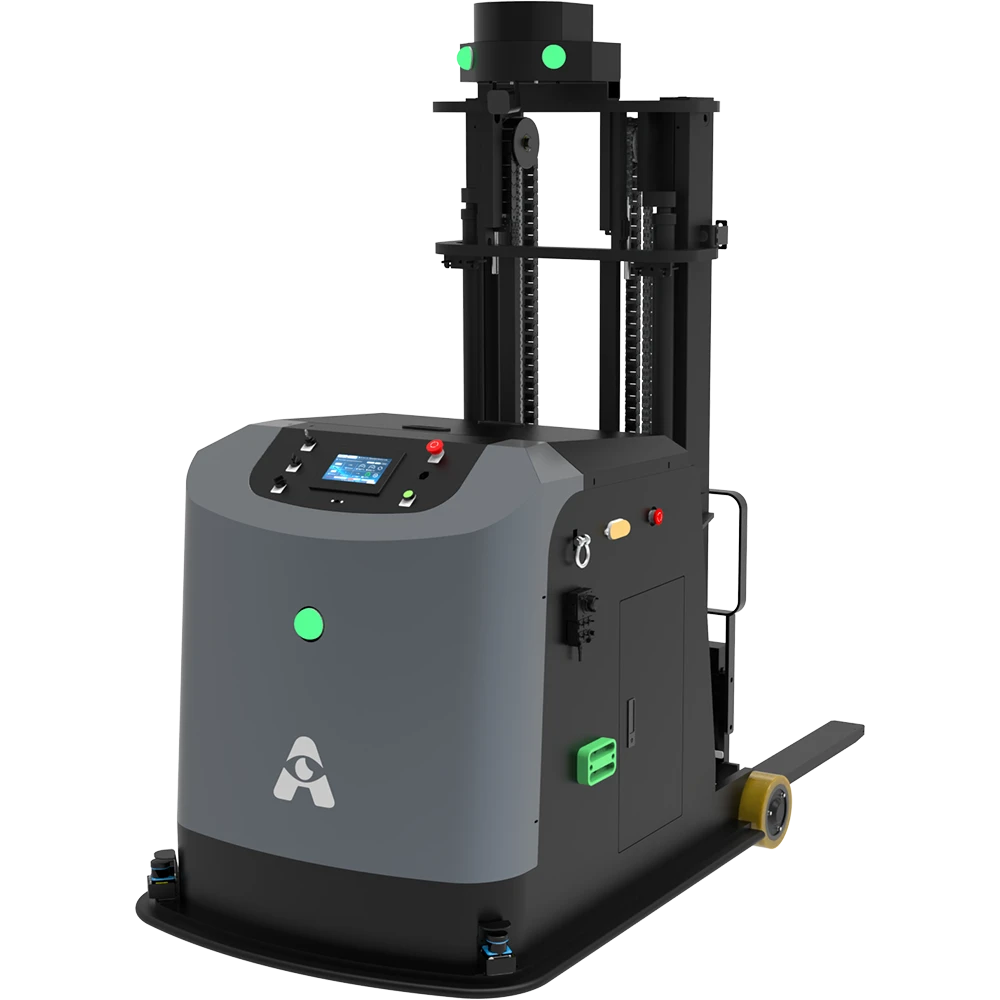

Laser SLAM Counterbalanced Autonomous Forklift
Dramatically reduce costs and improve handling efficiency
Ultrasonic Detection, Safe Stacking
Ultrasonic technology detects the separation status between goods and forks in real-time, ensuring safe and secure stacking.
1180 mm Narrow AMR Width, 2 T High Load Capacity
With an AMR width of only 1180 mm and a minimum turning radius of 1577 mm, our robot boasts a remarkable load capacity of 2T. Standing at a standard height of 3 m, it can even be customized to 4 m.
Battery Replacement in 2 Minutes, Fast Charging in 2 Hours
Empower beginners to effortlessly replace the battery in 2 minutes, ensuring worry-free endurance. Equipped with a 24V/200 Ah battery, it guarantees an impressive 6-hour long endurance. Moreover, the 24V fast charging station can fully charge the robot in just 2 hours.
Adjust Fork Width for Different Carriers
Manually adjustable fork width ranges from 250 mm to 700 mm, making it suitable for multiple types of carriers. Our forklift can accurately recognize pallets, shelves, and cages of different sizes and types.
40 m Detection Range, 4-layer Safety Protection
The 40 m detection range provides a broader vision and enhanced safety. Equipped with 3D obstacle avoidance laser, safety edge sensor, distance sensor, and hardware self-checks, our robot offers you unparalleled 4-layer safety protection.
Flexible Customization with 4 Options
Supports customization of fork width, robot height color and logo. Tailor-made to meet the diverse re-quirements of your unique business scenarios.
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Counterbalanced Autonomous Forklift |
| Operation type | Automatic navigation, by manual control device |
| Navigation type | Laser SLAM |
| Pallet type | Open pallet / Closed pallet |
| Rated load capacity | 2000 kg |
| Load center distance | 500 mm |
| Weight (with battery) | 2675 kg |
| Standard lifting height | 3000 mm |
| Forklift dimensions: L × W × H | 2767 × 1180 × 2235 mm |
| Fork dimensions: L × W × H | 1070 × 122 × 40 mm |
| Fork outer width | 250 mm~700 mm |
| Minimum turning radius | 1577 mm |
| Performance parameters | |
|---|---|
| Driving speed: full load / no load | 1.5 m/s |
| Passability (slope / step / gap) | ＜ 5% / 10 mm / 30 mm |
| Navigation position accuracy | ±10 mm |
| Navigation angle accuracy | ±1° |
| Battery parameters | |
|---|---|
| Battery specifications | 24 V / 200 Ah (lithium iron phosphate) |
| Comprehensive Battery life | 6 h |
| Charging time （10% to 80% ） | 2 h |
| Charging method | Manual / Automatic |
| Function configurations | |
|---|---|
| Lidar number | 1 (P+F R2000 / FREE H1) + 3(FREE C2) |
| Wi-Fi roaming | ● |
| 3D obstacle avoidance | ○ |
| Pallet recognition | ● |
| Cage stack | ○ |
| High shelf pallet recognition | ○ |
| Pallet stack | ○ |
| HMI display | ● |
| Safety configurations | |
|---|---|
| E-stop button | ● |
| Sound and light indicator | ● |
| Braking distance: 1m/s / 1.5 m/s | ≤30 cm / ≤50 cm |
| 360° laser protection | ● |
| Bumper strip | ● |
| Fork height protection | ● |
