J-500S(CE)
500 kg
Load Capacity
1250mm
Rotation Diameter
Standard Lifting
Jacking Type
Two-wheel differentil
Drive Mode
Precision, punctuality, safety

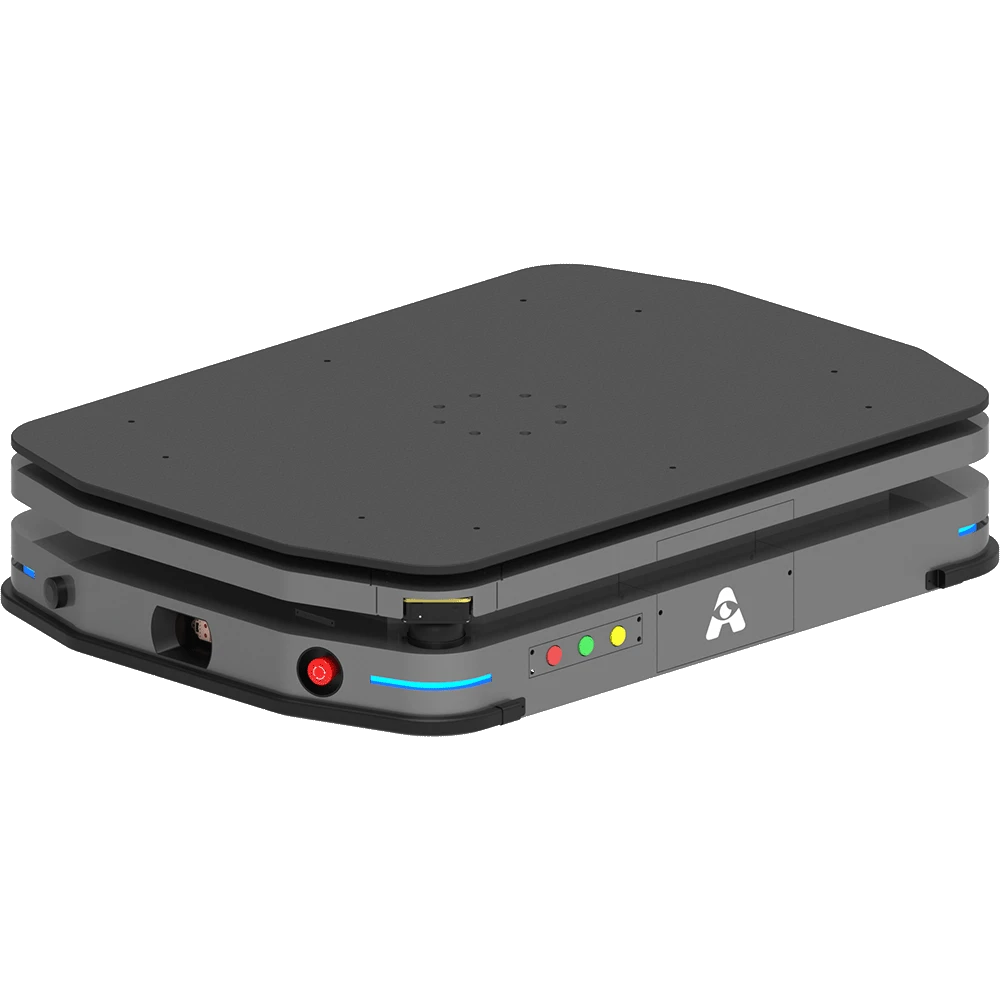

Laser SLAM Safety Lifting Robot
Dramatically reduce costs and improve handling efficiency
CE Safety Certified, Outstanding Performance & Excellent Safety Standard by Design
Obtion CE certification (ISO 3691-4:2020) and other certifications.
±5 mm Accuracy, Laser SLAM Navigation
SLAM navigation accuracy of ±5 mm, without reflectors.
Two Load Capacity of 500 kg
Optional 500 kg load models, catering to the load requirements in multiple scenarios.
Charge 1 h, Full-loaded Endurance 8 h
The charging pile is optional for 40 A quick charge, 1 hours of charging for 8 hours of running.
Single-sided ≥7 cm Wide Area Rack Identification
With unilateral ≥7 cm distance wide, the AGV could accurately recognize the rack, adjust its position, and drive precisely into it, successfully lift the goods.
All-Metal Body Shell
A body crafted entirely from metal, designed to withstand increased loads while safeguarding internal components.
Add Your Heading Text Here
The surface of the jacking platform is designed with anti-slip pads to ensure smooth and secure transportation of goods.
Diagonally Dual SLAM Navigation
Achieving a repeated positioning accuracy up to ±5mm.
2 × Safety Laser Scanners
- 3 meter protective field range;
- 10 meter warning field range;
- 8 fields, 275 degree scanning angle;
- 24VDC supply voltage simple, space-saving design for mobile platforms;
- Fast and cost-efficient mounting and commissioning.
Flexible Moving
Minimum aisle width: 700 millimeter
Fleet Management System
manage dispatching system for mobile robots and factory automation logistics equipment in a unified manner.
Get Rid of Empty Load Anxiety
Consider Hitchhiking and Pre-order Task Dispatching
High Adaptation
Dynamic Global Collaborative Planning
What You See is What You Operate
Panoramic Business And Scheduling Simulation
Keep Track of The Whole Progress
Visualisation of The Task Process
Intuitive and Simple UI Interaction
Mobile Terminal APP Configu ration Customisation
Easy to Handle
Robot Alert Handling
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Safety Lifting Robot |
| Navigationtype | Laser SLAM |
| L × W × H | 1050 × 750 × 290 mm |
| Rotation diamete | 1250 mm |
| Weight (with battery) | 260 kg |
| Maximum load capacity | 500 kg |
| Chassis ground clearance | 30 mm |
| Lifting platform dimensions | 1050 × 750 mm |
| Maximum lifting height | 60 ± 1 mm |
| Navigation laser scanning height | 175 mm (H1) |
| Performance parameters | |
|---|---|
| Passability (slope / step / gap) | ≤ 5% / 5 mm / 10 mm |
| Minimum aisle width | 700 mm |
| Navigation Position accuracy | ±5 mm |
| Navigation angle accuracy | ±1° |
| Driving speed | ≤1.5 m/s |
| Battery parameters | |
|---|---|
| Battery specifications | 48 V / 40 Ah（lithium iron phosphate) |
| Comprehensive Battery life | 8-10 h |
| Charging time （10% to 80% ） | ≤2 h |
| Charging method | Manual / Automatic |
| Configurations | |
|---|---|
| Lidar number | 2(SICK nanoScan3) |
| E-stop button | ● |
| Speaker | ● |
| Ambient lamp | ● |
| Bumper strip | ● |
| Function configurations | |
|---|---|
| Basic functions | ● |
| Wi-fi roaming | ● |
| Automatic charging | ● |
| Shelf recognition | ● |
| Laser reflector navigation | ○ |
