Laser SLAM
Rotary Lifting Robot
JX-600/1000
PowerfulPerformance, Unmatched Valur for Money
Load Type：
JX-600/1000
600/1000kg
Load Capacity
1015mm
Rotation Diameter
Rotary Lifting
Jacking Type
Two-wheel differentil
Drive Mode
Precision, punctuality, safety
Laser SLAM Rotary Lifting Robot
Dramatically reduce costs and improve handling efficiency

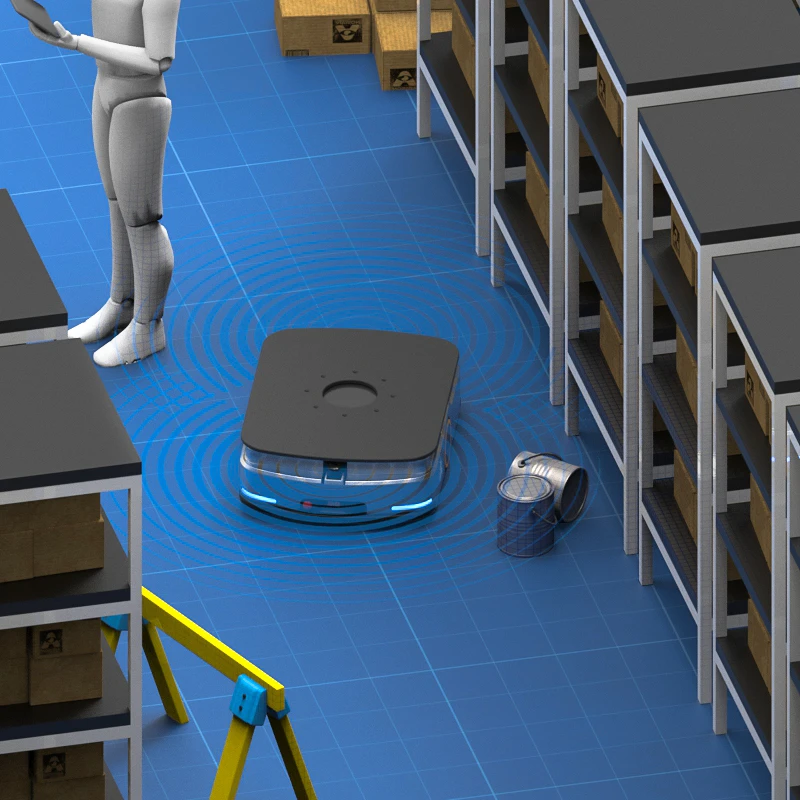

Dual Laser: Double the Reliability and Safety
Equipped with advanced navigation laser at the front and obstacle avoidance laser at the rear, our robot ensures a safety operation experience like never before.
3 Types of Navigation, High Precision Up to ±5 mm
Positioning accuracy can reach ±5 mm. Supports multiple navigation method, such as SLAM, QR code and laser reflector. It adapts to various scenarios with the perfect navigation solution.
Unmatched Speed and Efficiency at 2 m/s
Maximum running speed of 1.5 m/s when fully loaded, and 2 m/s when unloaded.

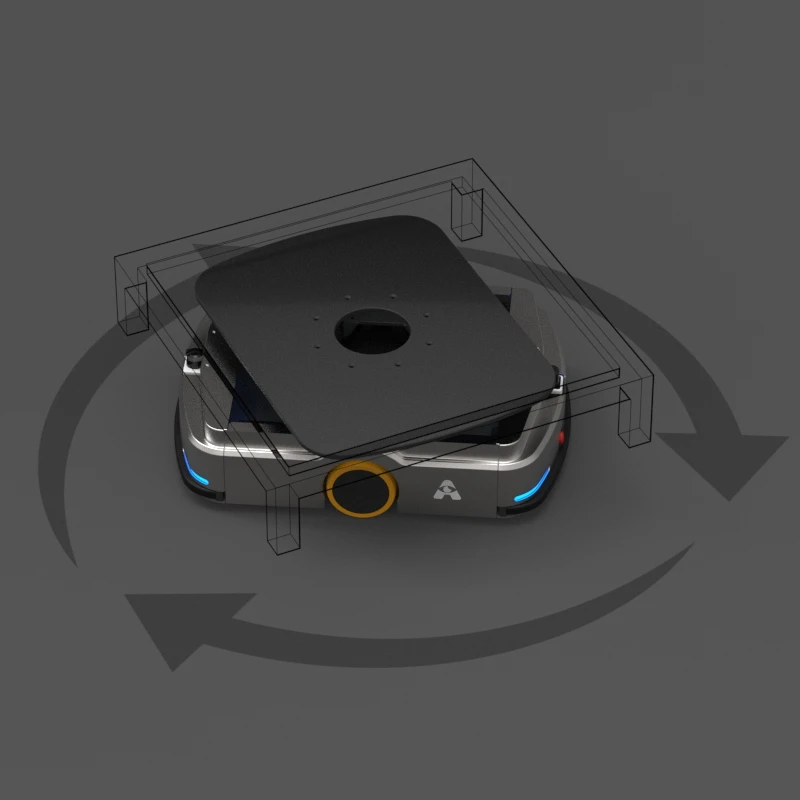

Spin Function: Flexibility for Pick-up, Drop-off and Handling
The AMR body and lifting plate can rotate separately, it effortlessly navigates in tight spaces, such as narrow aisles and densely packed shelves.

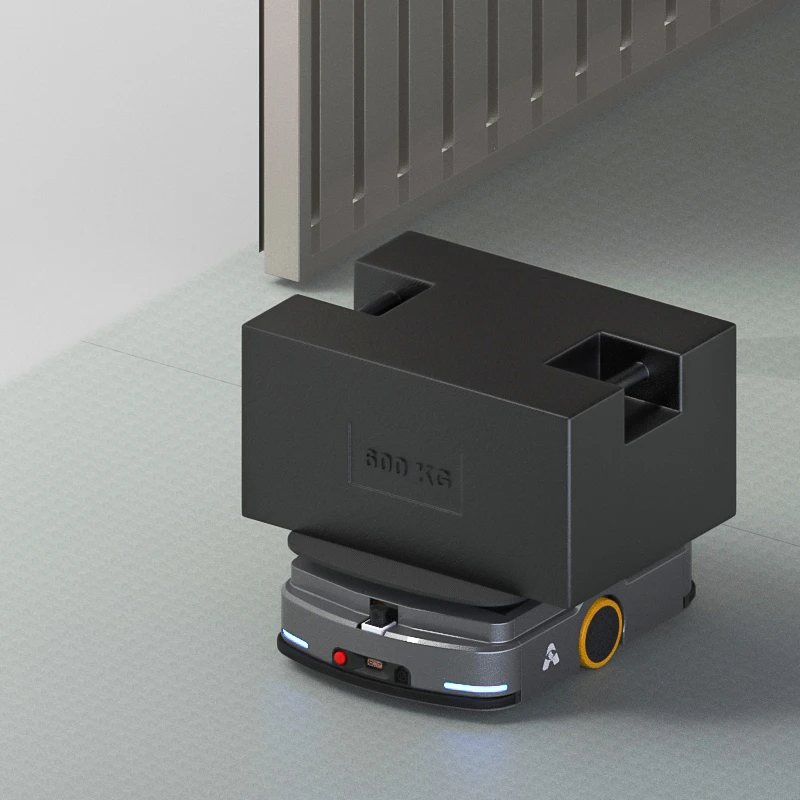

Effortlessly Handle 600 kg: Conquer Heavy Lifting with Ease
With a remarkable load capacity of 600 kg, our compact-sized robot effortlessly tackles various transportation needs of different scenarios, from e-commerce sorting to material handling and even call feeding.
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Rotary Lifting Robot |
| Navigationtype | Laser SLAM |
| L × W × H | 950 × 650 × 250 mm |
| Rotation diamete | 1015 mm |
| Weight (with battery) | 170 kg |
| Maximum load capacity | 600 / 1000 kg |
| Chassis ground clearance | 25 mm |
| Lifting platform dimensions | 850 × 650 mm |
| Maximum lifting height | 60 ± 2 mm |
| Navigation laser scanning height | 194 mm (H1) |
| Performance parameters | |
|---|---|
| Passability (slope / step / gap) | ≤ 5% / 5 mm / 30 mm |
| Minimum aisle width | 790 mm |
| Navigation Position accuracy | ±5 mm |
| Navigation angle accuracy | ±0.5° |
| Driving speed | ≤1.5 m/s |
| Battery parameters | |
|---|---|
| Battery specifications | 48 V / 24 Ah（lithium iron phosphate) |
| Comprehensive Battery life | 8 h |
| Charging time （10% to 80% ） | ≤2 h |
| Charging method | Manual / Automatic |
| Configurations | |
|---|---|
| Lidar number | 1 (H1)+1 (C2) |
| E-stop button | ● |
| Speaker | ● |
| Ambient lamp | ● |
| Bumper strip | ● |
| Function configurations | |
|---|---|
| Basic functions | ● |
| Wi-fi roaming | ● |
| Automatic charging | ● |

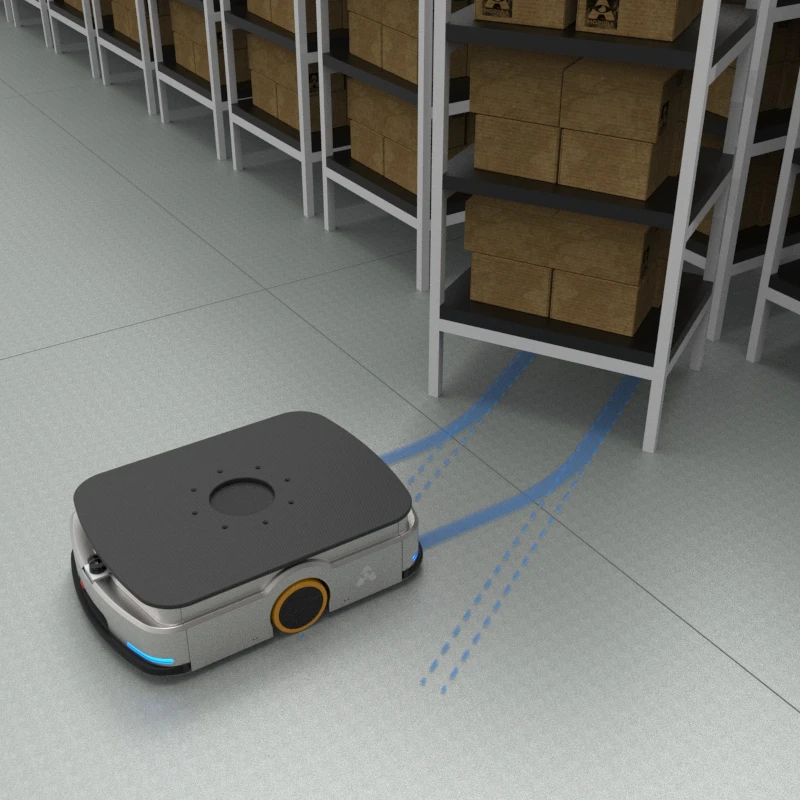

| Shelf recognition | ● |
| Spin function | ● |
| Precise positioning with QR code | ○ |
| QR code navigation | ○ |
| Laser reflector navigation | ○ |
