Intelligent
Sorting Robot
- Highly efficient access, with in/out efficiency of up to 120 boxes/hour.
- Intensive storage with rack heights up to 25 meters.
- First-in, first-out, pick-and-go access.
- Automatic in and out, automatic inventory.

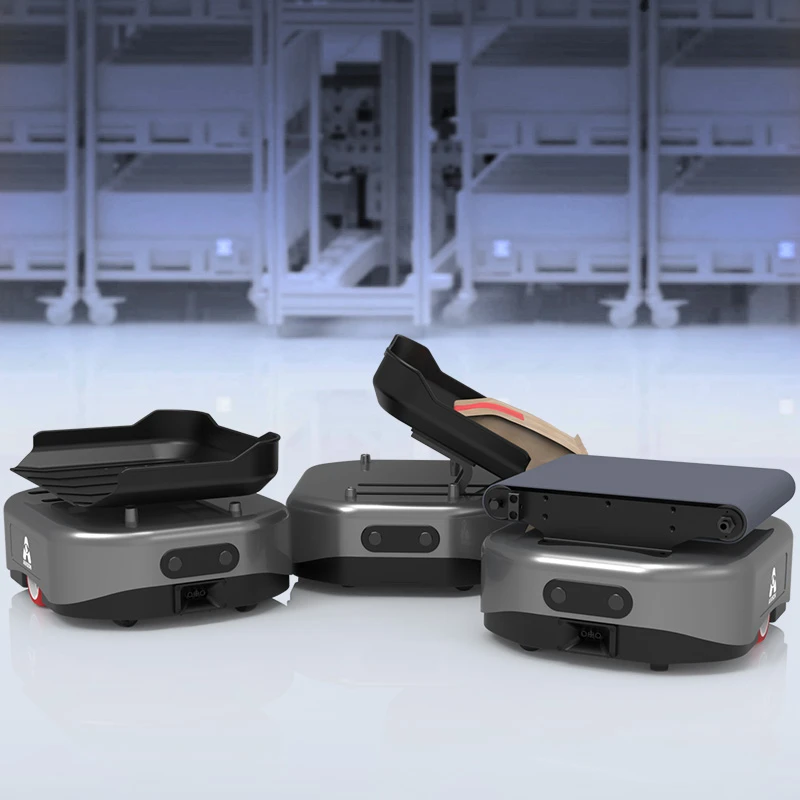

Sorting Robot
5 kg
Rated load capacity
480 mm
Rotated diameter
45°-75°
Tray flip angle
2 m/s
Travelling speed

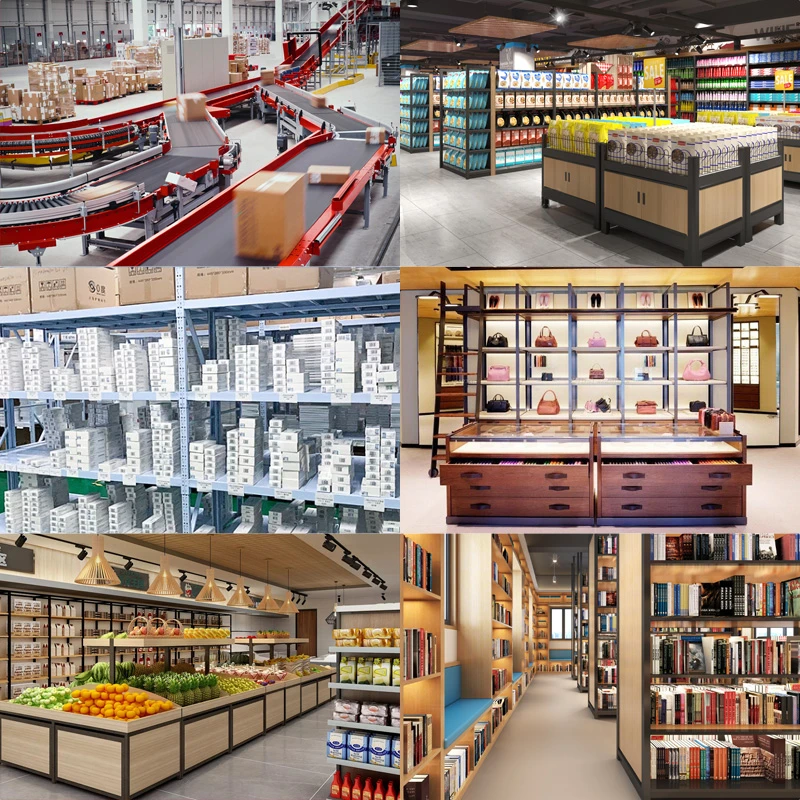

Applied industries
E-commerce
Express
Shoes & apparels
Books
Pearls & jewels
Supermarket

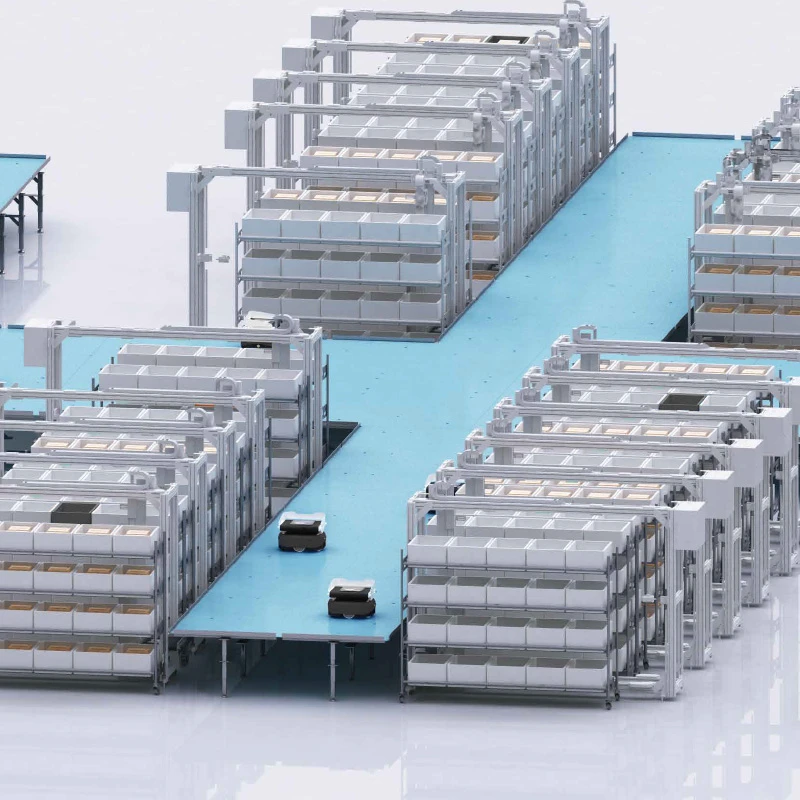

Applied scenes
- Selection of small and medium-sized/irregular packaging items
- Various business scenarios such as
- Efficient sorting of hot/fast-moving consumer goods
- The picking volume fluctuates greatly between peaks and valleys
- Limited working space
Precision, punctuality, safety
AIVISON Intelligent Sorting Robot
Dramatically reduce costs and improve handling efficiency
High efficiency
With up to 30000 sorting destinations, AGV carts and 3D sorting machines work together, achieving a sorting accuracy rate of up to 99.99%
High flexibility
Highly modular design, customizable design layout according to customer needs, and increasing or decreasing the number of AGV cars according to peak and off seasons.
High return
Low equipment investment, high system stability, and short investment payback period.
Fast delivery
The production installation and debugging cycle is short, and remote debugging is possible.
Space saving
The system occupies a small space and can choose single-layer, double-layer, and three-layer AGV platforms, improving sorting efficiency by 2-3 times on the same area.

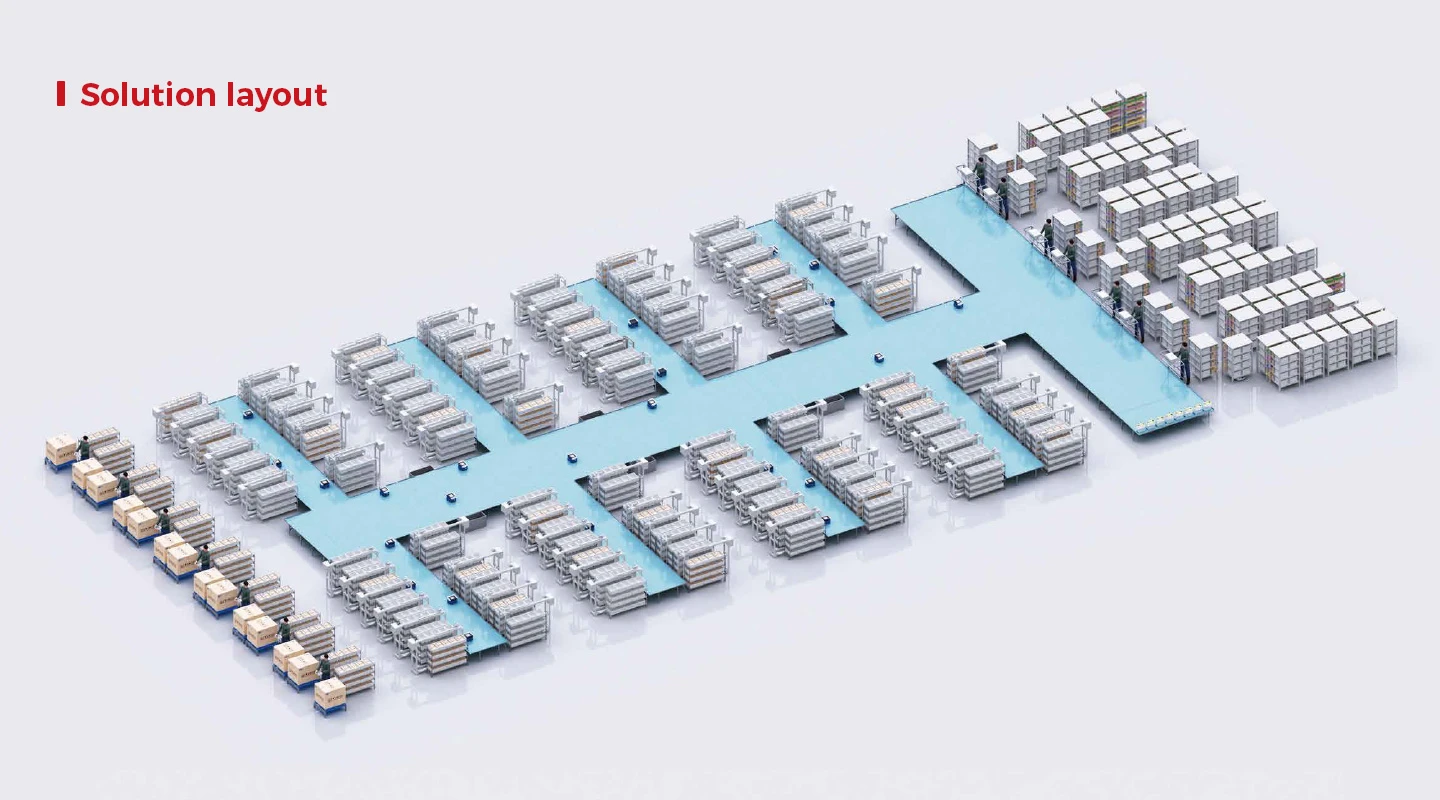

Packaging area
Sorting Robots
3D sorting machine
Robots platform
Automatic charging area
Feed area
Scheme composition
The robot control system for automatic sorting system, used to achieve automatic sorting function. This software includes modules such as human-computer interaction interface, robot on/off function, robot scheduling and management, path planning, site monitoring, robot communication, scanning table communication, external data communication, waybill data receiving and parsing function, address database support, replenishment, waybill photo service, log generation and charging, elevator lifting, etc. The system has high integration, simple operation and maintenance.
Low energy consumption, High efficiency
Core advantages
A 5-in-1 intelligent picking solution that combines high efficiency, high flexibility, high return, fast delivery, and space saving.

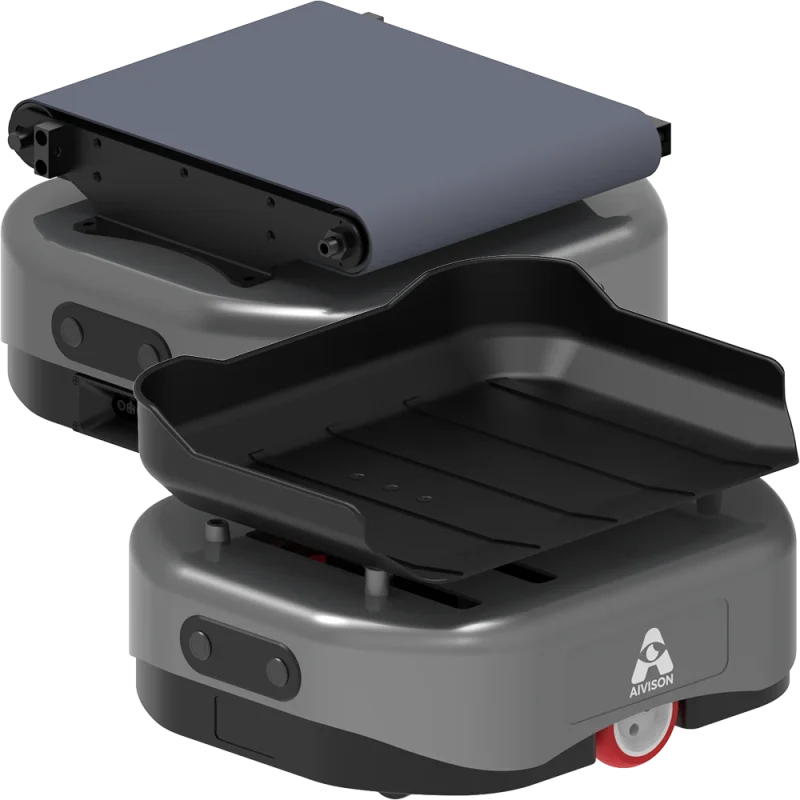

AIVISON independently develops sorting robots, which adopts high-precision navigation, servo motor drive, low energy consumption, high efficiency, high flexibility, and can achieve efficient and precise sorting of small items.
Parameter Specification
-None ● Standard ○ Optional
| Parameters | |
|---|---|
| Navigation type | Magnetic / QR code navigation |
| Rated load | 5 kg |
| Rotated diameter | 480 mm |
| Tray flip angle | 45° - 75° |
| Max. travelling speed | 2 m/s |
| Max. acceleration | 1.5 m/s² |
| Safety protection | Audible and visual alarm |
| Unload type | Tray / Conveyor |
