Constructor Kit for Warehouse Automation
Product Overview

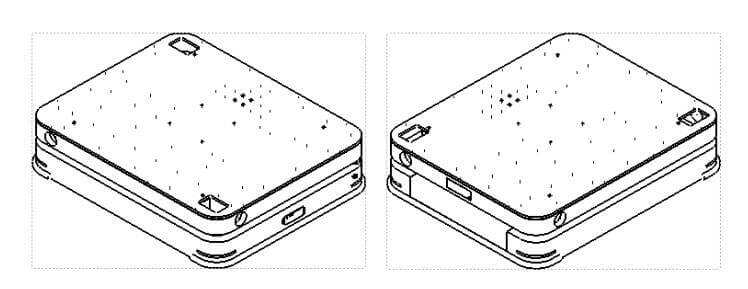

EcomRobotics ER.100.1b is a modular mobile platform constructor kit for autonomous warehouse robotics. Specifically designed for order picking, goods transportation, and sortation operations in warehouses and logistics centers.
Key Specifications
- Payload capacity: up to 600 kg
- Maximum speed: 1.5 m/s (unloaded) / 0.9 m/s (loaded)
- Power technology: LiFePO₄ (Lithium Iron Phosphate)
- Battery capacity: 99 A·h
- Hot-swap battery capability for continuous operation
- Dimensions: 1180 × 960 × 300 mm
Constructor Kit Composition
Components Included in Delivery
| Component | Description |
| Platform chassis | AMR body structure with integrated mounting points |
| Drive system | Dual independent brushless DC motors |
| Wheel assembly | 6 wheels (2 drive, 4 caster) with polyurethane tires |
| Transmission | Direct drive system |
| Mechanical rollers | Support rollers and guide mechanisms for load bearing |
| Fasteners | Bolts, brackets, and connectors for assembly |
| Battery packs | 2 units LiFePO₄ 48V/99 A·h |
| Charging station | Battery charging system |
Components NOT Included in kit
Important: This constructor kit is supplied as a mechanical and propulsion system only. For full autonomous robot operation, additional components must be procured separately:
1. Central Computer NOT Included
- Required: Industrial onboard computer for navigation control and data processing
- Recommendations: Intel i5/i7 processor or equivalent, minimum 8 GB RAM, SSD 128 GB+
- Customer action: Procure, install, configure, and test separately
- Note: Configuration requirements depend on software platform selection
2. Radio-Electronic Devices and Sensors NOT included
| Component | Requirements and actions |
| Wi-Fi modules | IEEE 802.11ac (Wi-Fi 5), dual-band connectivity. \newline Action: Procure, install, and test separately |
| LiDAR scanners | 360° environmental scanning for navigation and obstacle detection. \newline Action: Procure, install, calibrate, and test separately |
| Additional sensors | Cameras, distance sensors, IMU units (as required). \newline Action: Define requirements, procure, and integrate |
Table 3: Radio-electronic equipment (not included)
Operating Conditions
Allowable Operating Environment
| Parameter | Range |
| Operating temperature | +5°C to +45°C |
| Storage temperature | 0°C to +60°C |
| Relative humidity (operating) | 20–80% (non-condensing) |
| Enclosure protection rating | IP52 |
| Floor requirements | Flatness FF25 per ACI 117 standard |
| Noise level | ≤ 75 dB(A) at 1 m distance |
| Operating altitude | 0–2000 m above sea level |
Applications
Typical Warehouse Operations
- Order picking and goods collection operations
- Warehouse goods sortation and distribution up to 600 kg
- Continuous warehouse operations with minimal infrastructure requirements
- Integration with warehouse management systems (WMS)
- Collaborative human-robot work environments
- Multi-unit fleet coordination with centralized control
- Modular customization for specialized warehouse applications
