Intelligent charging
Control current and voltage according to battery information feedback.
Over Temperature Protection
Automatically stop charging when the temperature of the charging pole reaches 60°C.
Error Reminder
Based on SRC controller, real-time error notification with error log.
Real-time Status Display
Standard three-color lamp.
Human-computer interaction
Real-time display of machine status, charging control, and parameter setting functions.

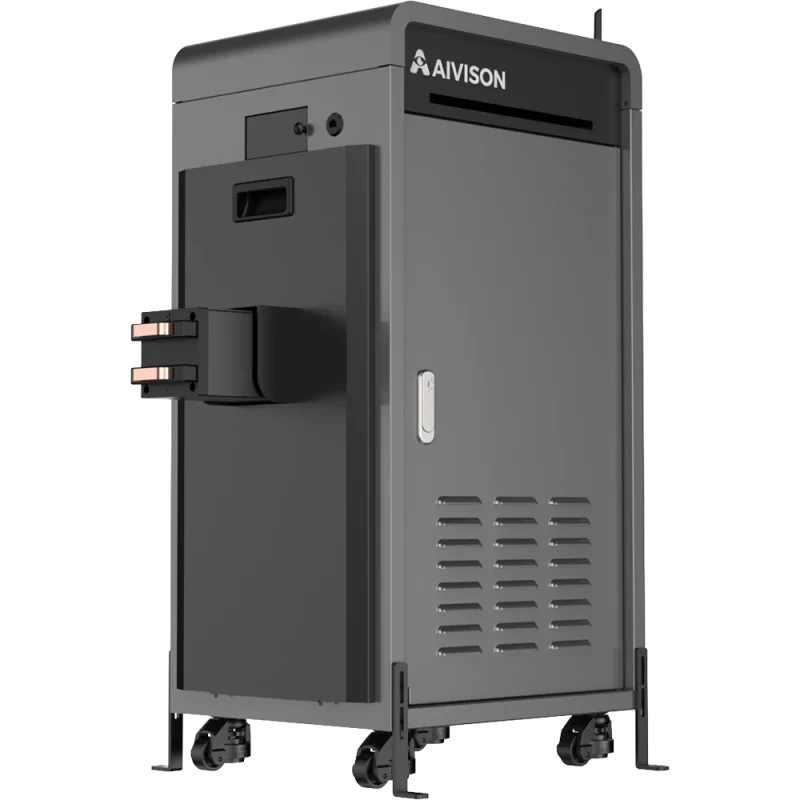

AMR Automatic Charging Station
Automatic charging Station for Autonomous Forklifts
Forklift Series
| Basic parameters | |||
|---|---|---|---|
| SCS-C24100D | SCS-C4850D | SCS-C48100D | |
| Product name | AMR automatic charging station SCS forklift series | AMR automatic charging station SCS forklift series | AMR automatic charging station SCS forklift series |
| L × W × H | 580 × 460 × 980 mm | 580 × 460 × 980 mm | 580 × 460 × 980 mm |
| AC input voltage | 220±10% V | 220±10% V | 380±10% V |
| Input frequency | 50 /60 Hz | 50 /60 Hz | 50 /60 Hz |
| DC output voltage | 16 V to 32 V | 32 V to 64 V | 32 V to 68 V |
| Maximum output voltage | 32V | 64 V | 68 V |
| DC output current | 100 A | 50 A | 100 A |
| Maximum output current | 100 A | 60 A | 100 A |
| Maximum output power | 3200 W | 3200 W | 6000 W |
| Weight | 50 kg | 50 kg | 50 kg |
| Connector for mamual charging | REMA160 | REMA160 | REMA160 |
| Network | Wi-Fi(recommended), Wired, 5G | Wi-Fi(recommended), Wired, 5G | Wi-Fi(recommended), Wired, 5G |
| Working temperature | 0 °C to 40°C | 0 °C to 40°C | 0 °C to 40°C |
| Ambient Humidity | 5% to 90% | 5% to 90% | 5% to 90% |
| Working altitude | ≤2000 m | ≤2000 m | ≤2000 m |
| Plug specification | GB 16A | GB 16A | Industrial 32A |
| Contamination level | 2 | 2 | 2 |
| Overvoltage level | II | II | II |
| Reference standard | EN 62477-1:2012 +A11:2014+A1:2017+A12:2021 | EN 62477-1:2012 +A11:2014+A1:2017+A12:2021 | EN 62477-1:2012 +A11:2014+A1:2017+A12:2021 |
| Suitable product model | 24 V, autonomous forklift | FD-1500, 48 V, automomous forklift | 48 V, autonomous forklift |
Enhance Warehouse Efficiency with the Innovative Charging Pile Forklift
Efficient Power for Modern Forklifts
When it comes to managing warehouses and other industrial activities, our Charging Pile Forklift solution is redefining efficiency. Our advanced charging pile ensures that forklifts are always ready for action, minimizing downtime and maximizing productivity. With intelligent technology seamlessly integrated, our solution is built to adapt to various workflows, transforming charging into a streamlined, efficient process.
Advanced Charging Capabilities
Our charging pile forklift system is crafted for rapid and intelligent charging cycles, offering superior convenience and reliability. We ensure consistent power management, reducing manual intervention while keeping forklifts fully operational. This means our customers enjoy enhanced operational efficiency with lower energy costs, making continuous, sustainable workflows a reality in even the most demanding environments.
Connect with us today to explore how our smart charging solutions can elevate forklift performance and improve productivity.
