Laser SLAM

Autonomous Pallet Truck

FB-1500

The Strongest Forktlift, Flexible and Efficient

Load Type:

SFL-CBD15

FB-1500

Smaller size, smarter algorithms!

1500 kg

Rated load capacity

600mm

Load center distance

205mm

Standard lifting height

Open pallet

Pallet type

Precision, punctuality, safety

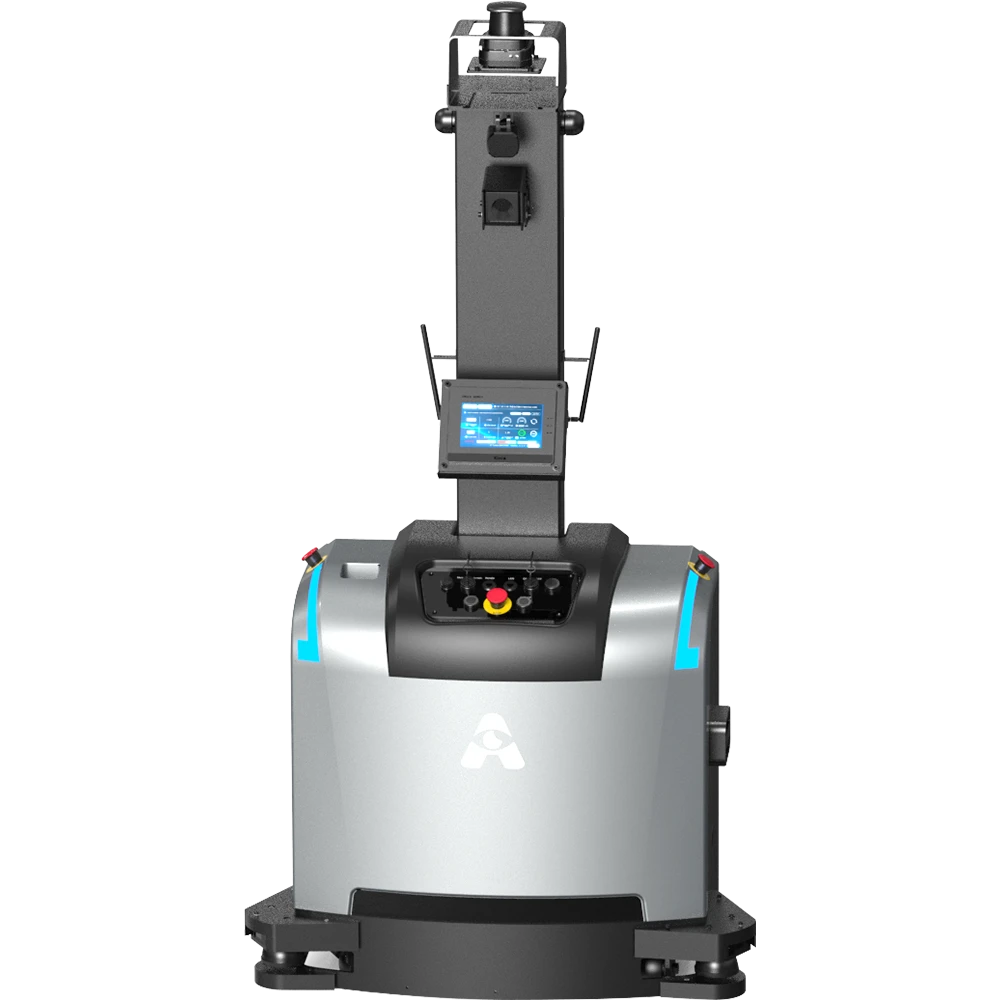

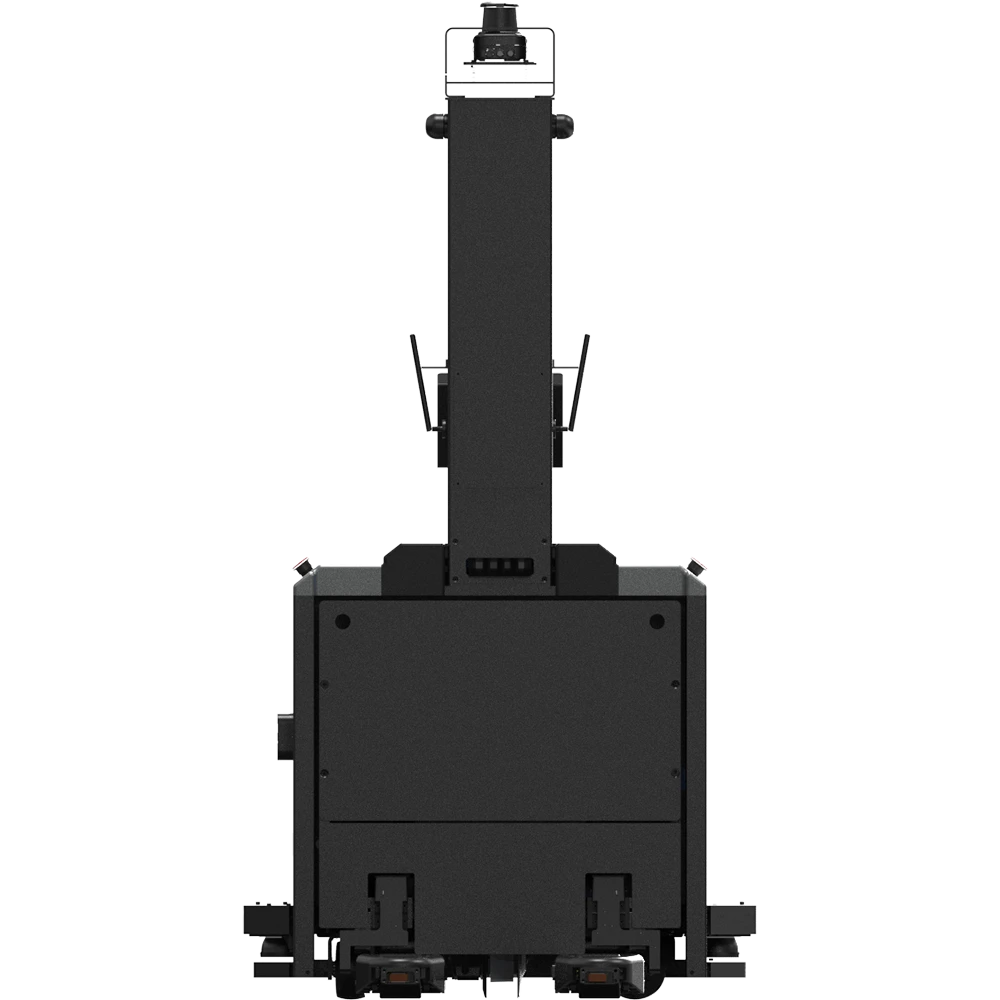

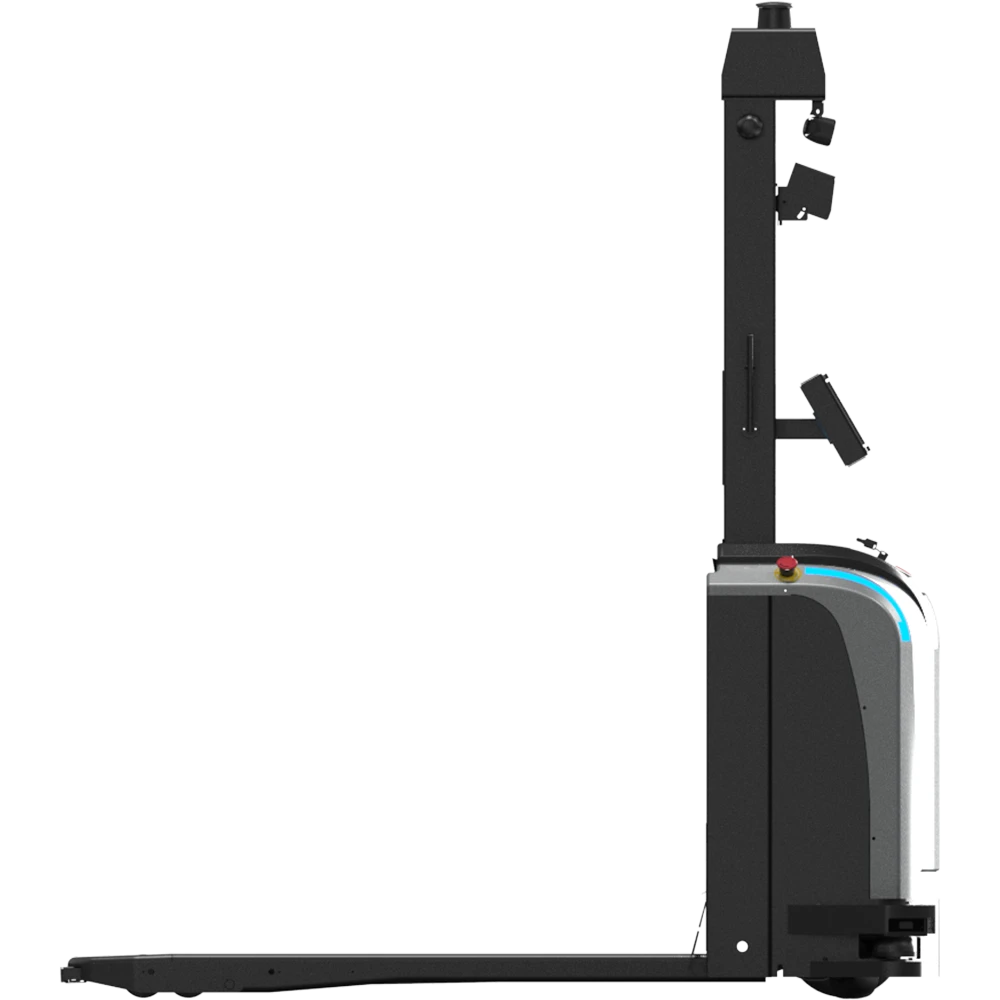

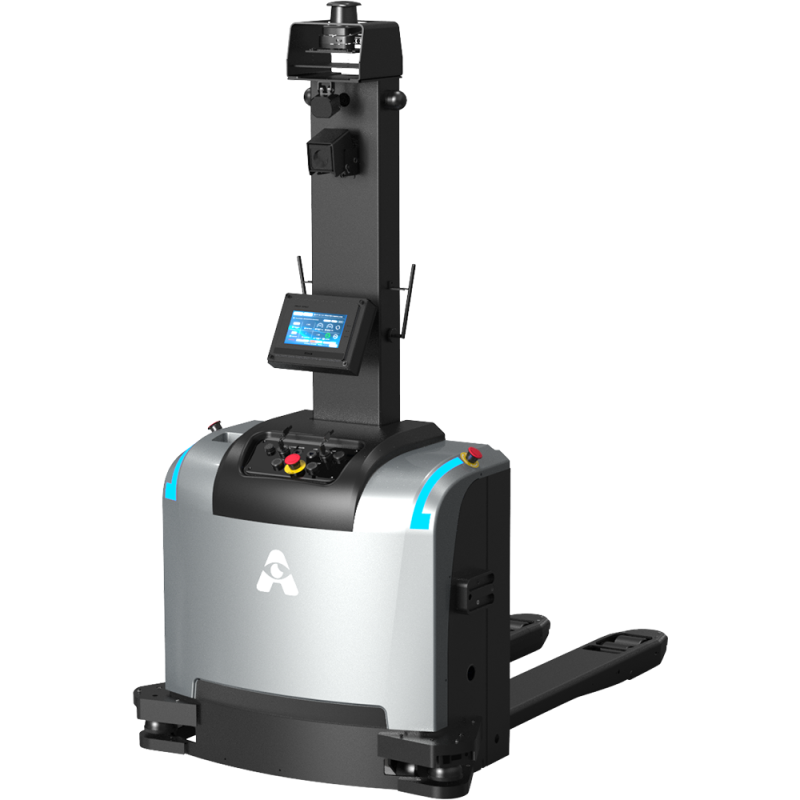

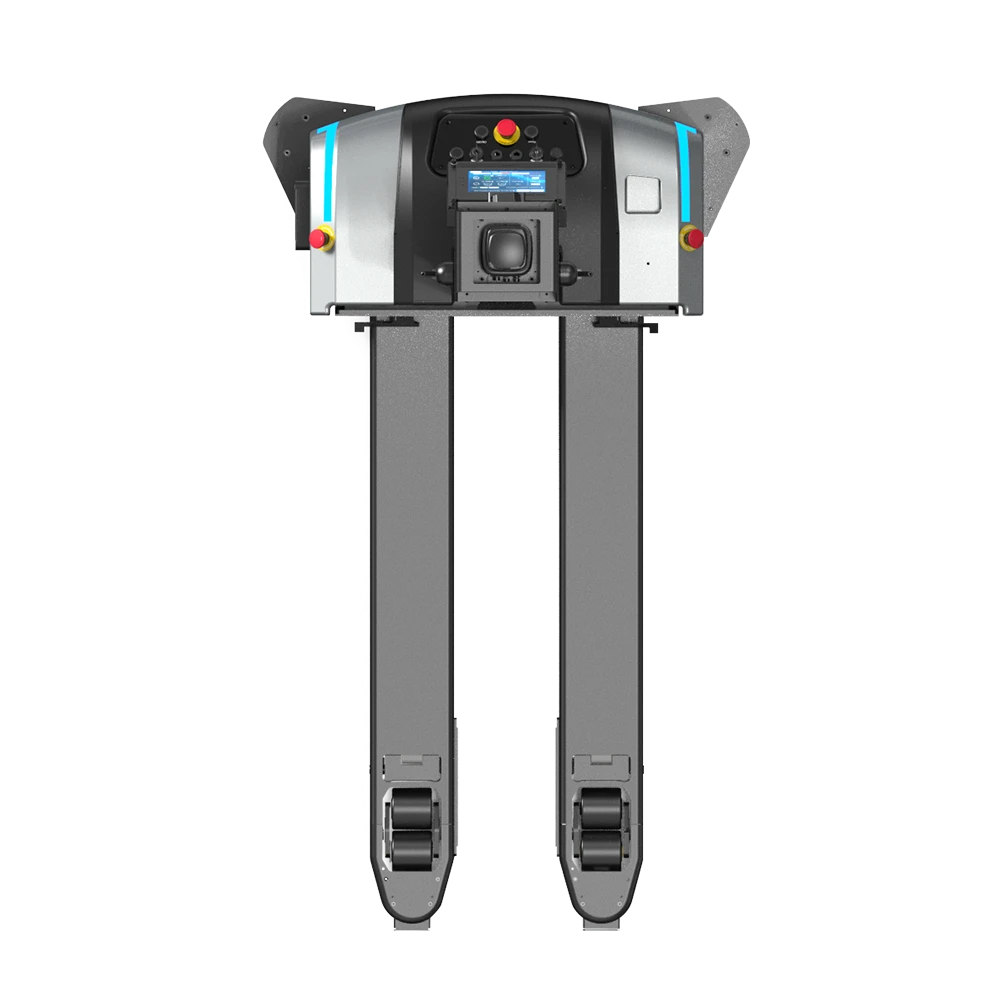

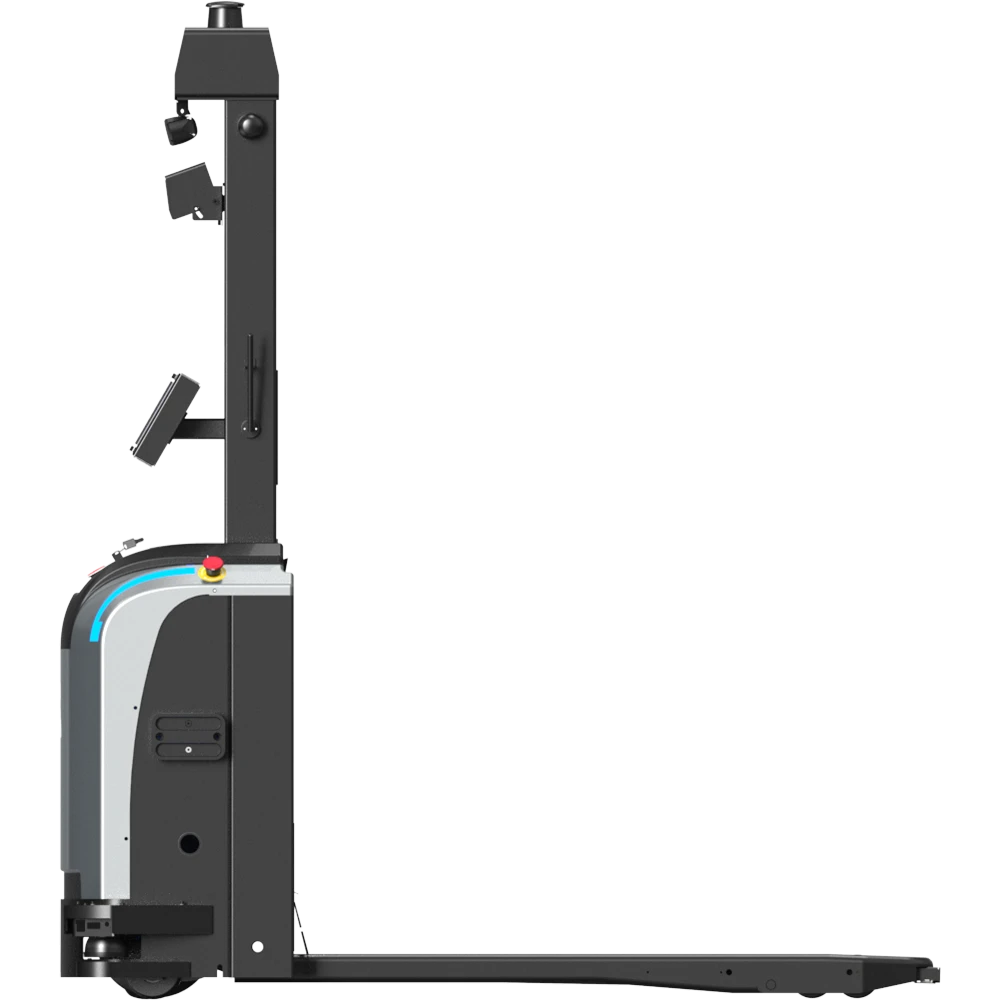

Laser SLAM Autonomous Pallet Truck

Dramatically reduce costs and improve handling efficiency

Small Body, 1.5 T in Load Capacity

It is only 932 mm width designed for narrow aisles, with a load capacity up to 1.5 T.

3+ carriers Types, Wide Angle High Precision Recognition

Multi-angle and high-precision identification of multi-size and multi-type pallets, box pallets, and shelves, such as Euro pallets and non-standard pallets.

Speed Increase 100% Up to 2 m/s

Maximum 2 m/s running speed, 100% faster than the old model pallet truck.

360° Large Field of View, Multiple Security Protection

Support up to 360° scanning range, 40 m detection distance, large field of view for greater safety. With 3D safety obstacle detection laser, distance sensor, hardware self-check, and other features.

Mapping Up to 400,000 m²

Identification of maps up to 400,000m², easily transcending area restrictions and providing greater handling space and more storage options.

Quick Charge and Change, Dual Battery and Double Endurance

Supports up to 46 A fast charging. Charging 1 h for single battery can run 4 h~6 h, for dual battery 8 h~10 h running. Quick battery replacement in 3 minutes. Modular battery with global certification. Supports one more battery extension, double endurance.

Parameter Specification

-None            ● Standard            ○ Optional

Basic parameters
Product nameLaser SLAM Autonomous Pallet Truck
Operation typeAutomatic navigation, by manual control device
Navigation typeLaser SLAM
Pallet typeOpen pallet
Rated load capacity1500 kg
Load center distance600 mm
Weight (with battery)388 kg
Standard lifting height205 mm
Forklift dimensions: L × W × H1712 × 932 ×1902 mm
Fork dimensions: L × W × H1220 × (170+7) × 75 mm (7 mm wiring panel)
Fork outer width550 / 600 / 680 mm
Minimum turning radius1524 mm
Performance parameters
Driving speed: full load / no load2 / 2 m/s
Passability (slope / step / gap)< 5% / 10 mm / 30 mm
Navigation position accuracy±10 mm
Navigation angle accuracy±1°
Battery parameters
Battery specifications48 V / 23 Ah(lithium iron phosphate)
Comprehensive Battery life4 to 6 h
Charging time (10% to 80% )1 h
Charging methodManual / Automatic
Function configurations
Lidar number1 (H1) + 2 (H2)
Wi-Fi roaming
3D obstacle avoidance
Pallet recognition
Safety configurations
E-stop button
Sound and light indicator
Braking distance: 1m/s / 1.5 m/s≤ 30 cm / ≤ 50cm
360° laser protection
Bumper strip
Fork height protection
