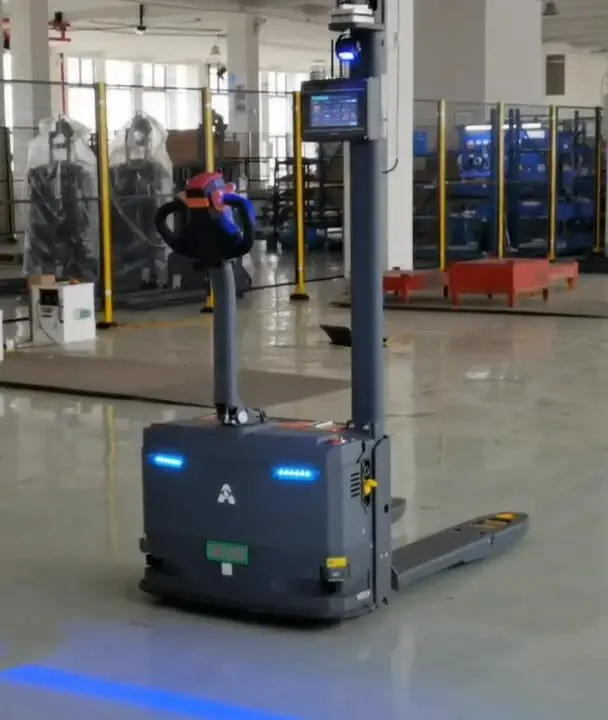

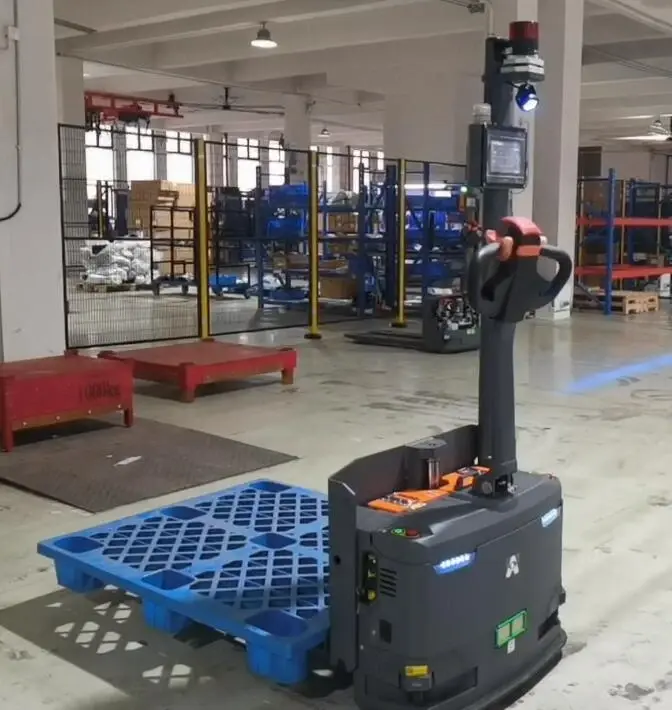

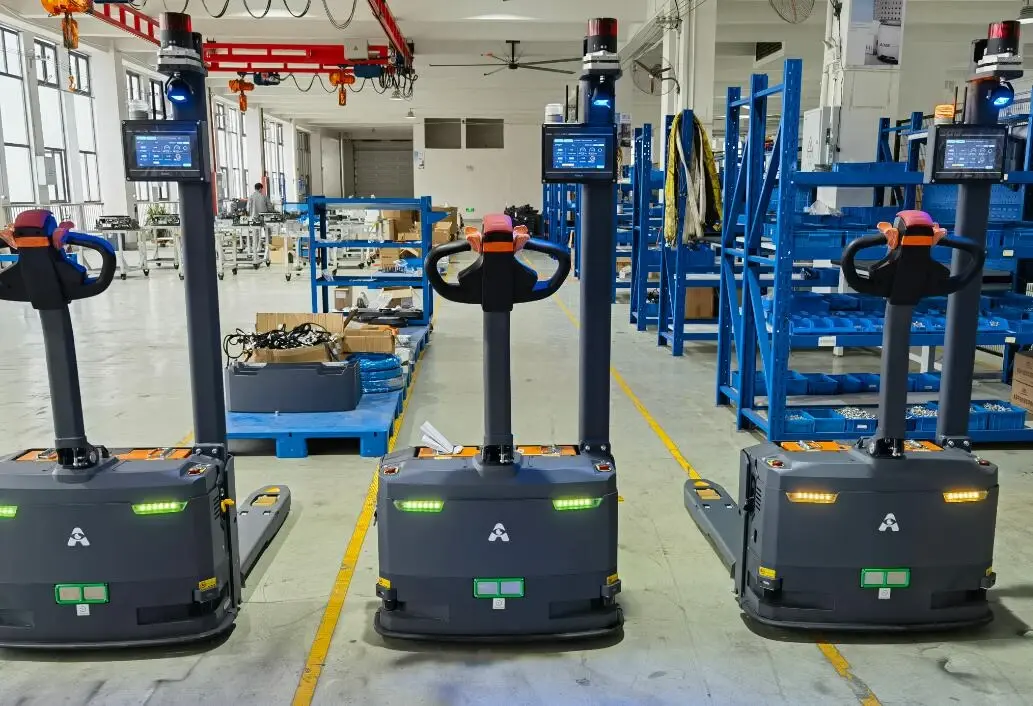

Laser SLAM
Industry Handling Robot
- Unmatched Adaptability
- Space-Savvy Design
- Operator-Centric Usability
- Industrial-Grade Durability

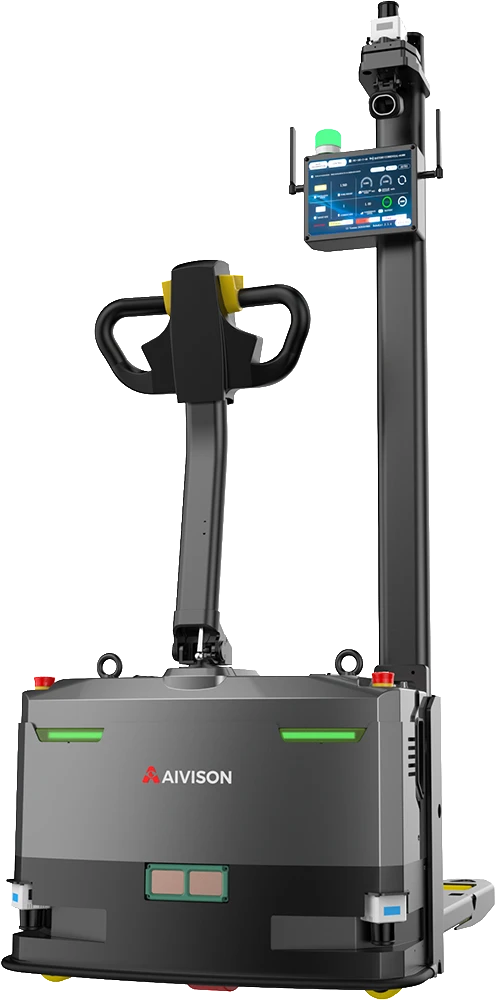

FB-1500H
1500 kg
Rated load capacity
600 mm
Load center distance
210 mm
Standard lifting height
Open pallet
Pallet type
Hybrid Flexibility

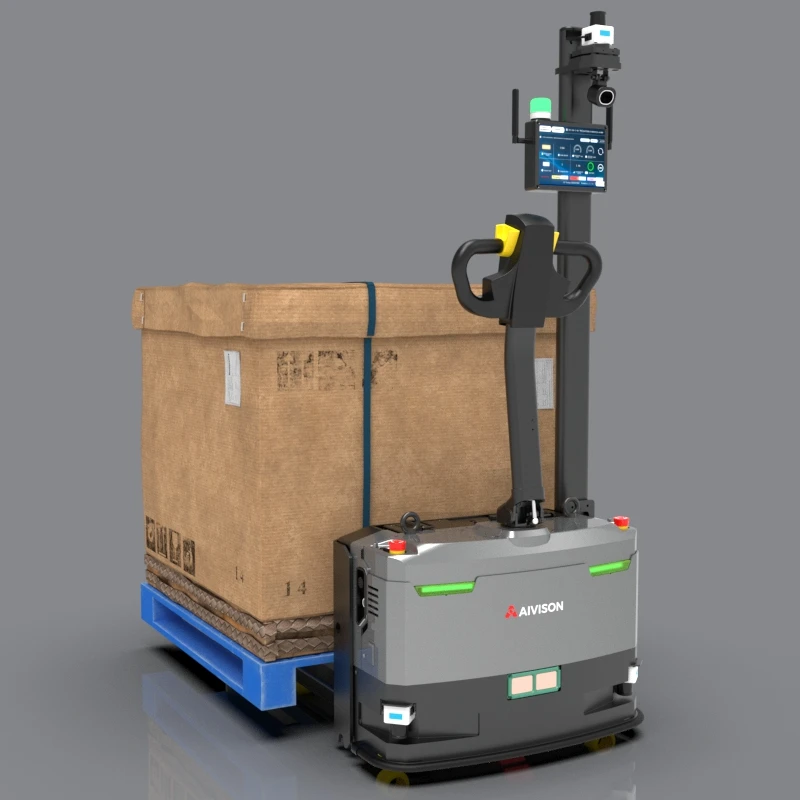

1500kg High-Capacity Payload
Engineered for heavy-duty material transport, the FB-1500H efficiently handles loads up to 1500kg, making it ideal for demanding industrial and warehouse environments.
Hybrid Flexibility
Agile Navigation & Collision-Free Performance
With a compact footprint (1515 × 790 × 1860 mm) and a minimum turning radius of 1290mm, the AMR excels in tight spaces. Advanced sensors and navigation algorithms deliver real-time obstacle avoidance, ensuring safe operation in dynamic settings.
Precision, punctuality, safety
Laser SLAM Autonomous Pallet Truck
Dramatically reduce costs and improve handling efficiency

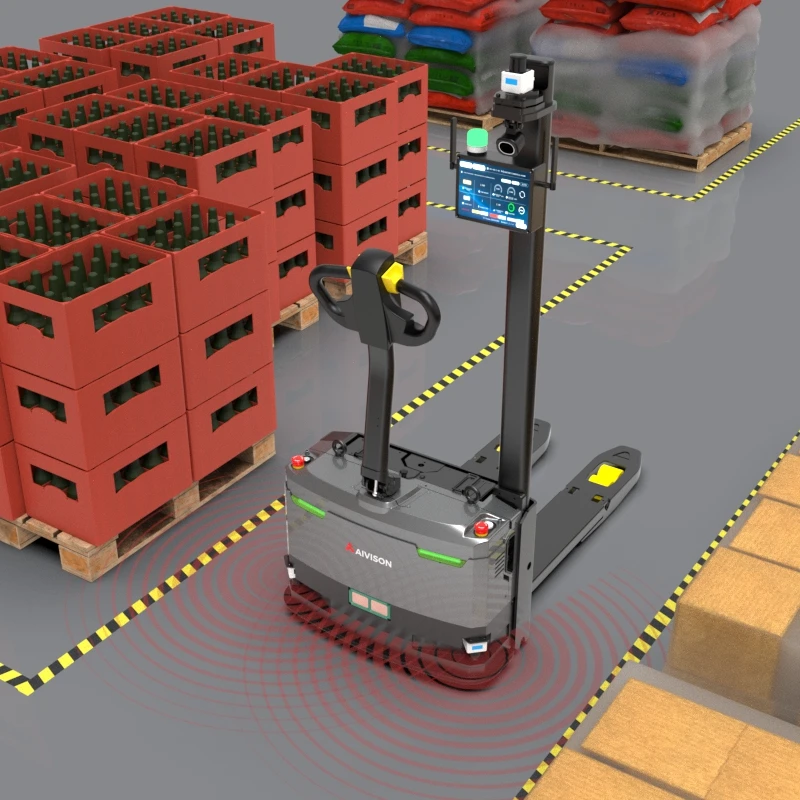

360° Comprehensive Safety Protection (Optional)
Laser obstacle avoidance + vision camera + anti-collision touch edges + sound alarm + light warning + emergency stop buttons*2
Powerful Performance
High-Performance Battery System
Supports 1C fast charging, autonomous charging, and continuous 24/7 operation. Long-lasting endurance, with a single charge lasting up to 8 hours.
Central High-Torque Steering Wheel
The FB-1500H robot uses a centrally placed high-torque steering wheel drive, providing greater torque while ensuring a more stable chassis.
Outstanding Navigation Performance (Optional)
Integrates laser SLAM and vision-based navigation.
Flexible Narrow Passage Capability
Thanks to an exceptional chassis design, the FB-1500H requires a narrow passage width of only 1950mm.

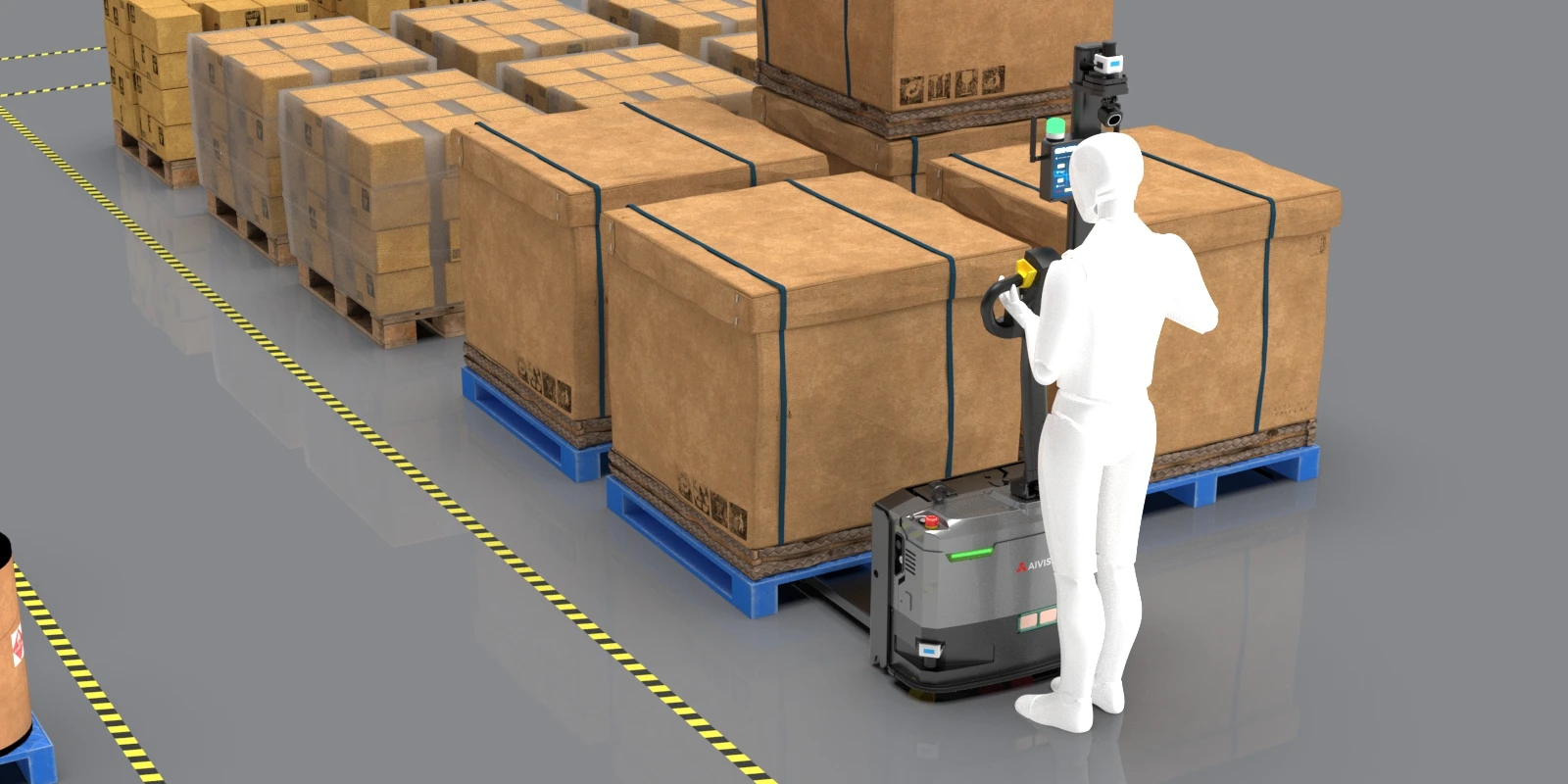

Manual/Automatic Mode Switching
Uniquely designed with a manual handle and one-touch mode switching, the FB-1500H adapts instantly to diverse scenarios:
- Autonomous Mode: For hands-free transport in predefined routes.
- Manual Mode: For direct control in unpredictable or complex environments.
This dual-mode design maximizes operational versatility without compromising efficiency.
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Rated load capacity | 1500 kg |
| Load center distance | 600 mm |
| Standard lifting height | 210 mm |
| Fork outer width | 570 mm |
| Minimum Turning Radius | 1290 mm |
| Right-angle stacking aisle width | 2205 mm |
| Minimum Ground Clearance | 20 mm |
| Forklift dimensions: L × W × H | 1515 × 790 × 1860 mm |
| Fork dimensions: L × W × H | 1150 × 180 × 70 mm |
| Maximum Climbing Capacity ( full load / no load ) | 5% / 3% |
| Operating Speed | 1.5 m/s / 1.0 m/s |
| Navigation type | Laser SLAM |
| Navigation position accuracy | ±20 mm |
| Safety Distance | 5 m |
| Battery specifications | 24V / 60Ah |
| Communication Module | WiFi 2.4G / 5.8G |
Related products
-
FD-2000
Laser SLAM stacker automatic forklift
The Strongest Forktlift, Flexible and Efficient
-
FB-2000
Laser SLAM Handling Autonomous Forklift
The Strongest Forktlift, Flexible and Efficient
-

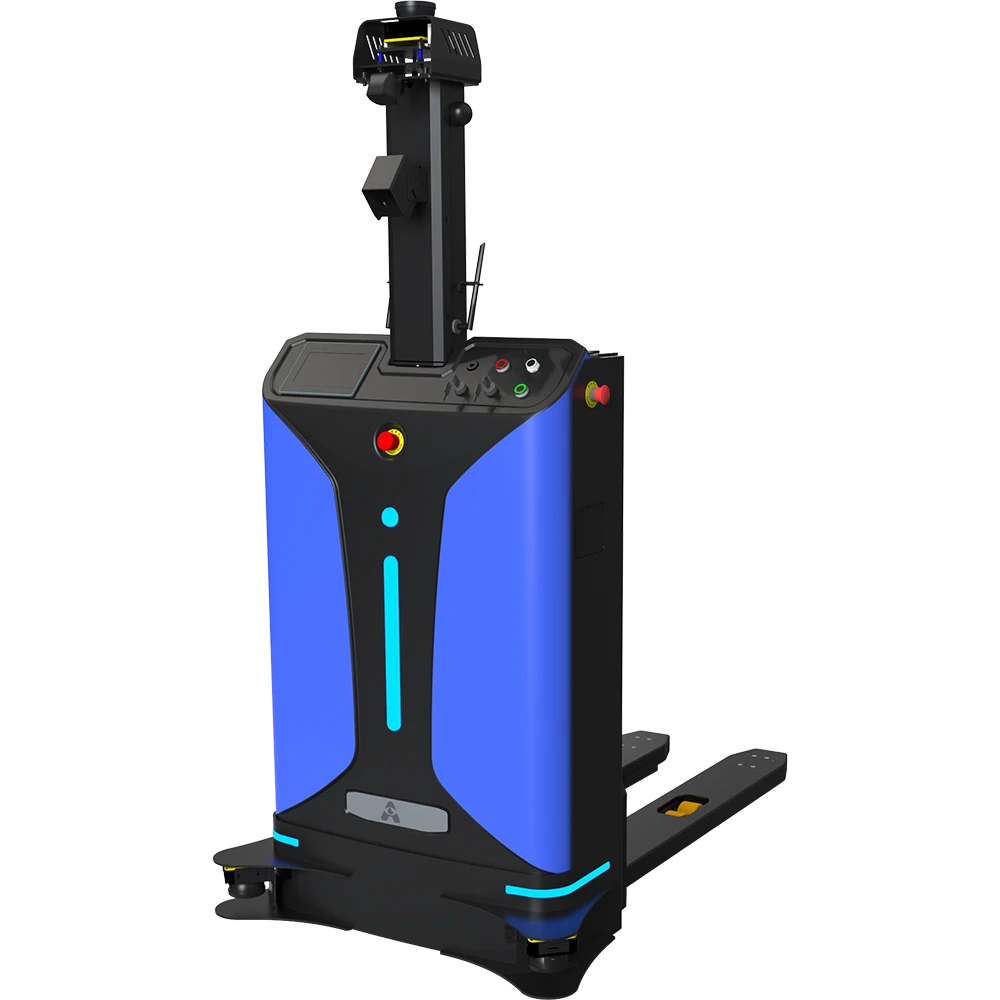

FD-1400
