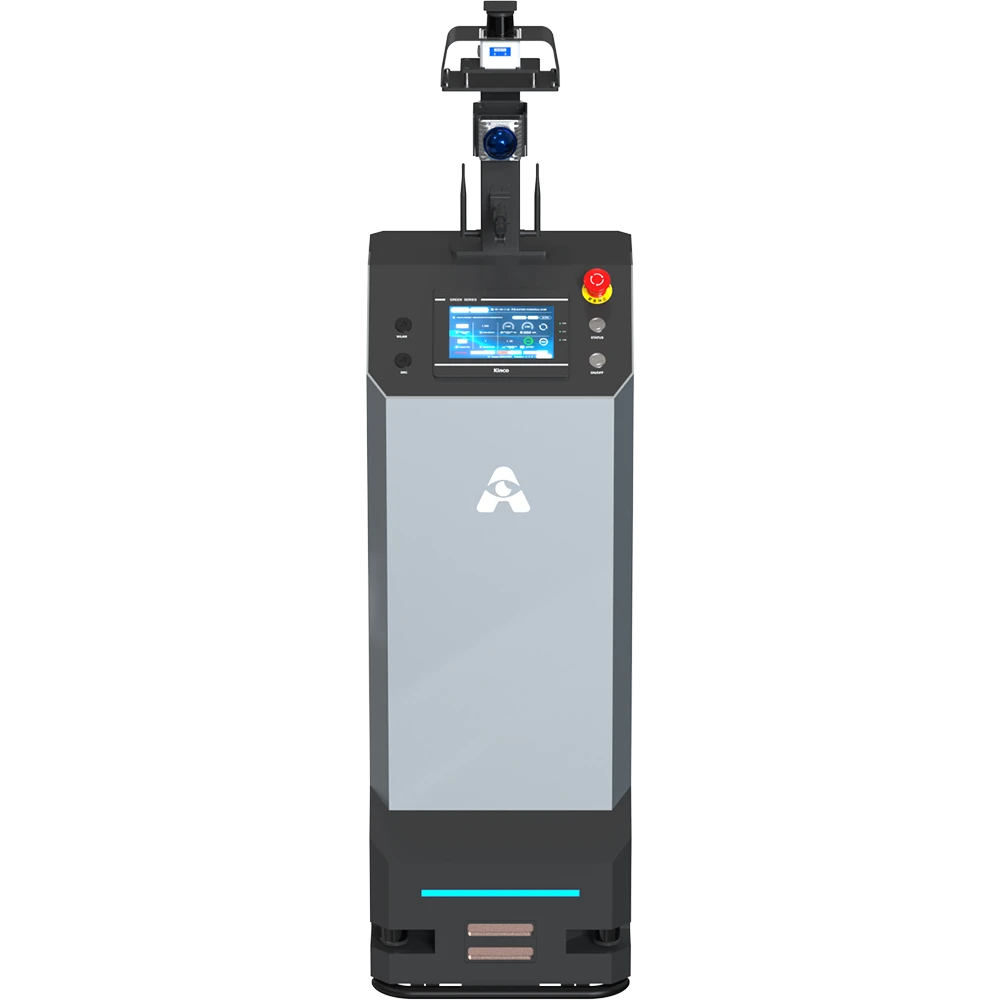

Laser SLAM

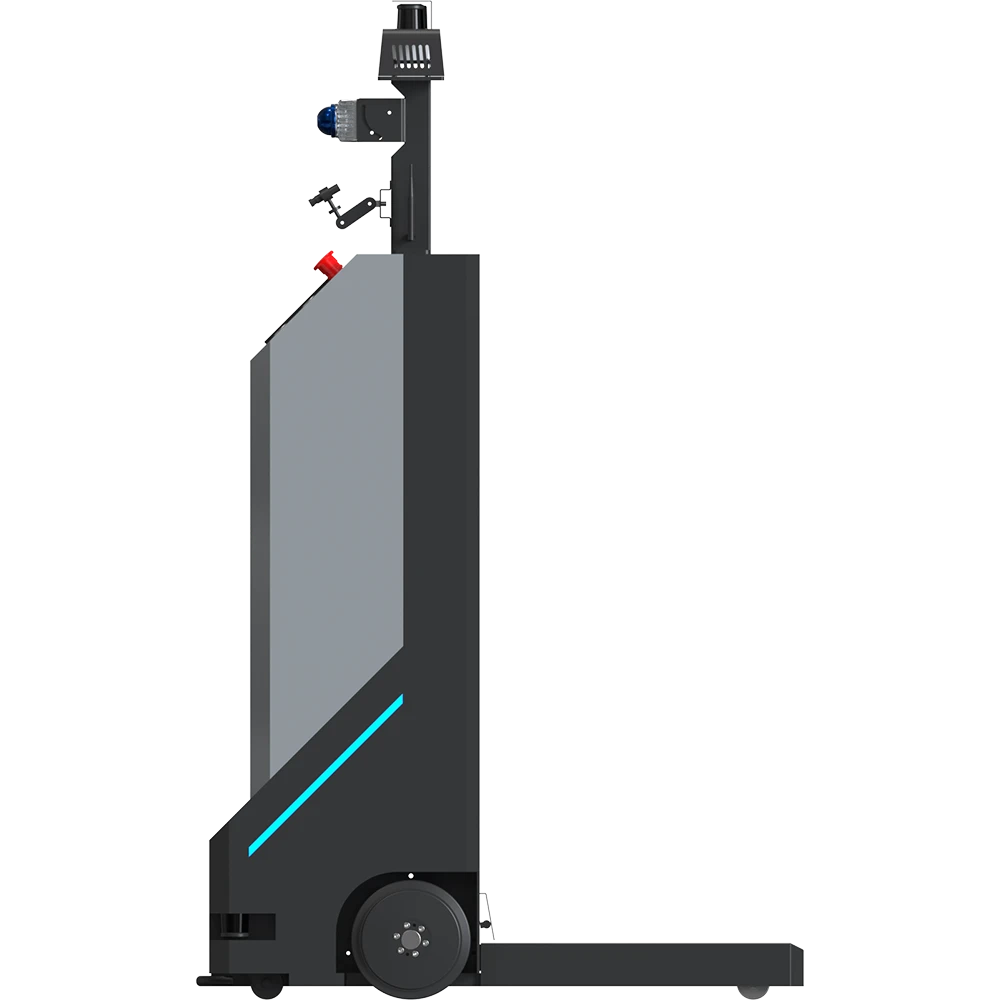

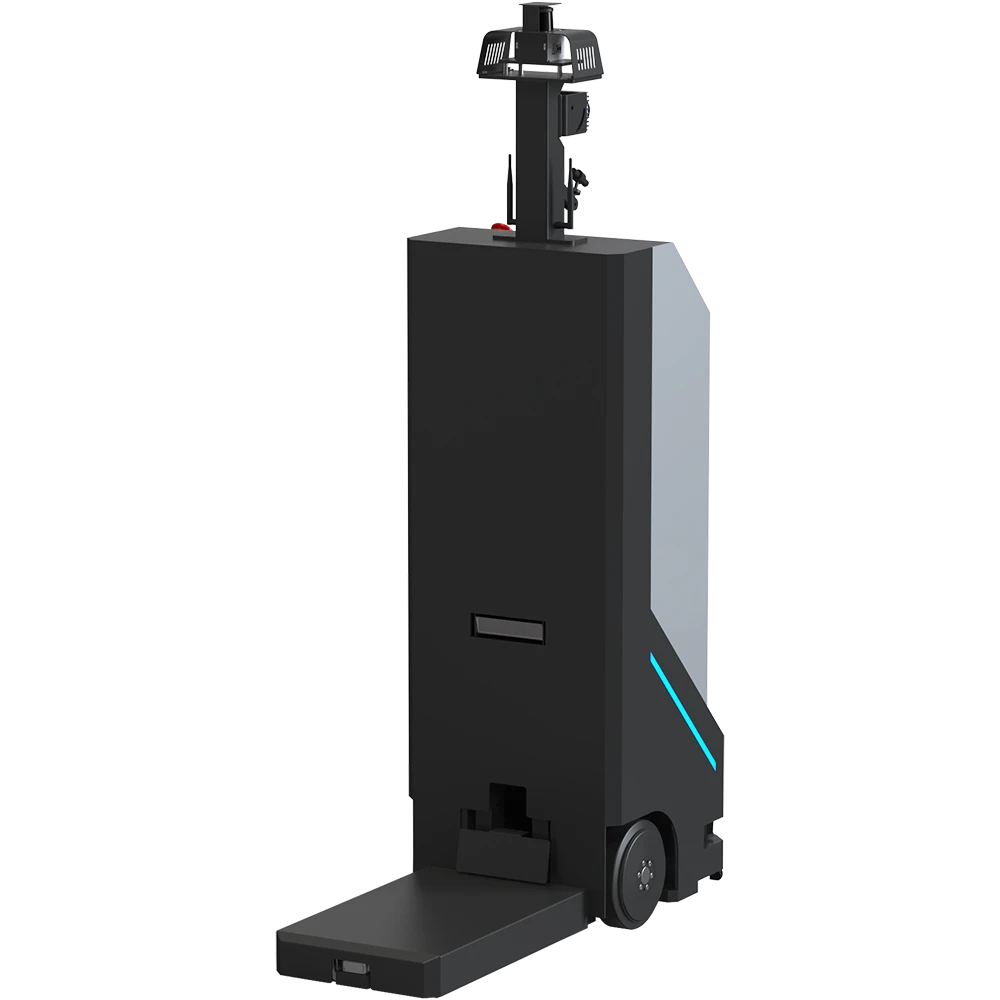

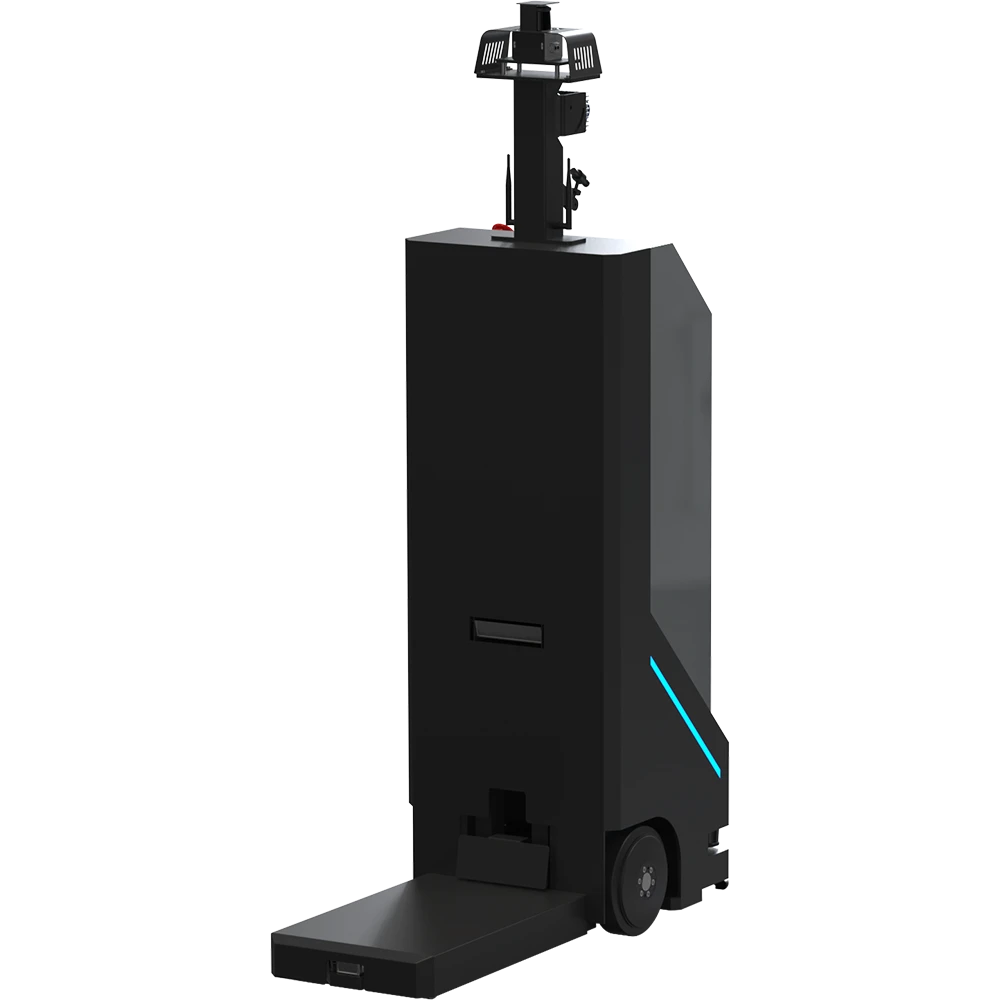

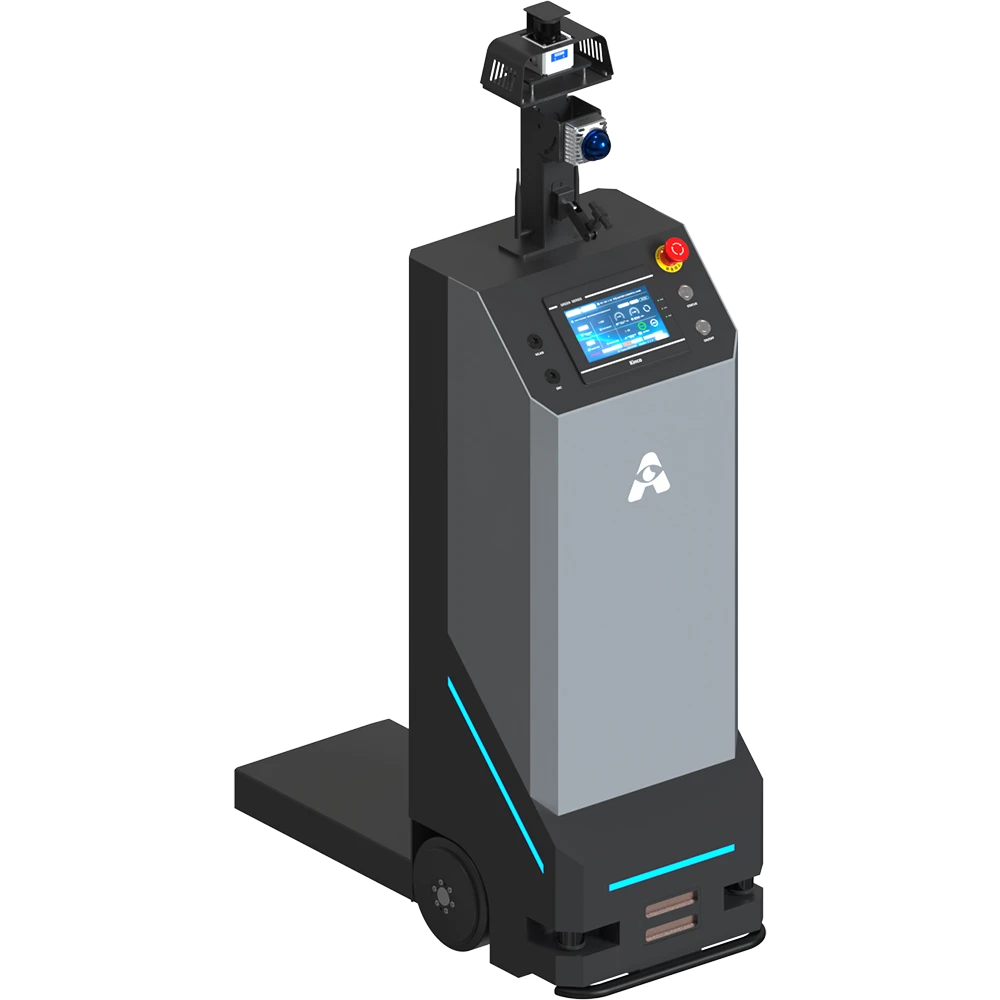

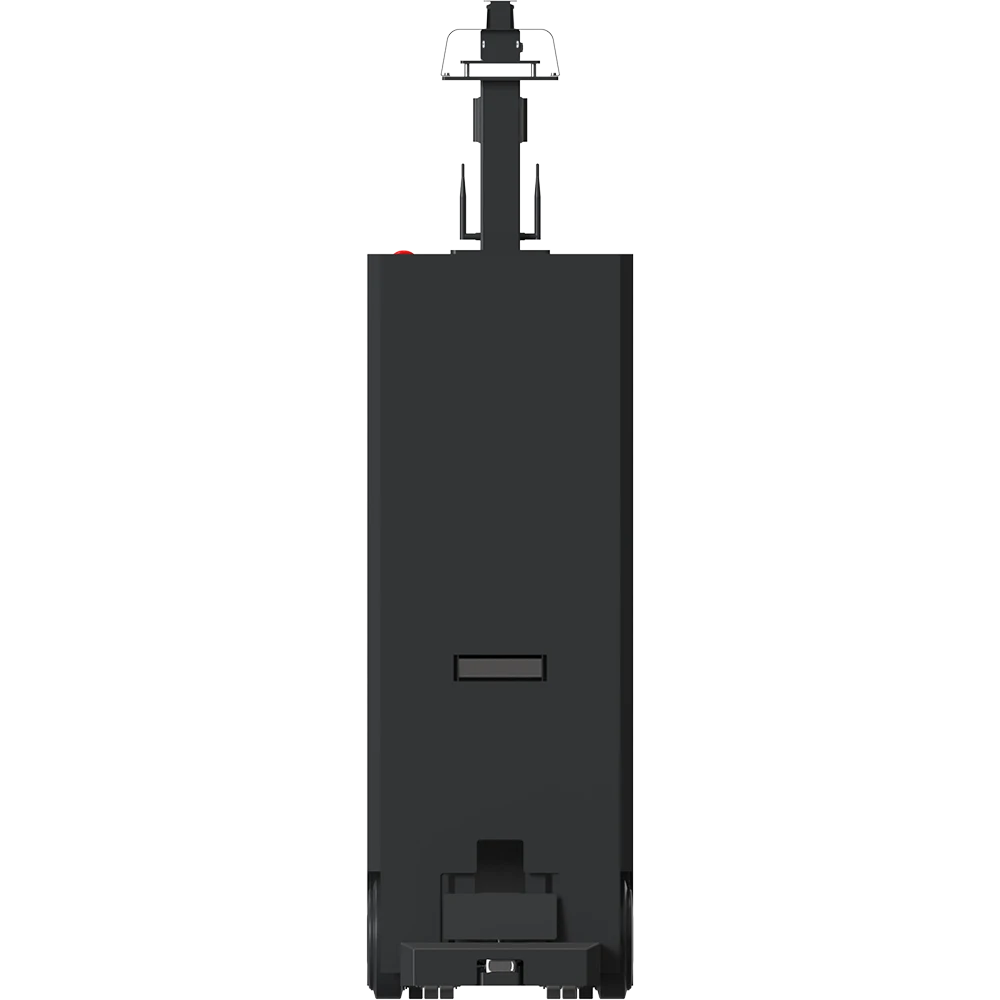

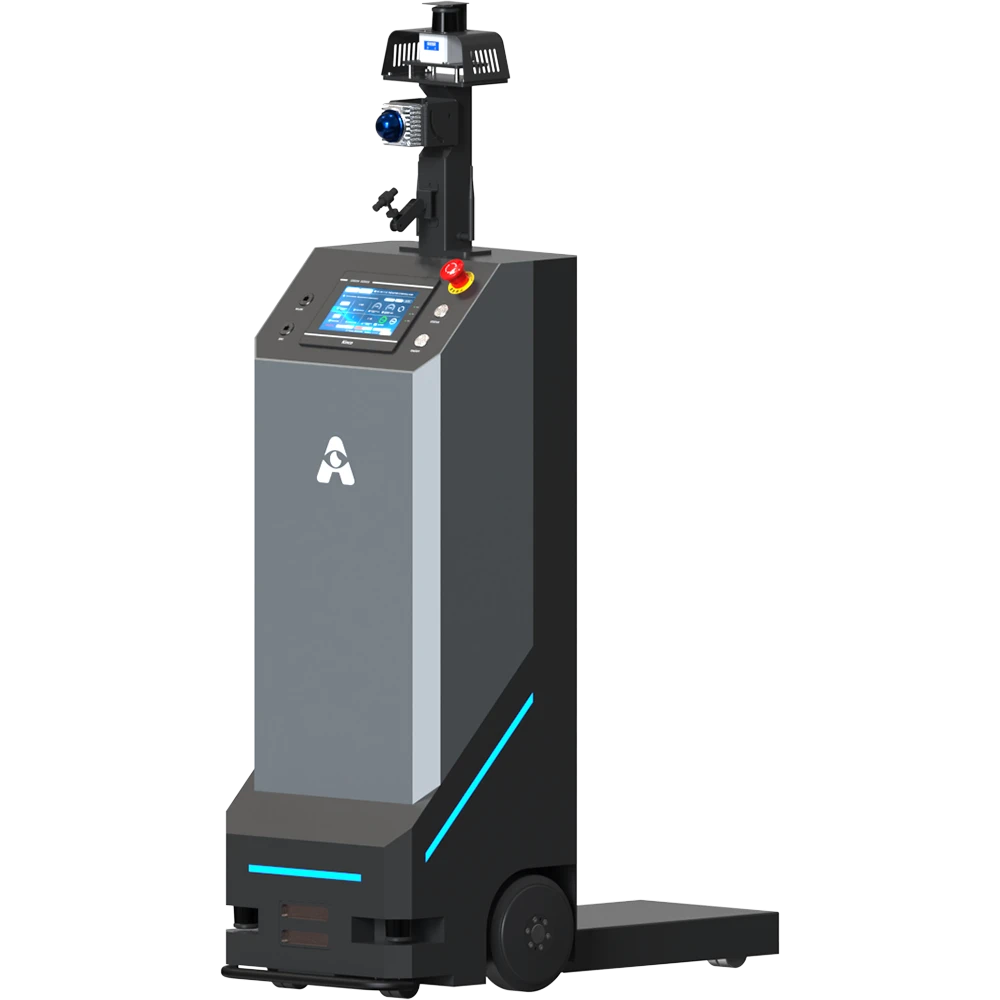

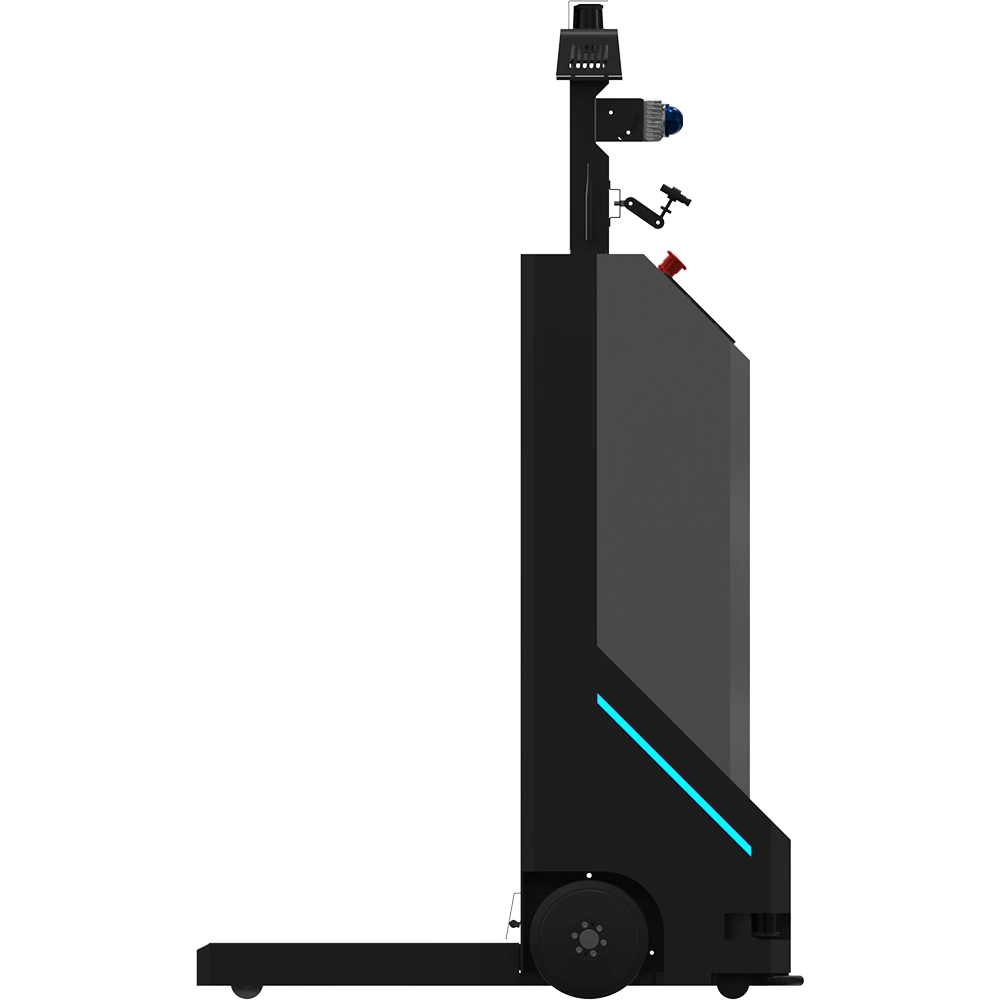

Single Fork Autonomous Forklift
FB-300D
Ultimate Vehicle Body, Flexible customization
Load Type：
FB-300D
300 kg
Rated load capacity
345 mm
Load center distance
70 ± 5 mm ~ 90 ± 5 mm
Standard lifting height
Tote dolly / shelf
Pallet type
Precision, punctuality, safety
Laser SLAM Single Fork Autonomous Forklift
Dramatically reduce costs and improve handling efficiency
400 mm width, Designed for Narrow Aisles
With a vehicle width of 400 mm, a minimum aisle width of 600 mm, and an impressive turning radius of 600 mm, this forklift is designed for narrow aisles. Additionally, its ground clearance is a mere 20 mm.
Real-time Pallet Recognition, Stable Pick-and-place of Goods
Equipped with a pallet recognition camera, it supports real-time cargo detection. Even in scenarios where the cargo is placed on a tote dolly without fixed grooves, our forklift effortlessly accomplishes stable and efficient cargo pick-and-place.
Multiple Sensors, 360° Safety Protection
Embedded navigation lasers, obstacle avoidance lasers, 3D cameras, safety edge sensors, and photoelectric sensors provide 360° protection during operations.
4 Types of Navigation, High Precision Up to ±10 mm
Supports 4 navigation methods-SLAM, QR code, reflector, and NFL. These options cater to various business scenarios, including secondary positioning, high dynamic environments, and non-modified environments. With a precision of up to ±10 mm, the forklift delivers unparalleled accuracy in every task.
Modular Design, Flexible Customization
The modular design allows for personalized customization and seamless assembly. Tailor your forklift to your exact specifications, from height and color to branding and beyond, suiting every application scenario and business requirement.
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Single Fork Autonomous Froklift |
| Operation type | Automatic navigation |
| Navigation type | Laser SLAM |
| Pallet type | Tote dolly / shelf |
| Rated load capacity | 300 kg |
| Load center distance | 345 mm |
| Weight (with battery) | 210 kg |
| Standard lifting height | 70 ± 5 mm ~ 90 ± 5 mm |
| Forklift dimensions: L × W × H | 914 × 400 × 1502.5 mm |
| Fork dimensions: L × W × H | 480 × 300 mm |
| Fork outer width | 300 mm |
| Minimum turning radius | 600 mm |
| Performance parameters | |
|---|---|
| Driving speed: full load / no load | 0.8 / 1.4 m/s |
| Passability (slope / step / gap) | ＜ 3% / 2 mm / 5 mm |
| Navigation position accuracy | ±10 mm |
| Navigation angle accuracy | ±1° |
| Battery parameters | |
|---|---|
| Battery specifications | 48 V / 35 Ah（lithium iron phosphate) |
| Comprehensive Battery life | 8 h |
| Charging time （10% to 80% ） | ≤1.5 h |
| Charging method | Manual / Automatic |
| Function configurations | |
|---|---|
| Lidar number | 1 (H1) + 1(C2) |
| Wi-Fi roaming | ● |
| 3D obstacle avoidance | ○ |
| Pallet recognition | ○ |
| HMI dispaly | ● |
| Safety configurations | |
|---|---|
| E-stop button | ● |
| Sound and light indicator | ● |
| Braking distance: 1m/s / 1.5 m/s | ≤ 30 cm / ≤ 50cm |
| 360° laser protection | ● |
| Bumper strip | ● |
| Fork height protection | ● |
