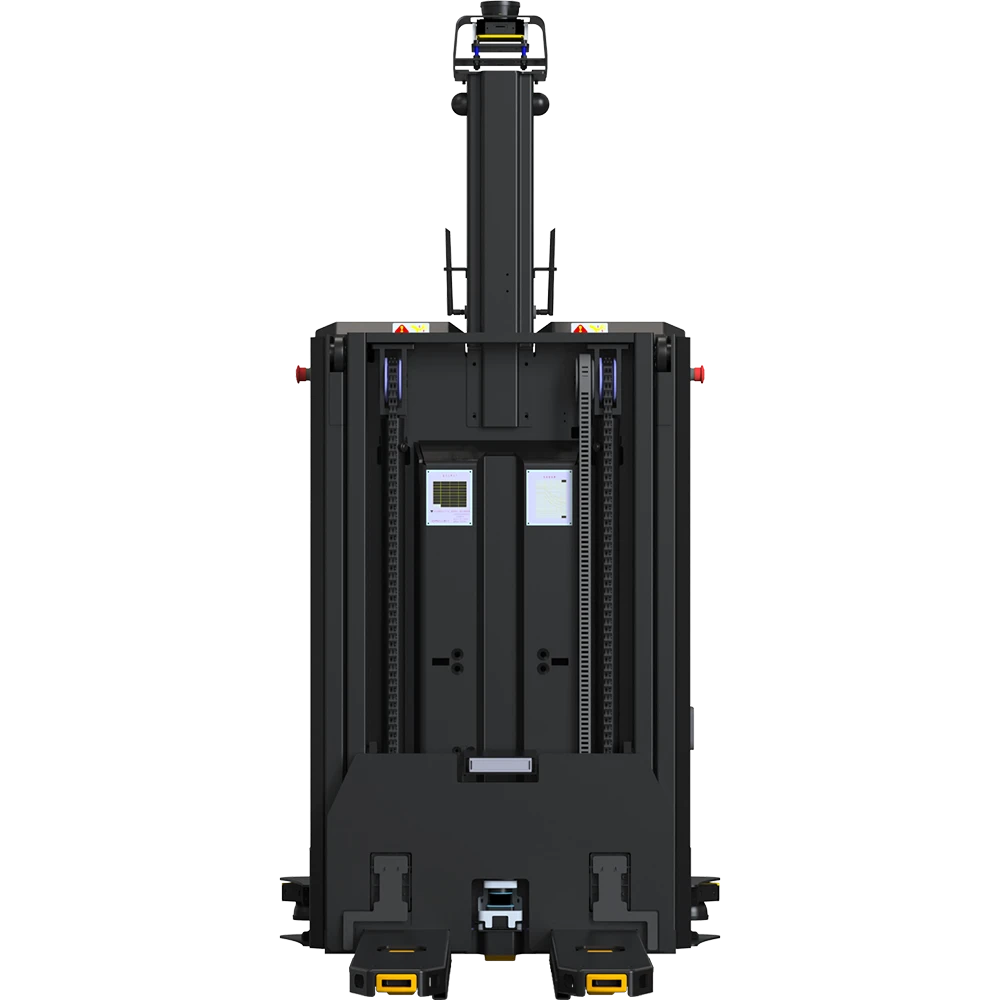

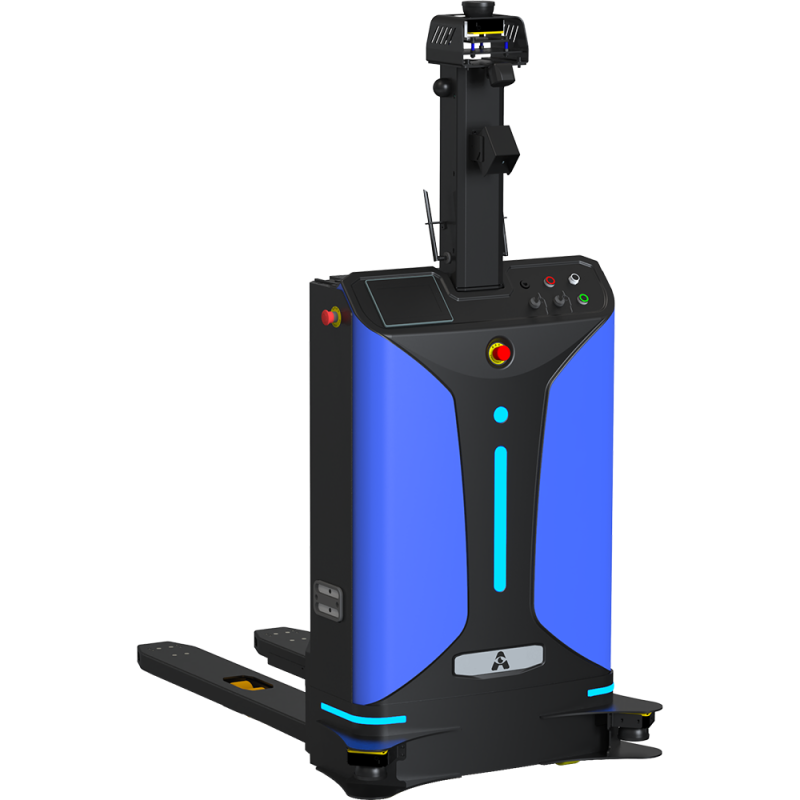

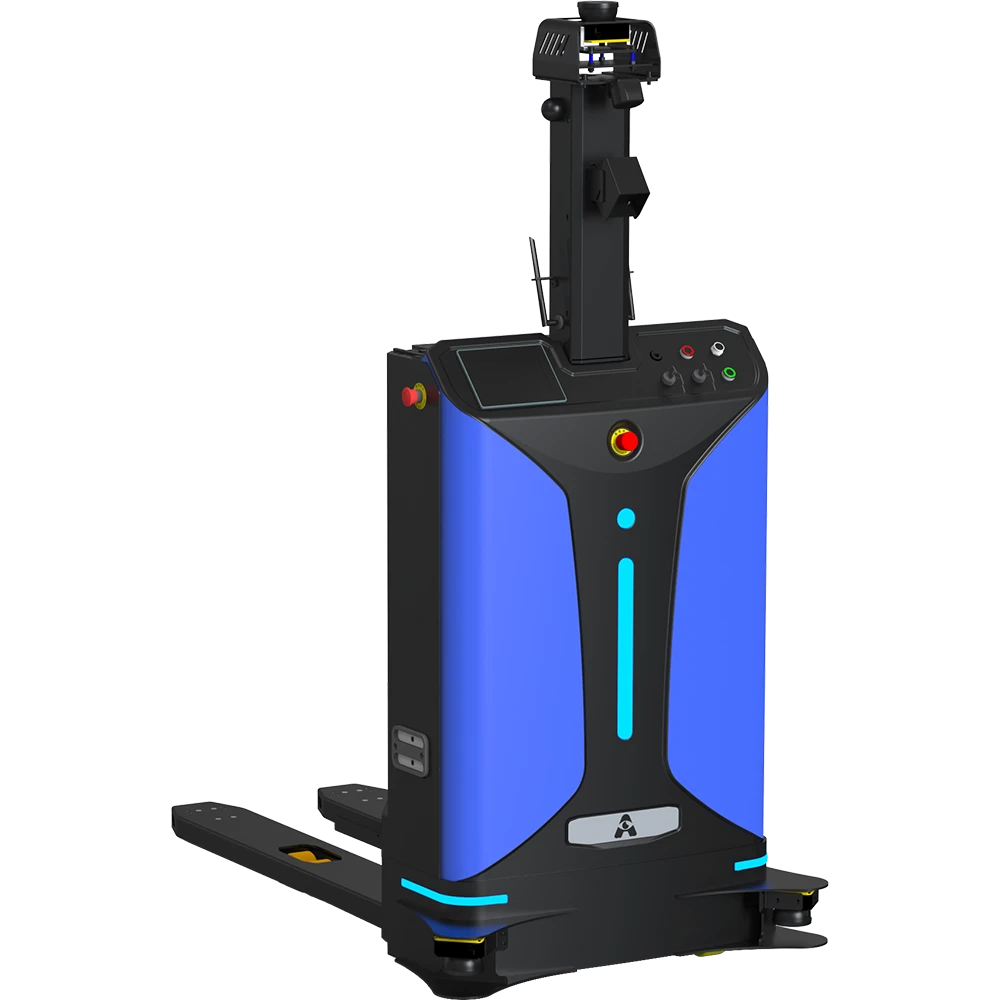

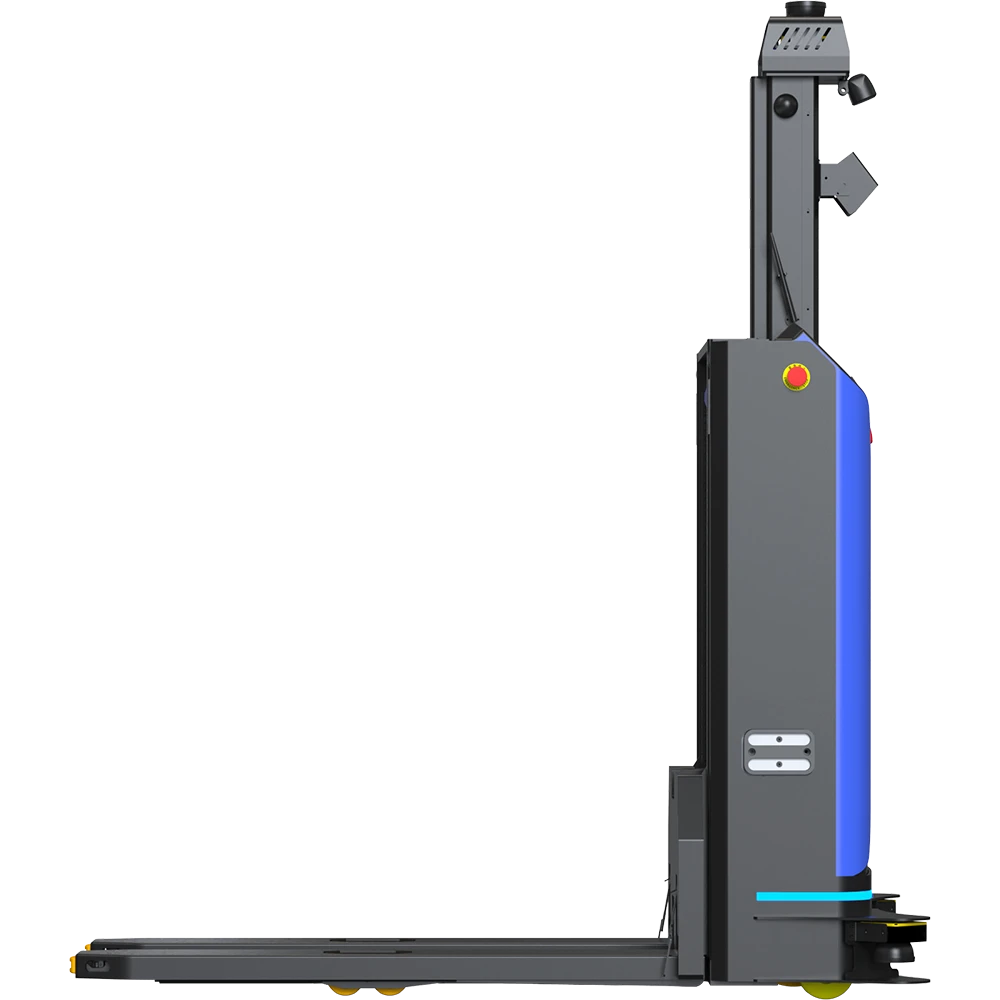

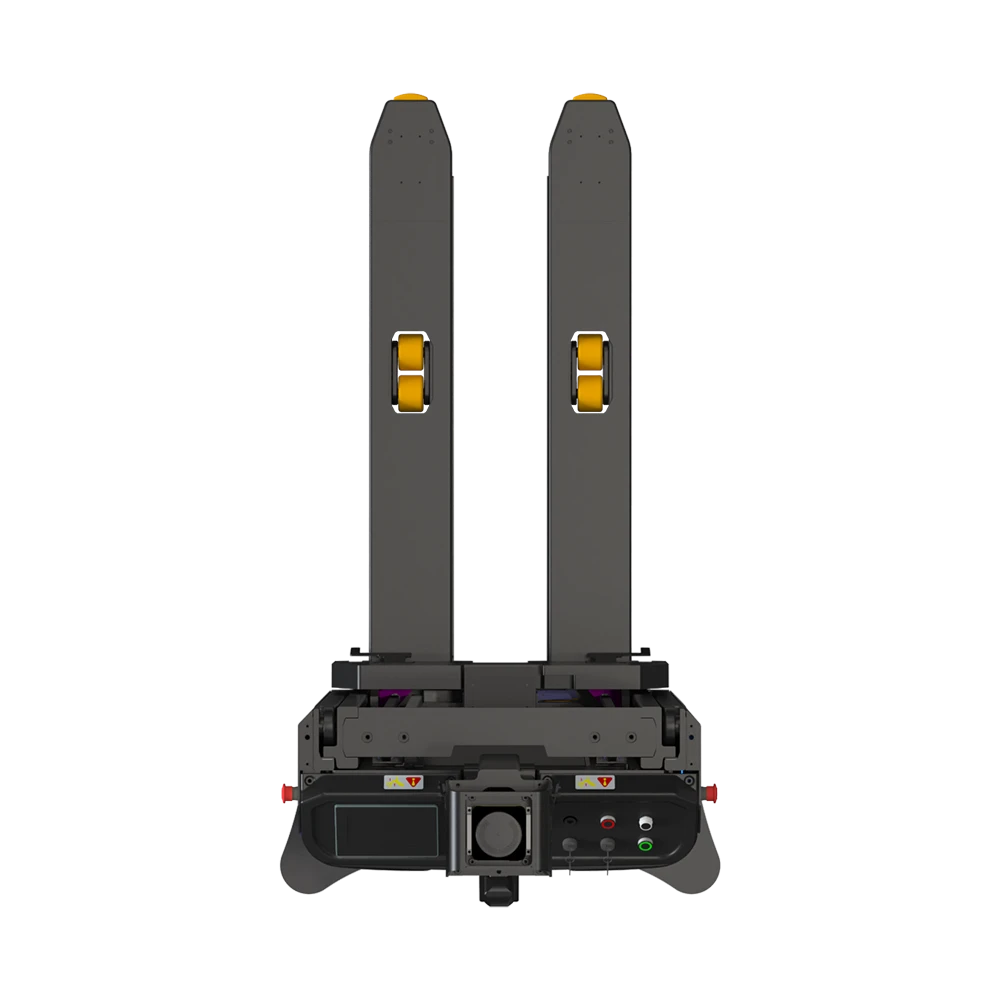

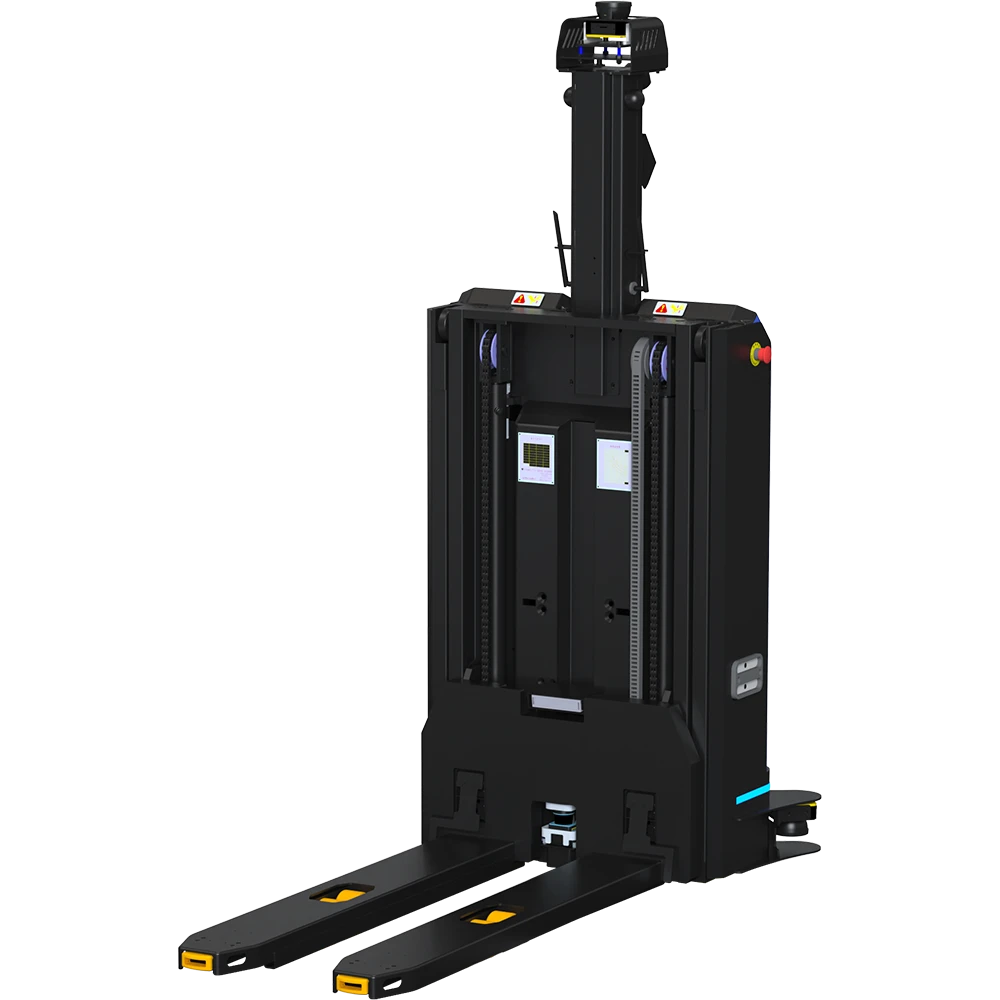

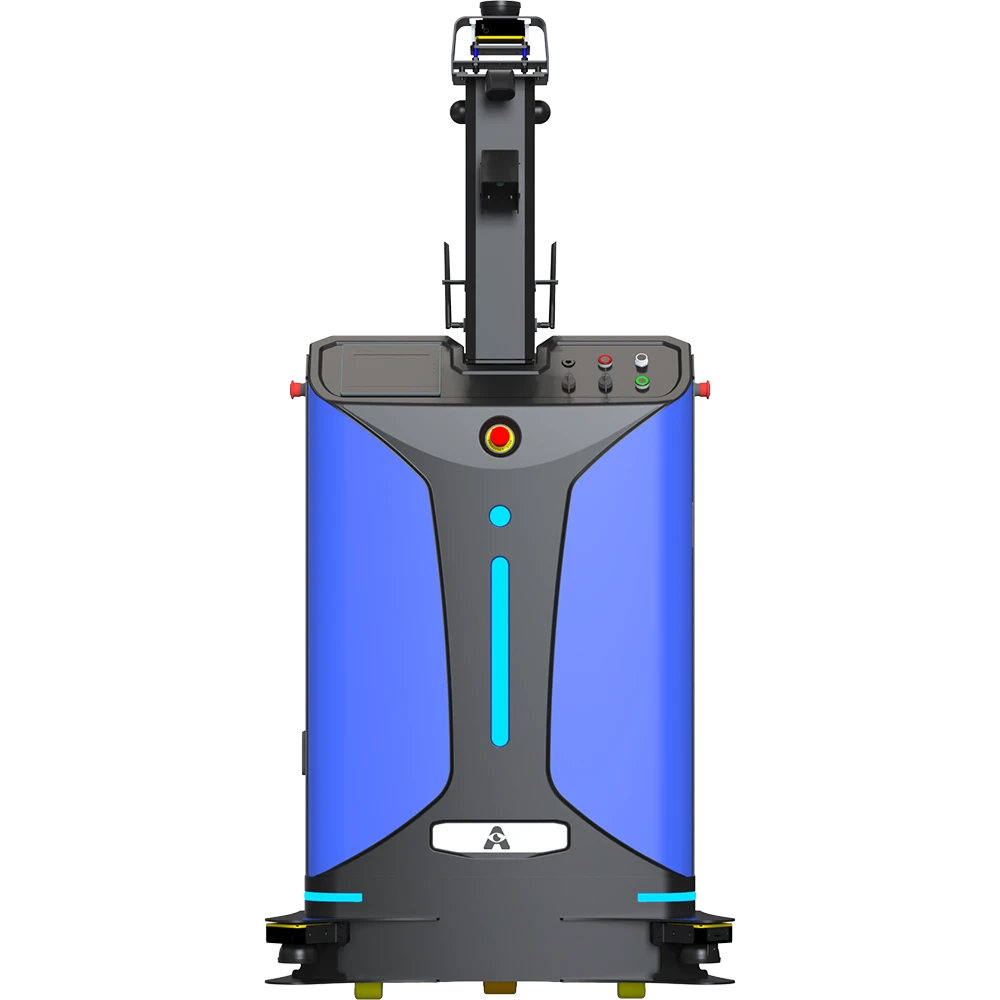

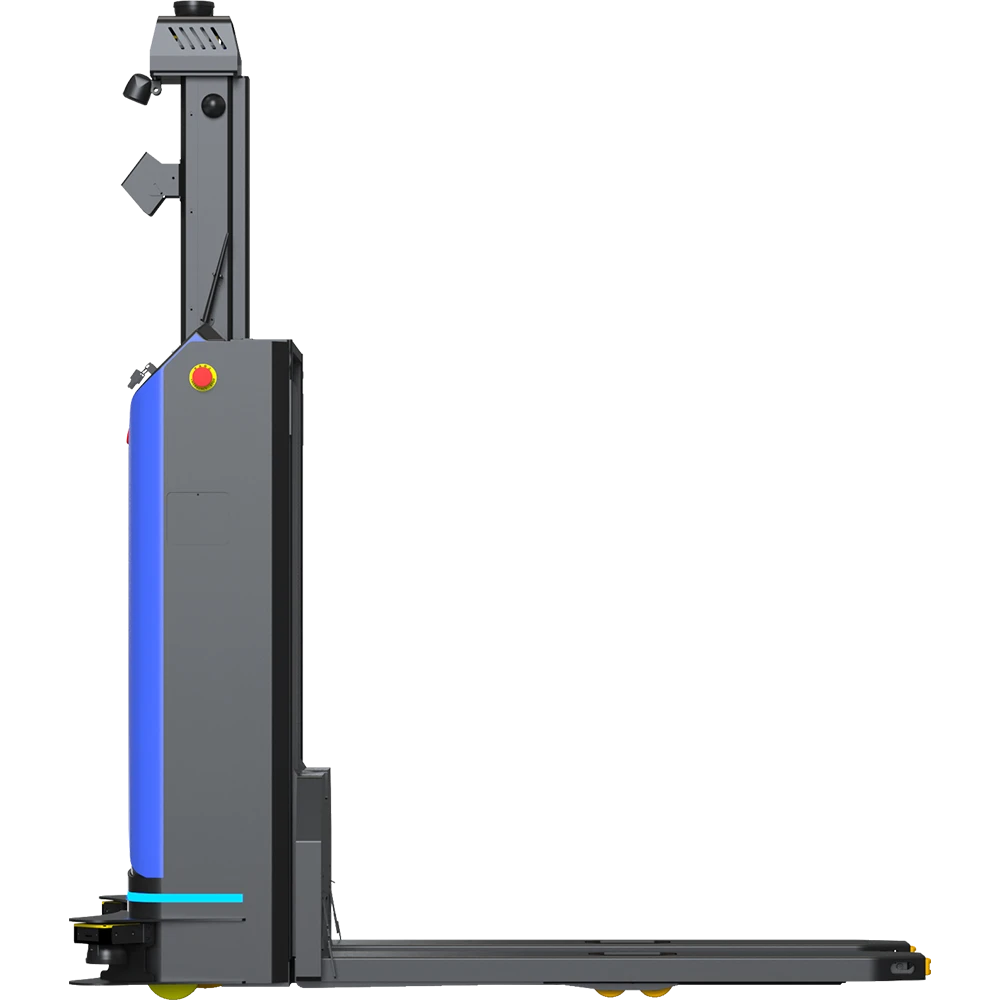

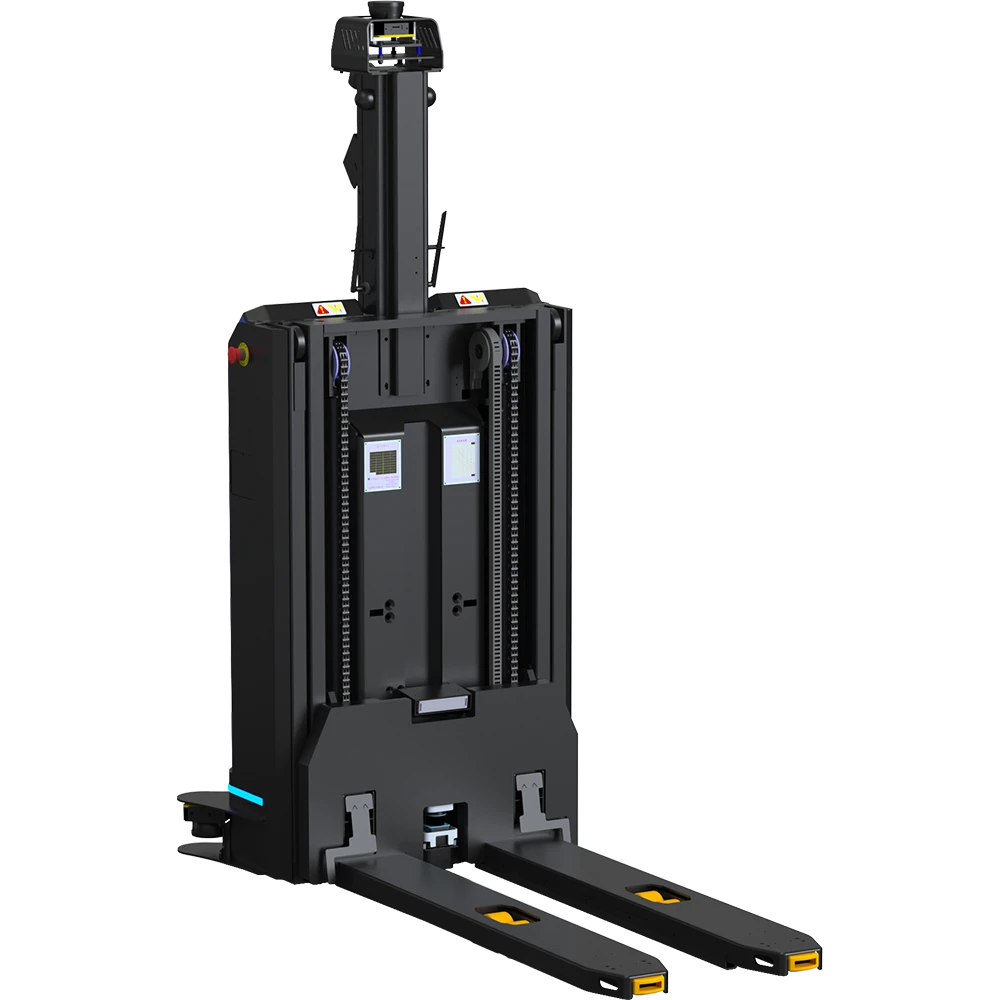

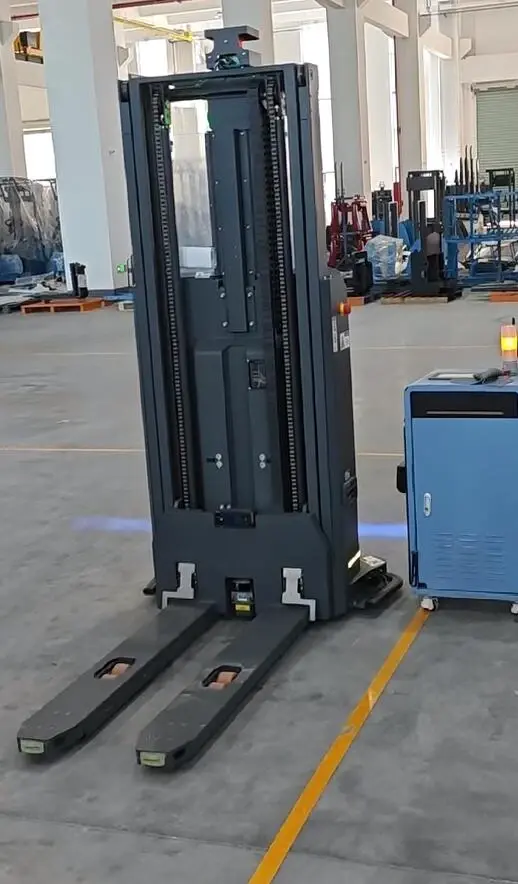

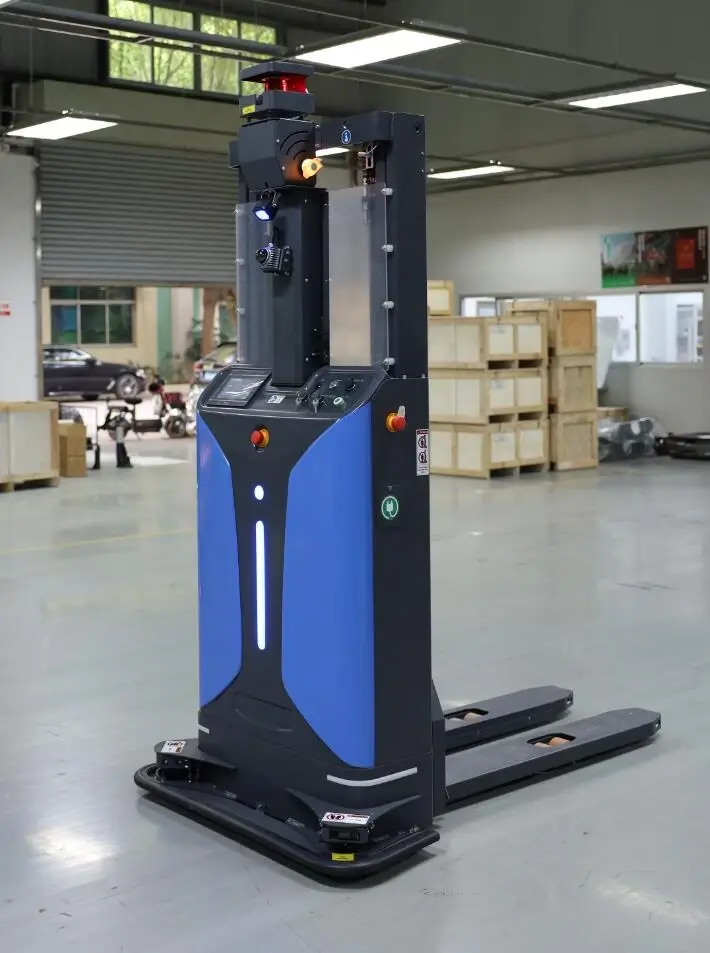

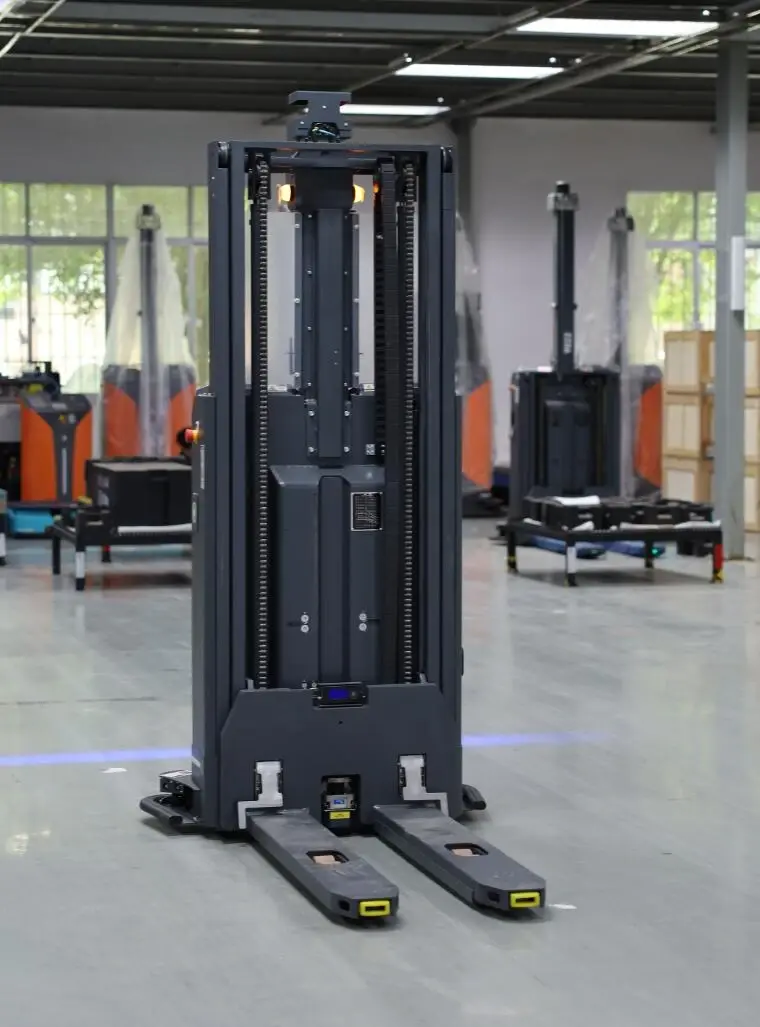

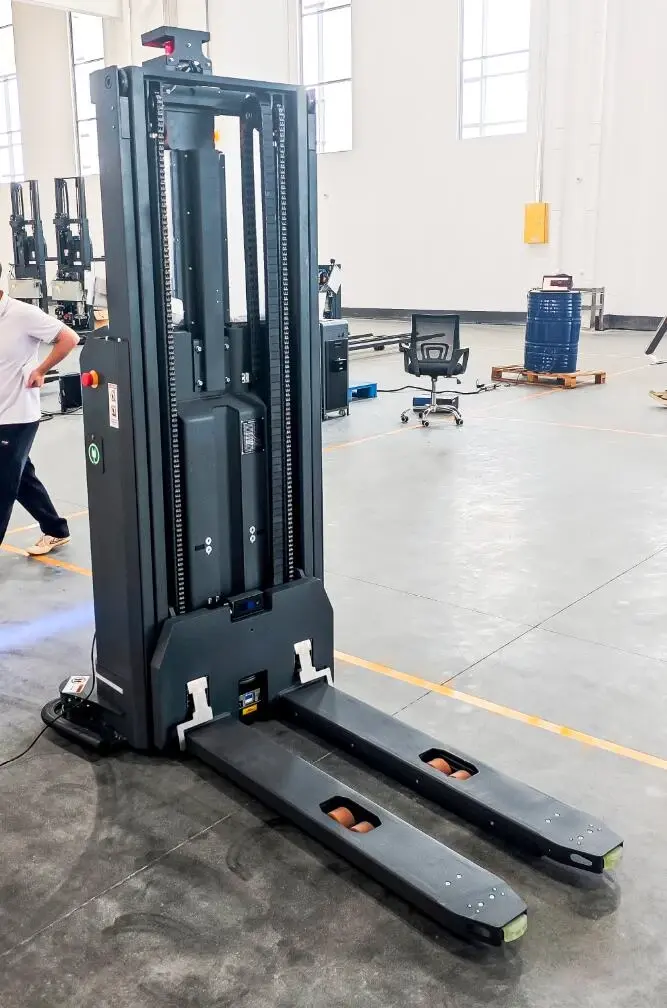

Laser SLAM

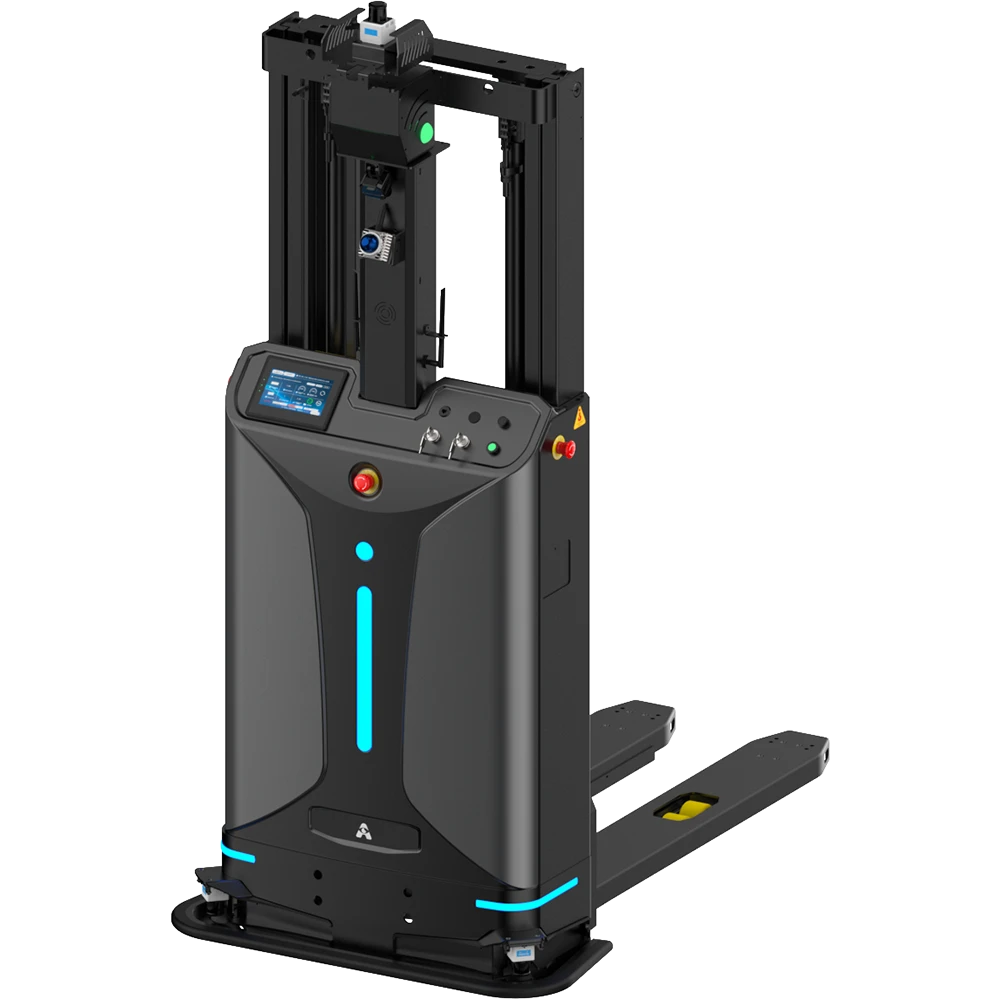

Small Stacker Automatic Forklift
FD-1400
Narrow Aisles Exclusive, Versatile and Universal
Load Type：
FD-1400
1400 kg
Rated load capacity
600 mm
Load center distance
1600/3000 mm
Standard lifting height
Open pallet
Pallet type
Precision, punctuality, safety

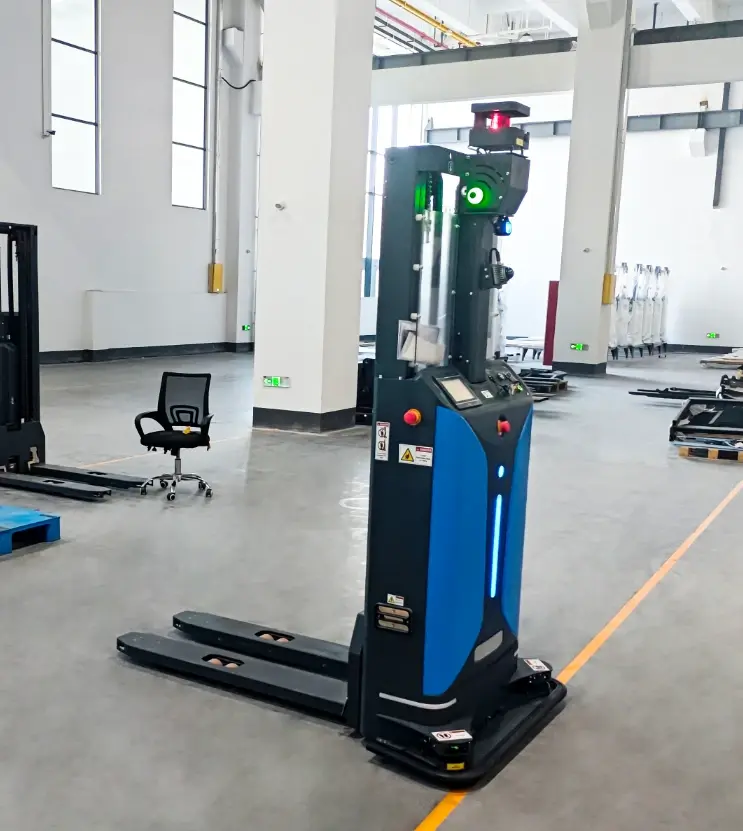

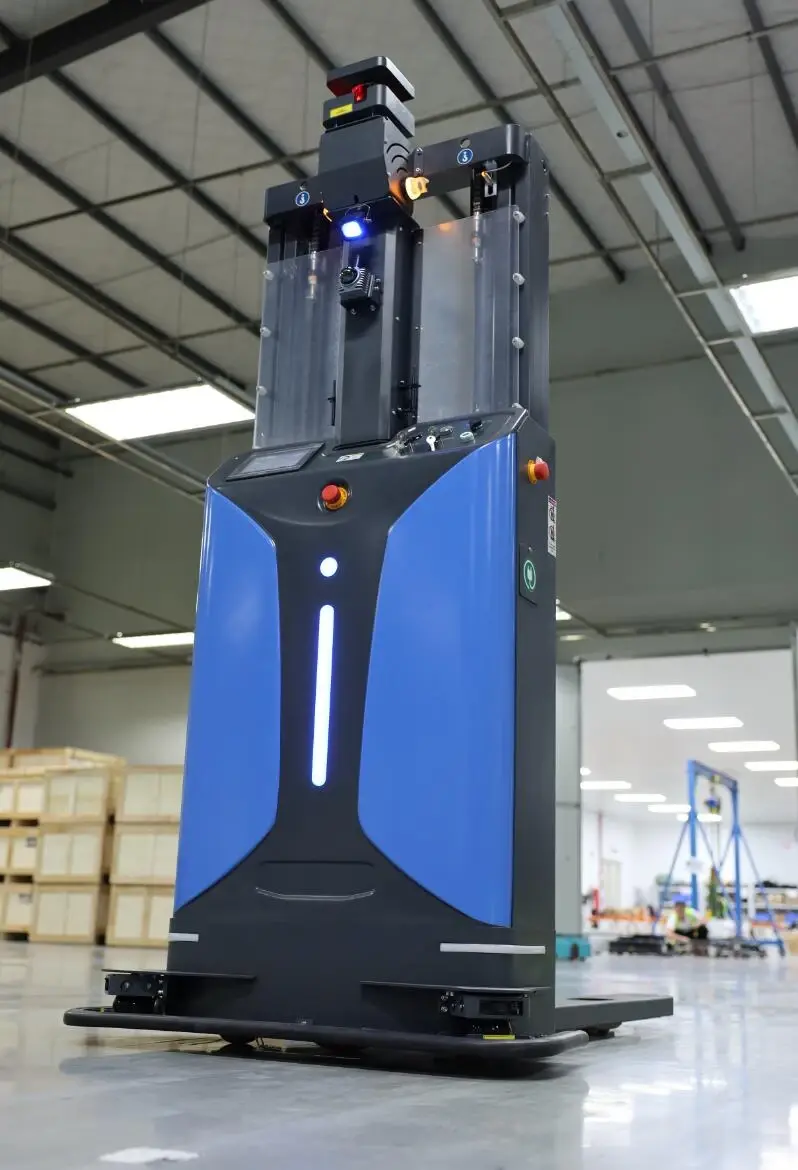

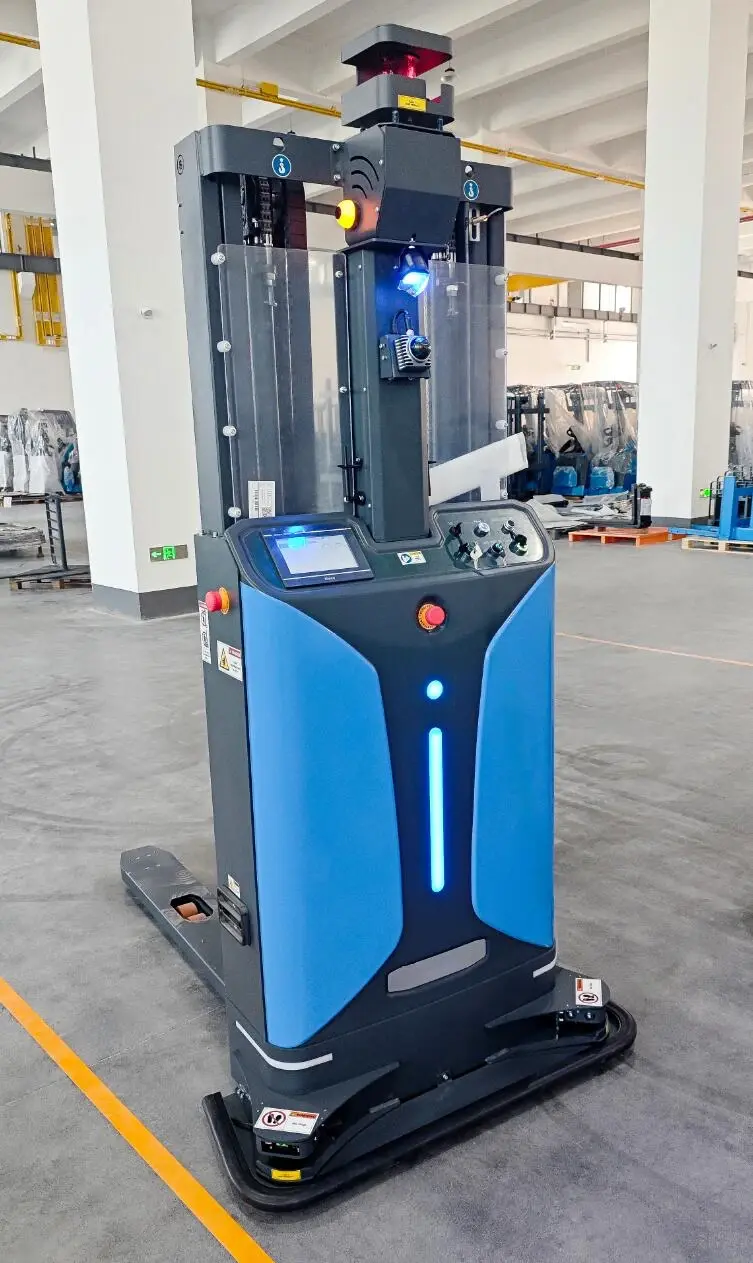

Laser SLAM Small Stacker Automatic Forklift
Dramatically reduce costs and improve handling efficiency
Built-in SRC Controller
AIVISON Robotics’ system software can be seamlessly accessed for flexible collaboration of multiple models.

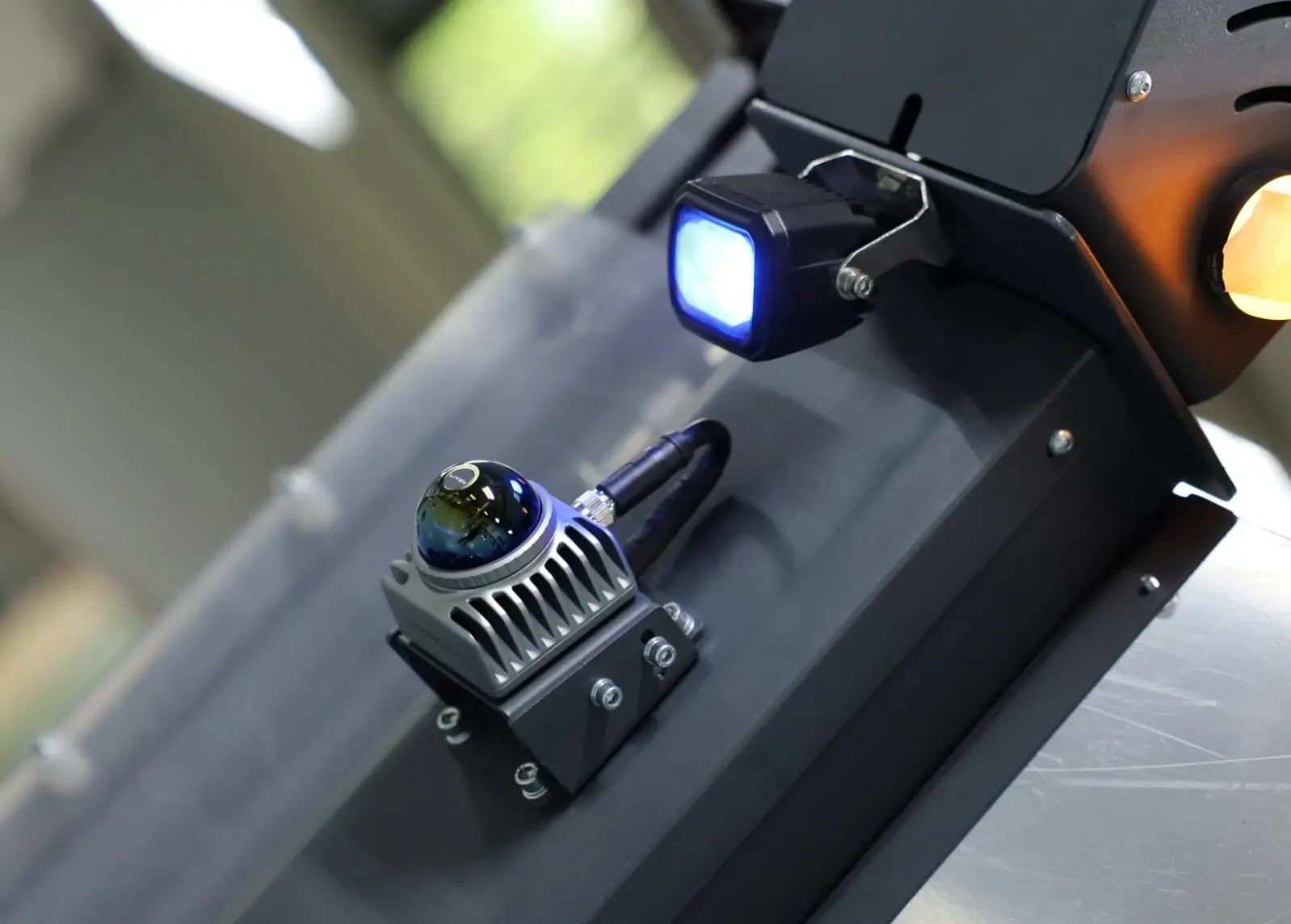

More Intelligent and Accurate Visual Supports

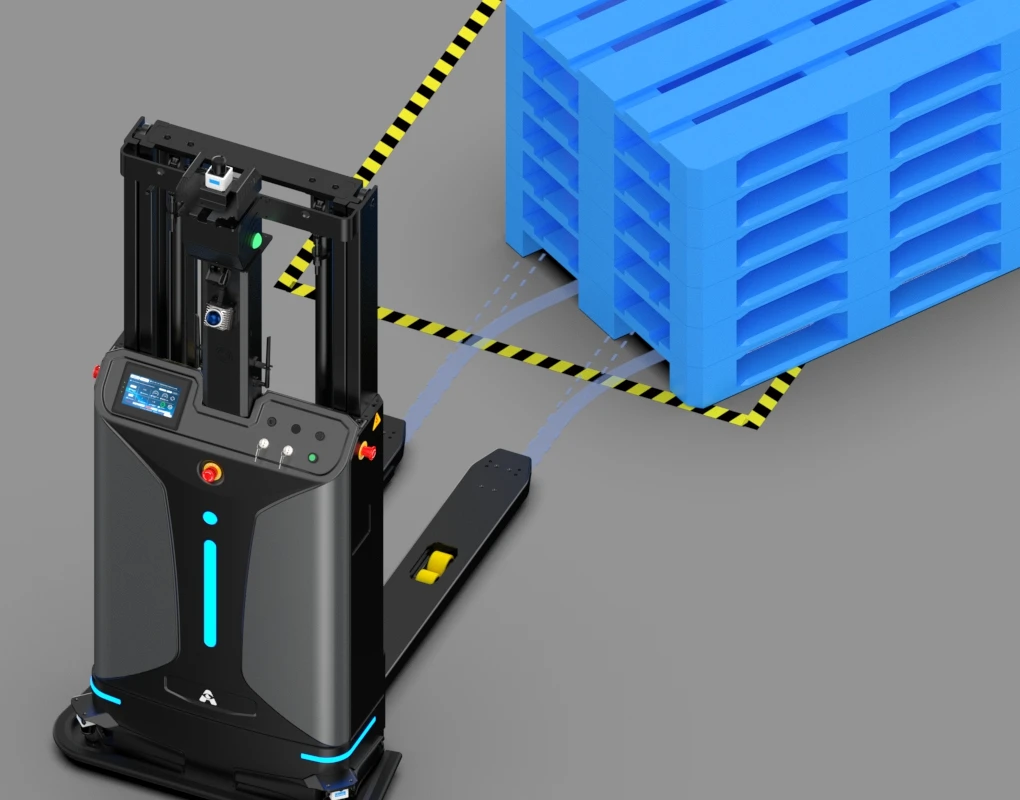

3D vision for obstacle detection, and pallet vision recognition.

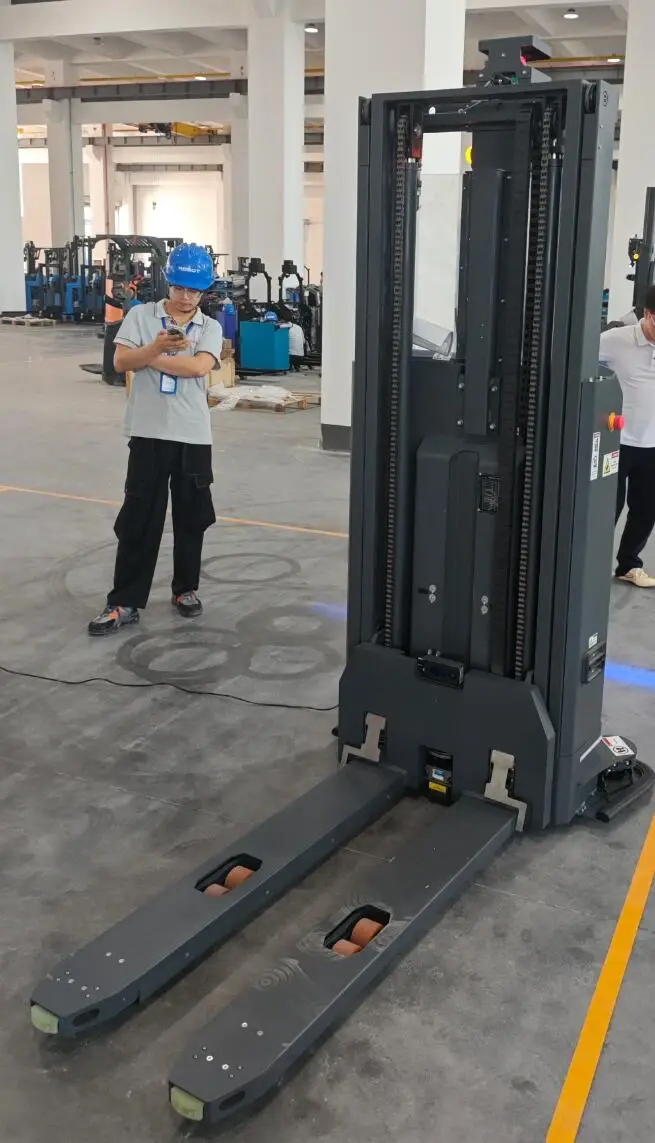

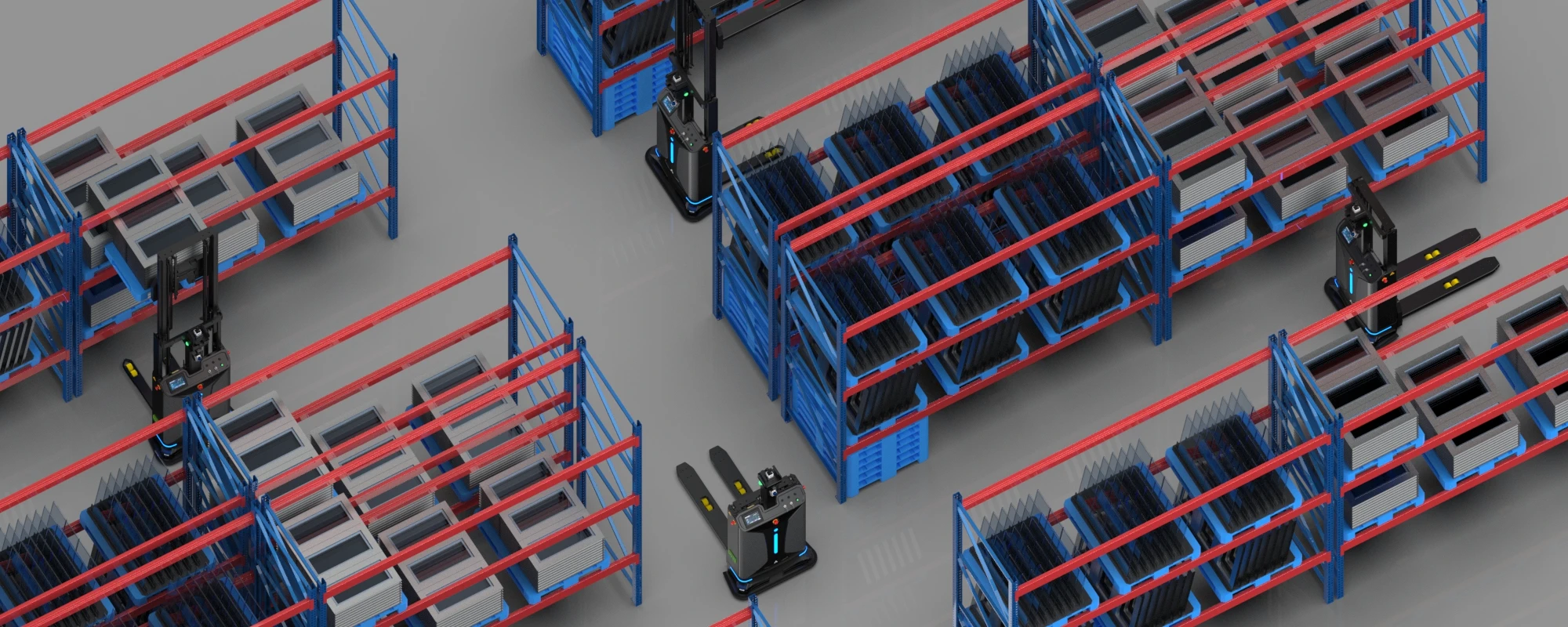

The Slender Design Allows lt to Move Easily Through Narrow Aisles
The work can also be completed with extra small radius of gyration even in narrow aisles.

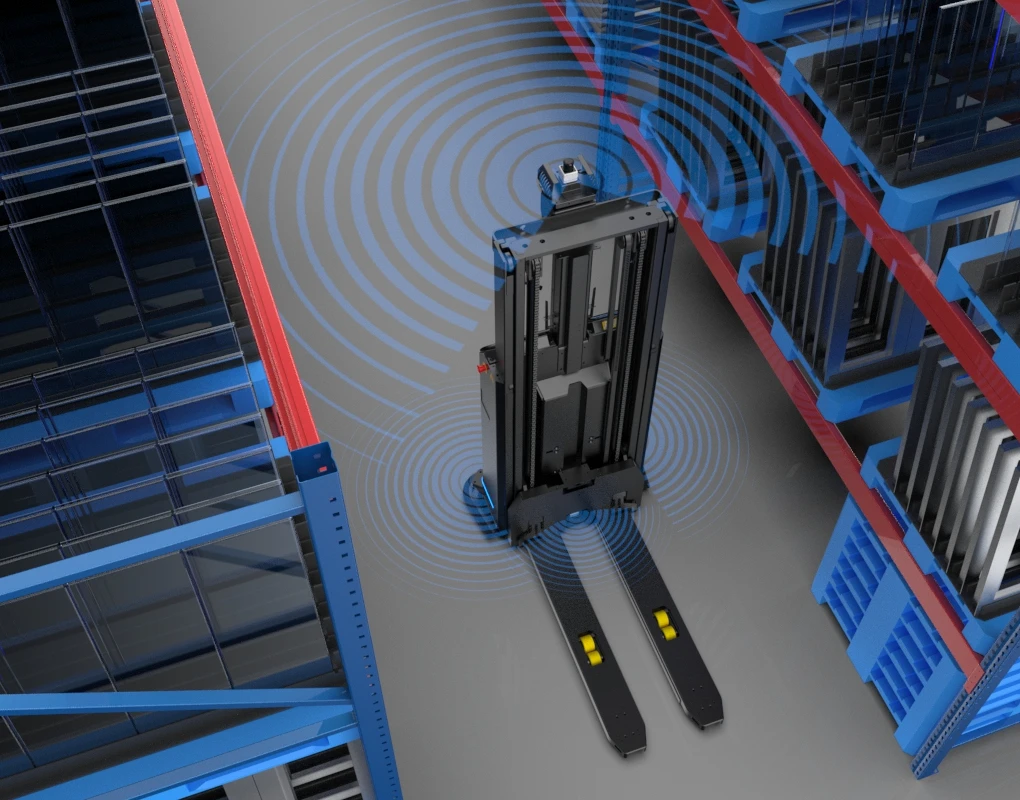

Real Laser SLAM
Easy to deploy with trackless route navigation.

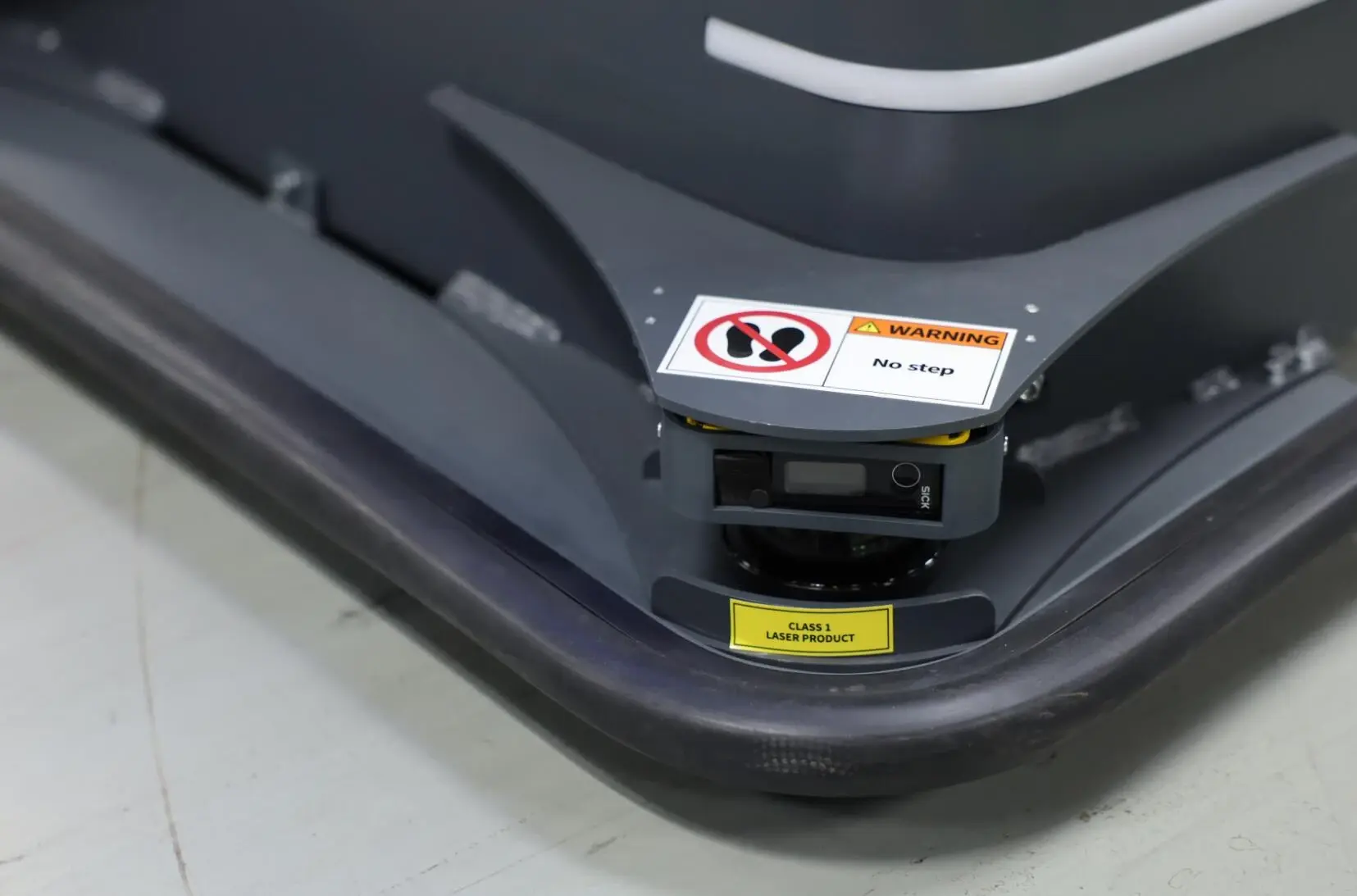

All Round Protection MakesIt Really Safe
Multi-dimensional sensors ensure all-round protection.
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Small Stacker Autonomous Forklift |
| Operation type | Automatic navigation, by manual control device |
| Navigation type | Laser SLAM |
| Pallet type | Open pallet |
| Rated load capacity | 1400 kg |
| Load center distance | 600 mm |
| Weight (with battery) | 680 / 740 kg |
| Standard lifting height | 1600 / 3000 mm |
| Forklift dimensions: L × W × H | FREE / P+F: 1710 × 989 × 1998 / 1710 × 989 × 2247 mm |
| Fork dimensions: L × W × H | 1220 × 180 × 70 mm |
| Fork outer width | 570 / 680 mm |
| Minimum turning radius | 1227 + 200 mm |
| Performance parameters | |
|---|---|
| Driving speed: full load / no load | 1.2 / 1.5 m/s |
| Passability (slope / step / gap) | ＜ 5% / 5 mm / 15 mm |
| Navigation position accuracy | ±10 mm |
| Navigation angle accuracy | ±0.5° |
| Battery parameters | |
|---|---|
| Battery specifications | 24 V / 210 Ah (lithium iron phosphate) |
| Comprehensive Battery life | 10 h |
| Charging time （10% to 80% ） | 2 h |
| Charging method | Manual / Automatic |
| Function configurations | |
|---|---|
| Lidar number | 1 (FREE H1 / P+F R2000-25M) + 3 (FREE C2) |
| Wi-Fi roaming | ● |
| 3D obstacle avoidance | ○ |
| Pallet recognition | ○ |
| Cage stack | ○ |
| High shelf pallet recognition | ○ |
| Pallet stack | ○ |
| HMI display | ● |
| Safety configurations | |
|---|---|
| E-stop button | ● |
| Sound and light indicator | ● |
| Braking distance: 1m/s / 1.5 m/s | ≤30 cm / ≤50 cm |
| 360° laser protection | ● |
| Bumper strip | ● |
| Fork height protection | ● |
