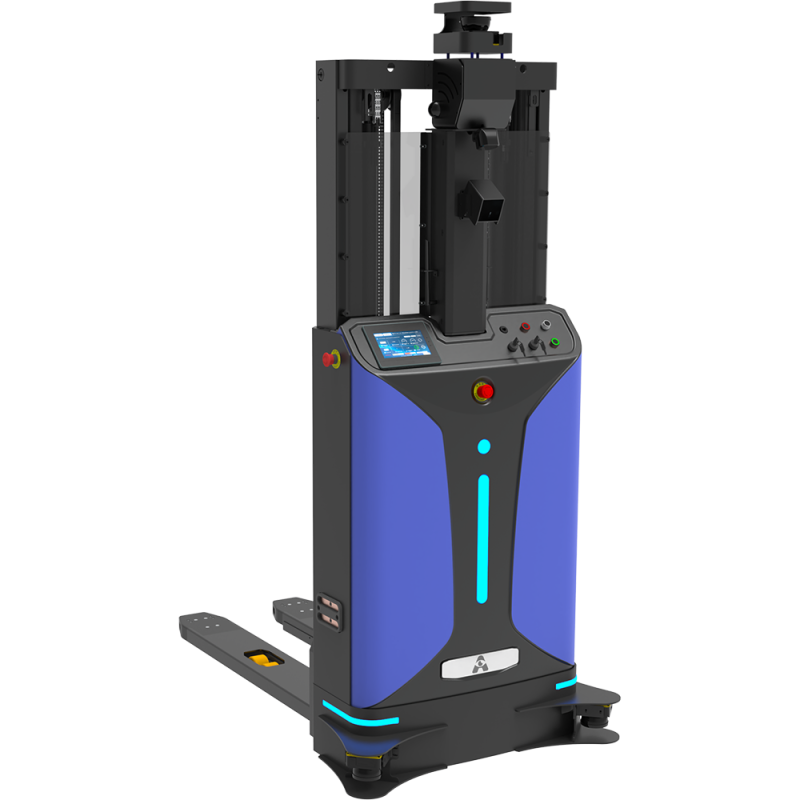

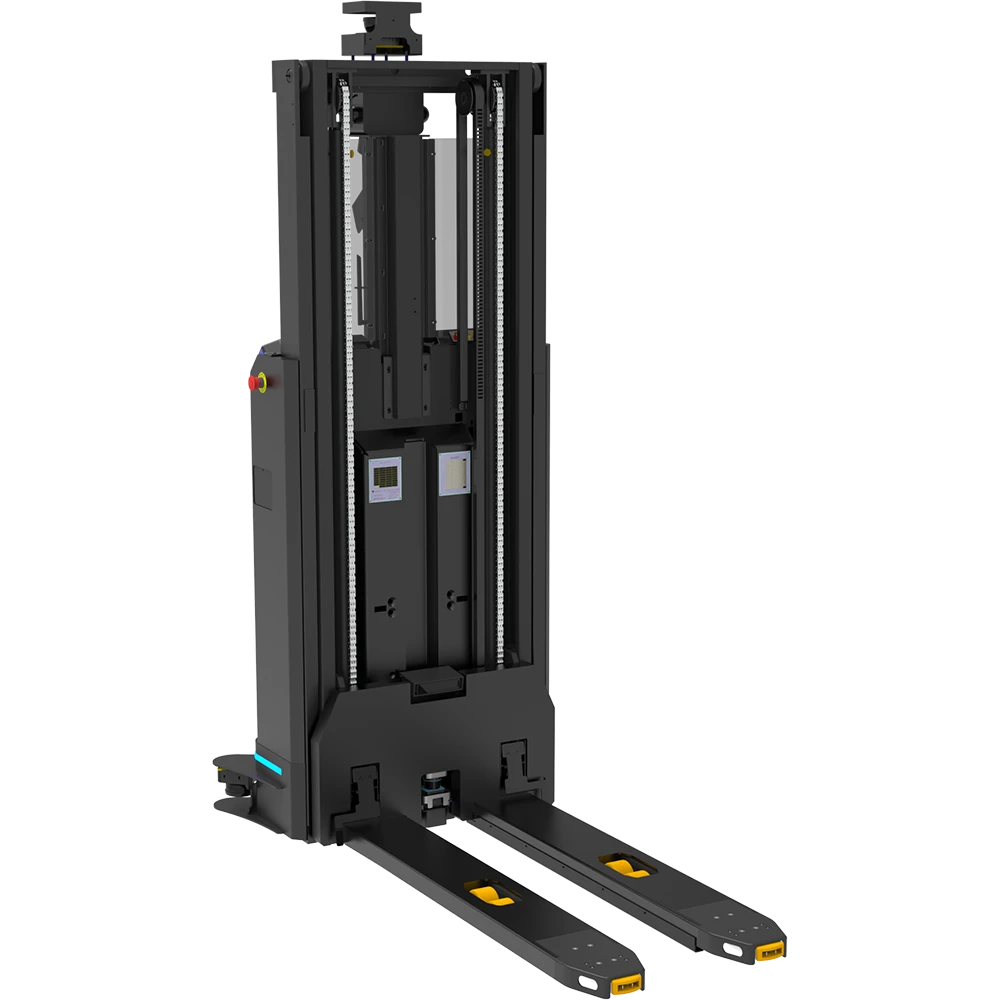

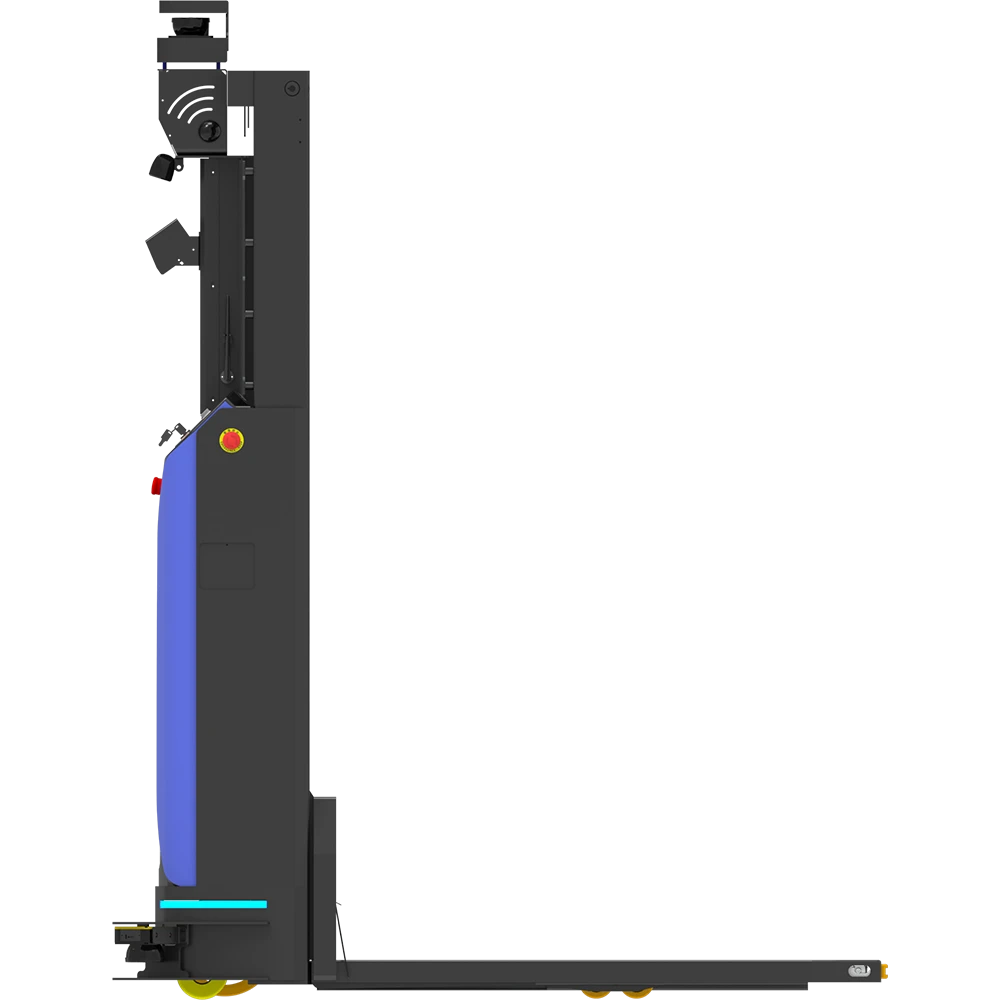

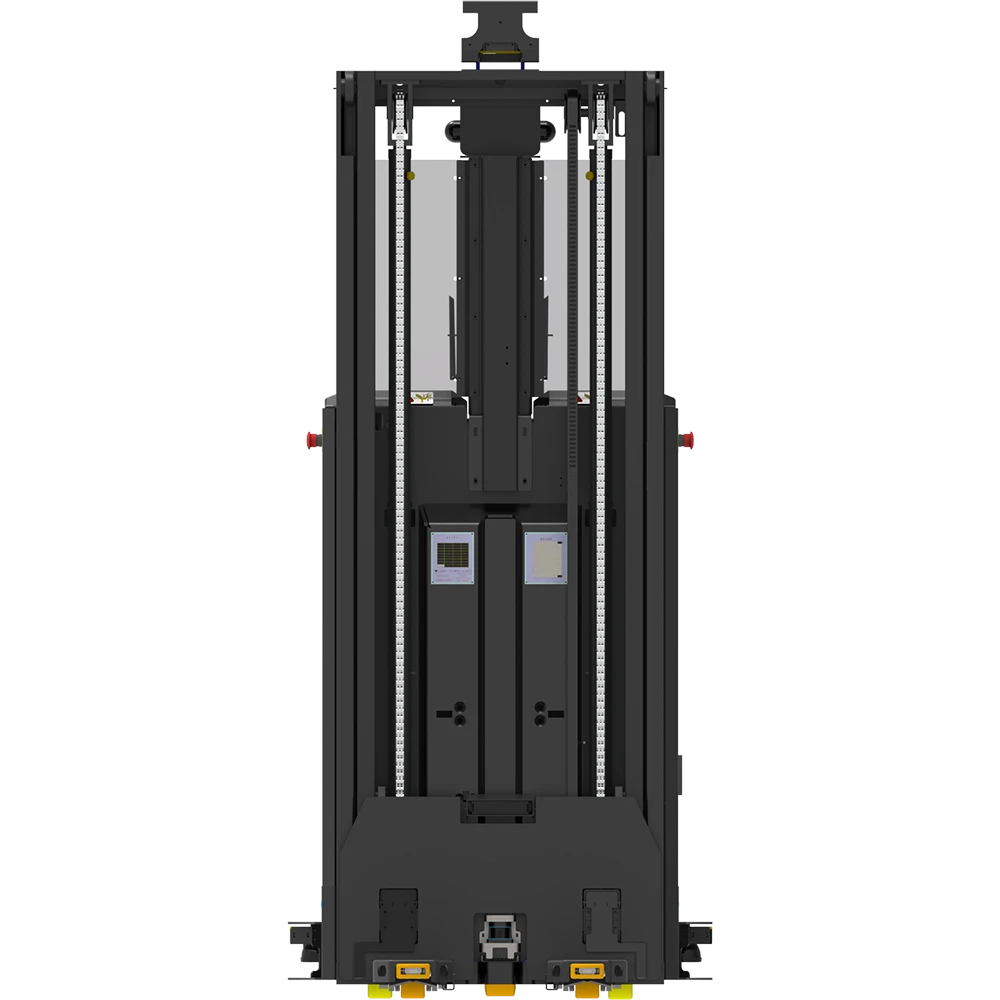

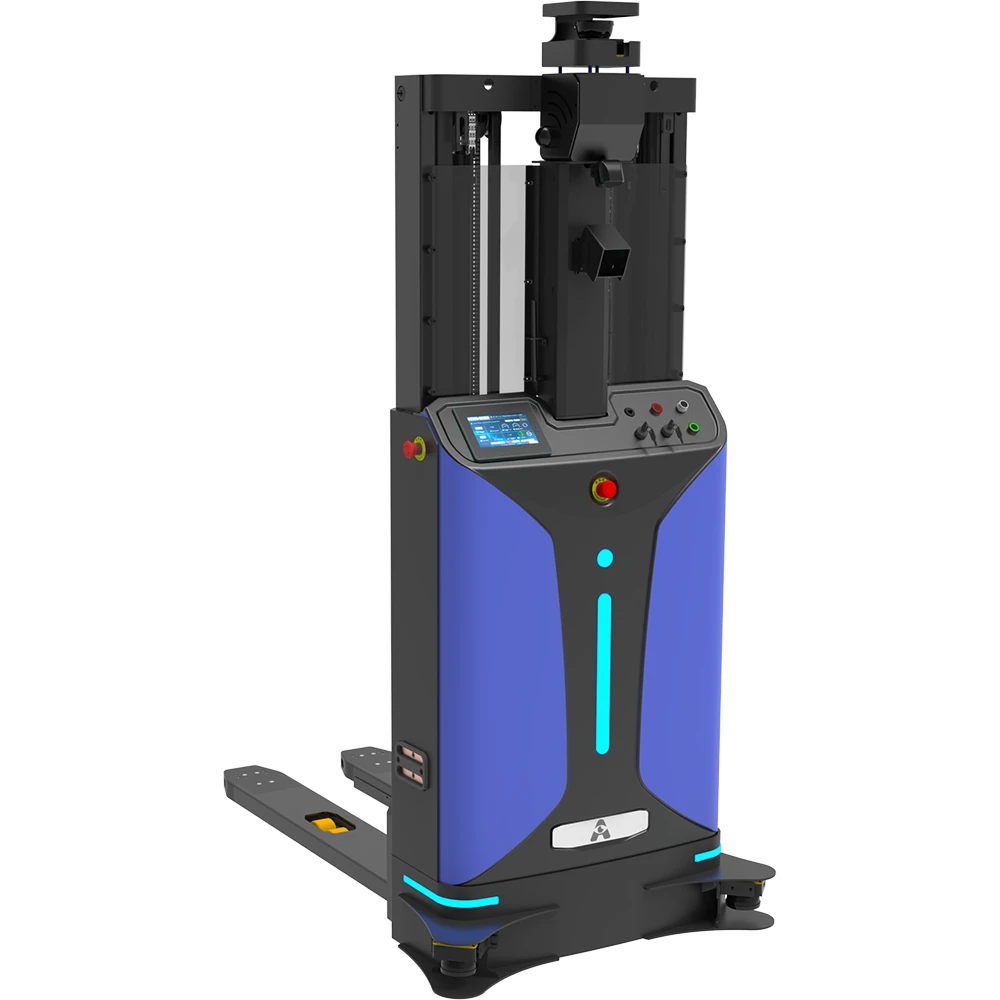

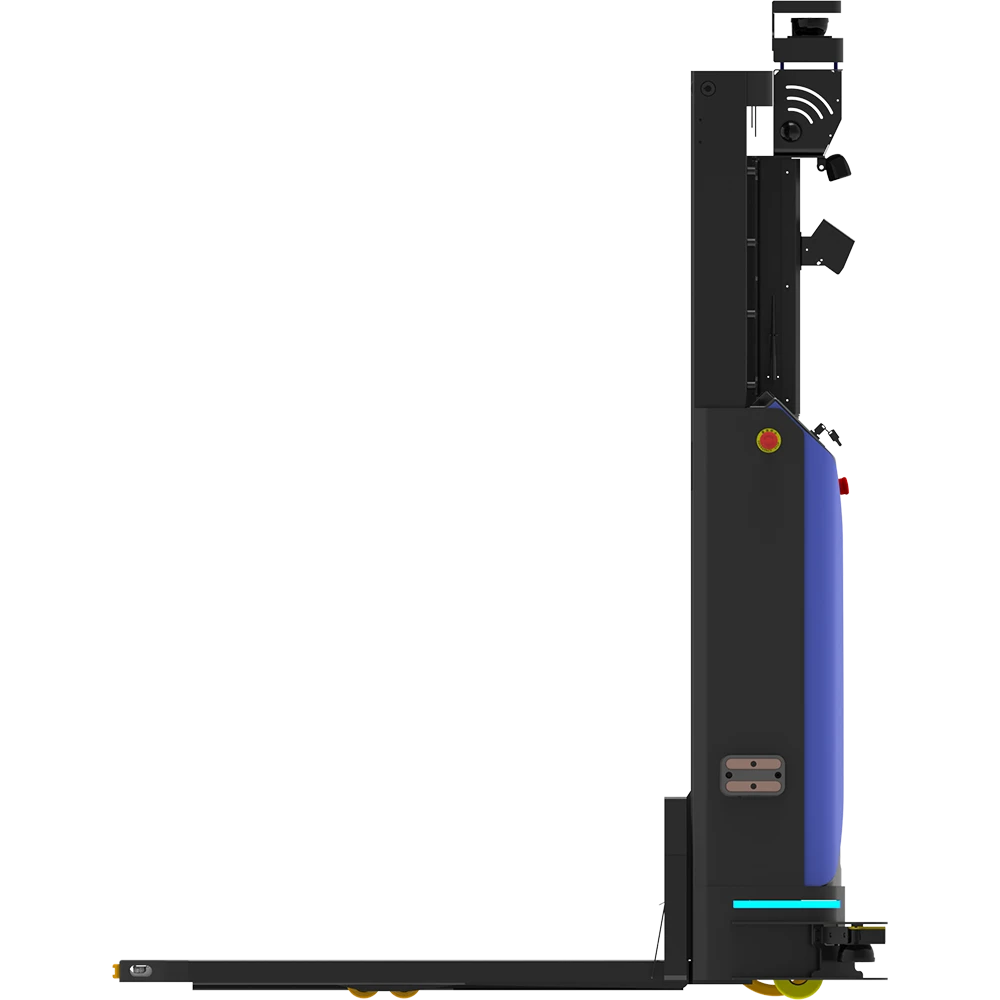

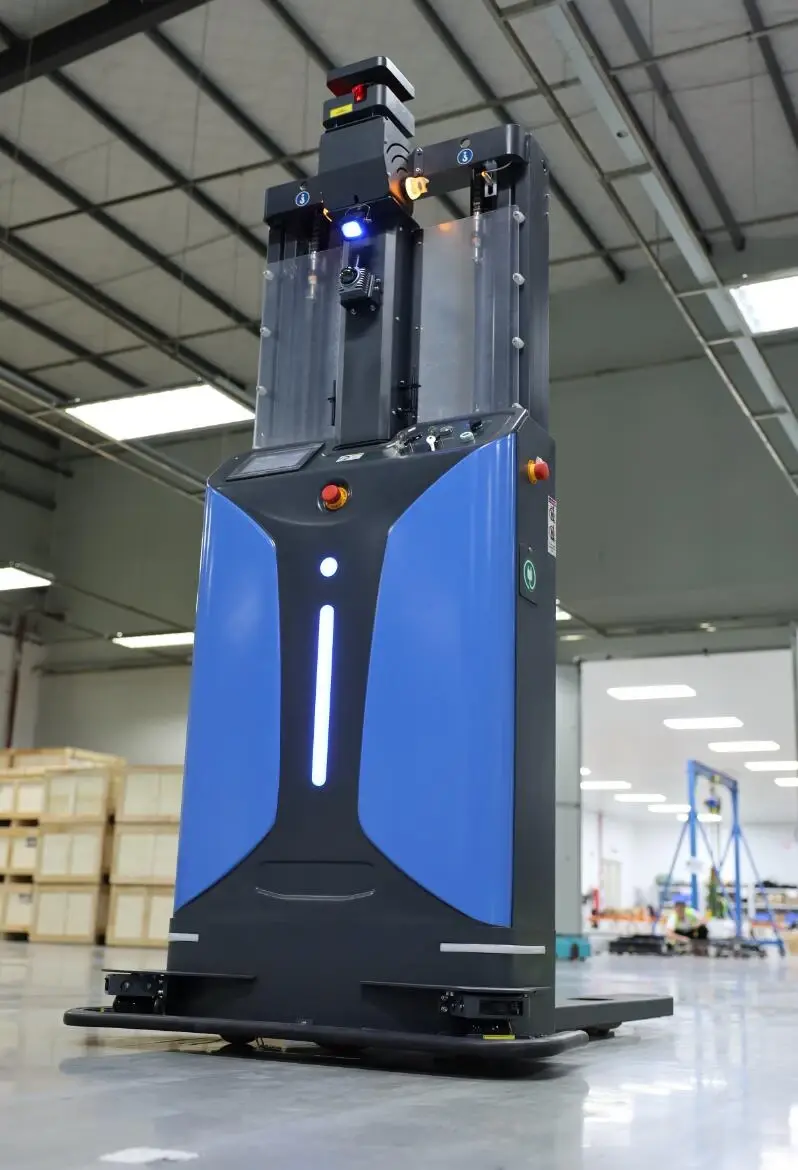

Laser SLAM

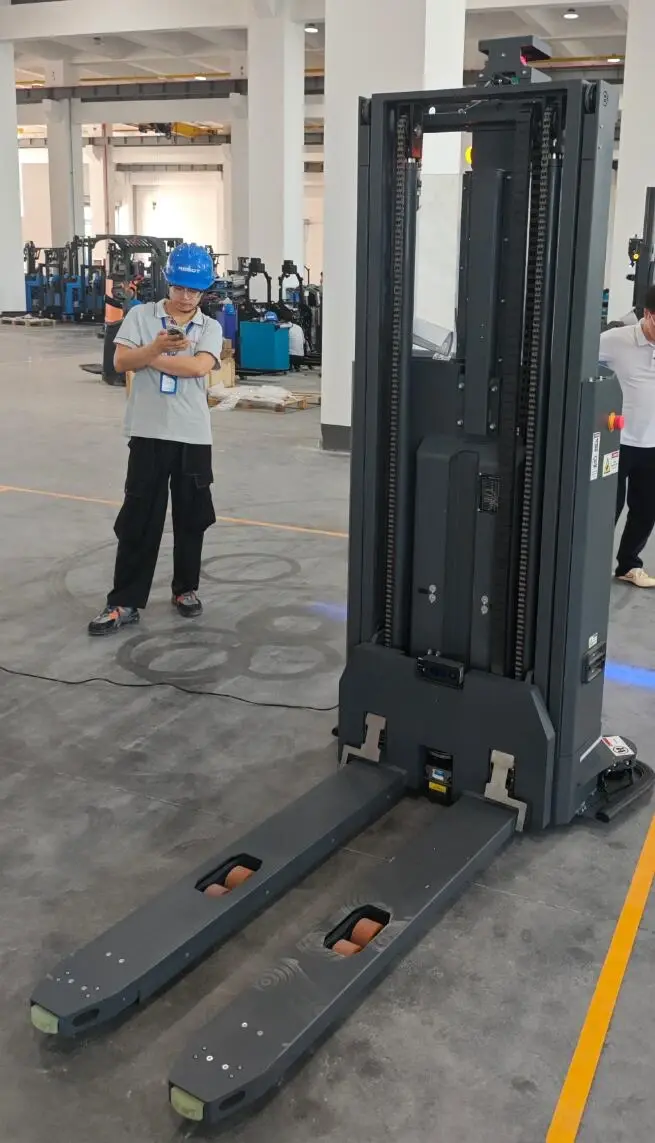

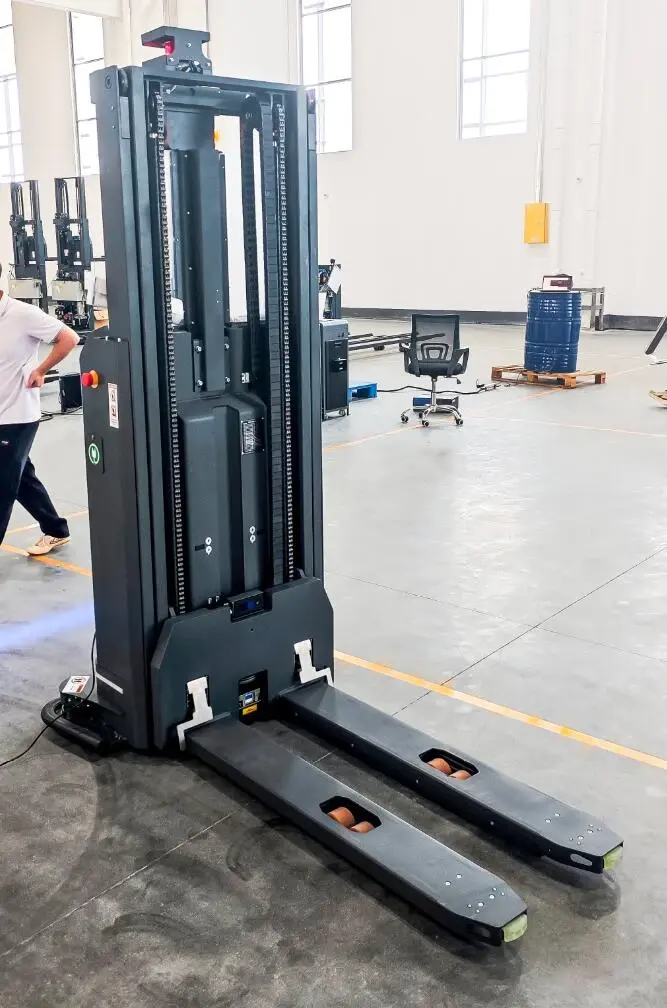

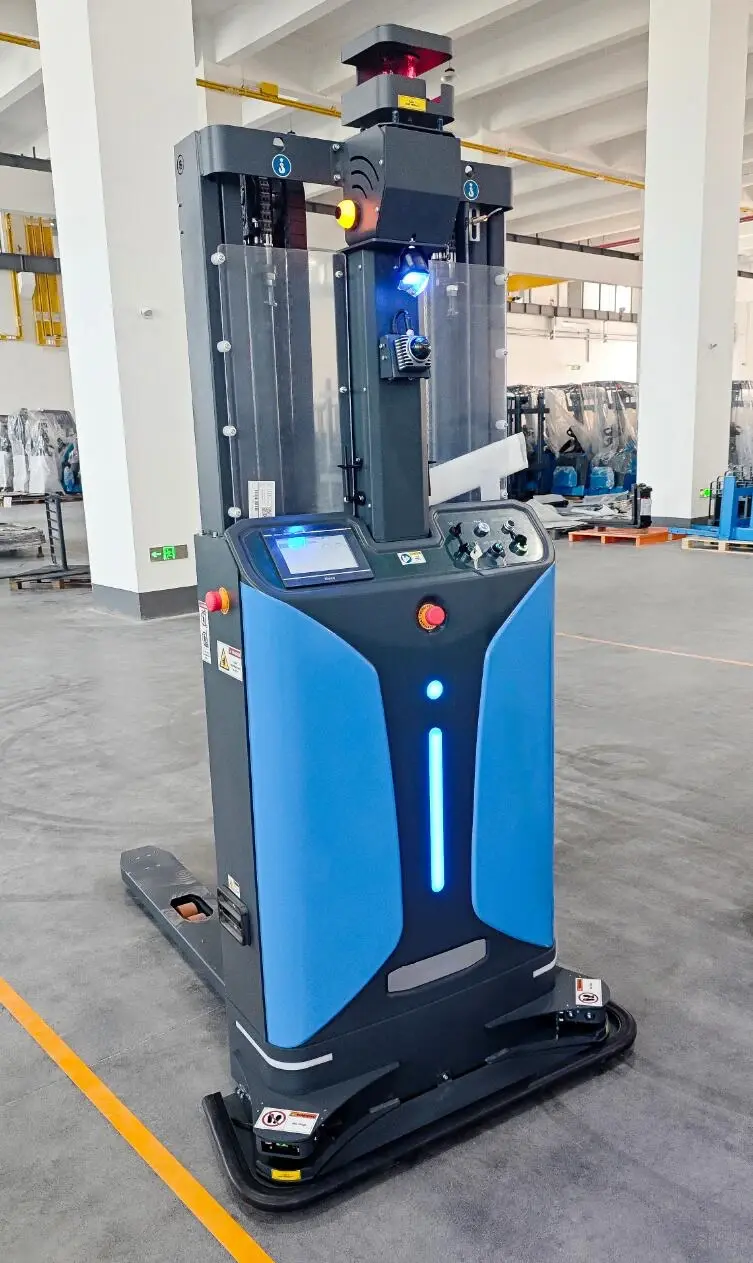

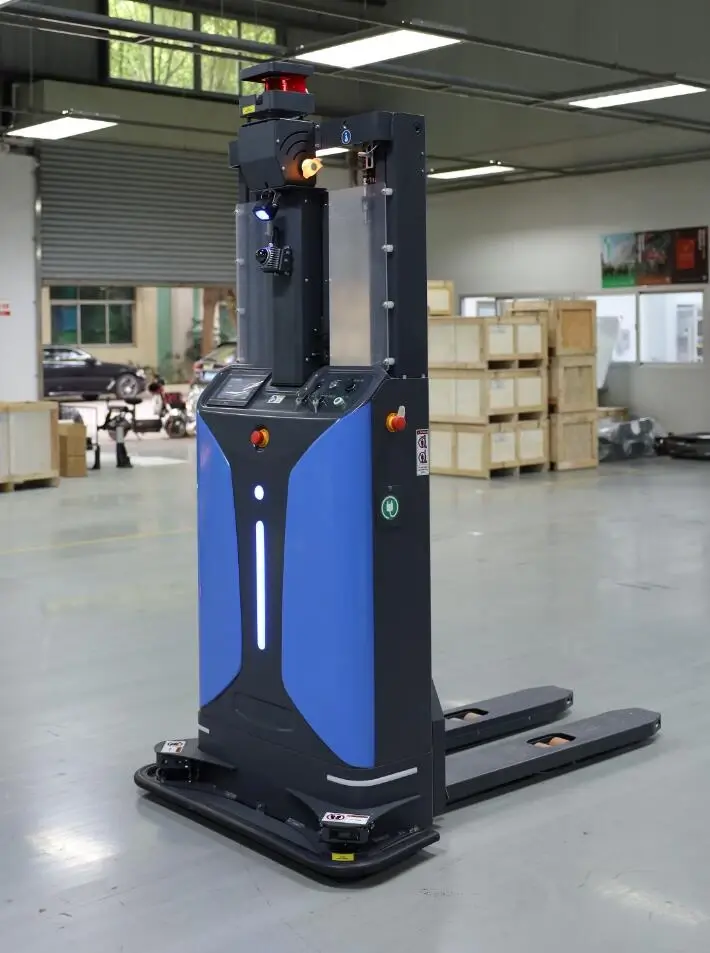

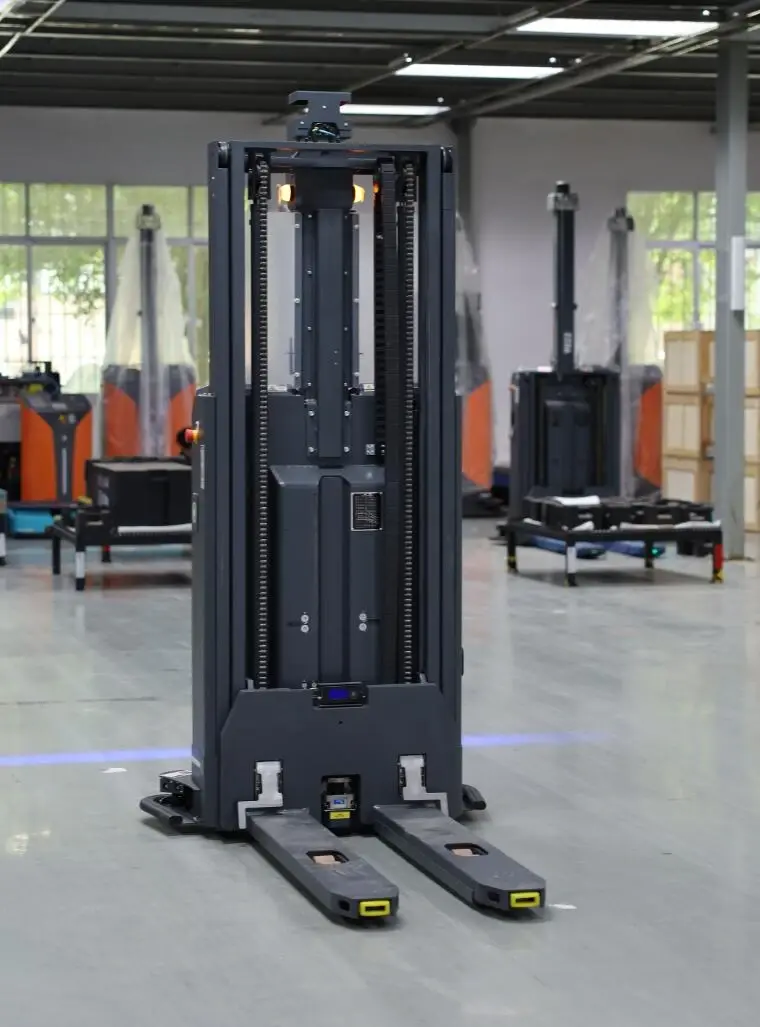

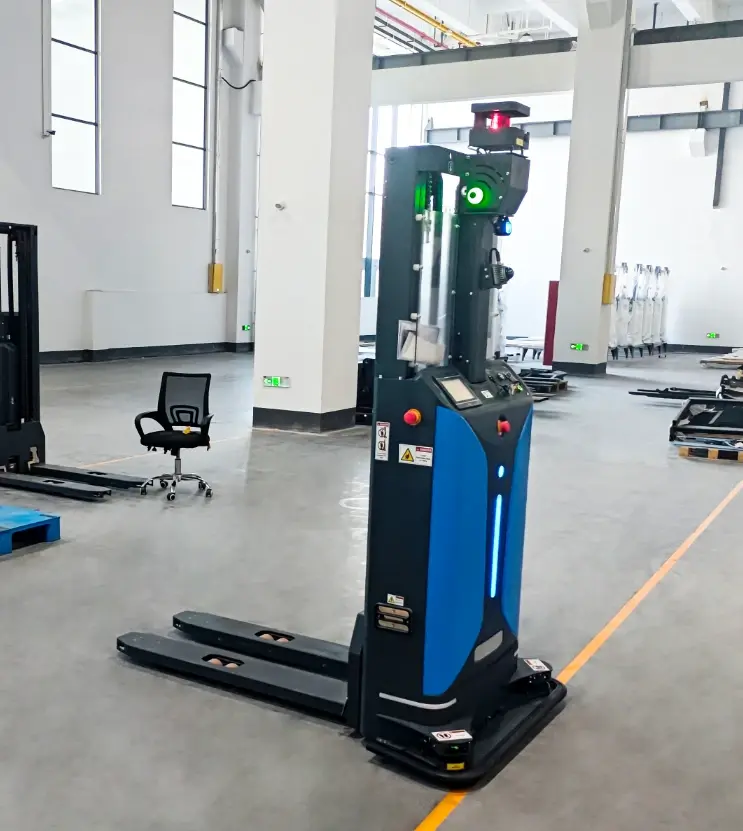

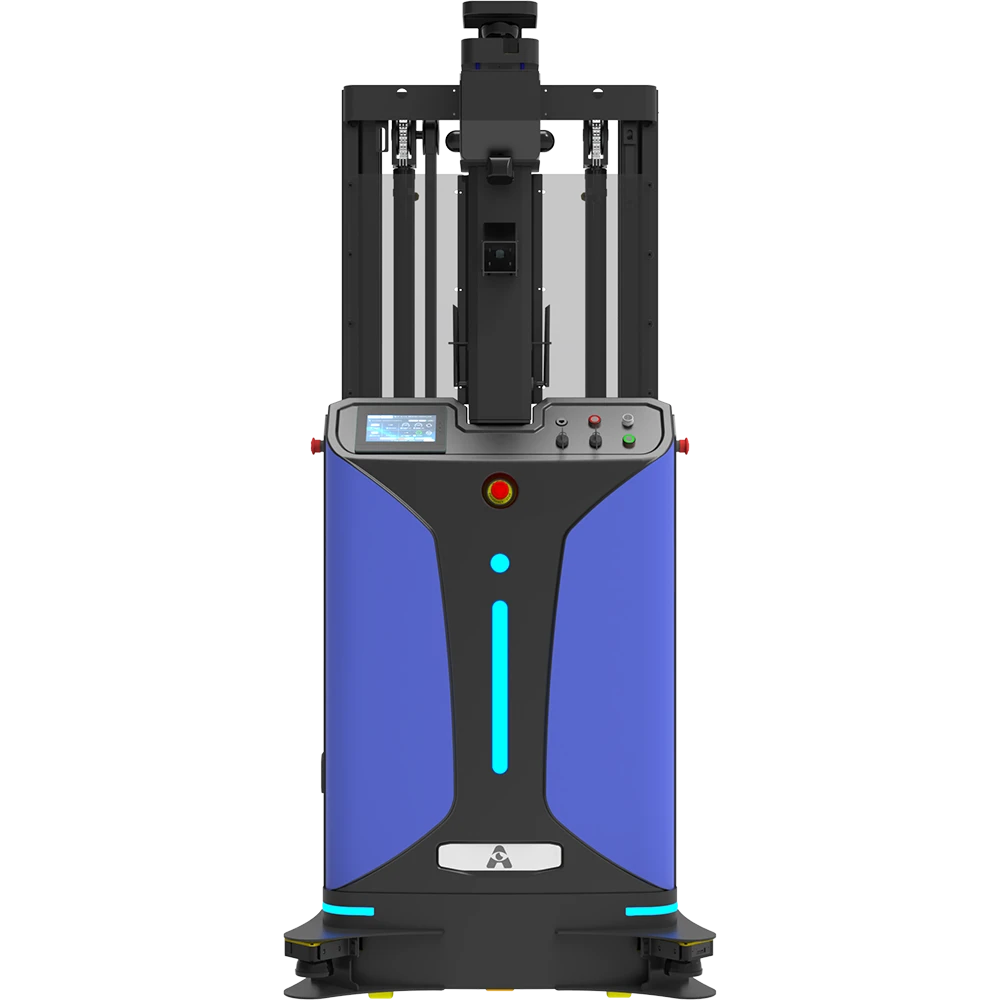

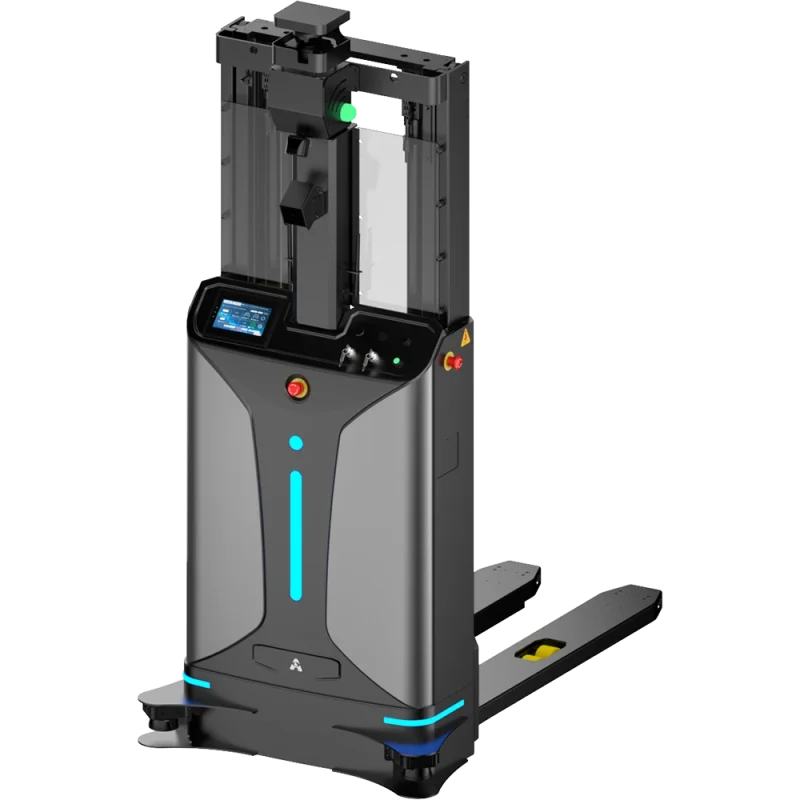

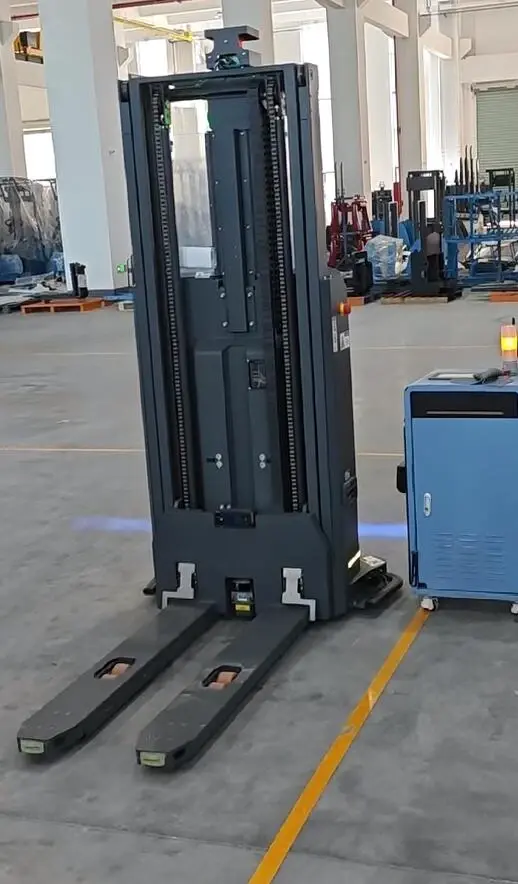

Small Stacker Autonomous Forklift
FD-1400-CE
Security Updates, Free Even in Narrow Aisles
Load Type：
FD-1400-CE
1400 kg
Rated load capacity
600 mm
Load center distance
1600 / 3000 mm
Standard lifting height
Open pallet
Pallet type
Precision, punctuality, safety
Laser SLAM Small Stacker Automatic Forklift
Dramatically reduce costs and improve handling efficiency
CE Safety certified, Outstanding Performance & Excellent Safety Standard by Design
Obtion CE certification (ISO 3691-4:2020) and other certifications.
Flexible Fleet Management, Makes lt Really Intelligent
The fleet management system can be accessed seamlessly to make carrying smarter and simpler.

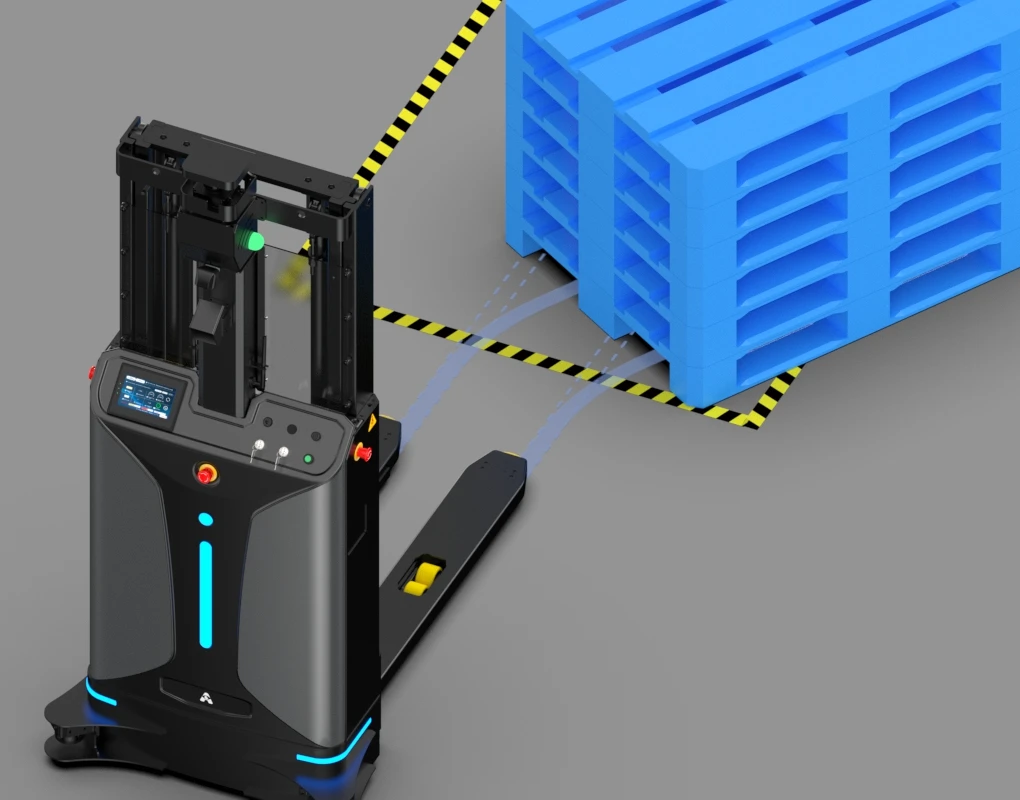

Pallet Recognition, Precise and Efficient
High-precision navigation & recognition, which delivers accurate forking, ensuring carrying efficiency.
Natural Feature Navigation, Accurate yet Flexible
SLAM navigation with an accuracy of ±10 mm and without reflectors.

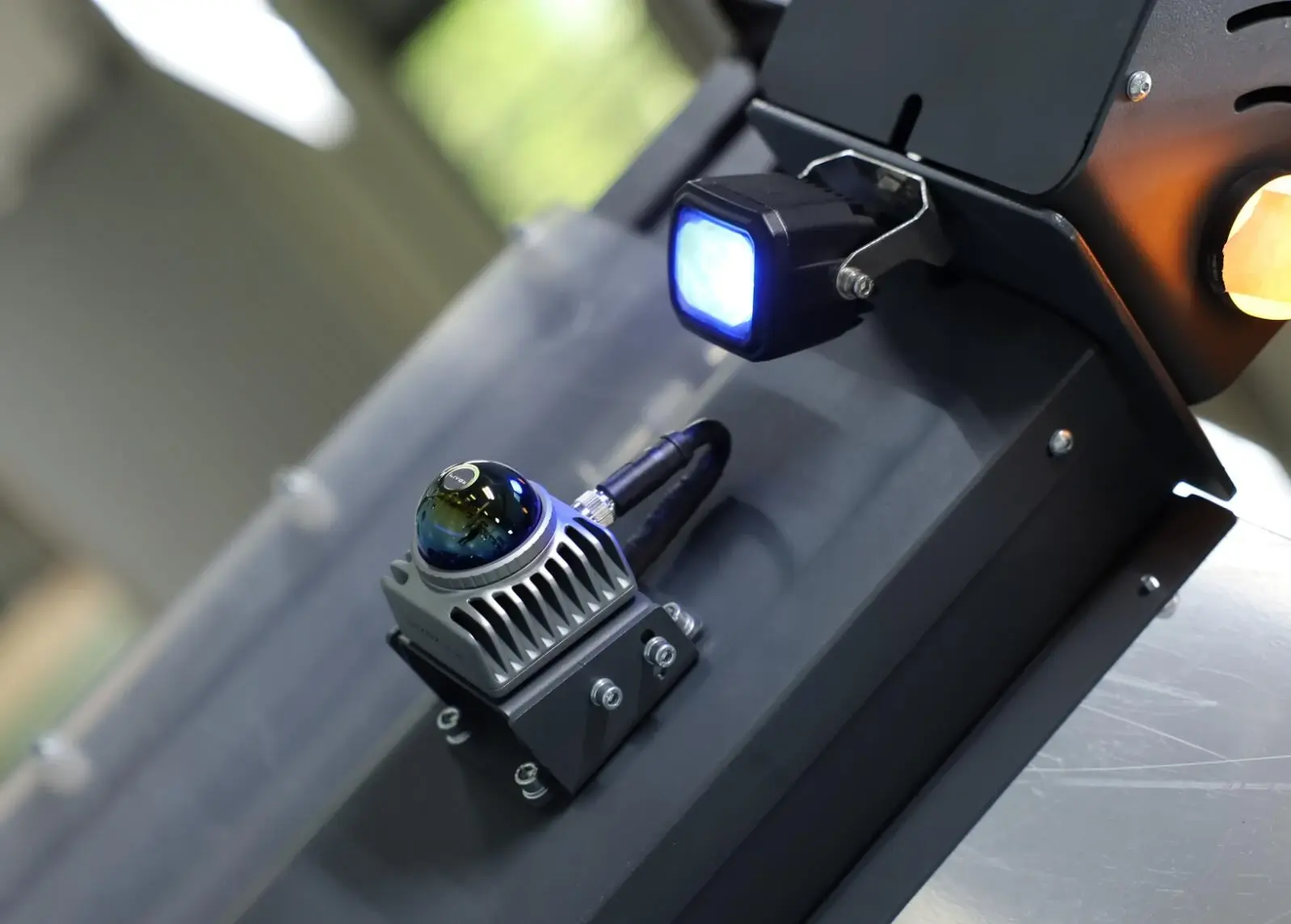

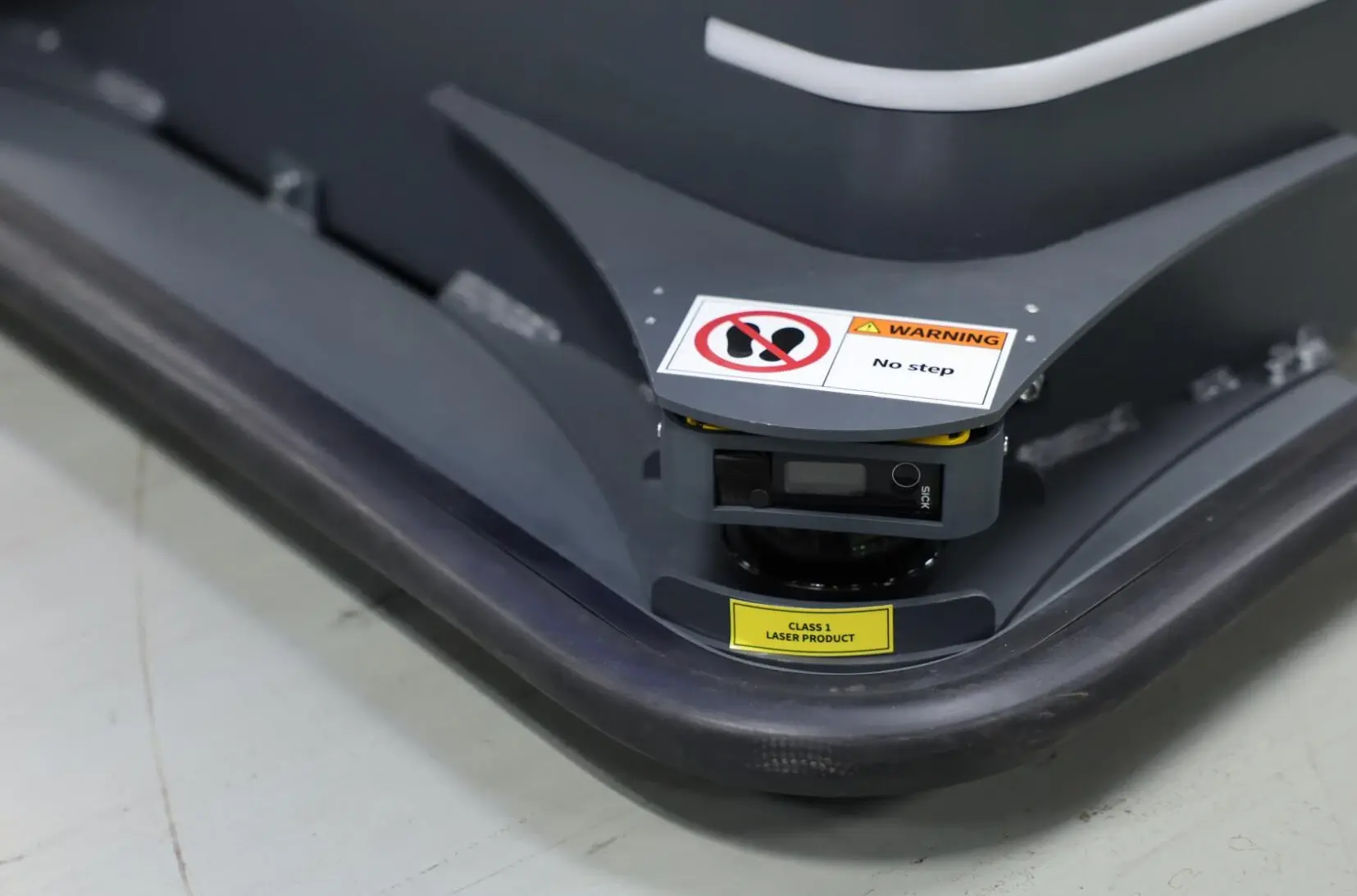

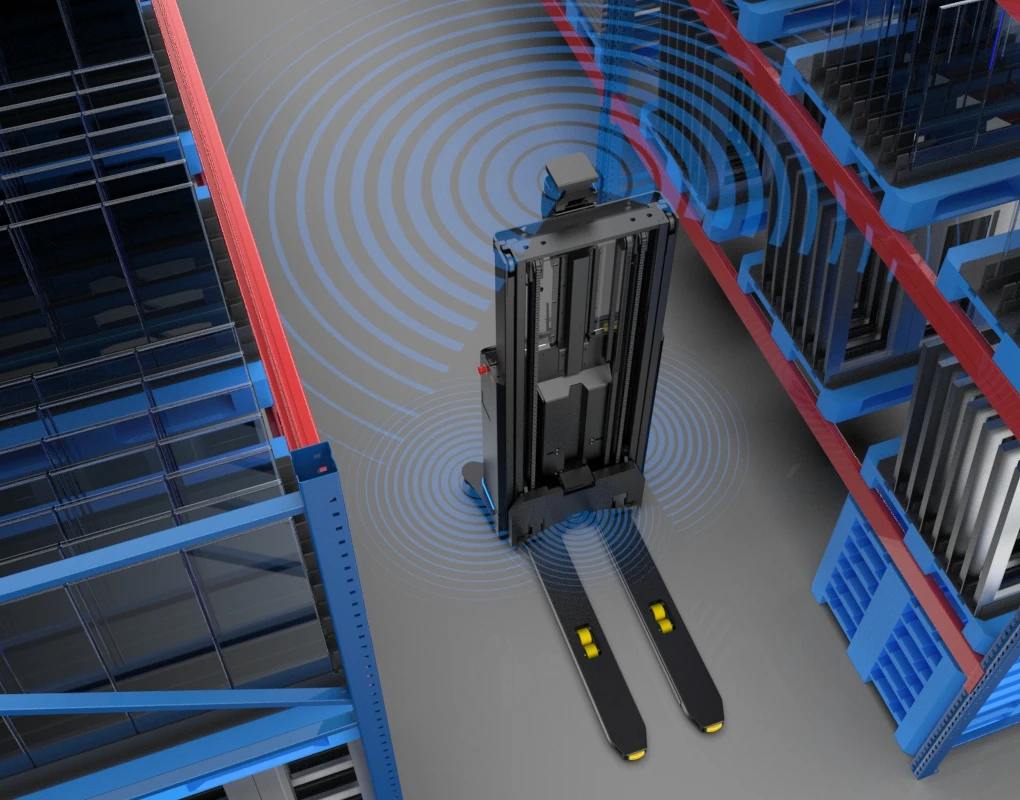

All Around Detection, 360° Safety
With 3D obstacle detection and other sensors for all-round security protection, security is greatly guaranteed.
1.4 T Payload capacity, Large Weight Compatibility yet Smooth Handling
With rated load capacity of 1.4 T, the load capacity can be more powerful in case of narrow aisles carrying.
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Small Stacker Autonomous Forklift |
| Operation type | Automatic navigation, by manual control device |
| Navigation type | Laser SLAM |
| Pallet type | Open pallet |
| Rated load capacity | 1400 kg |
| Load center distance | 600 mm |
| Weight (with battery) | 680 / 740 kg |
| Standard lifting height | 1600 / 3000 mm |
| Forklift dimensions: L × W × H | P+F: 1722 × 951 × 2064 / 1722 × 951 × 2234 mm / SICK: 1722 × 951 × 2042 / 1722 × 951 × 2234 mm |
| Fork dimensions: L × W × H | 1220 × 180 × 70 mm |
| Fork outer width | 555 / 570 / 680 mm |
| Minimum turning radius | 1206 + 200 mm |
| Performance parameters | |
|---|---|
| Driving speed: full load / no load | 1.2 / 1.5 m/s |
| Passability (slope / step / gap) | ＜ 5% / 5 mm / 15 mm |
| Navigation position accuracy | ±10 mm |
| Navigation angle accuracy | ±0.5° |
| Battery parameters | |
|---|---|
| Battery specifications | 24 V / 180 Ah (lithium iron phosphate) |
| Comprehensive Battery life | 10 h |
| Charging time （10% to 80% ） | 2 h |
| Charging method | Manual / Automatic |
| Function configurations | |
|---|---|
| Lidar number | 1 (SICK nanoScan3 Core / P+F OMD30M-R2000-B23-V1V1D-HD-1L)+3(2(SICK nanoScan3 Core)+1(OLEI LR-1BS2H)) |
| Wi-Fi roaming | ● |
| 3D obstacle avoidance | ○ |
| Pallet recognition | ○ |
| Cage stack | ○ |
| High shelf pallet recognition | ○ |
| Pallet stack | ○ |
| HMI display | ● |
| Safety configurations | |
|---|---|
| E-stop button | ● |
| Sound and light indicator | ● |
| Braking distance: 1m/s / 1.5 m/s | ≤30 cm / ≤50 cm |
| 360° laser protection | ● |
| Bumper strip | ● |
| Fork height protection | ● |
