Laser SLAM
Stacking Smart Forklift AMR
- Heavy-Duty Adaptability
- AI-Driven Efficiency
- Space Optimization
- Future-Ready Customization
FD-2000Y
2000 kg
Rated load capacity
600 mm
Load center distance
1600/3000 mm
Standard lifting height
Open pallet
Pallet type
Hybrid Flexibility

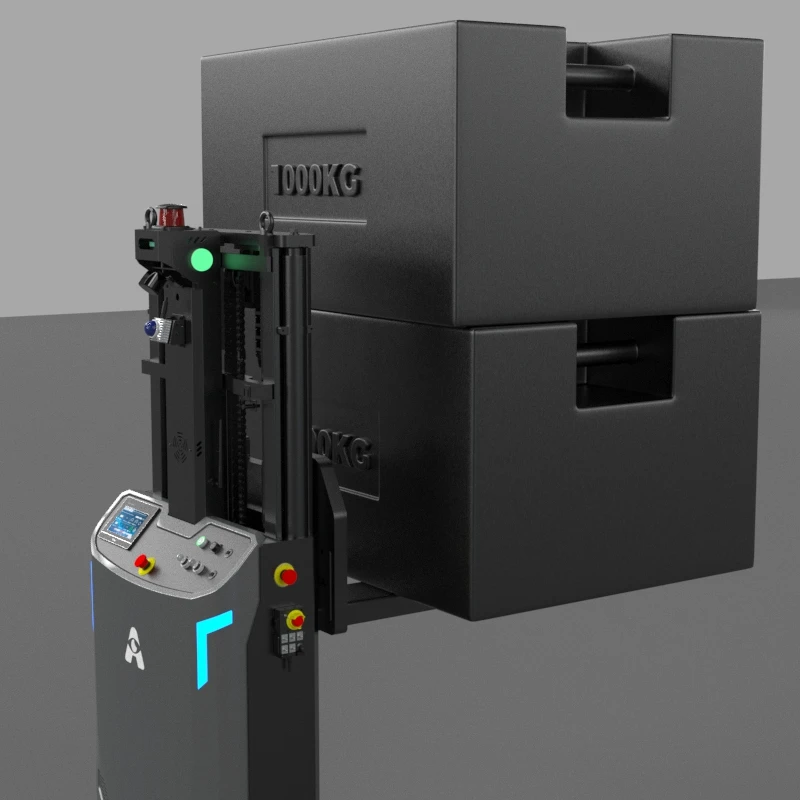

2000kg Payload Capacity & Robust Stability
Engineered for industrial heavy-load operations, the FD-2000Y delivers 2000kg payload capacity with 600mm load center distance and a self-weight of 1337kg，ensuring safe lifting and transport of stacked materials.
Hybrid Flexibility
4-LiDAR 360° Full-Protection System
- Sensor Layout:
- 1 rear-base LiDAR: Embedded near the fork carriage for obstacle detection at ground level.
- 2 front-side LiDARs: Monitor lateral blind zones during turns.
- 1 top-mounted 360° LiDAR: Provides omnidirectional environmental mapping.
- Capabilities:
- SLAM Navigation: Centimeter-level positioning accuracy for dynamic path planning.
- All-Around Obstacle Avoidance: Real-time detection within 8m range (±5cm precision).
Precision, punctuality, safety
Stacking Smart Forklift AMR
Dramatically reduce costs and improve handling efficiency
2T Load Capacity, Perfect for Narrow Aisles
With a load capacity of up to 2 tons, it supports fork heights of 1600 mm and 3000 mm, offering multi-level stacking and destacking capabilities. With a vehicle width of just 930 mm and a minimum turning radius of only 1270 mm, it navigates effortlessly through narrowaisles.
ZAPI+Kinco Servo solution, Enhanced Precision and Stability
The mature servo solution boasts enhanced reliability and a measured positioning accuracy of ±5 mm to ±10mm, catering to a wider array of scenarios.
2 h Charging, 10 h Endurance
Paired with a 24 V /212 Ah battery, it automatically charges for 2 hours and boasts a range of up to 10 hours, ensuring prolonged operation.
AI Deep Learning, Improved Recognition Ability
It boasts the capability to recognize pallets, racks and cages in different colors and sizes with unparalleled precision and adaptability from multiple angles. Experience seamless and stable handling and transfer of goods.
Multiple Sensors, 360° Safety Protection
Equipped with dual obstacle avoidance lasers, photoelectric sensors in fork tips, and bumper strips as standard features. Optional 360° comprehensive safety protection lasers (Mid-360) ensure the safety of human-machine interaction scenarios.
Flexible Customization, Advanced Stacking Capability
Hybrid Flexibility

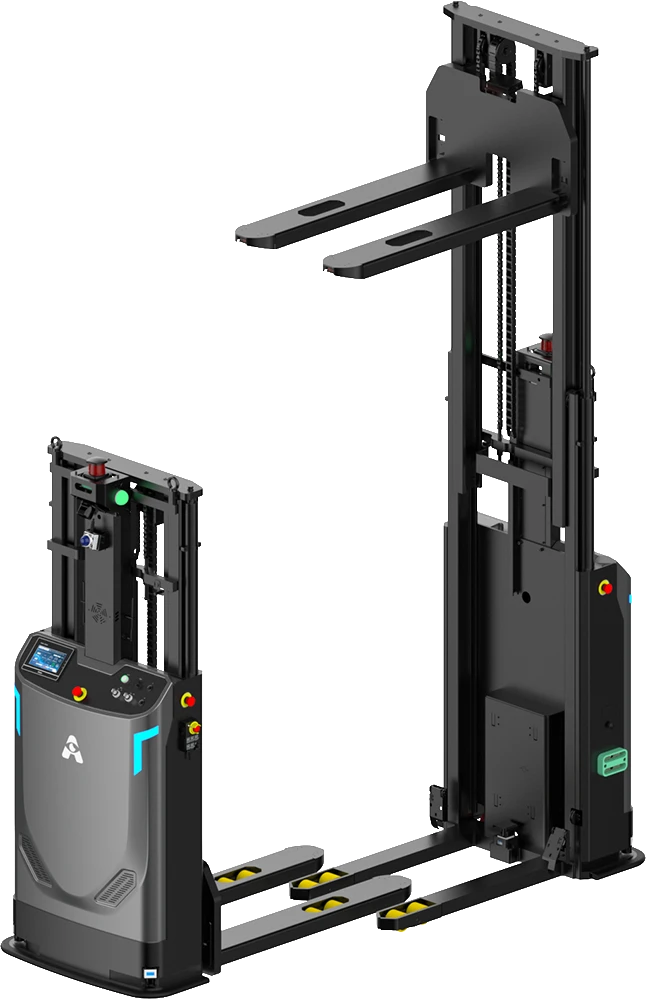

Customizable Stacking Heights & Compact Design
- Standard Lifting Height: 1600mm (base) / 3000mm (with secondary mast).
- Dimensions:
- 1705 × 930 × 1990 mm (single-stage mast).
- 1705 × 930 × 2220 mm (dual-stage mast).
- Customizable: Support higher lifting heights (contact for tailored solutions).
Hybrid Flexibility

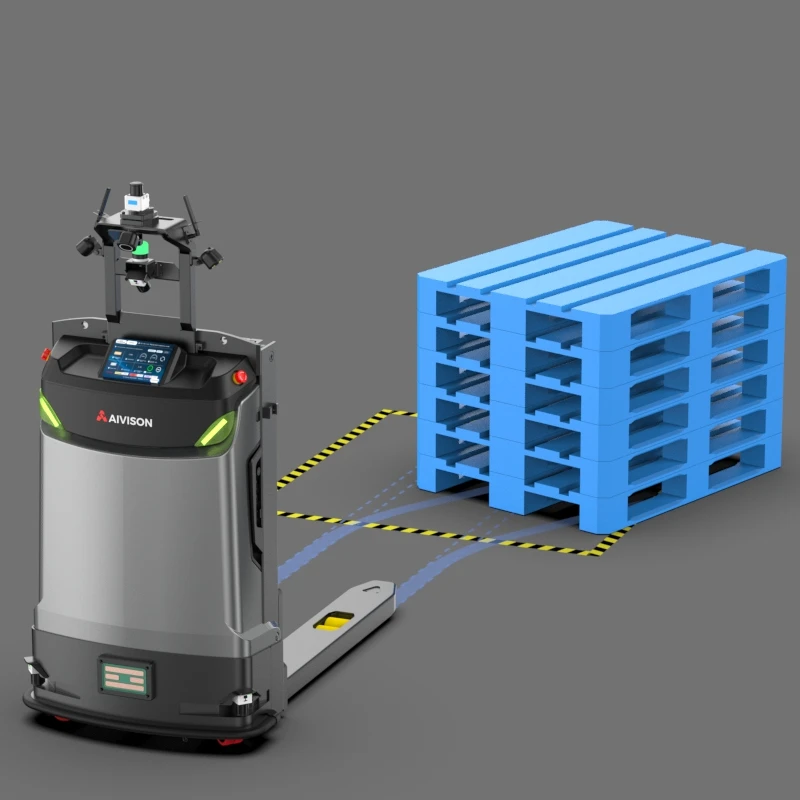

AI-Powered Pallet Recognition
Integrates 3D vision cameras and deep learning algorithms to:
- Auto-detect and align forks with pallets even in non-standard positions (e.g., tilted, offset).
- Reduce manual alignment time by 65%, critical for mixed-load warehouses.
Hybrid Flexibility
Precision Fork Configurations
- Fork Dimensions: 1220 × 180 × 65 mm (L × W × H).
- Adjustable Outer Width: 600mm / 680mm (compatible with EUR, ISO, and industrial pallets).
- Agility: 1270mm minimum turning radius for confined aisle operations.

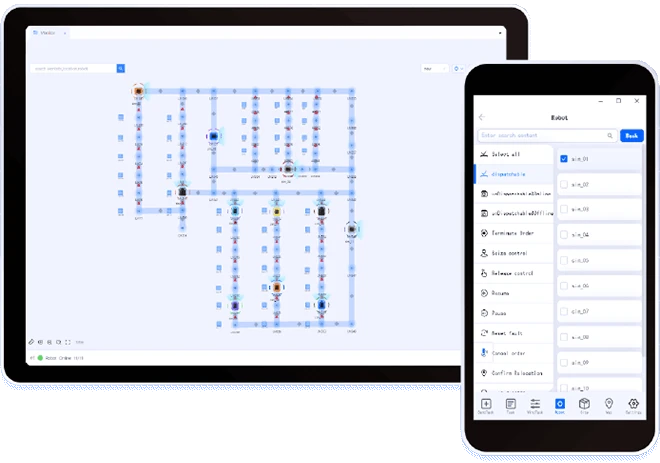

Fleet Management System
manage dispatching system for mobile robots and factory automation logistics equipment in a unified manner.
Get Rid of Empty Load Anxiety
Consider Hitchhiking and Pre-order Task Dispatching
High Adaptation
Dynamic Global Collaborative Planning
What You See is What You Operate
Panoramic Business And Scheduling Simulation
Keep Track of The Whole Progress
Visualisation of The Task Process
Intuitive and Simple UI Interaction
Mobile Terminal APP Configu ration Customisation
Easy to Handle
Robot Alert Handling
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Stacker Autonomous Forklift |
| Operation type | Automatic navigation, by manual control device |
| Navigation type | Laser SLAM |
| Pallet type | Open pallet |
| Rated load capacity | 2000 kg |
| Load center distance | 600 mm |
| Weight (with battery) | 950 / 1175 kg |
| Standard lifting height | 1600 / 3000 mm |
| Forklift dimensions: L × W × H | 1705 × 930 × 1990 / 1705 × 930 × 2220 mm |
| Fork dimensions: L × W × H | 1220 × 180 × 65 mm |
| Fork outer width | 600 / 680 mm |
| Minimum turning radius | 1270 mm |
Related products
-
FB-1500H
Laser SLAM Handling Autonomous Forklift
The Strongest Forktlift, Flexible and Efficient
-

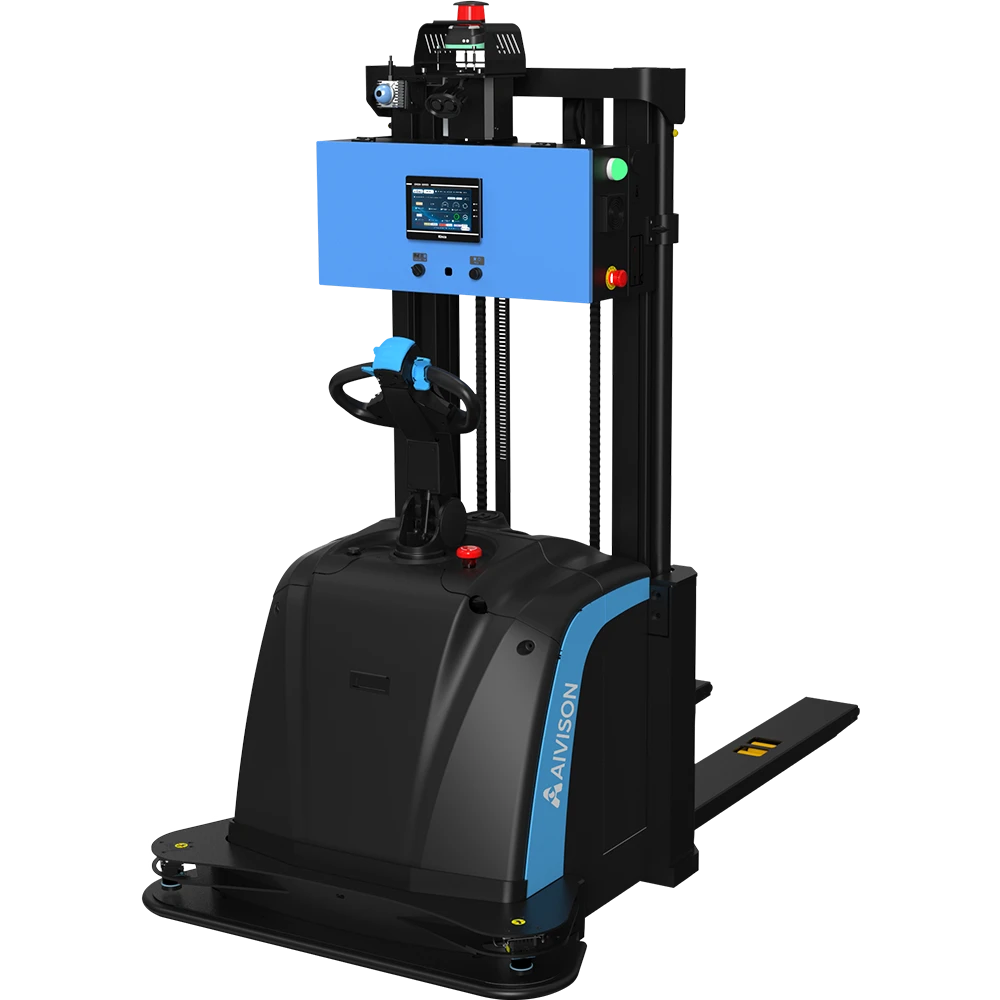

FD-2000
Laser SLAM stacker automatic forklift
The Strongest Forktlift, Flexible and Efficient
-

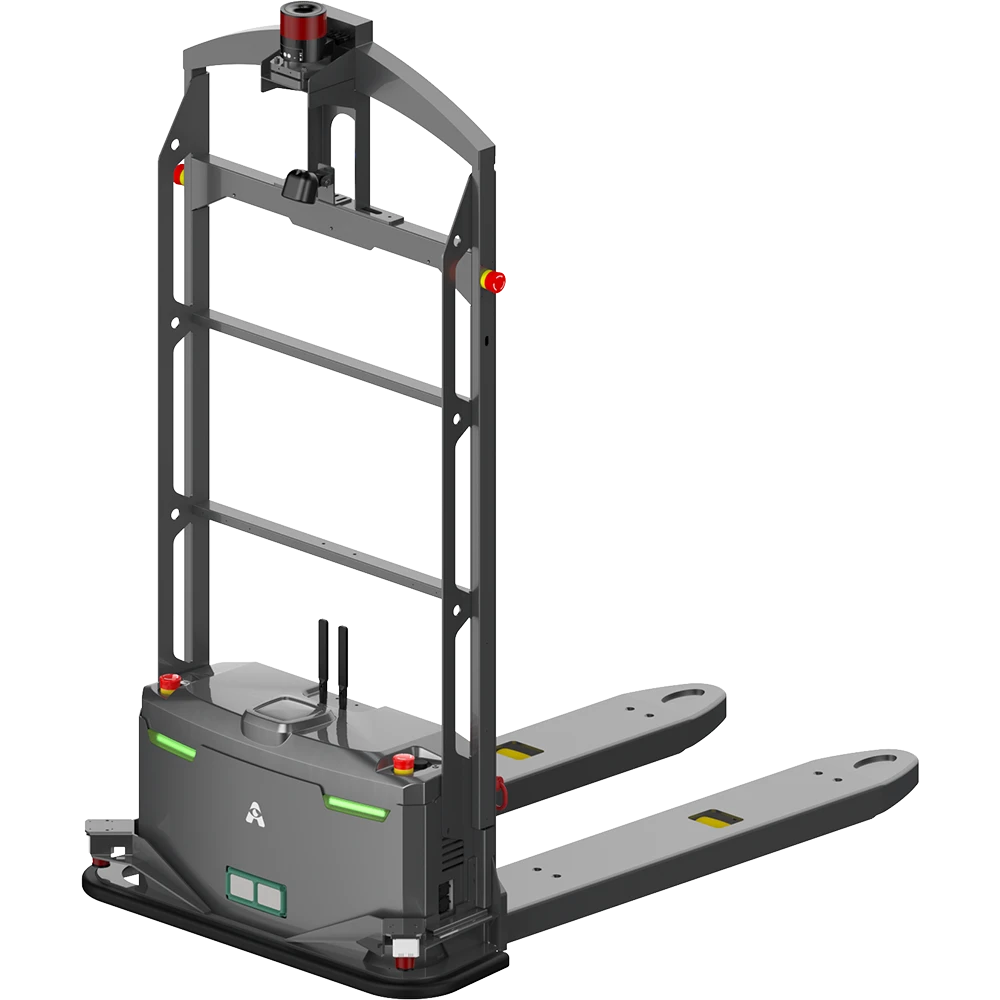

FB-800H
