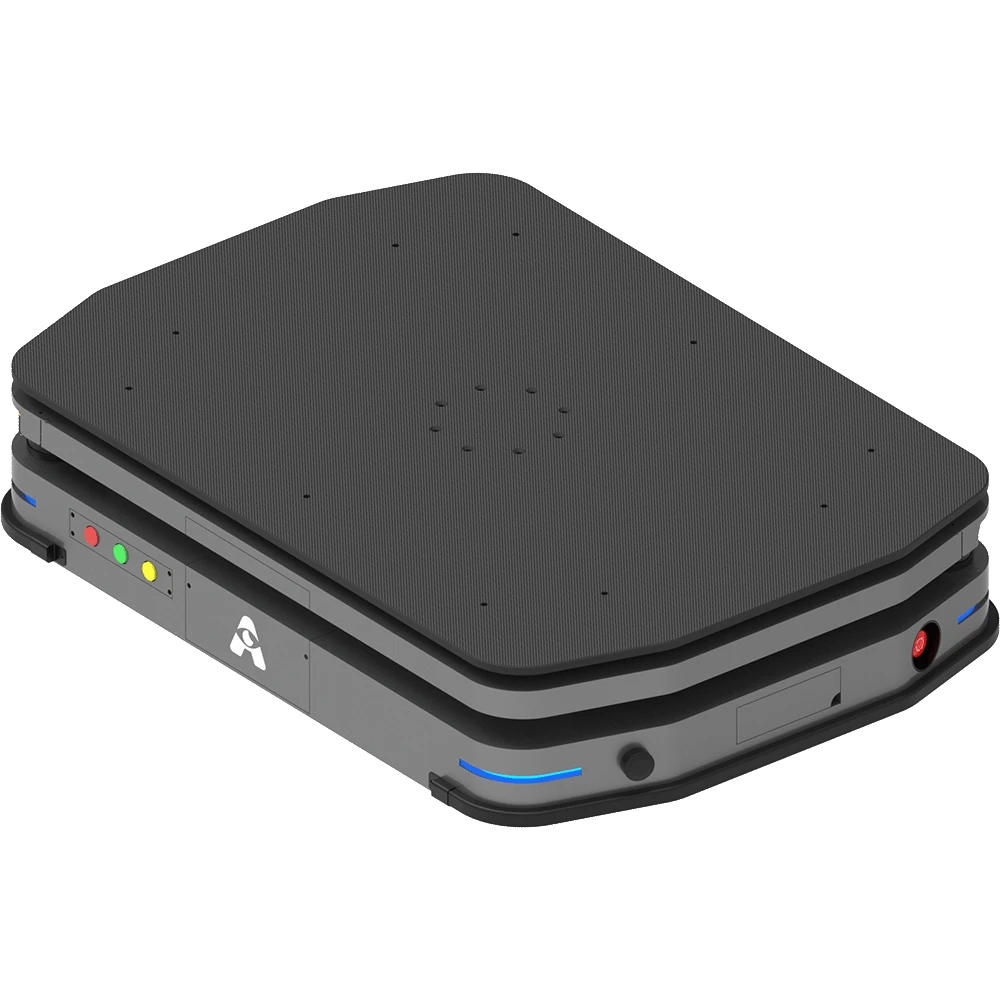

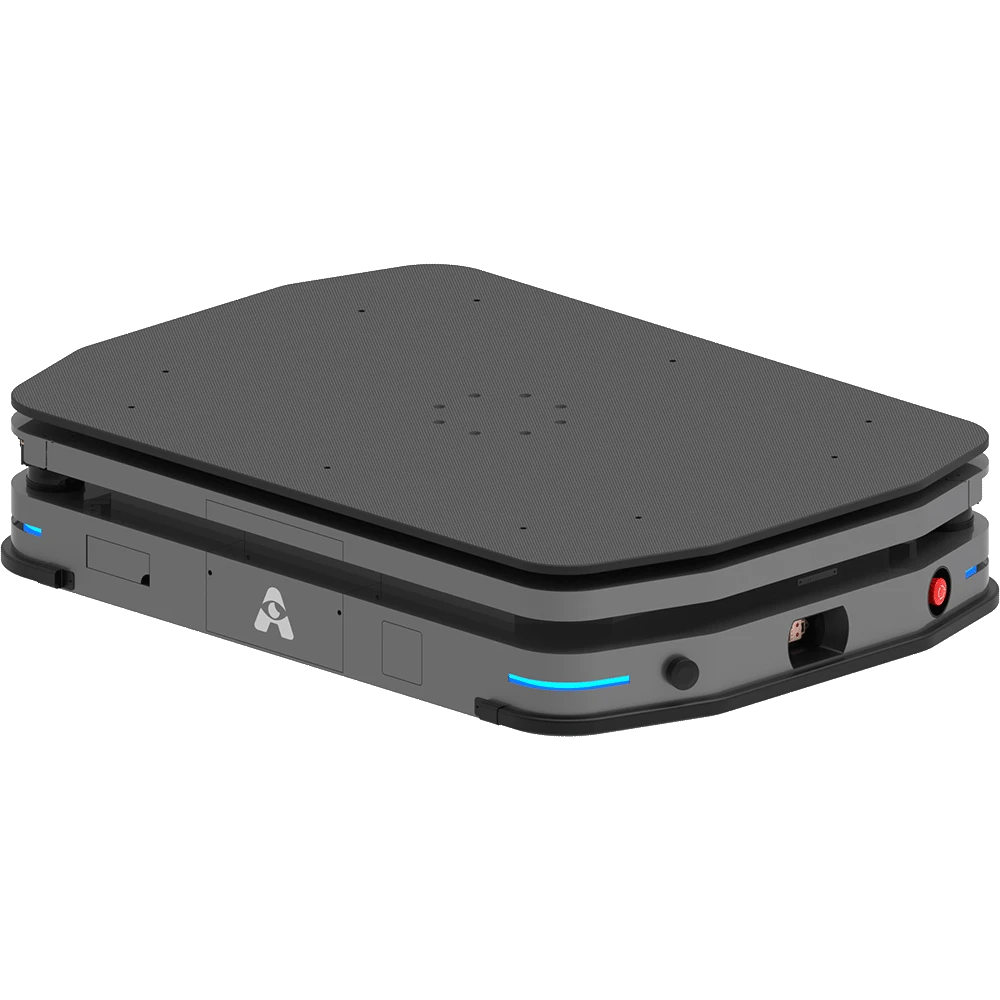

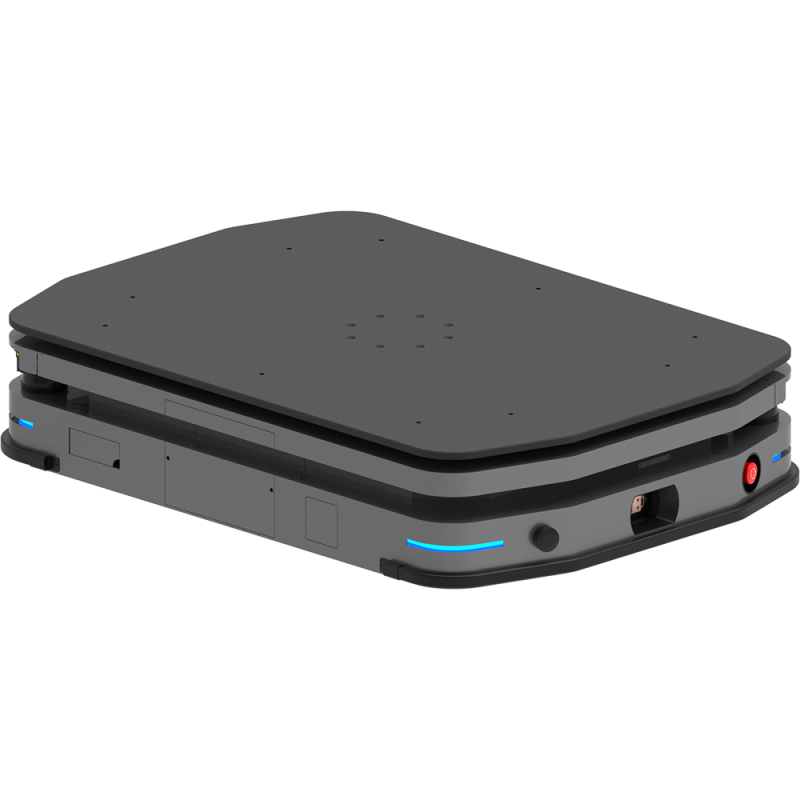

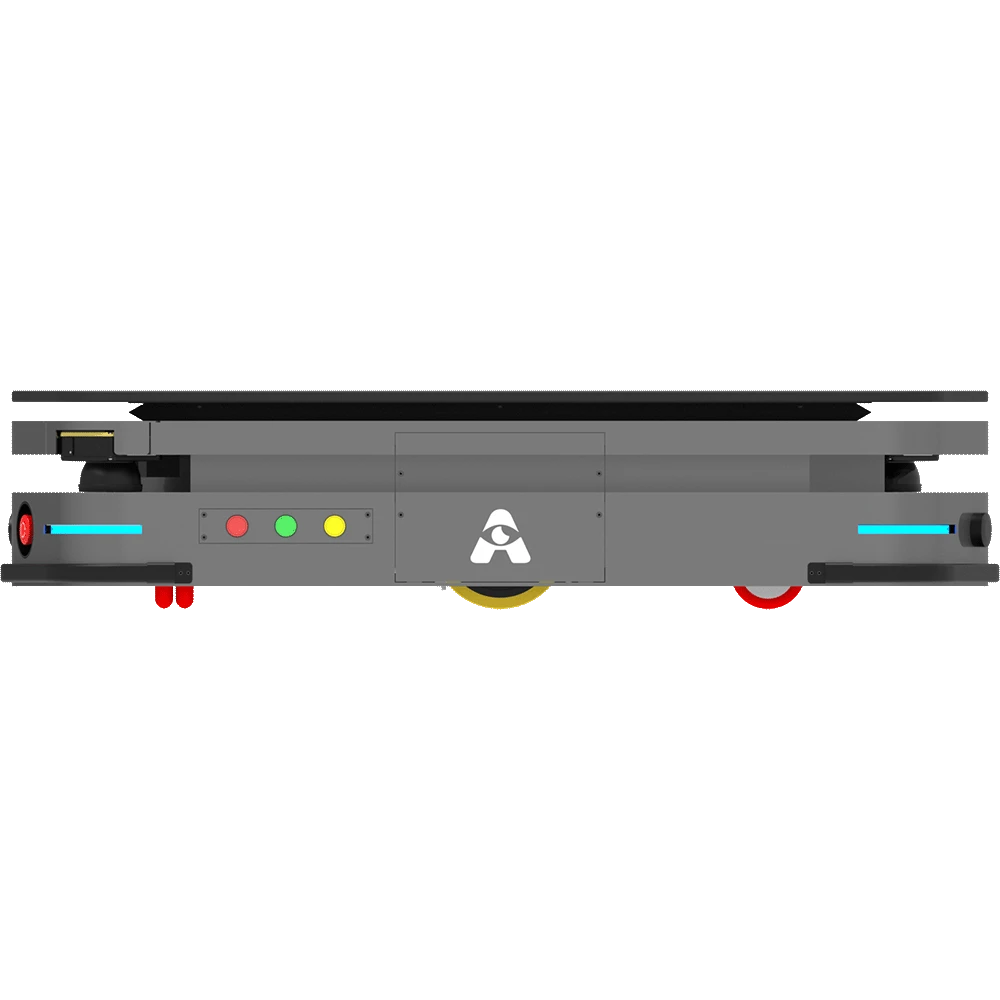

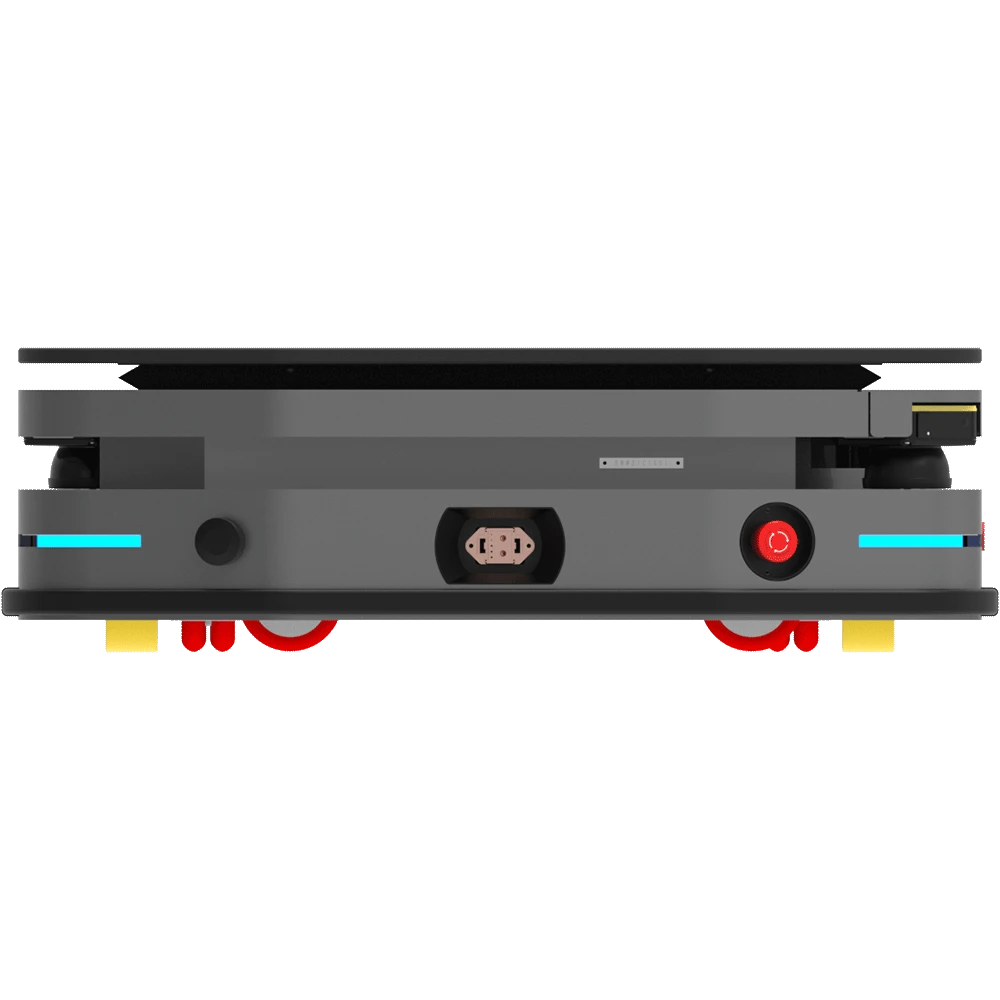

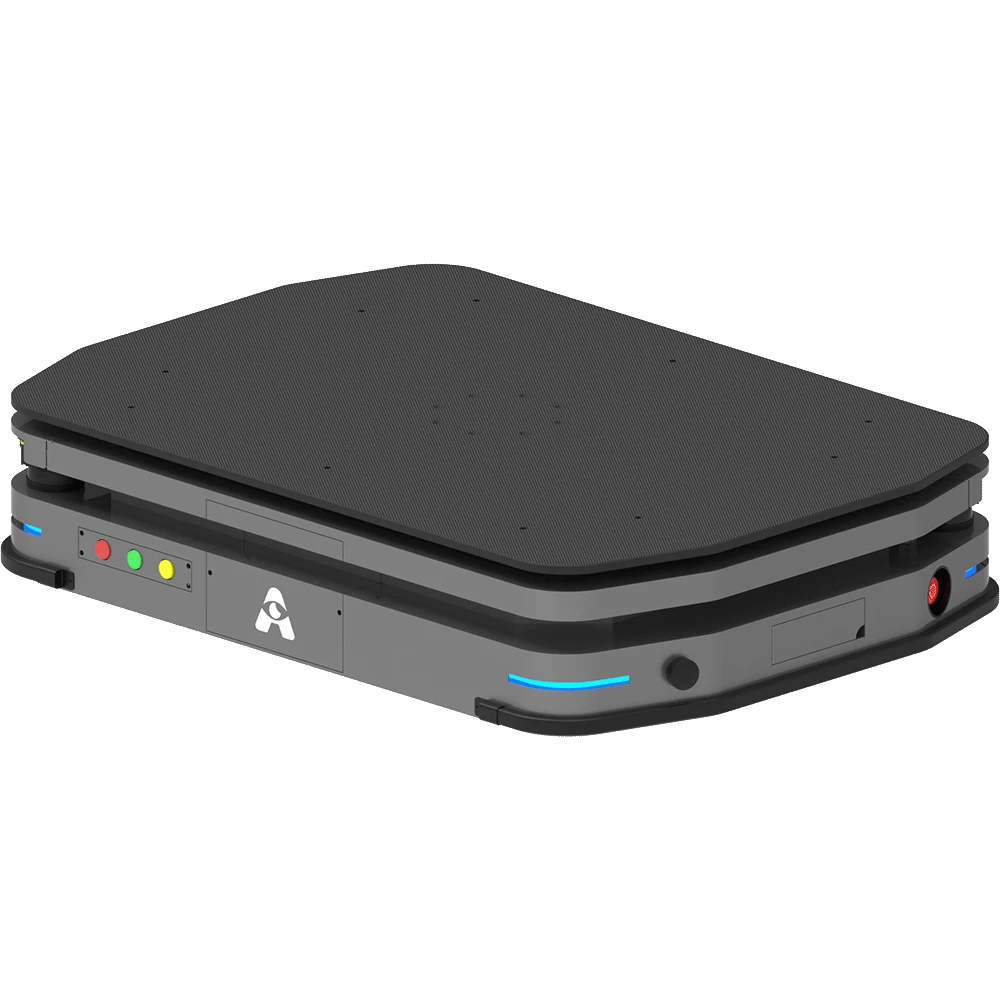

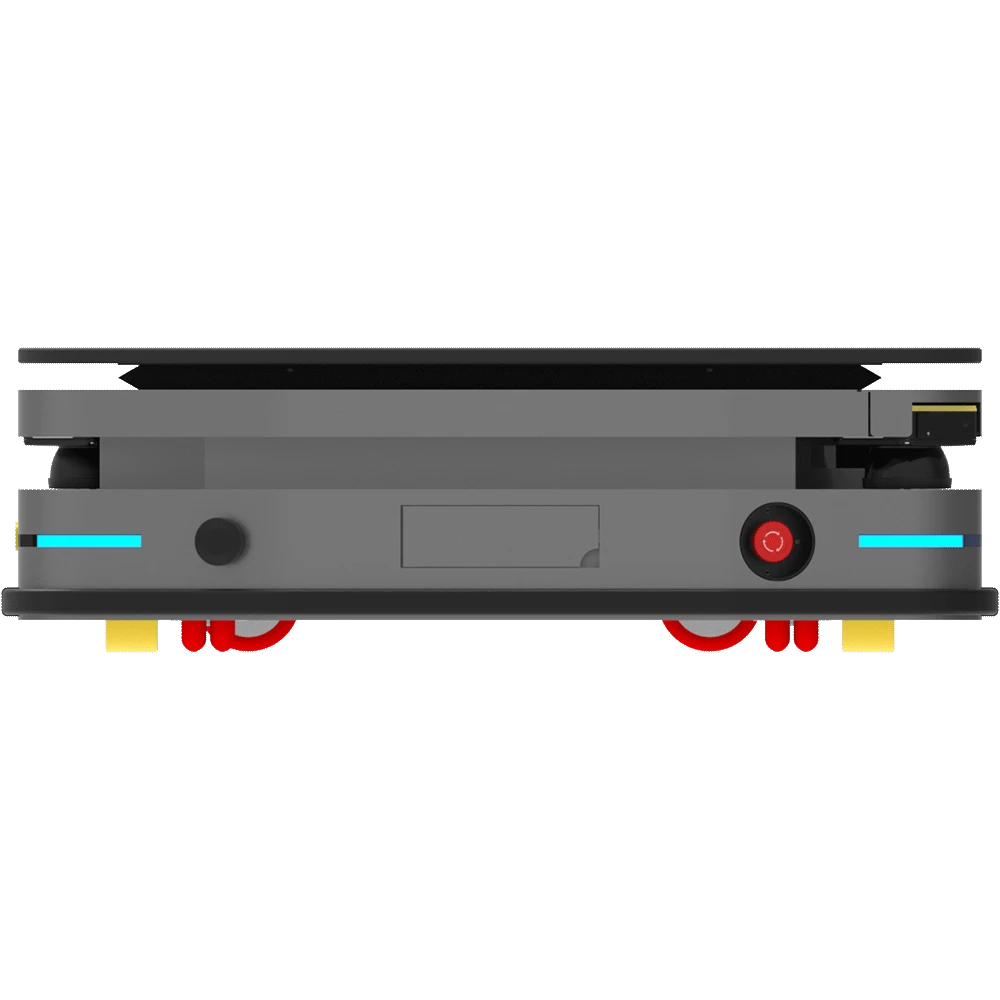

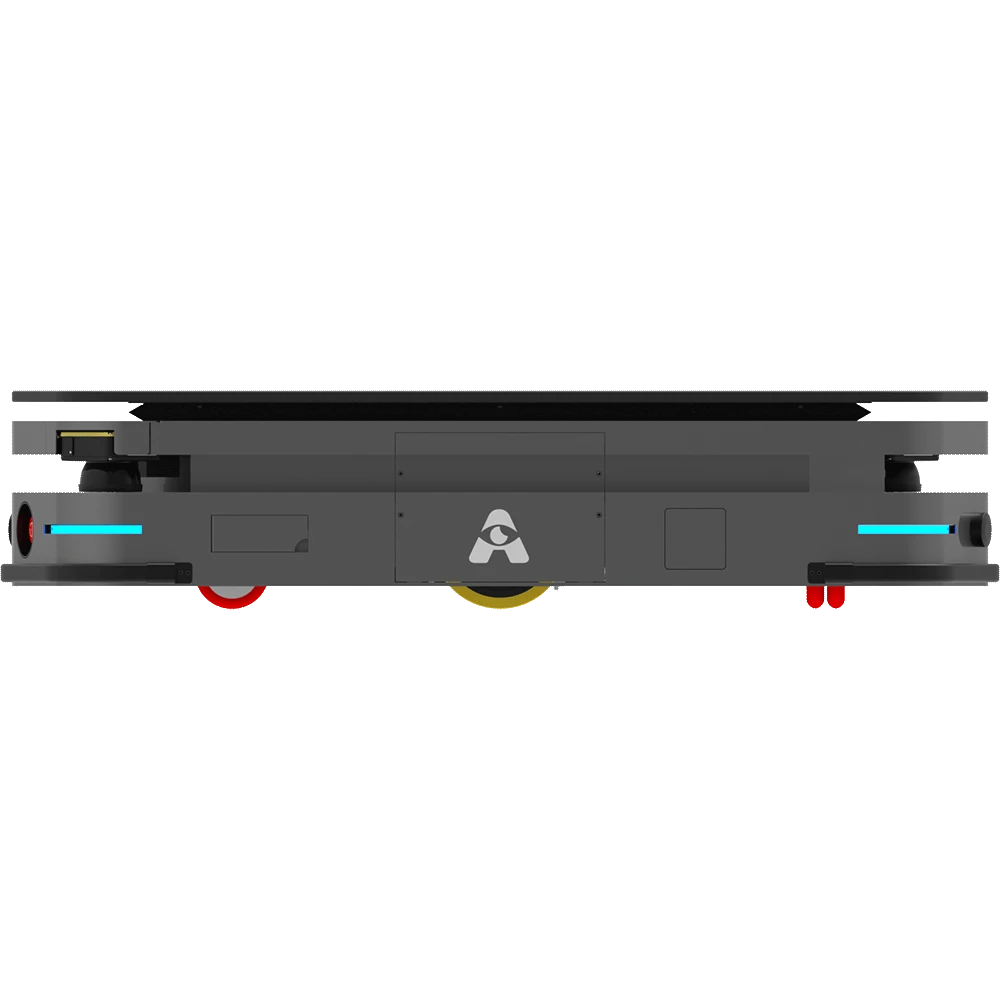

Laser SLAM
Safety Lifting Robot
J-500S/1000S(CE)
Safe Lifting, Superb Load Capacity
Load Type:
J-500S/1000S(CE)
500/1000 kg
Load Capacity
1460mm
Rotation Diameter
Standard Lifting
Jacking Type
Two-wheel differentil
Drive Mode
Precision, punctuality, safety
Laser SLAM Safety Lifting Robot
Dramatically reduce costs and improve handling efficiency
CE Safety Certified, Outstanding Performance & Excellent Safety Standard by Design
Obtion CE certification (ISO 3691-4:2020) and other certifications.
±5 mm Accuracy, Laser SLAM Navigation
SLAM navigation accuracy of ±5 mm, without reflectors.
Two Load Capacity of 500 / 1000 kg
Optional 500 kg or 1000 kg load models, catering to the load requirements in multiple scenarios.
Charge 1 h, Full-loaded Endurance 7 h
The charging pile is optional for 40 A quick charge, 1 hours of charging for 7 hours of running.
Single-sided ≥7 cm Wide Area Rack Identification
With unilateral ≥7 cm distance wide, the AGV could accurately recognize the rack, adjust its position, and drive precisely into it, successfully lift the goods.
Parameter Specification
-None ● Standard ○ Optional
Basic parameters | |
---|---|
Product name | Laser SLAM Safety Lifting Robot |
Navigationtype | Laser SLAM |
L × W × H | 1330 × 952 × 290 mm |
Rotation diamete | 1460 mm |
Weight (with battery) | 265 kg |
Maximum load capacity | 500 / 1000 kg |
Chassis ground clearance | 30 mm |

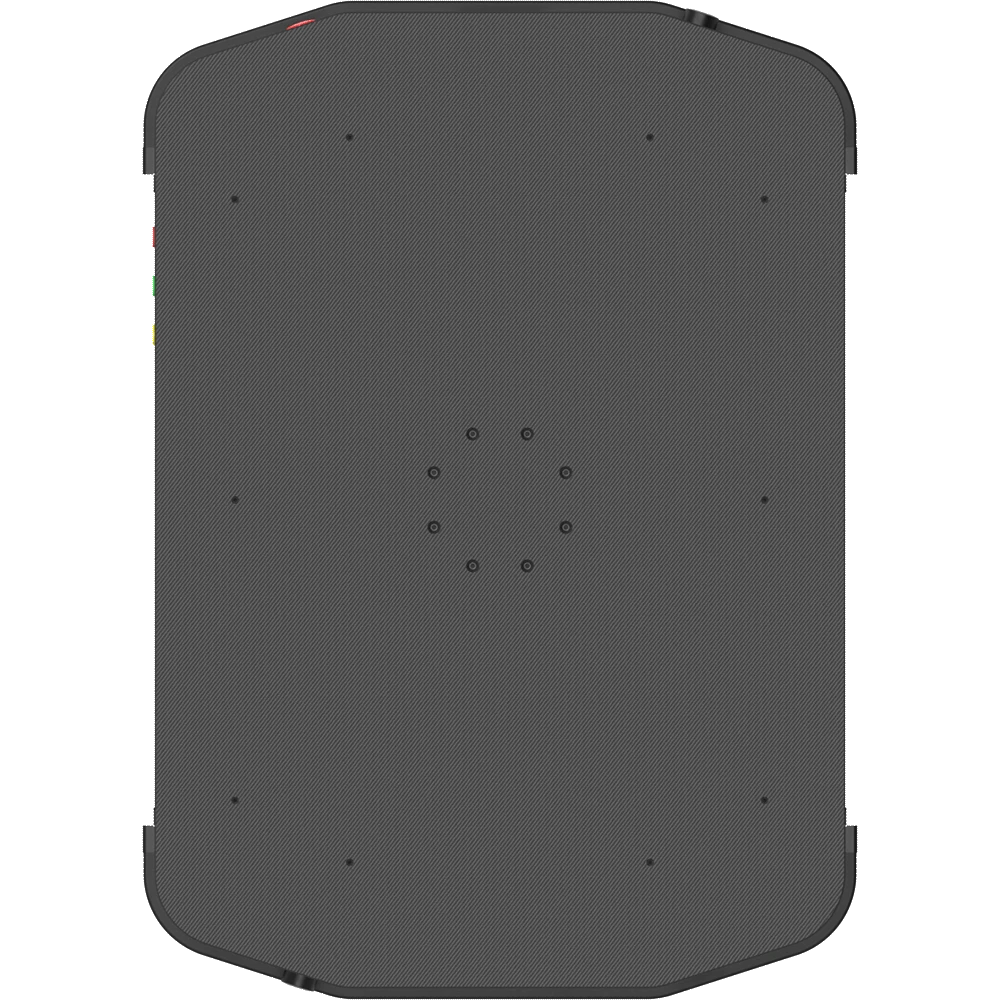

Lifting platform dimensions | 1300 × 920 mm |
Maximum lifting height | 60 ± 1 mm |
Navigation laser scanning height | 175 mm (H1) |
Performance parameters | |
---|---|
Passability (slope / step / gap) | ≤ 5% / 5 mm / 30 mm |
Minimum aisle width | 1050 mm |
Navigation Position accuracy | ±5 mm |
Navigation angle accuracy | ±1° |
Driving speed | ≤1.5 m/s |
Battery parameters | |
---|---|
Battery specifications | 48 V / 40 Ah(lithium iron phosphate) |
Comprehensive Battery life | 7 h |
Charging time (10% to 80% ) | ≤2 h |
Charging method | Manual / Automatic |
Configurations | |
---|---|

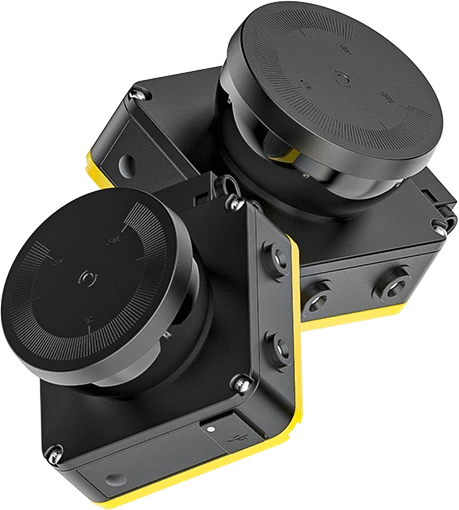

Lidar number | 2(SICK nanoScan3) |
E-stop button | ● |
Speaker | ● |
Ambient lamp | ● |
Bumper strip | ● |
Function configurations | |
---|---|
Basic functions | ● |
Wi-fi roaming | ● |
Automatic charging | ● |
Shelf recognition | ● |
Laser reflector navigation | ○ |
