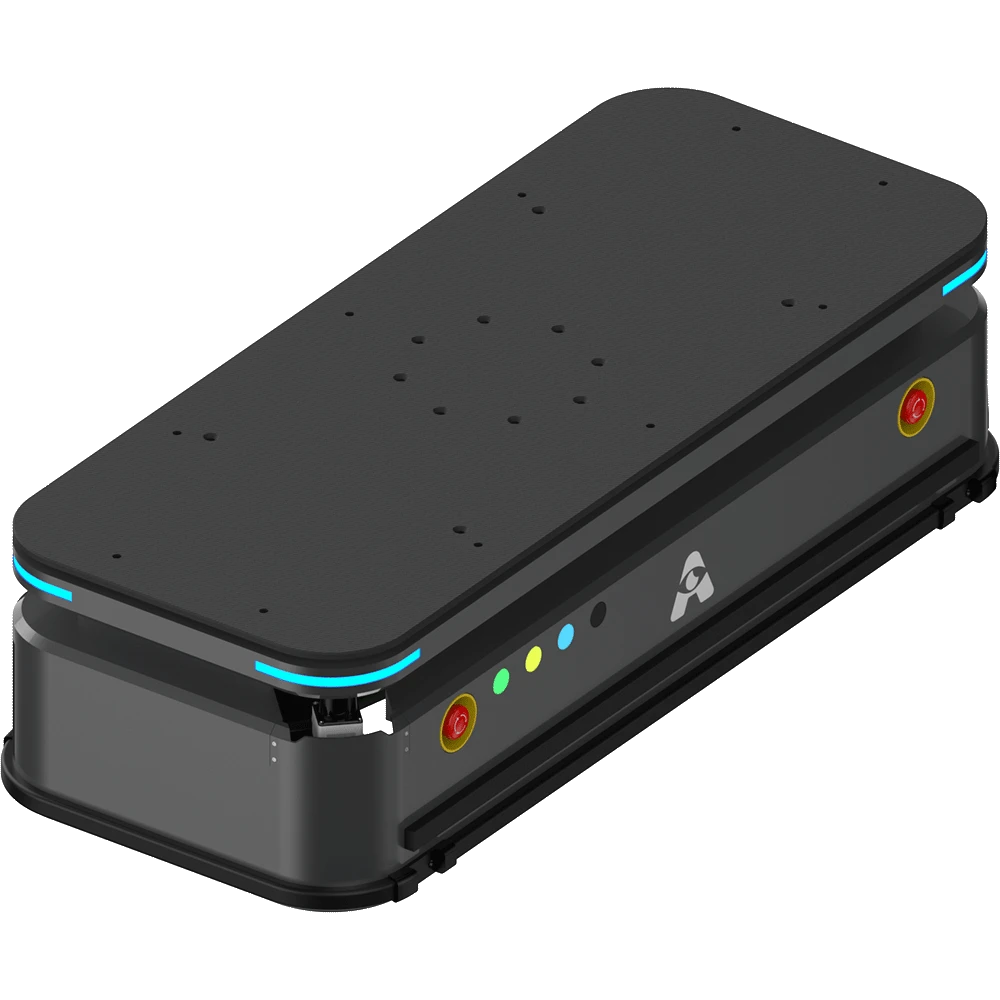

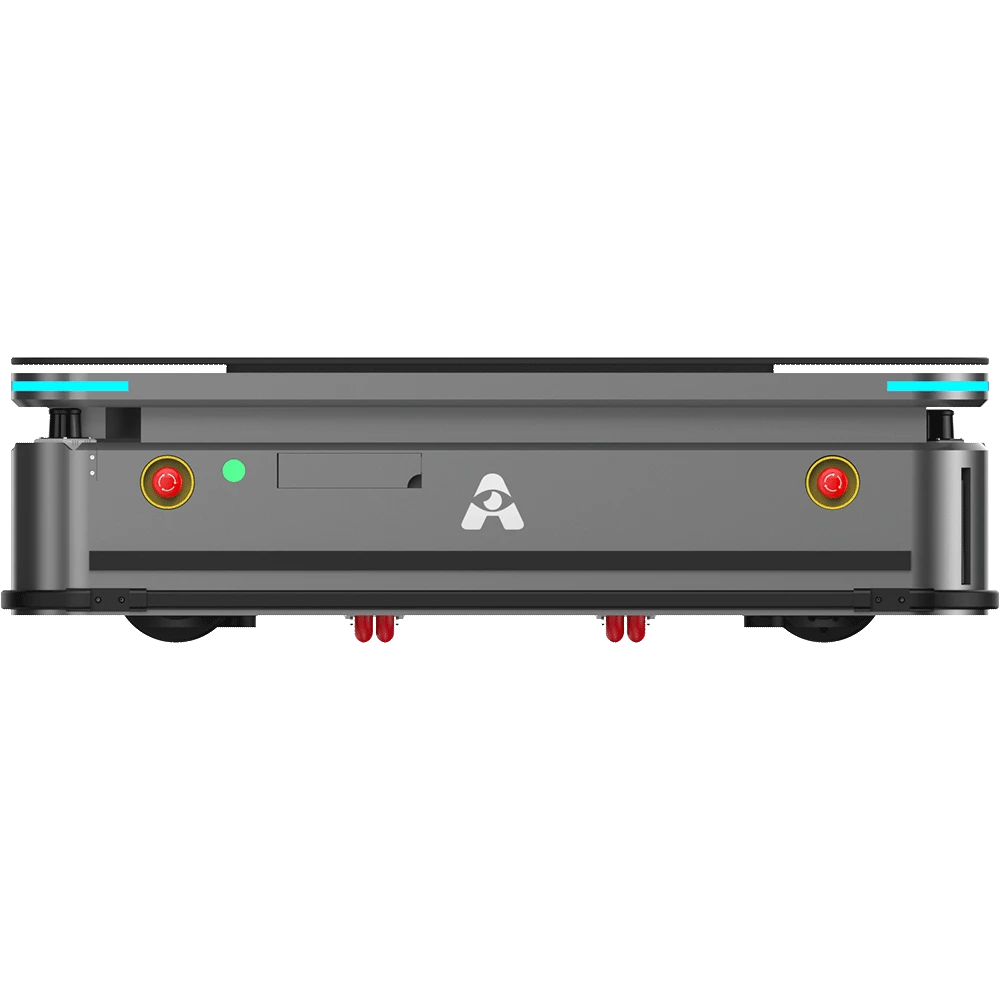

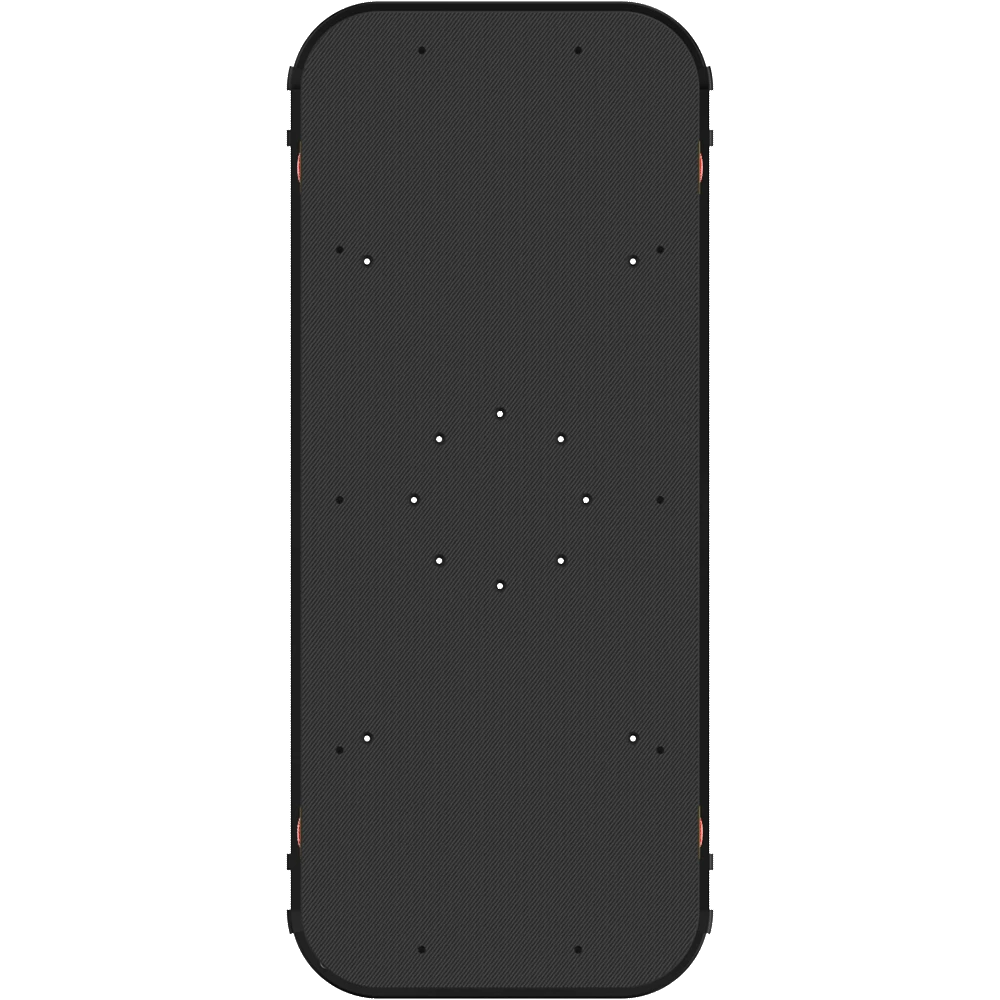

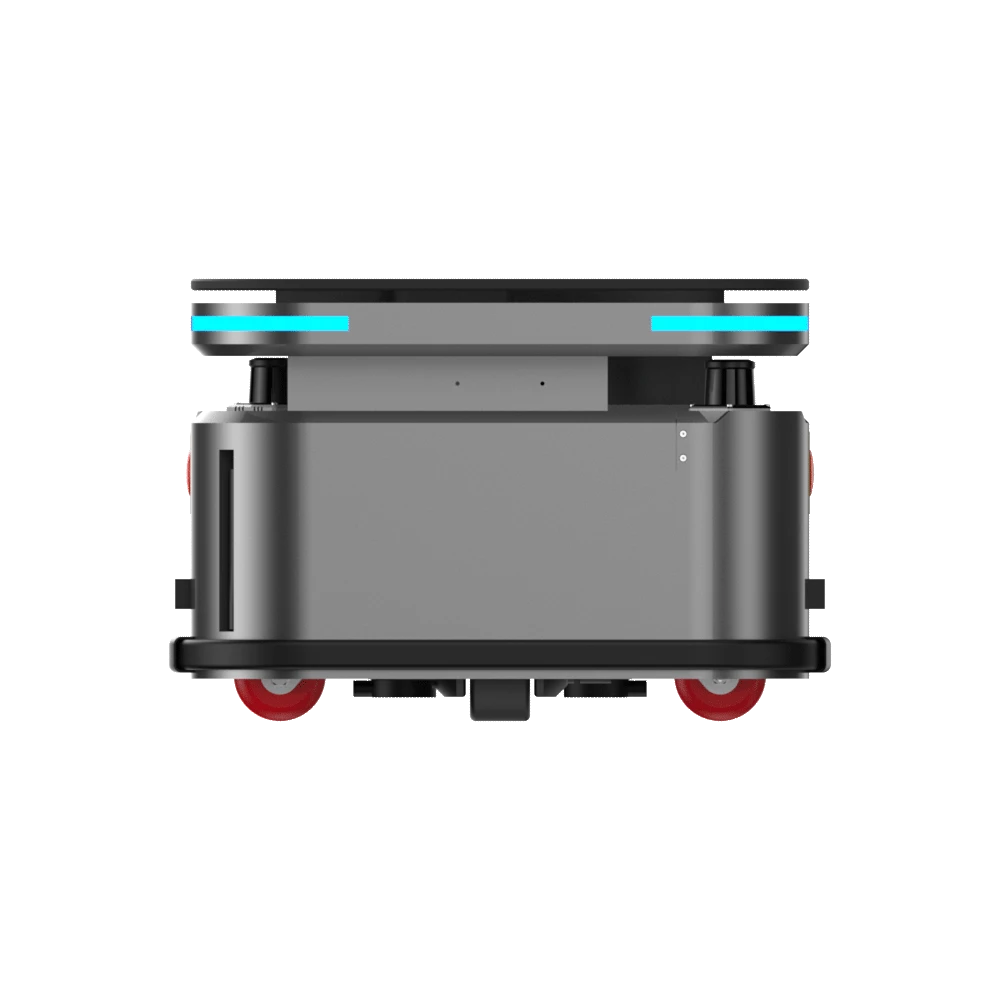

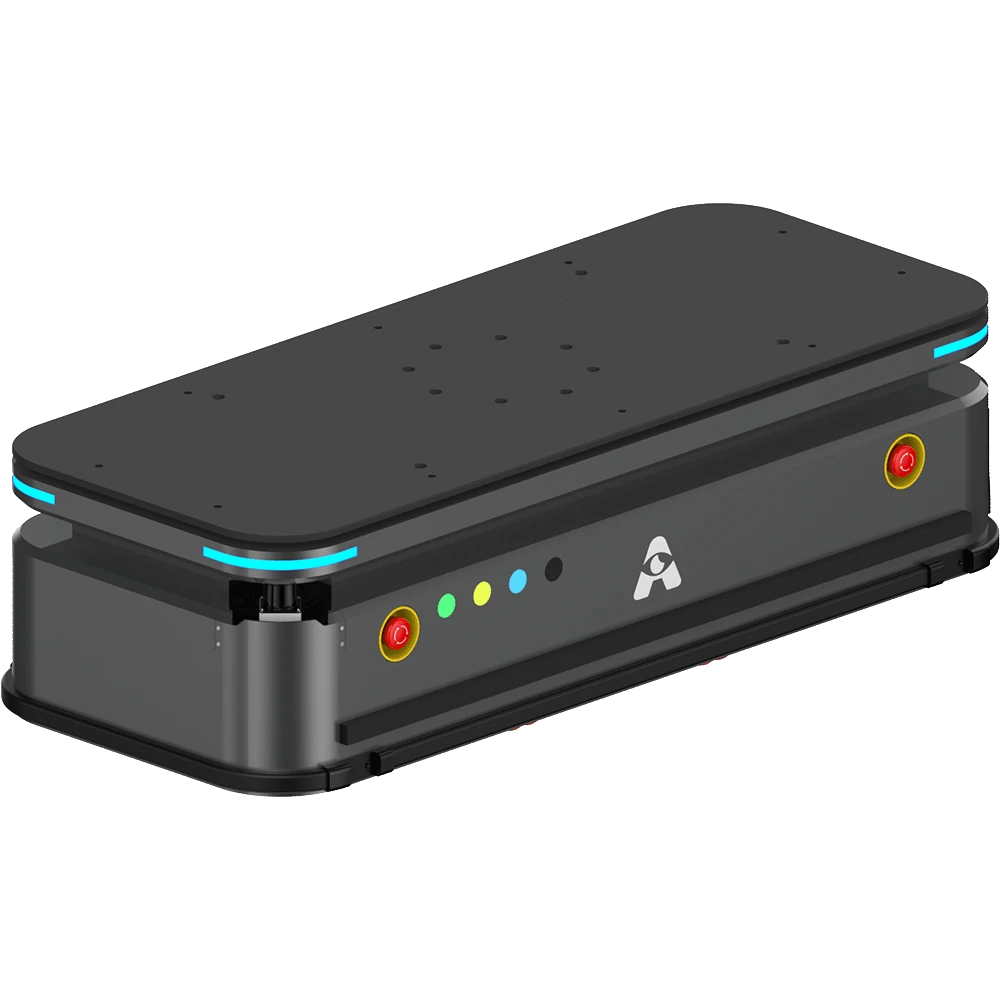

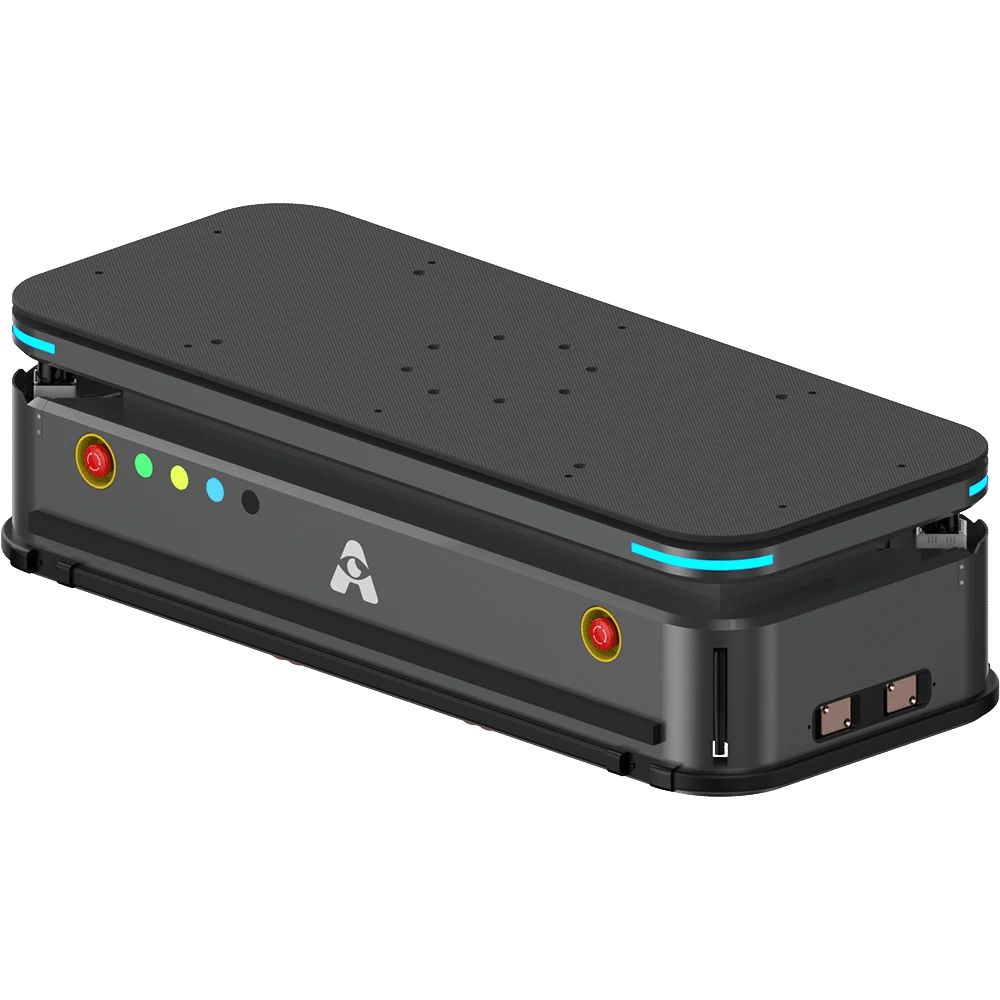

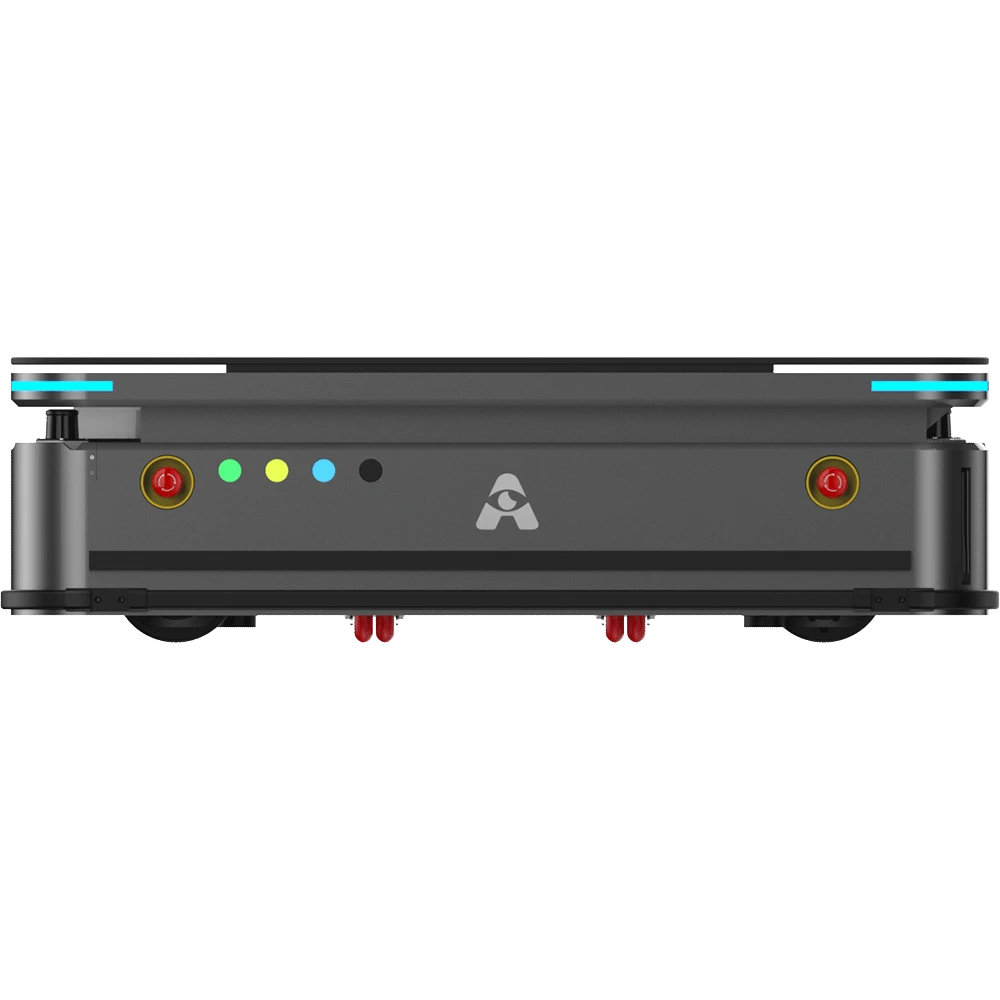

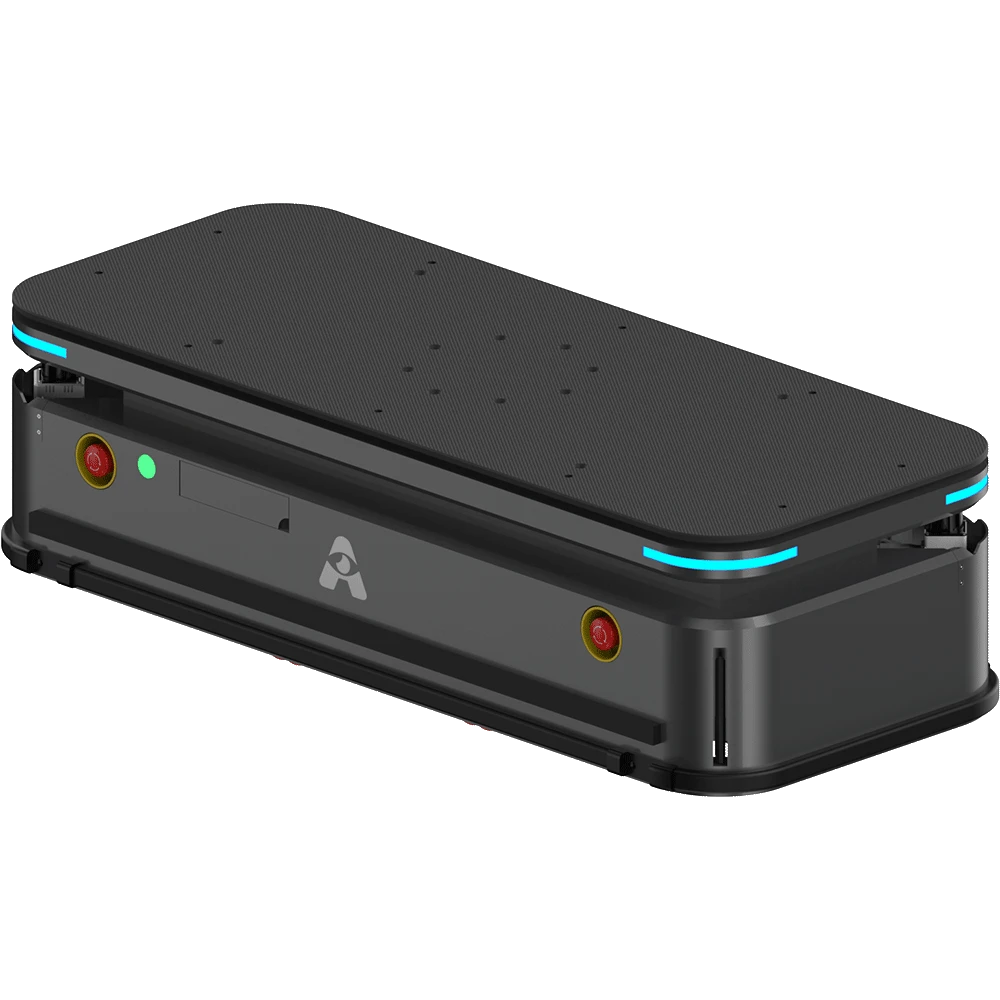

Laser SLAM
Omni-Directional Lifting

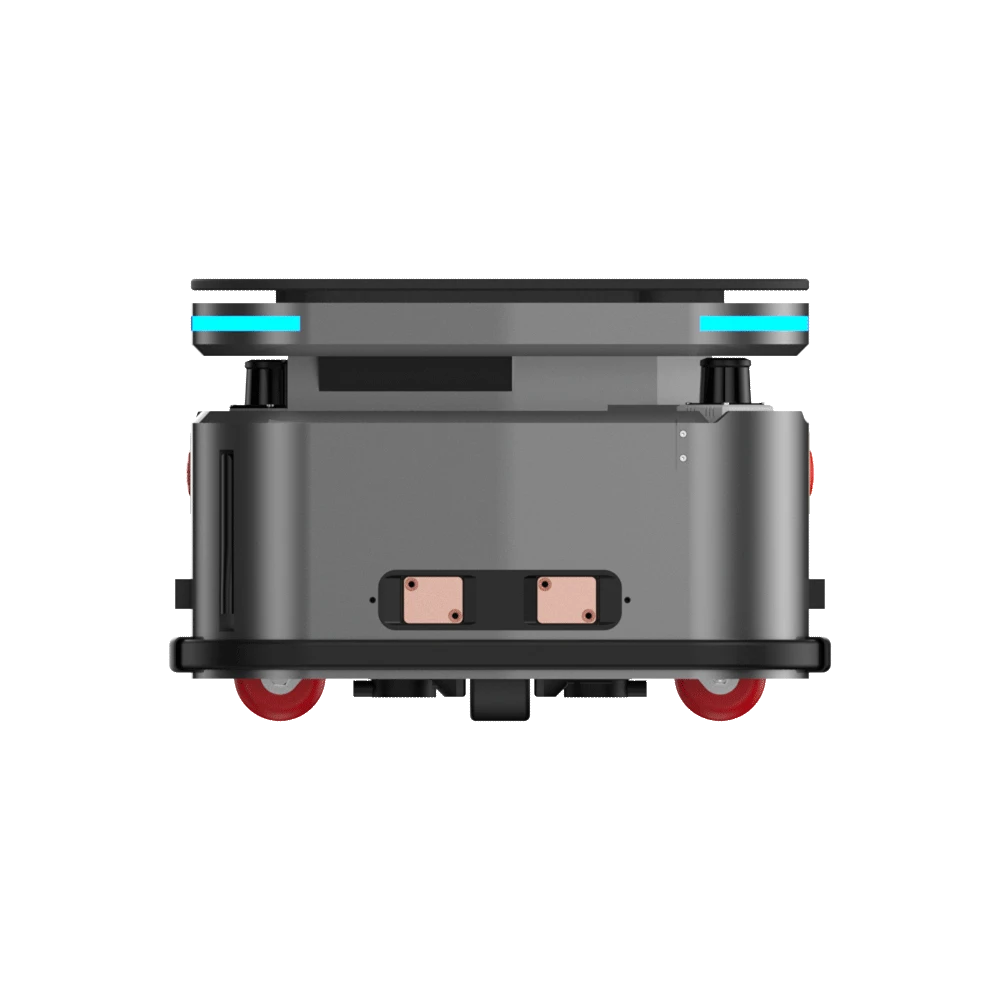

JQ-600
Omni-directional Motion, Excellentin Narrow Aisles
Load Type：
JQ-600
600 kg
Load Capacity
1322mm
Rotation Diameter
Standard Lifting
Jacking Type
Multi-steers Omni-Differential
Drive Mode
Precision, punctuality, safety

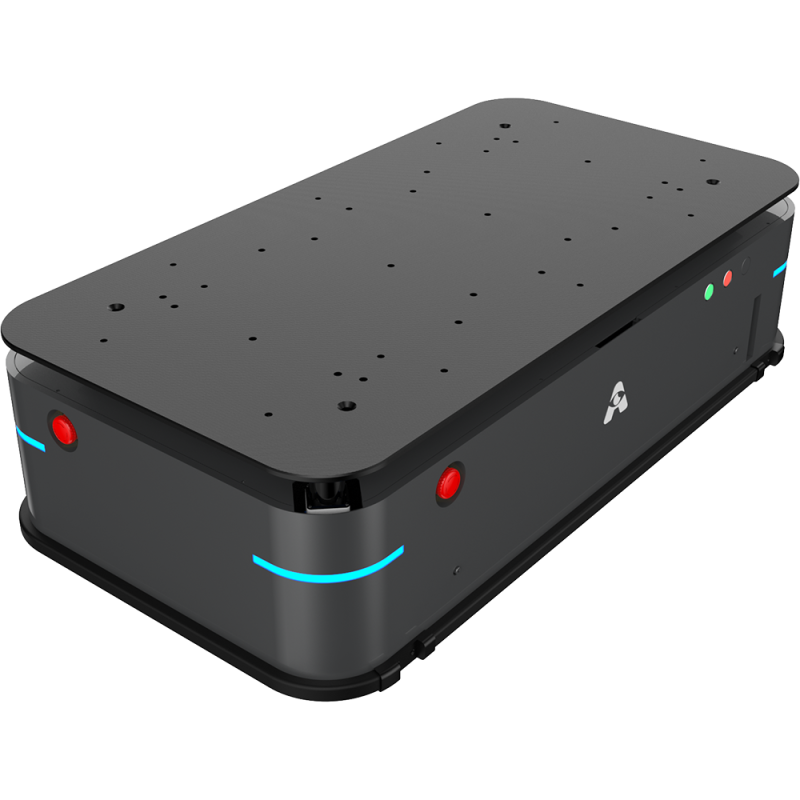

Laser SLAM Omni-Directional Lifting
Dramatically reduce costs and improve handling efficiency
Multiple Navigation Options Available
Laser SLAM and QR code navigation can be switched freely and easily deployed, meeting the requirements of multiple scenarios and different accuracies.

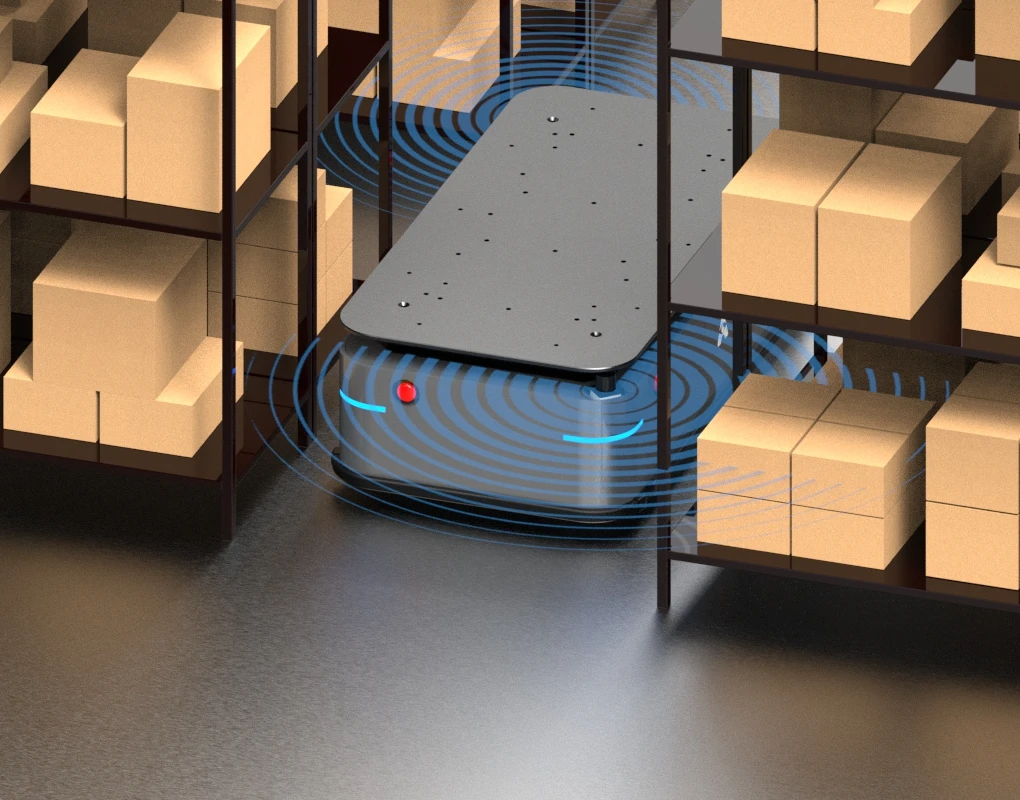

Security Protection
All-round protection via LIDAR + Safe edge.

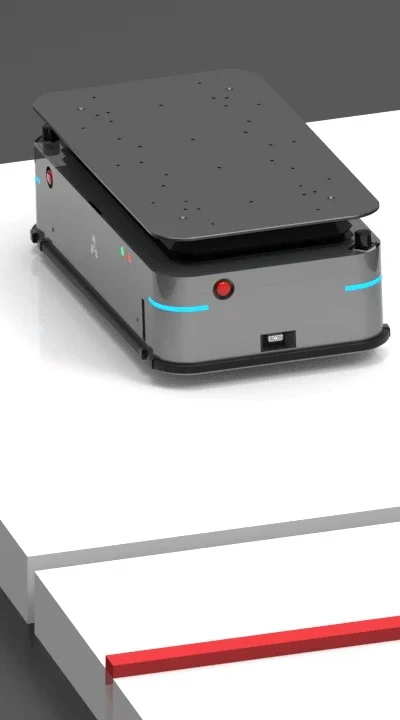

Slender Design
A slender design of 546 mm for various narrow aisles.

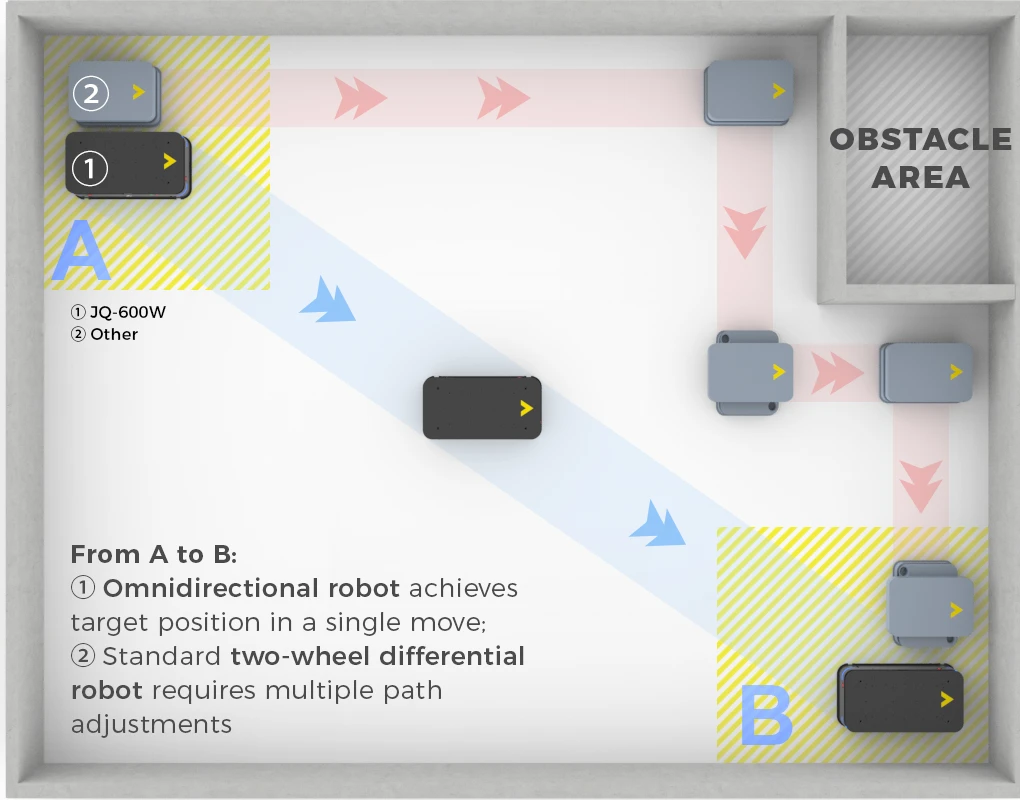

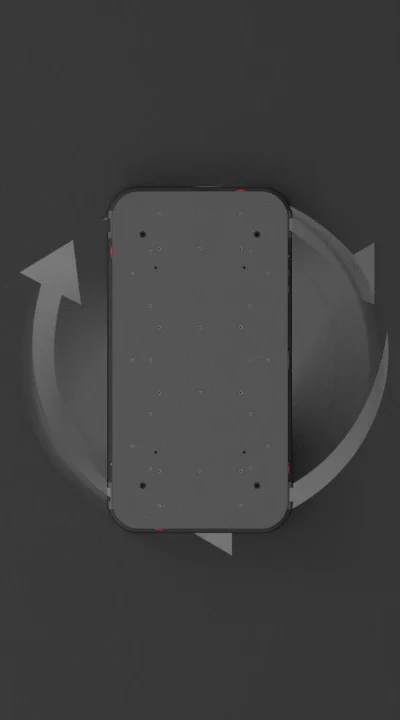

More Flexible Omni-directional Motion
The omni-directional motion model allows for unrestricted movement and fewer restrictions in scenarios.
Efficient and Intelligent
The schedule and warehousing systems can be accessed seamlessly for in-depth business management and optimization.

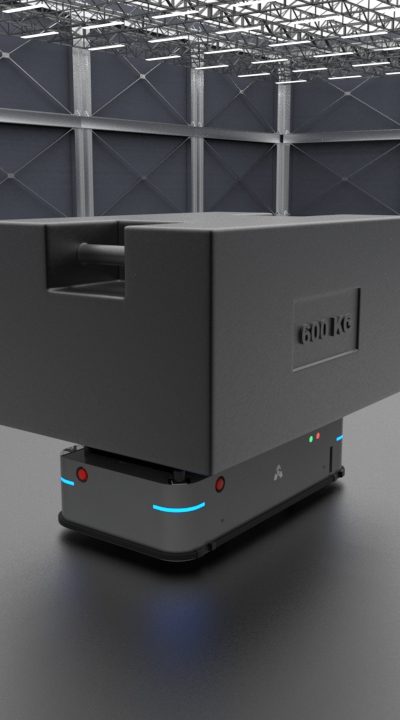

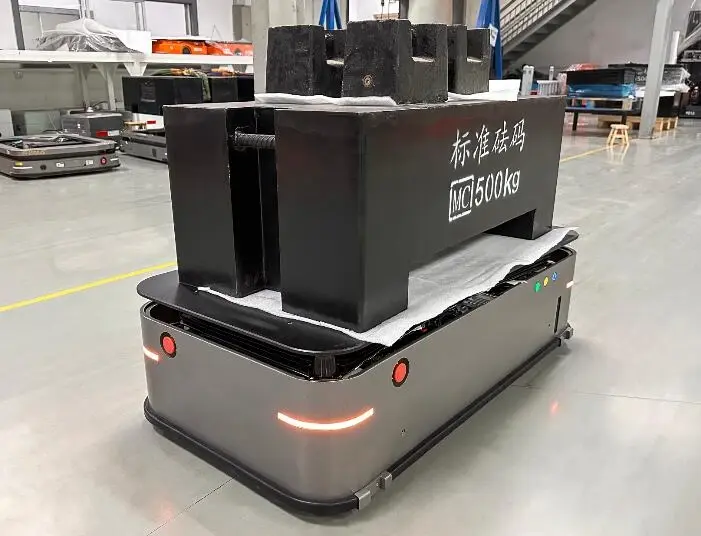

High Load Capacity and Long Battery Life

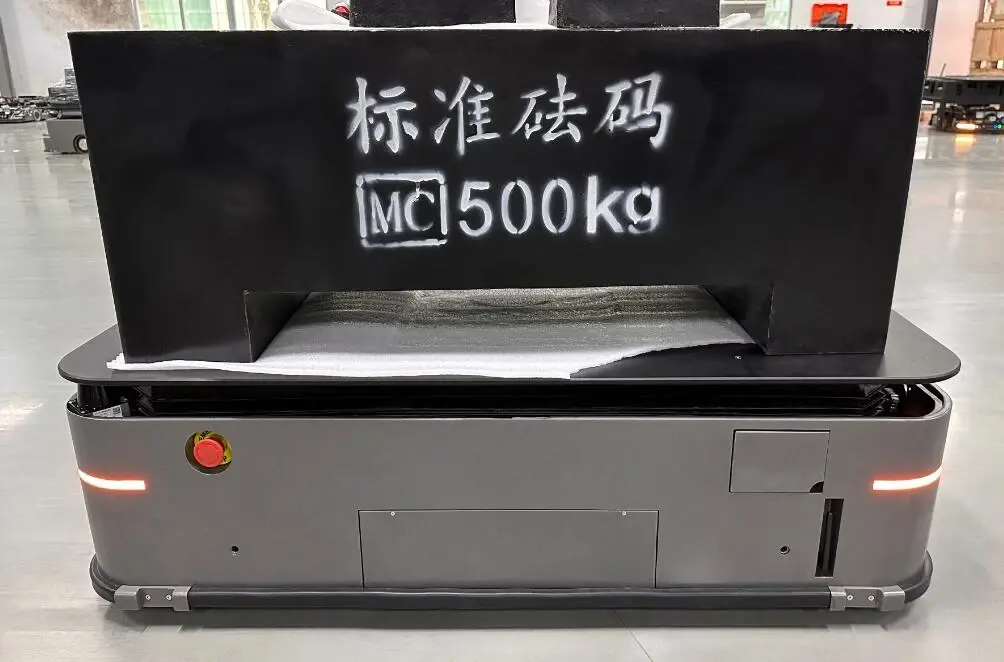

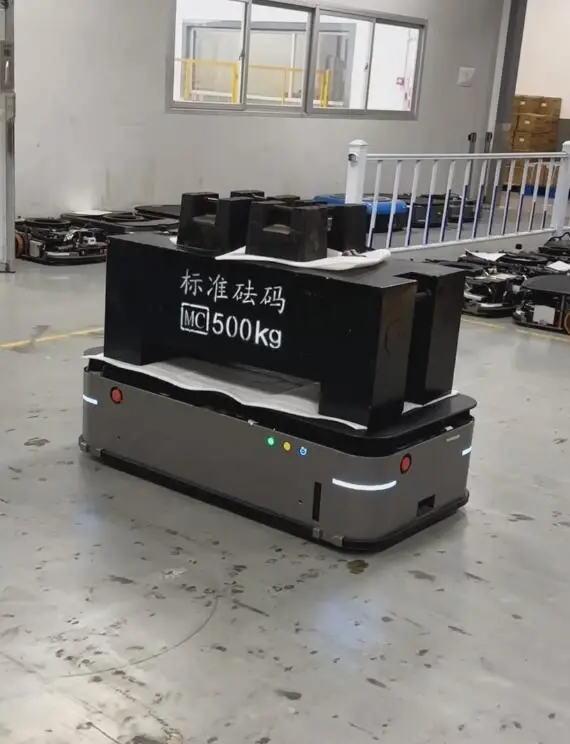

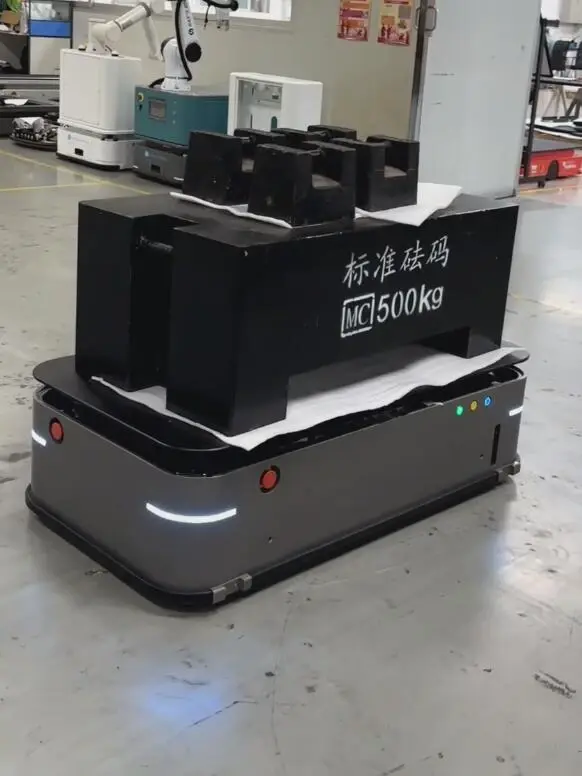

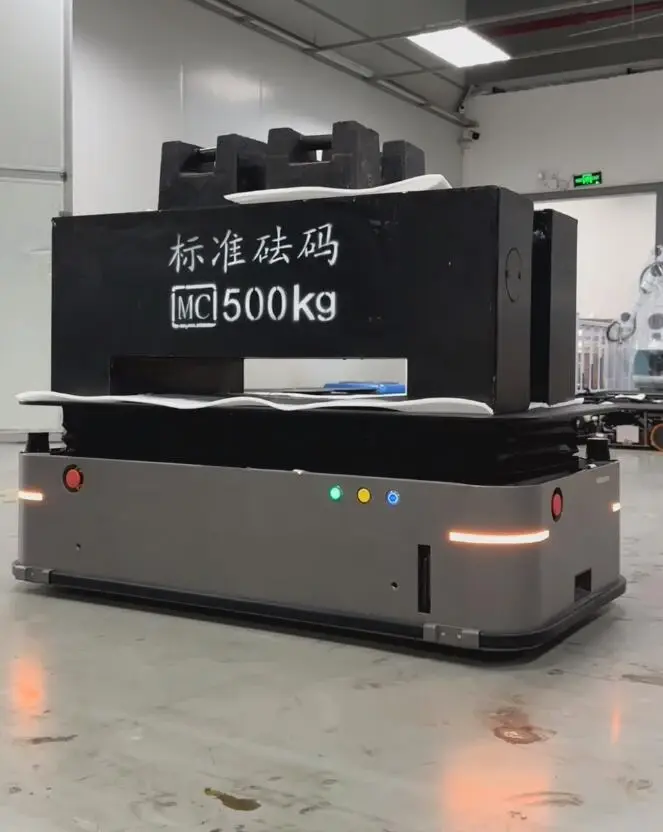

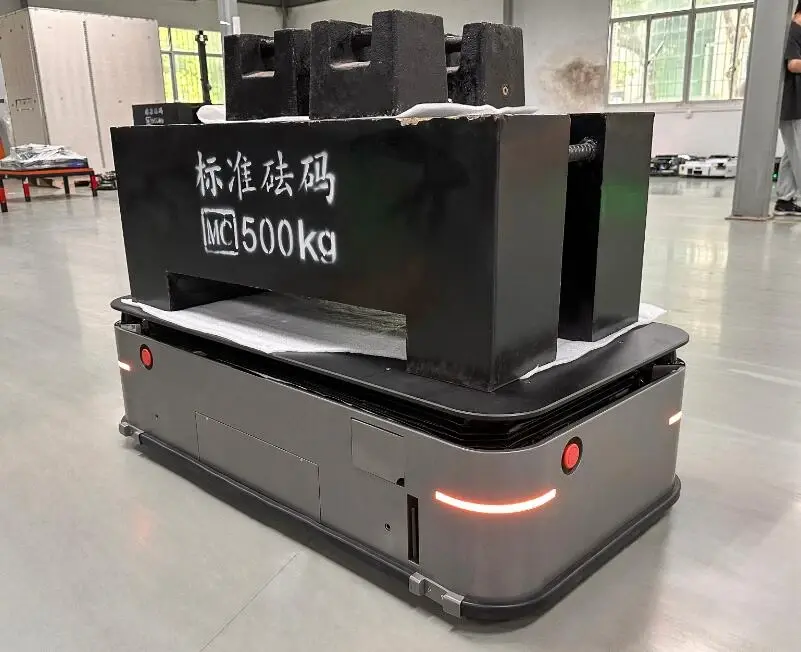

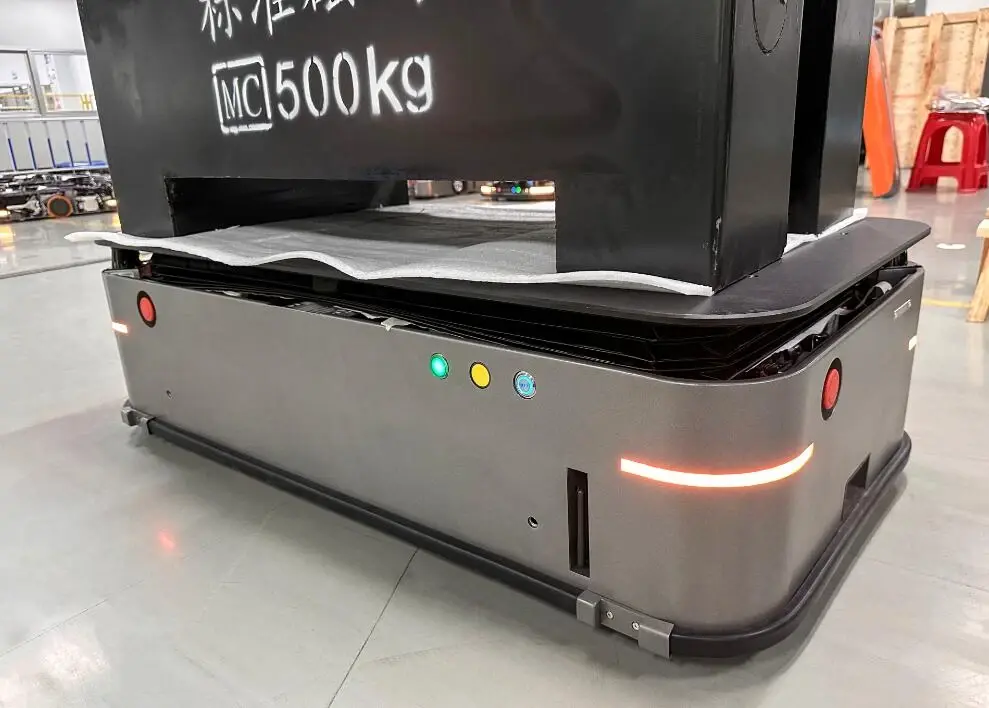

High-performance load capacity supports a load of 600 kg and 6.5 hours of battery life.
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Omni-Directional Lifting |
| Navigationtype | Laser SLAM |
| L × W × H | 1276 × 546 × 365 mm |
| Rotation diamete | 1322 mm |
| Weight (with battery) | 320 kg |
| Maximum load capacity | 600 kg |
| Chassis ground clearance | 25 mm |
| Lifting platform dimensions | 1250 × 510 mm |
| Maximum lifting height | 60 ± 1 mm |
| Navigation laser scanning height | 277 mm (H1) |
| Performance parameters | |
|---|---|
| Passability (slope / step / gap) | ≤ 5% / 5 mm / 30 mm |
| Minimum aisle width | 660 mm |
| Navigation Position accuracy | ±5 mm |
| Navigation angle accuracy | ±0.5° |
| Driving speed | ≤1.2 m/s |
| Battery parameters | |
|---|---|
| Battery specifications | 48 V / 30 Ah（lithium iron phosphate) |
| Comprehensive Battery life | 6.5 h |
| Charging time （10% to 80% ） | ≤1.5 h |
| Charging method | Manual / Automatic |
| Configurations | |
|---|---|
| Lidar number | 2(SICK nanoScan3) |
| E-stop button | ● |
| Speaker | ● |
| Ambient lamp | ● |
| Bumper strip | ● |
| Function configurations | |
|---|---|
| Basic functions | ● |
| Wi-fi roaming | ● |
| Automatic charging | ● |
| Shelf recognition | ● |
| Precise positioning with QR code | ○ |
| QR code navigation | ○ |
| Laser reflector navigation | ○ |
Related products
-
J-300
Laser SLAMLatent Jacking Transfer Robot
Small, Flexible and Latent Lifting/Jacking
-
AJX-600
Powerful Performance,
Ultimate Cost-effectiveness
-
J-1000
Laser SLAM Lifting Robot
Superb Load Capacity and Long Battery Life
-

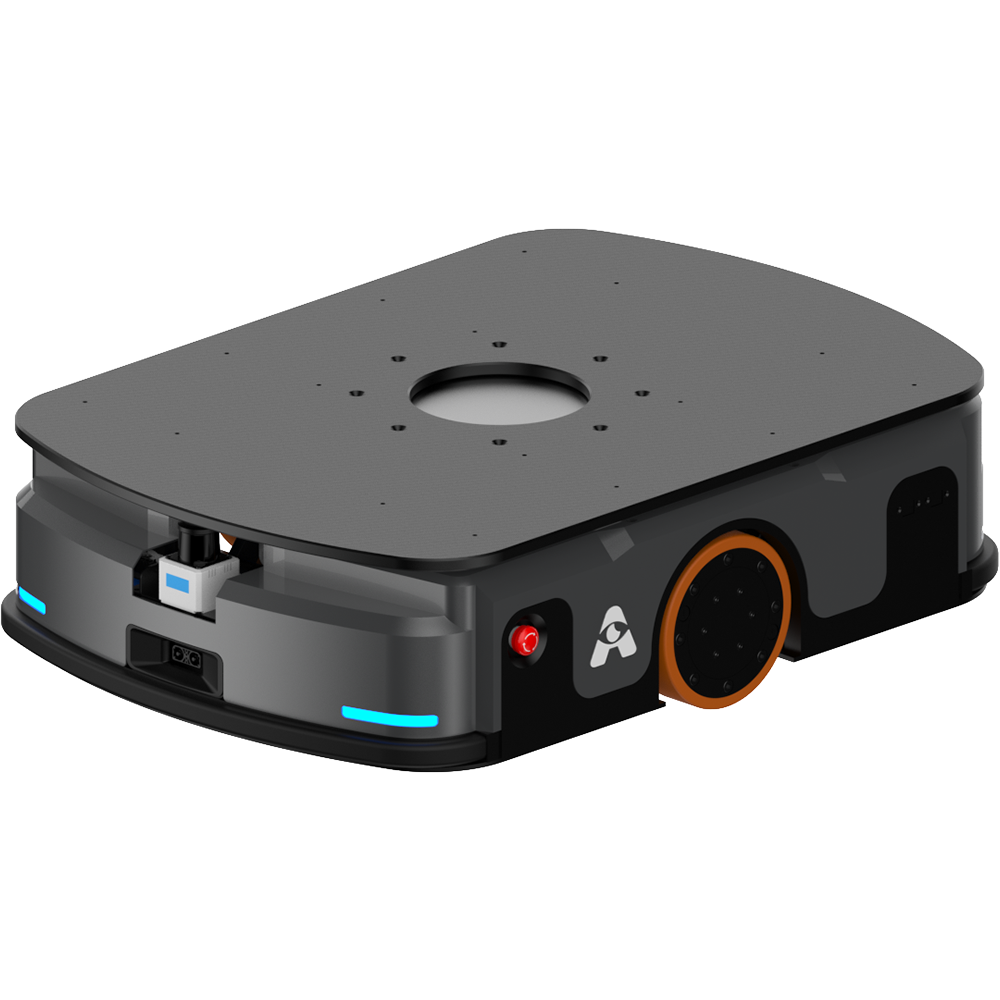

JX-600/1000
