Laser SLAM
Rotary Lifting Robot
JX-1500
Unparalleled Payload capacity, Effortless Handling
Load Type：
JX-1500
1500 kg
Load Capacity
1412mm
Rotation Diameter
Rotary Lifting
Jacking Type
Two-wheel differentil
Drive Mode
Precision, punctuality, safety
Laser SLAM Rotary Lifting Robot
Dramatically reduce costs and improve handling efficiency
Multiple Navigation Options Available
Laser SLAM, QR code and laser reflector positioning and navigation can be opted to meet the requirements for various positioning in multiple scenarios.
Powerful Material Shelf ldentification
Various goods rack identification is supported to meet the carrying requirements in multiple scenarios.
Flexible Moving
Small size for narrow aisles. More efficient trackless navigation, lower deployment costs, and more flexible movement.
1.5 T Load Capacity
The load capacity of 1.5 tons and superb carrying capacity can meet the needs of carrying large-weight products.
More Accurate Positioning
Positioning accuracy of ±5 mm for greater precision and efficiency.
6 h Battery Life
Large-capacity battery makes for 6 hours of battery life for longer-lasting carrying.

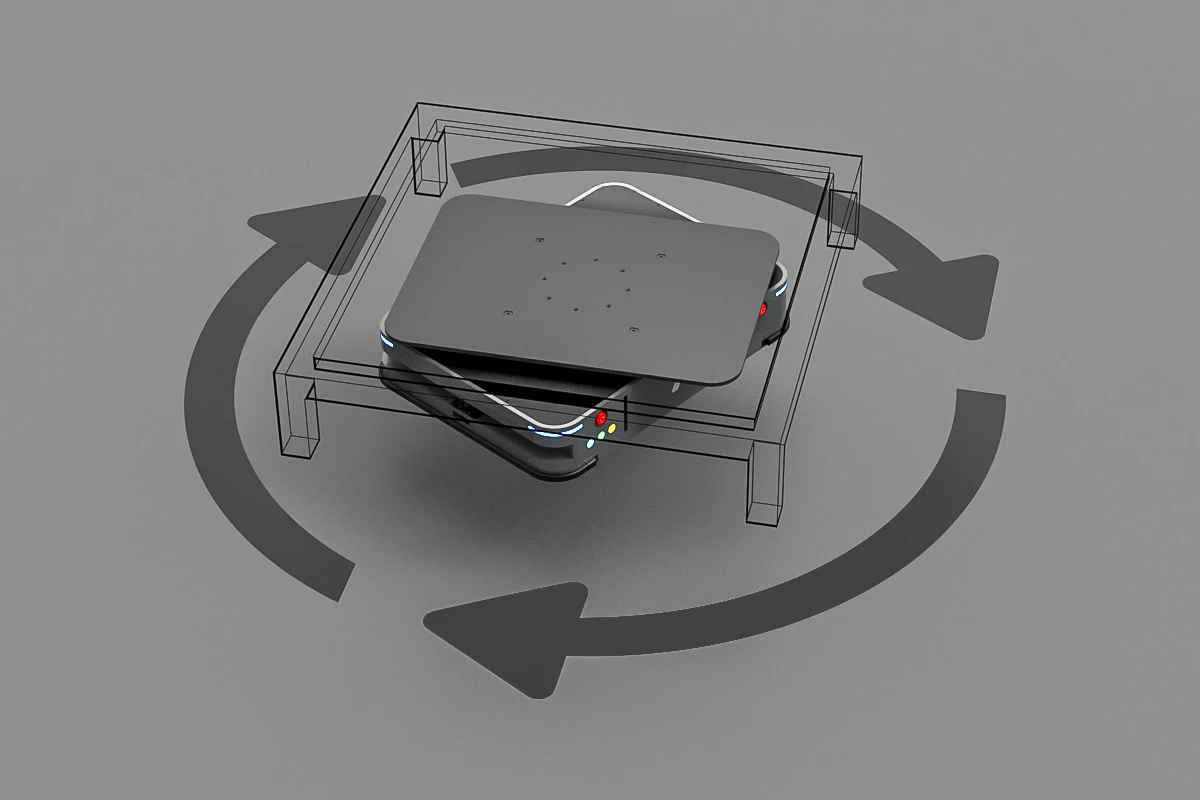

Rotatory Jacking Pallet
360° rotation, flexible for pick-up, drop-off and carrying (Spinning function )

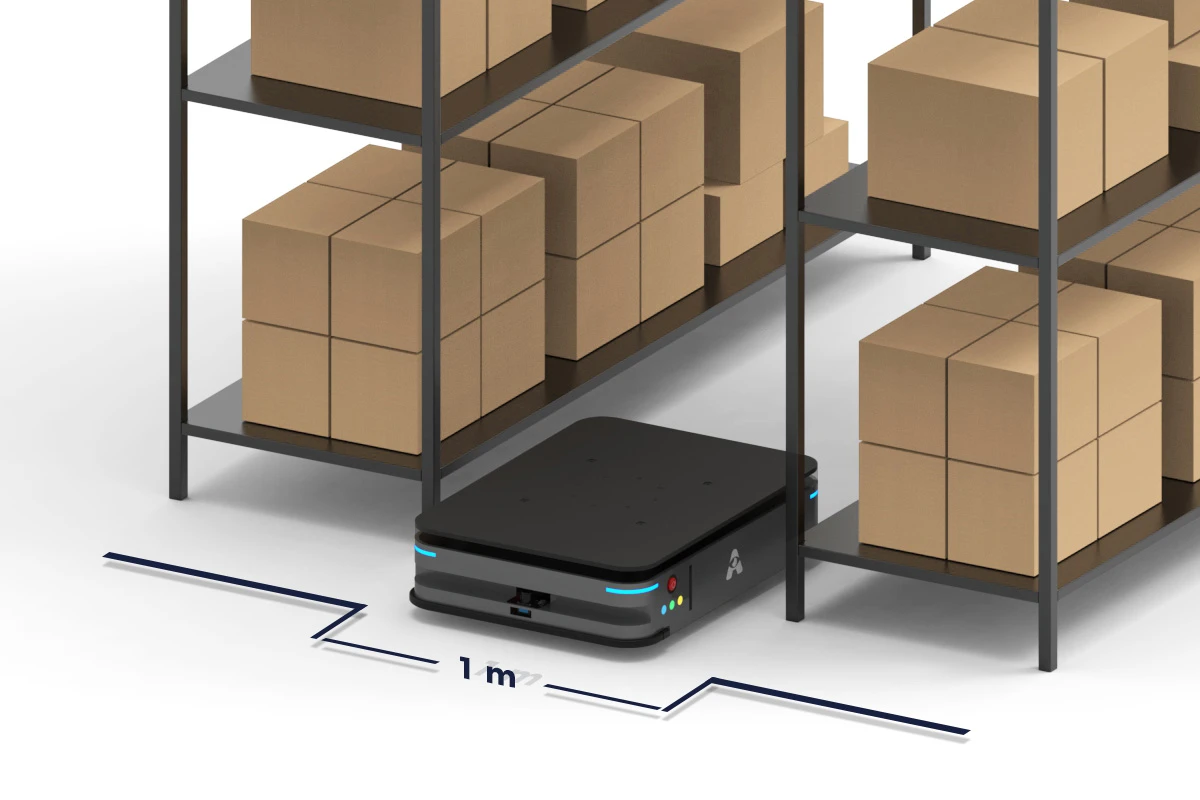

Flexible Moving
Thinner body for more shelf-carrying scenarios. Minimum aisle width: 1 meter
Compact and Flexible

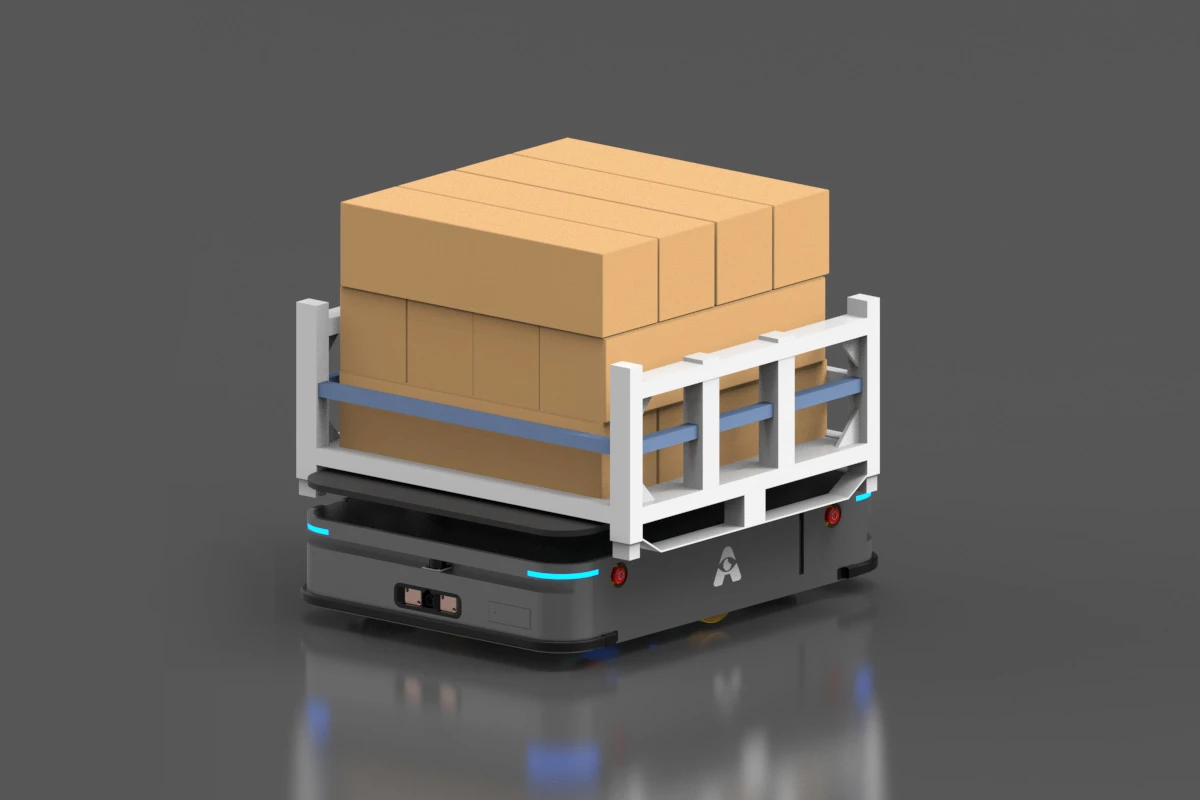

1500kg Load Capacity
Superb Load AMR. Solving problems of transporting overweight goods. Applicable industries include of Steel Industry, Automobile Manufacturing, Heavy Machinery Manufacturing etc.

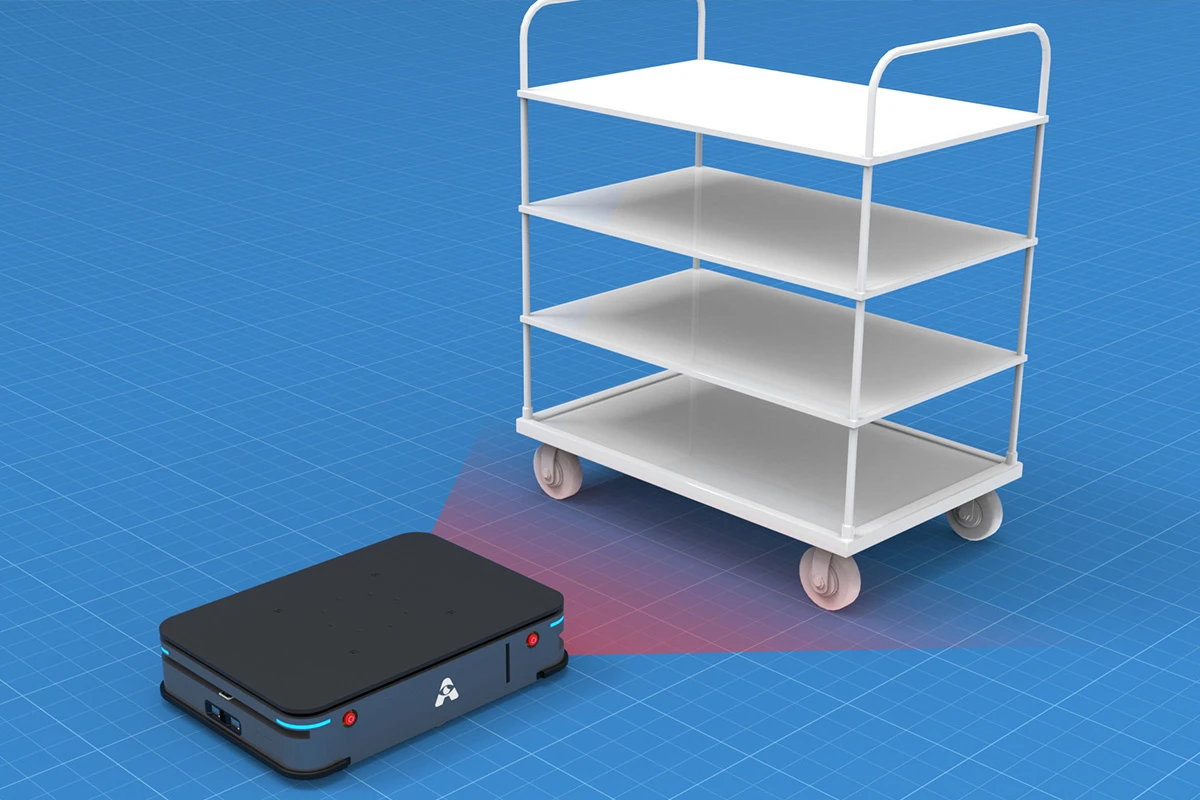

Identification of Multiple Racks
Universal Shelving Recognition
· The shape recognition of shelf legs;
· Various types of shelves;
· Basic function of latent lifting.
Multiple Operating Environments
Low environmental needs, little site-specific restrictions, no concern about damp ground becoming slick, and freedom to handle complicated scenarios.
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Rotary Lifting Robot |
| Navigationtype | Laser SLAM |
| L × W × H | 1210 × 892 × 280 mm |
| Rotation diamete | 1412 mm |
| Weight (with battery) | 250 kg |
| Maximum load capacity | 1500 kg |
| Chassis ground clearance | 30 mm |
| Lifting platform dimensions | 1180 × 860 mm |
| Maximum lifting height | 60 ± 1 mm |
| Navigation laser scanning height | 123 mm(H1) |
| Performance parameters | |
|---|---|

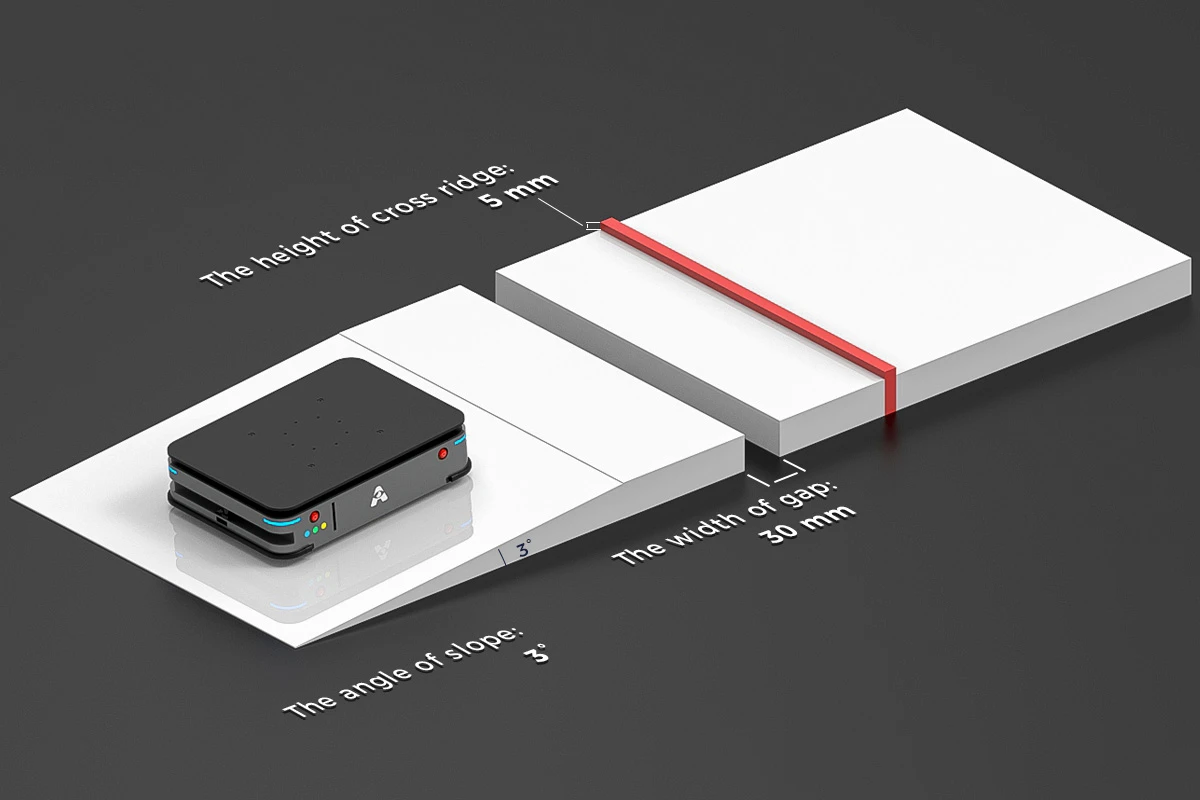

| Passability (slope / step / gap) | ≤ 5% / 5 mm / 30 mm |
| Minimum aisle width | 1000 mm |
| Navigation Position accuracy | ±5 mm |
| Navigation angle accuracy | ±1° |
| Driving speed | ≤1.67 m/s |
| Battery parameters | |
|---|---|
| Battery specifications | 48 V / 40 Ah（lithium iron phosphate) |
| Comprehensive Battery life | 6 h |
| Charging time （10% to 80% ） | ≤2 h |
| Charging method | Manual / Automatic |
| Configurations | |
|---|---|
| Lidar number | 1(H1)+1(C2) |
| E-stop button | ● |
| Speaker | ● |
| Ambient lamp | ● |
| Bumper strip | ● |
| Function configurations | |
|---|---|
| Basic functions | ● |
| Wi-fi roaming | ● |
| Automatic charging | ● |
| Shelf recognition | ● |
| Spin function | ● |
| Precise positioning with QR code | ○ |
| QR code navigation | ○ |
| Laser reflector navigation | ○ |
Related products
-
AJX-600
Powerful Performance,
Ultimate Cost-effectiveness
-
J-500S(CE)
Laser SLAM Safety Jacking Transfer Robot
Safe Jacking, Superb Load Capacity
-

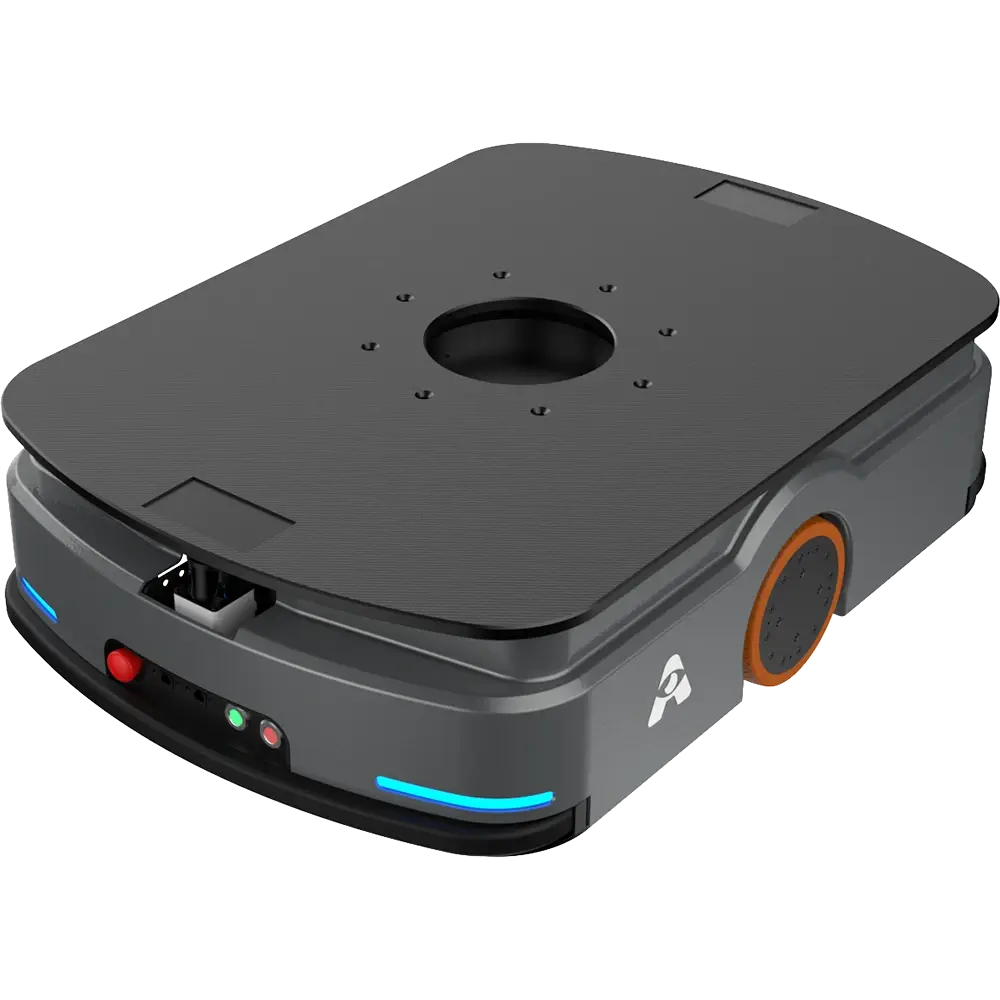

JX-600/1000
