JX-800
800 kg
Load Capacity
980mm
Rotation Diameter
Rotary Lifting
Jacking Type
Two-wheel differentil
Drive Mode
Precision, punctuality, safety

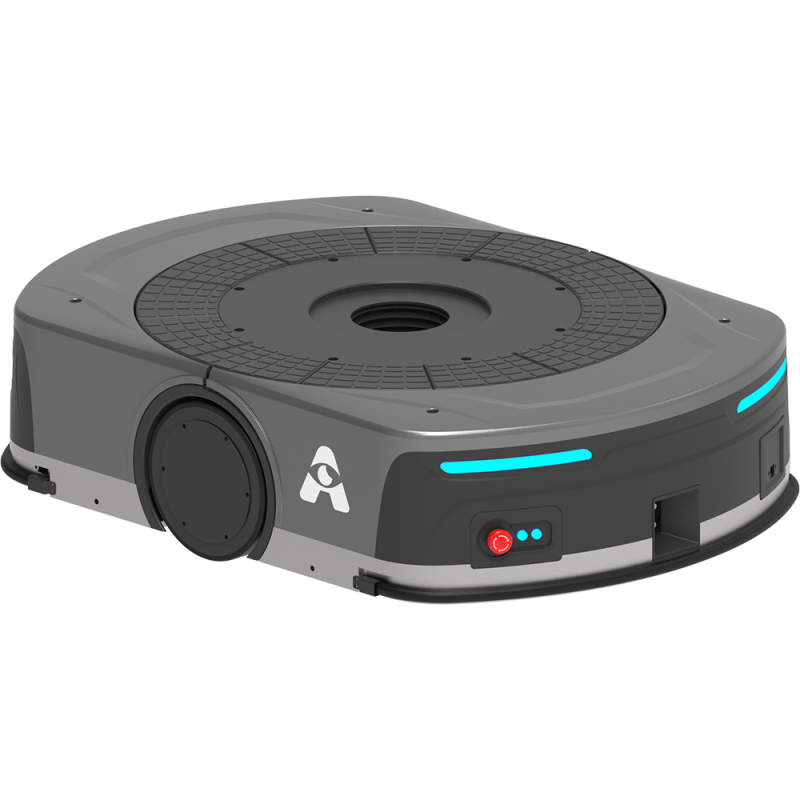

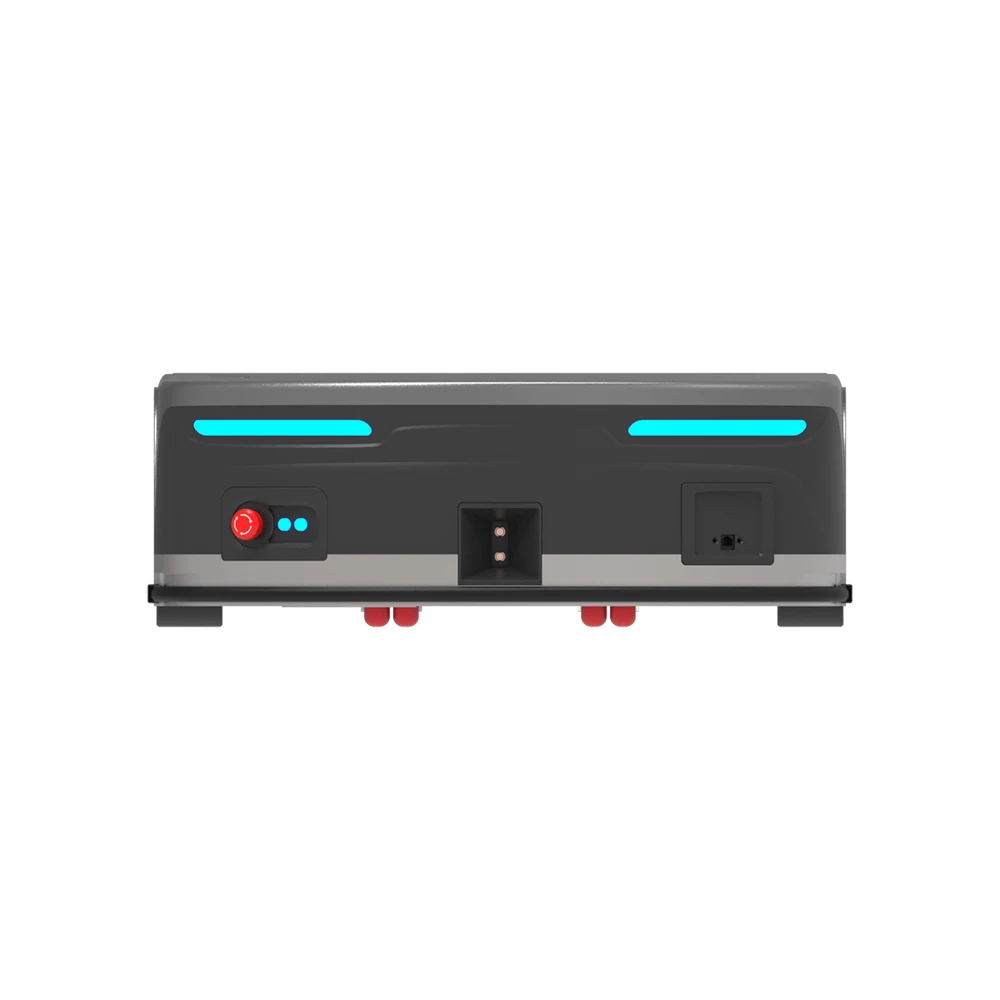

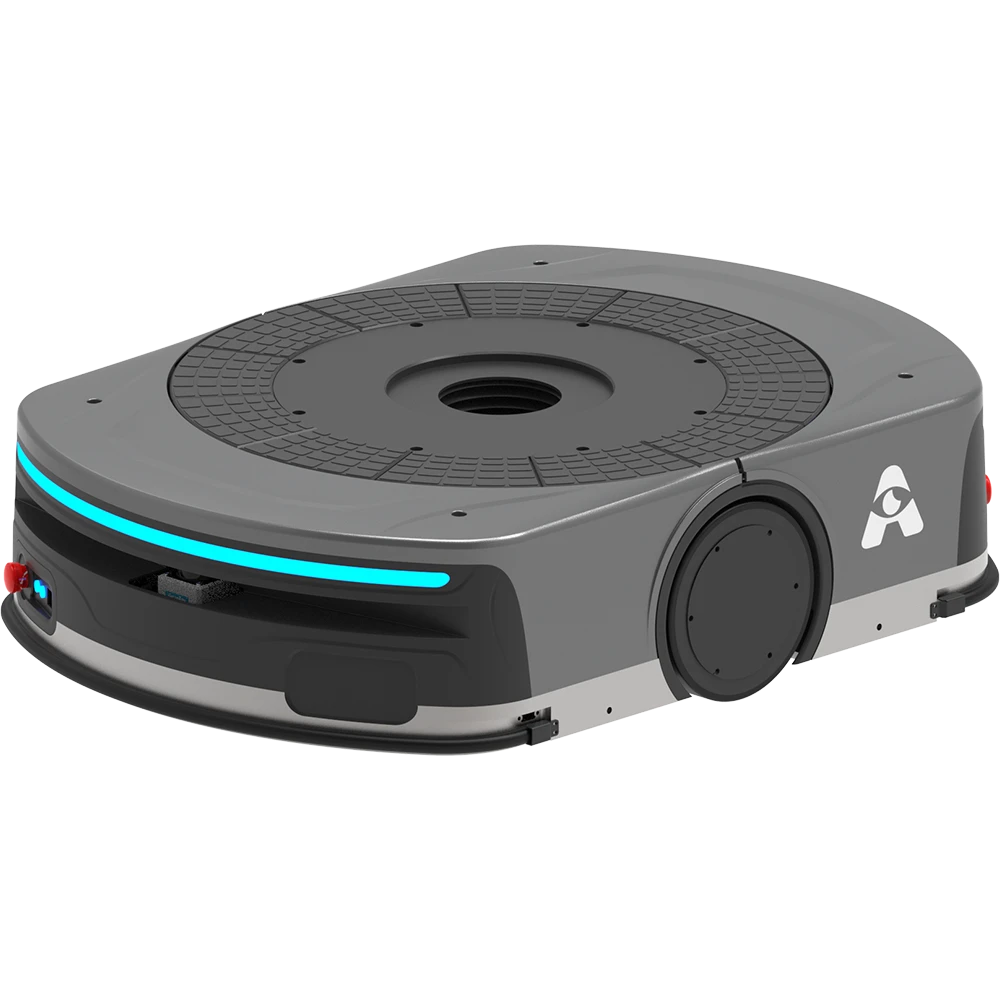

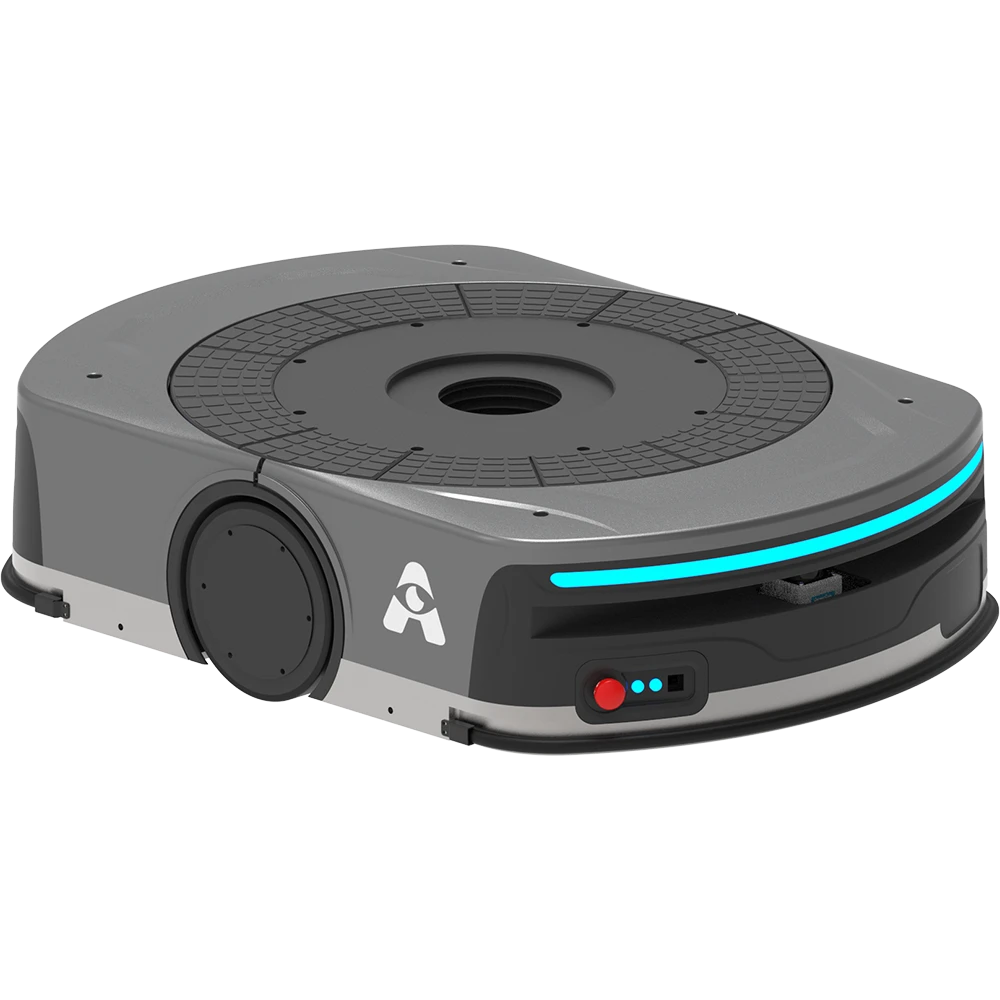

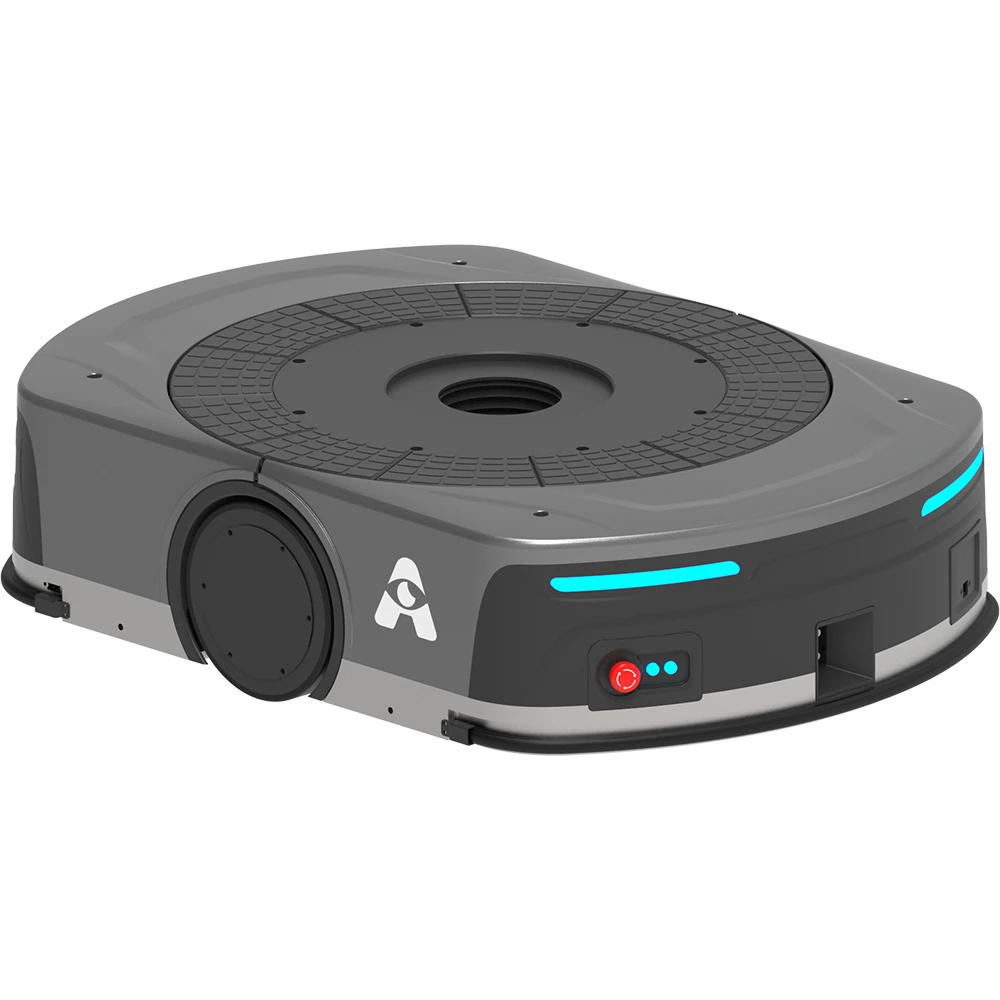

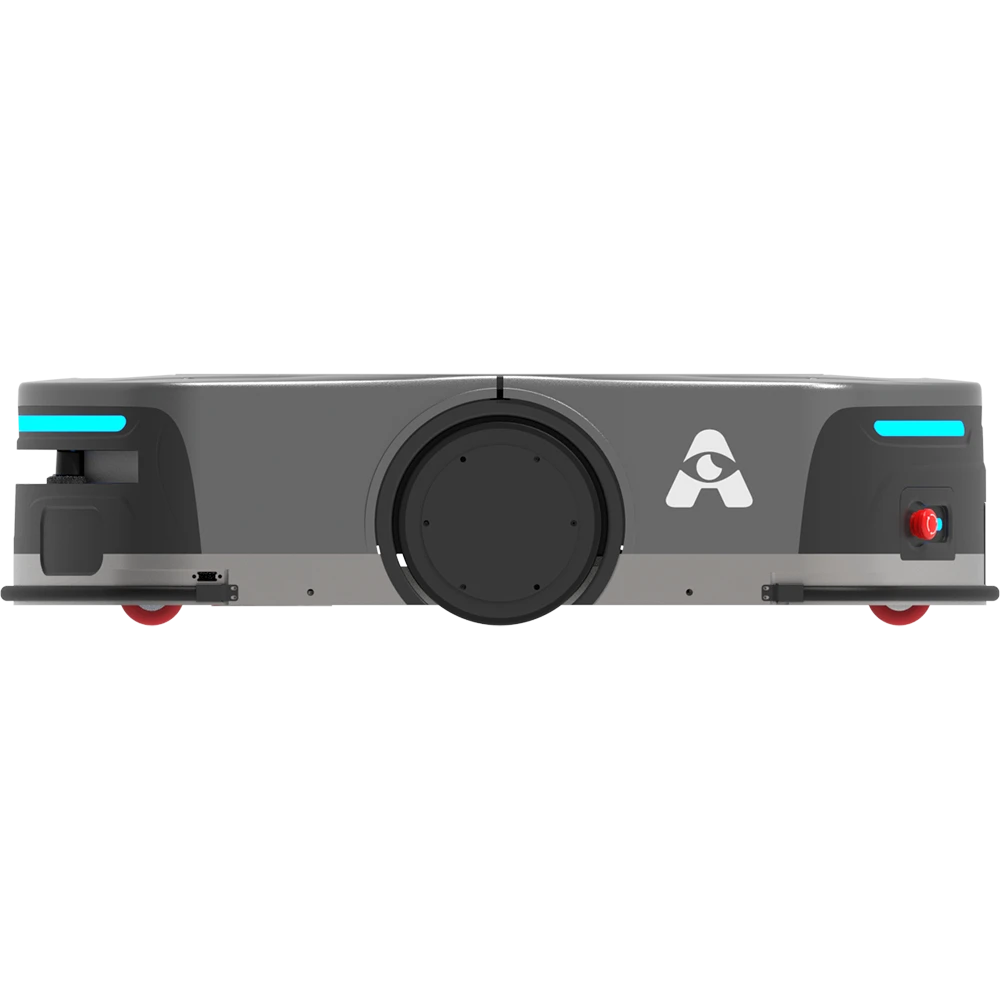

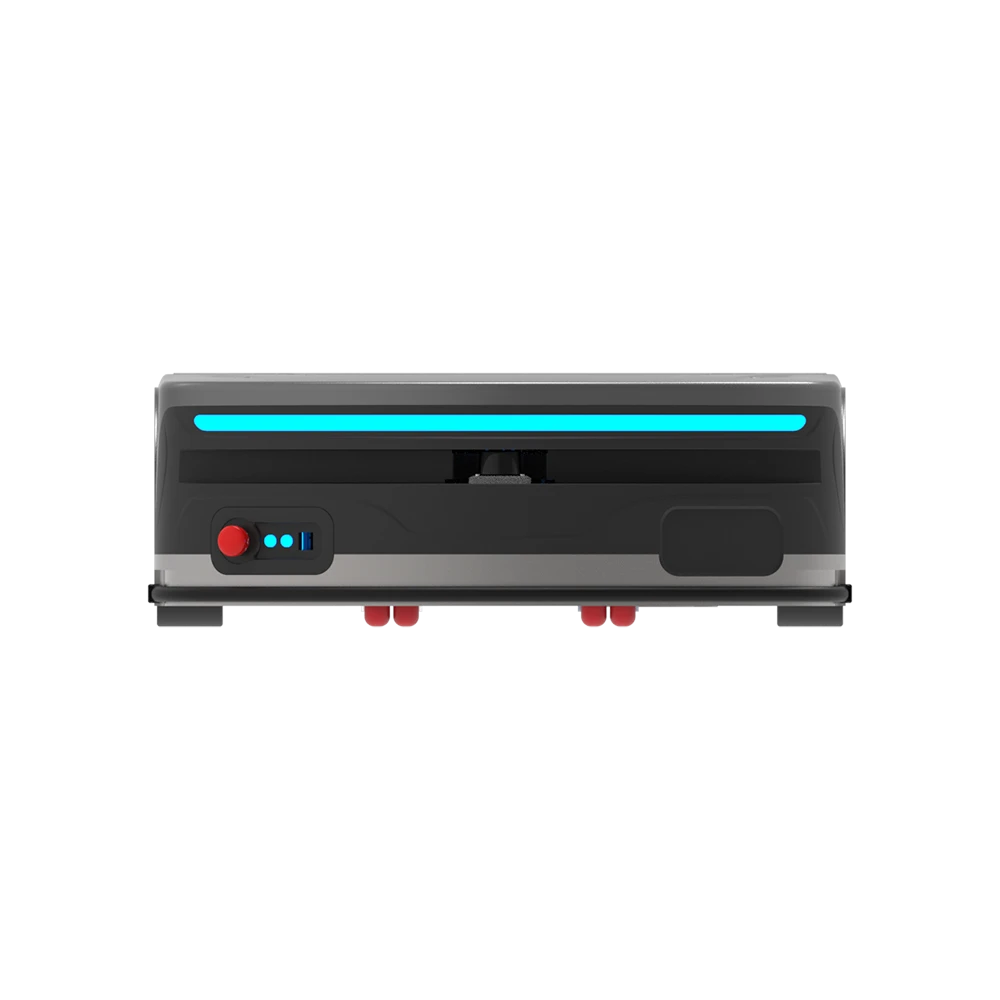

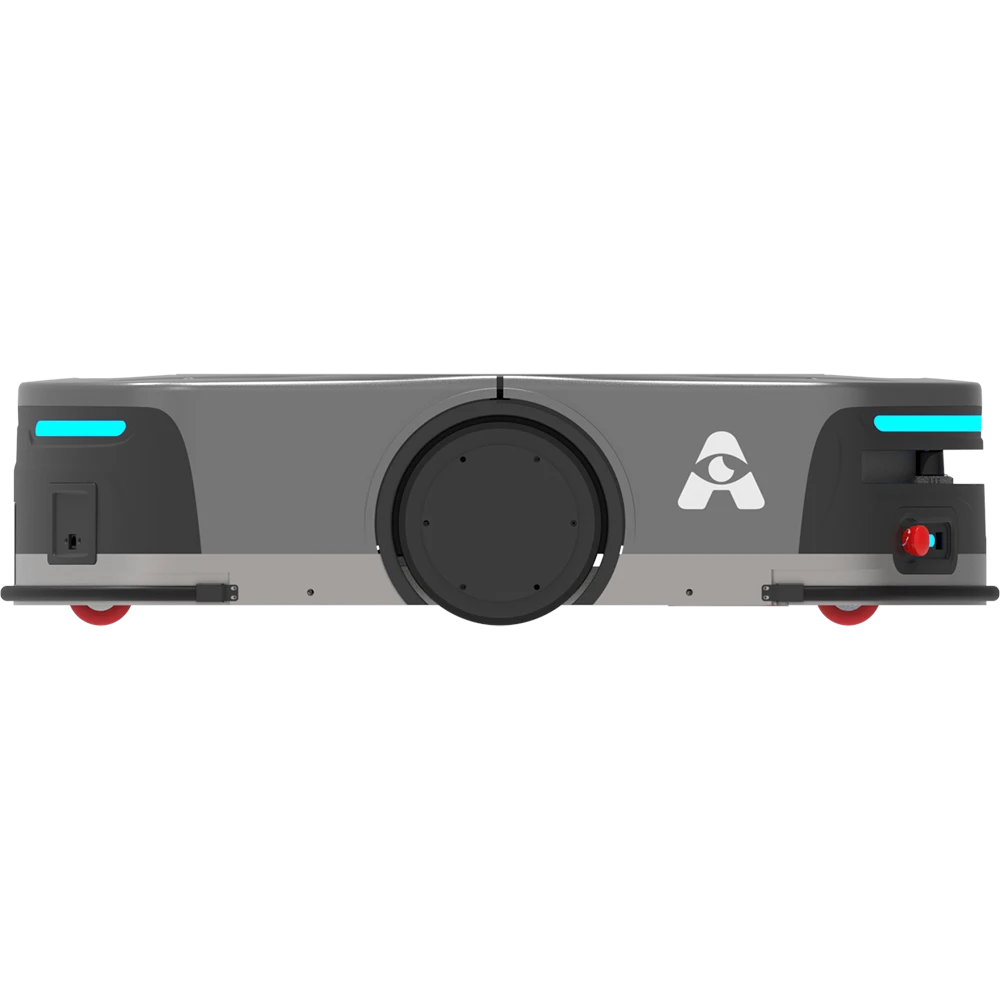

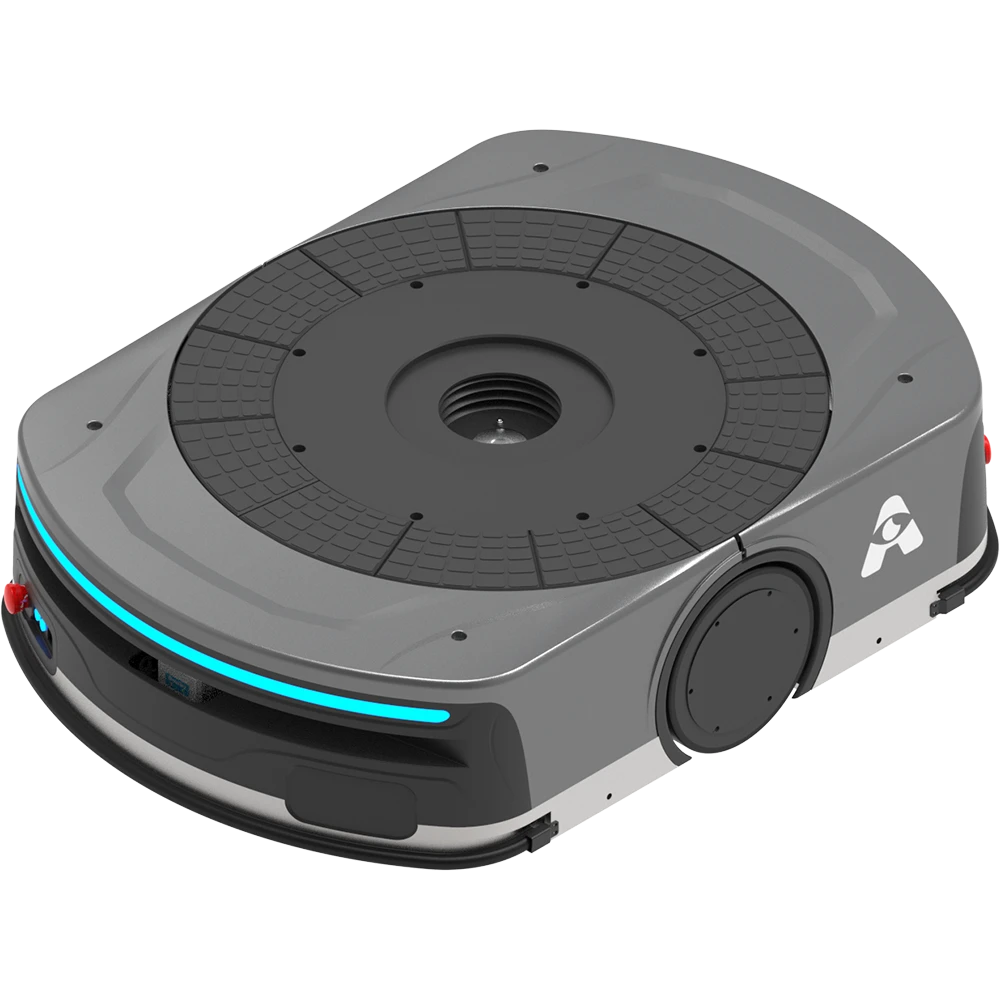

Laser SLAM Rotary Lifting Robot
Dramatically reduce costs and improve handling efficiency
Thinner Body for More Shelf-carrying Scenarios
It is only 245mm tall for more shelf-carrying scenarios.

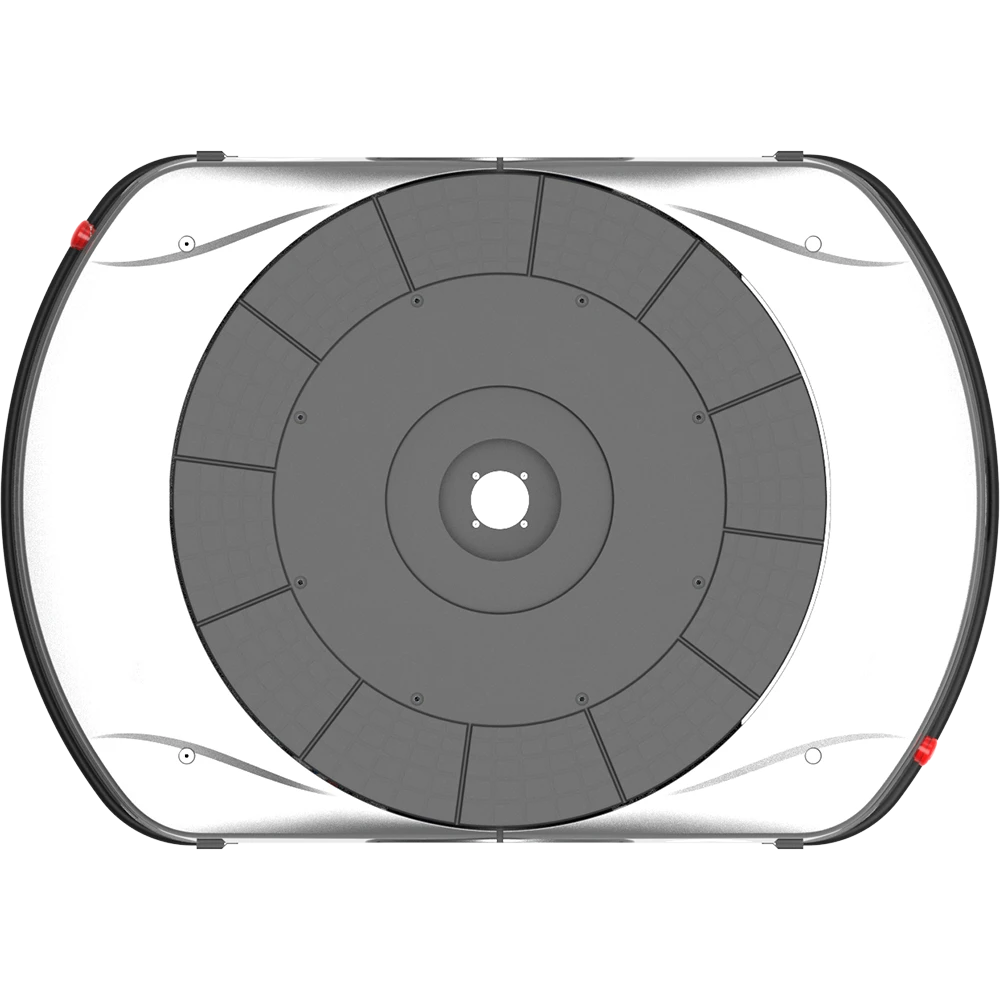

360° Rotation, Flexible for Pick-up, Drop-off and Carrying
The steering of the robot body and the jacked goods can be controlled to easily handle narrow space, areas with dense shelves and so on.
More Accurate Localization with Hybrid Navigation
Navigation accuracy can reach ±5mm. Support multiple navigation method, such as SLAM,QR code and reflector navigation, to meet various requirements in different scenarios.
800kg Load Capactiy for Easy Carrrying
Load capacity of 800 kg for carrying loads in a variety of scenarios, including e-commerce picking, material transfer, call delivery, and other productions.
2.2m/s Running Speed, Faster and More Efficient
Full load with a maximum running speed of 1.8m/s and no-load with a maximum running speed of 2.2 m/s. Quick pick-up / drop-off of goods in 2.5±0.5s.
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Rotary Lifting Robot |
| Navigationtype | Laser SLAM |
| L × W × H | 980 × 680 × 245 mm |
| Rotation diamete | 980 mm |
| Weight (with battery) | 150 kg |
| Maximum load capacity | 800 kg |
| Chassis ground clearance | 20 mm |
| Lifting platform dimensions | φ640 mm |
| Maximum lifting height | 60 ± 2 mm |
| Navigation laser scanning height | 158.1 mm (H1) |
| Performance parameters | |
|---|---|
| Passability (slope / step / gap) | ≤ 5% / 5 mm / 30 mm |
| Minimum aisle width | 820 mm |
| Navigation Position accuracy | ±5 mm |
| Navigation angle accuracy | ±0.5° |
| Driving speed | ≤1.8 m/s |
| Battery parameters | |
|---|---|
| Battery specifications | 48 V / 27 Ah（lithium iron phosphate) |
| Comprehensive Battery life | 8 h |
| Charging time （10% to 80% ） | ≤2 h |
| Charging method | Manual / Automatic |
| Configurations | |
|---|---|
| Lidar number | 1 (H1) |
| E-stop button | ● |
| Speaker | ● |
| Ambient lamp | ● |
| Bumper strip | ● |
| Function configurations | |
|---|---|
| Basic functions | ● |
| Wi-fi roaming | ● |
| Automatic charging | ● |
| Shelf recognition | ● |
| Spin function | ● |
| Precise positioning with QR code | ○ |
| QR code navigation | ○ |
| Laser reflector navigation | ○ |
Related products
-
J-300
Laser SLAMLatent Jacking Transfer Robot
Small, Flexible and Latent Lifting/Jacking
-
J-1000S(CE)
Laser SLAM Safety Jacking Transfer Robot
Safe Jacking, Superb Load Capacity
-
AJX-600
Powerful Performance,
Ultimate Cost-effectiveness
-

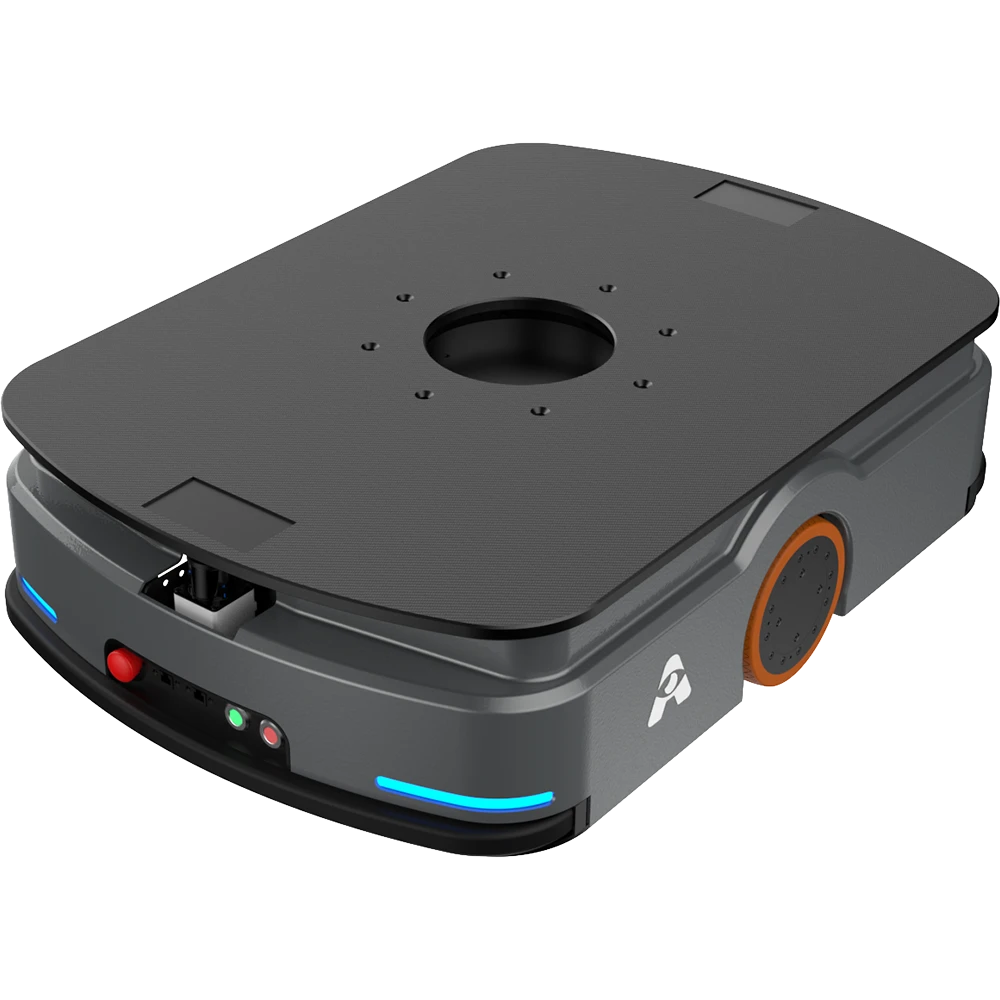

JX-600/1000
