On-demand combination, Up to 5 Battery Packs in Parallel
Based on the plug-and-play method, 1~5 battery pack can be automatically connected in parallel, which doubles the output power and endurance. Through the modular combination of products, it truly meets the 1kW~5kW battery needs of the AMR industry.
Million Dollar Insurance for Worry-free After-sales
Each battery has a quality insurance of 6 million US dollars. And the after-sales service system covers the whole world. All of this makes it safer and more secure.
Global Certification & Great Variety of Goods
With CE / UL / ISO / FCC and other alobal certifications, the safety protection design meets the EN13849-2015 standard, helping the certification of AMR vehicle functions worldwide worry-free.

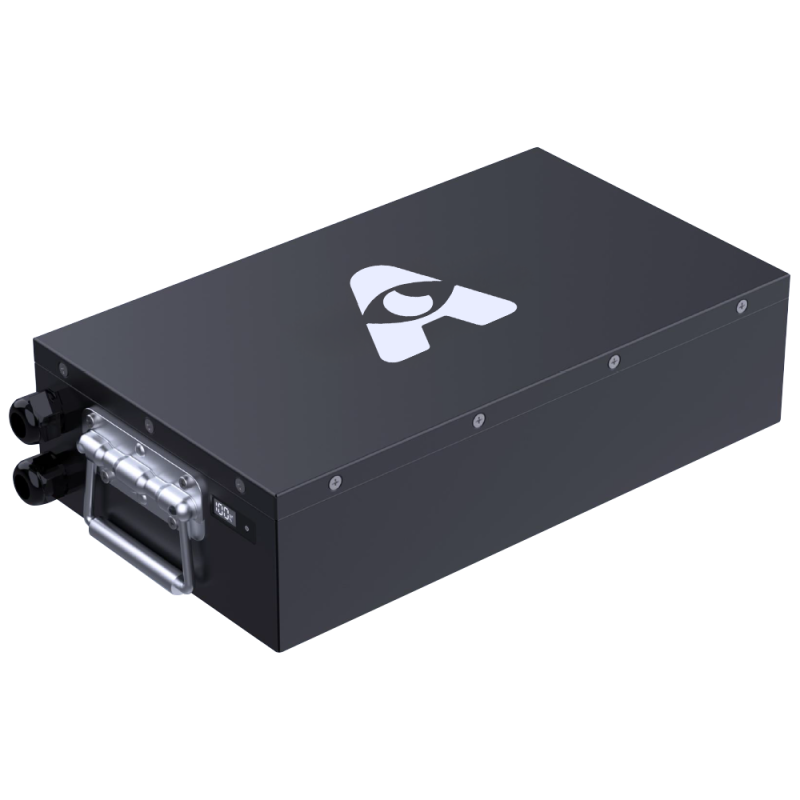

SBP-48V23AHLS
Robotics Modular Battery
Automatic Paralleling, Plug and Play
| Basic parameters | |
|---|---|
| Product name | Aivison Robotics Modular Battery |
| L × W × H | 380 × 220 × 100 mm (without connector) |
| Nominal voltage | 51.2 V |
| Nominal capacity | 23 Ah |
| Limited charge voltage | 58.4 |
| Nominal weight | 13 kg |
| Cell material | Lithium iron phosphate |
| Cycle life | 2000 times ≥80% |
| Max. num of connected battery | 5 pcs |
| Protocol | CANOPEN |
| Certifications | UL / CE / FCC / EN13849 |
| Discharge temperature | -20°C to 60°C |
| Charge temperature | 0°C to 45°C |
| Maximum charge current | 23 A |
| Maximum discharge current | 30 A <5s |
| Shipment battery level | 40% to 60% |
