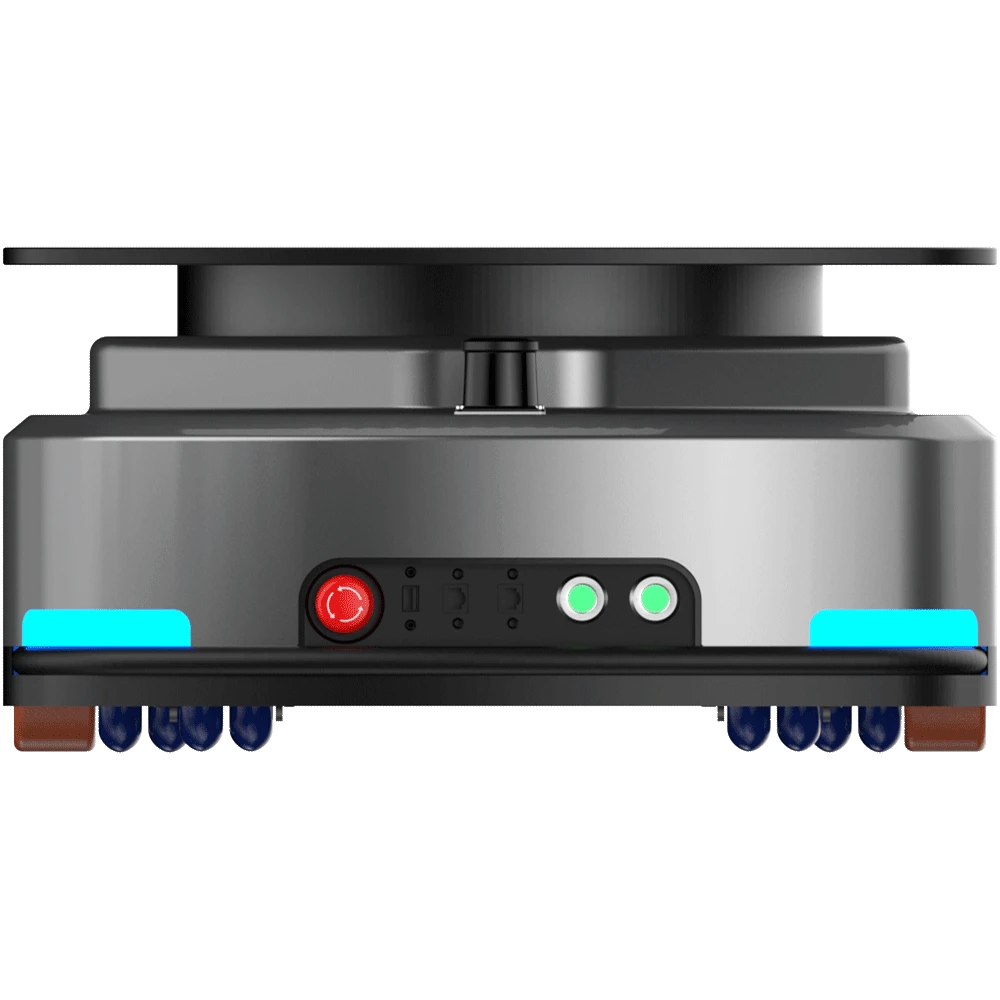

AJX-400
400 kg
Load Capacity
840 mm
Rotation Diameter
±5 mm
Navigation Position Accuracy
Two-wheel Differential
Drive Mode
Precision, punctuality, safety
Laser SLAM AMR Chassis
Dramatically reduce costs and improve handling efficiency
400kg Spin Lifting, Accuracy up to ±5mm
400kg lifting capacity with spin function, covering all types of handling needs. Featuring a minial turning diameter of just 840mm, it navigates tightly packed aisles with ease. Fast-charging to 80% in just 60 minutes, it delivers 8 hours of uninterrupted performance.
Enhanced Safety with Dual Laser +3D Camera
Achieve complete 360° protection with dual laser configuration. The front section supports optional 3D camera components for pit detection, obstacle recognition, ensuring safe traversal. Equipped with front and rear contact bumper strips for immediate halt upon impact.
Faster and More Efficient
Faster and More Efficient. With a maximum speed of 1.5m/s under full load and 2m/s when unloaded, it ensures higher operational efficiency.
Hybrid Navigation, Flexible Selection
Supports SLAM, QR code, and reflector navigation. Tailor navigation solutions according to specific scene requirements.
Compact Size, Powerful Performance
The compact size caters to various needs like e-commerce sorting, material ransportation,
and call-fo-dilivery scenarios. With a 400kg payload capacity, it’s your solution for diverse handling load demands.
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Rotary Lifting Robot |
| Navigationtype | Laser SLAM |
| L × W × H | 810 × 545 × 280 mm |
| Rotation diameter | 840 mm |
| Weight (with battery) | 130 kg |
| Maximum load capacity | 400 kg |
| Chassis ground clearance | 25 mm |
| Lifting platform dimensions | 750 × 545 mm |
| Maximum lifting height | 60±2 mm |
| Navigation laser scanning height | 200.5 mm |
| Performance parameters | |
|---|---|
| Passability (slope / step / gap) | ≤5% / 5 mm / 30 mm |
| Minimum aisle width | 685 mm |
| Navigation Position accuracy | ±5 mm |
| Navigation angle accuracy | ±0.5° |
| Driving speed | ≤1.5 m/s |
| Battery parameters | |
|---|---|
| Battery specifications | 51.2 V / 20 Ah（lithium iron phosphate) |
| Comprehensive Battery life | 8 h |
| Charging time （10% to 80% ） | ≤1 h |
| Charging method | Manual / Automatic |
| Configurations | |
|---|---|
| Lidar number | 1 (H1) + 1(C2) |
| E-stop button | ● |
| Speaker | ● |
| Ambient lamp | ● |
| Bumper strip | ● |
| Function configurations | |
|---|---|
| Basic functions | ● |
| Wi-fi roaming | ● |
| Automatic charging | ● |
| Shelf recognition | ● |
| Spin function | ● |
| Precise positioning with QR code | ○ |
| QR code navigation | ○ |
| Laser reflector navigation | ○ |
