Laser SLAM
Autonomous Pallet Truck
FB-800
The Strongest Ground Forklift, Flexible and Efficient
Load Type：
FB-800
800 kg
Rated load capacity
600 mm
Load center distance
70 mm
Standard lifting height
Open pallet
Pallet type
Precision, punctuality, safety
Laser SLAM Autonomous Pallet Truck
Dramatically reduce costs and improve handling efficiency

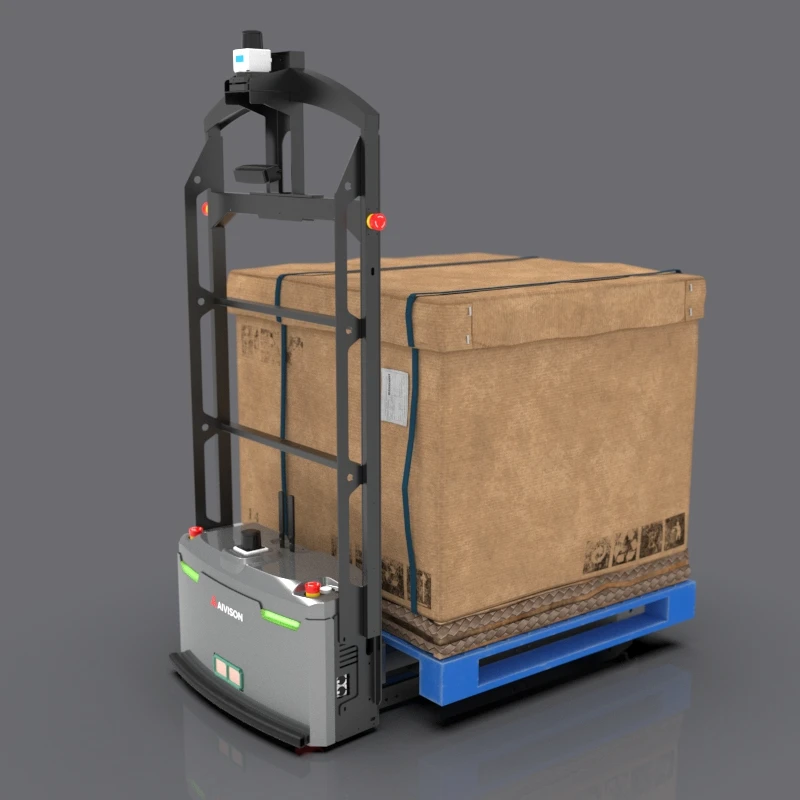

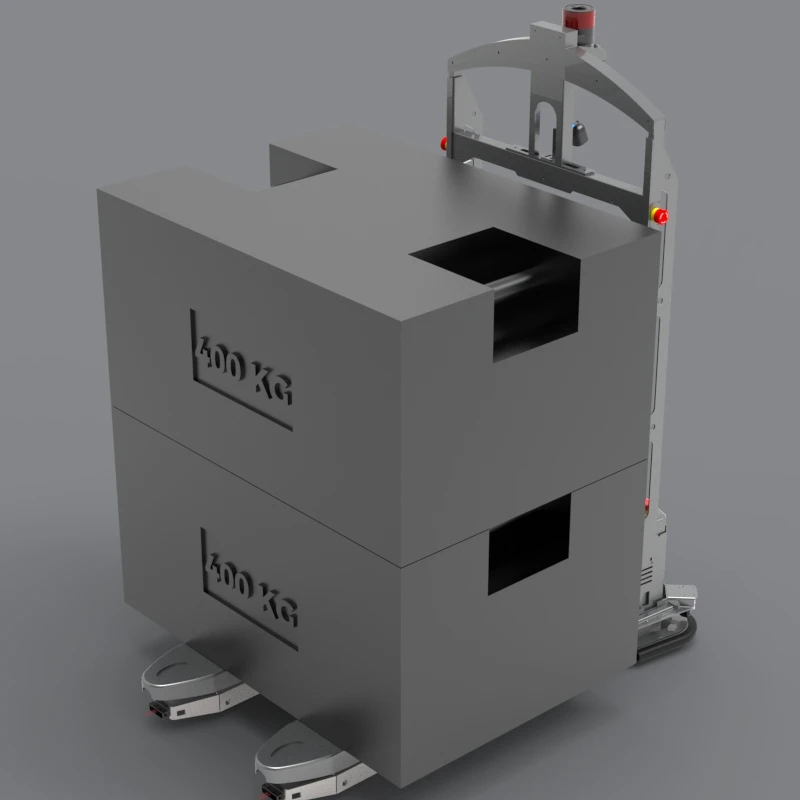

Small in Size but Large in Load Capacity
The vehicle body is only 885 mm wide, which enables it to operate in narrow aisles; and a maximum load of 800 kg is supported, making carrying much easier.

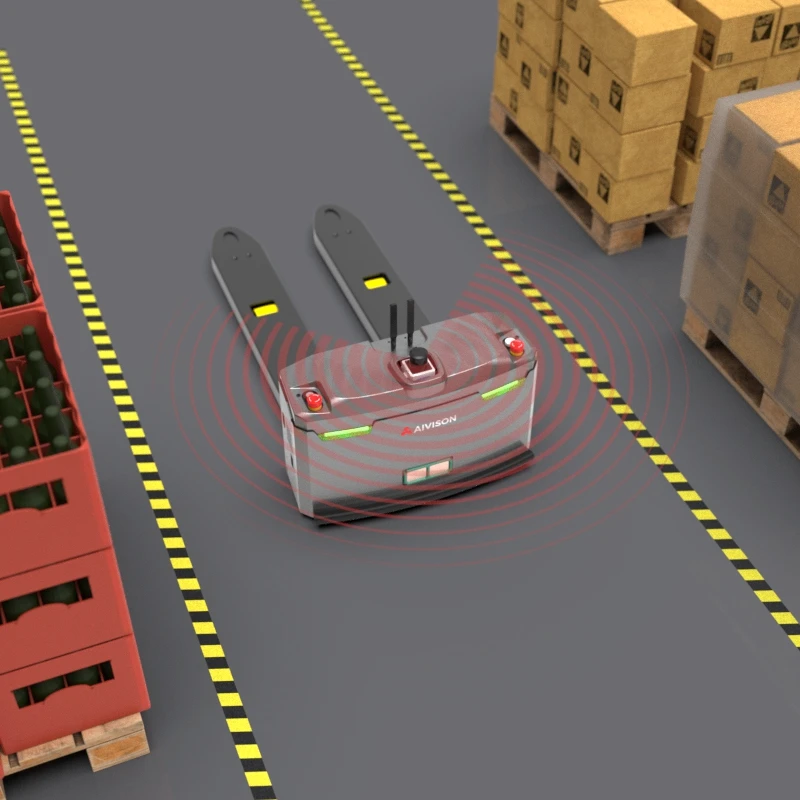

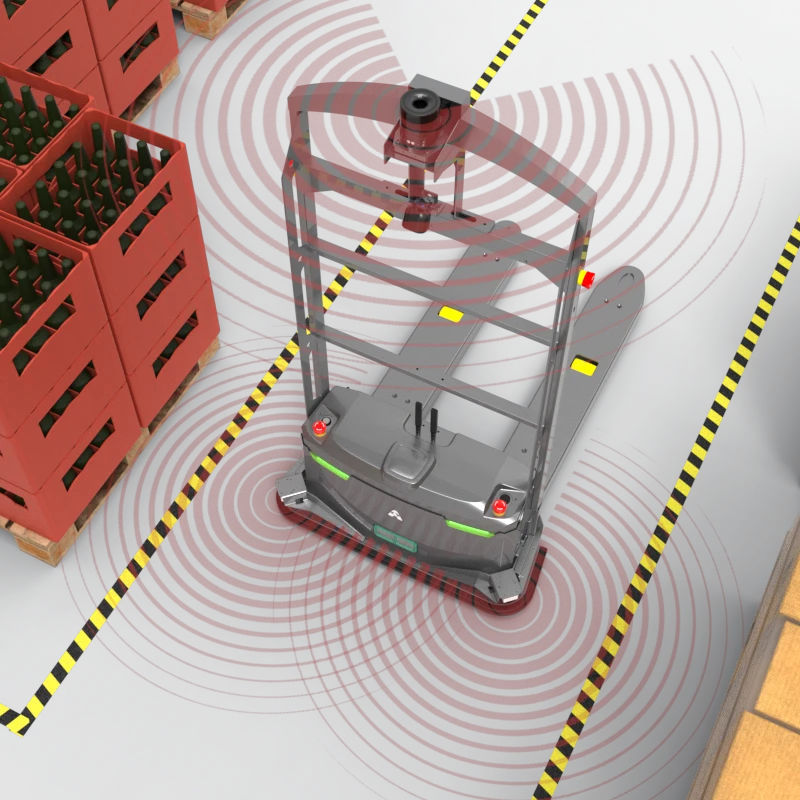

3D Obstacle Detection, Secure and Reliable
3D obstacle detection is adopted to improve security and scenario adaptability significantly for all-around protection, so that the carrying can be more secure.

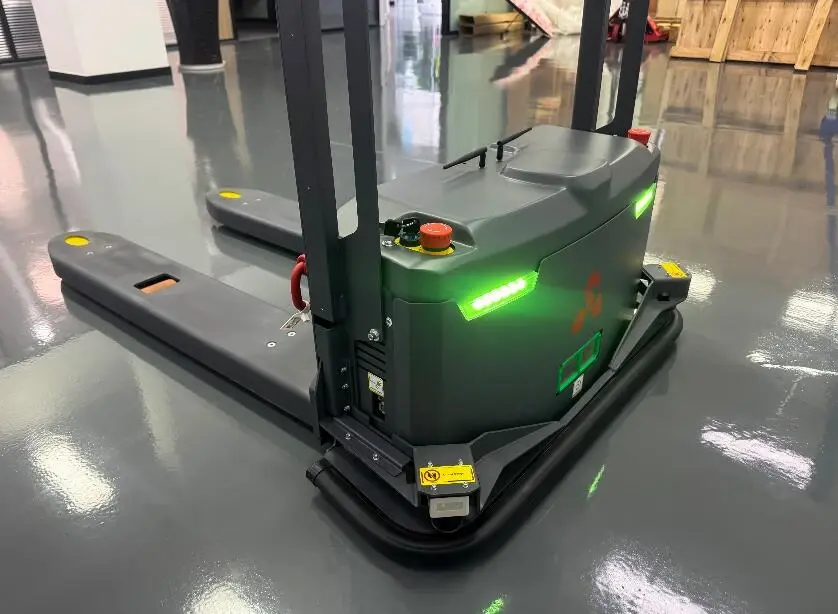

Stronger Anti-collision Ability
The range of the bumper bar is increased to enhance security.

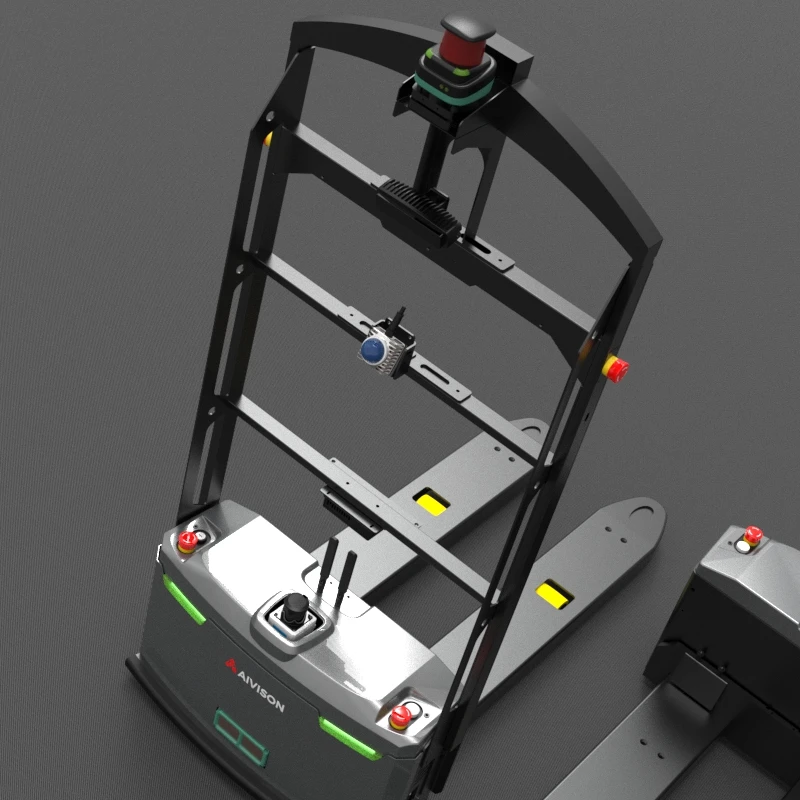

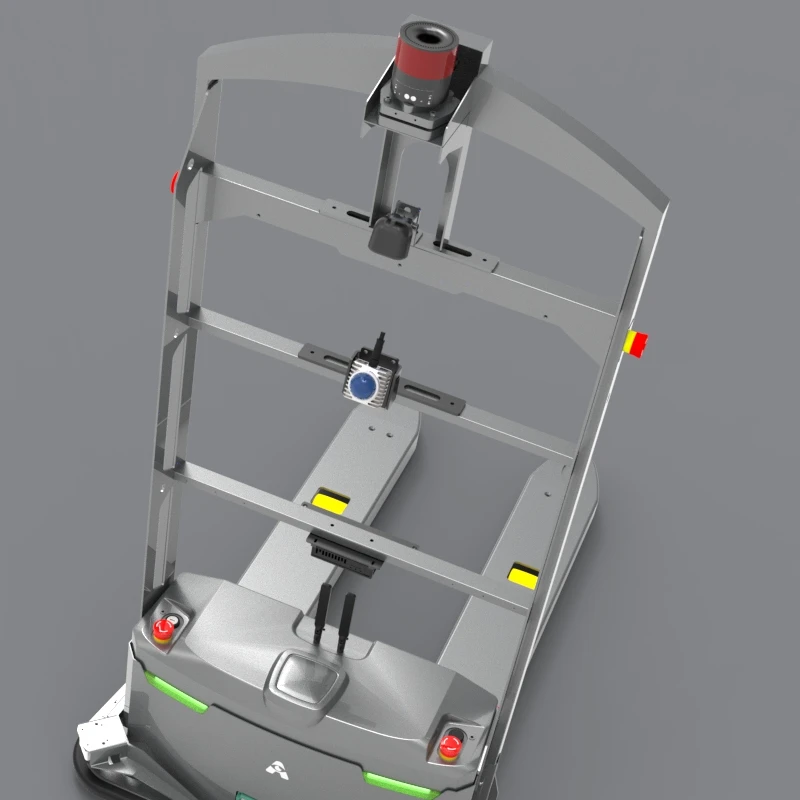

Highly Customized Laser
Positioning capability is enhanced with stronger integration, allowing for more multiple application scenarios.

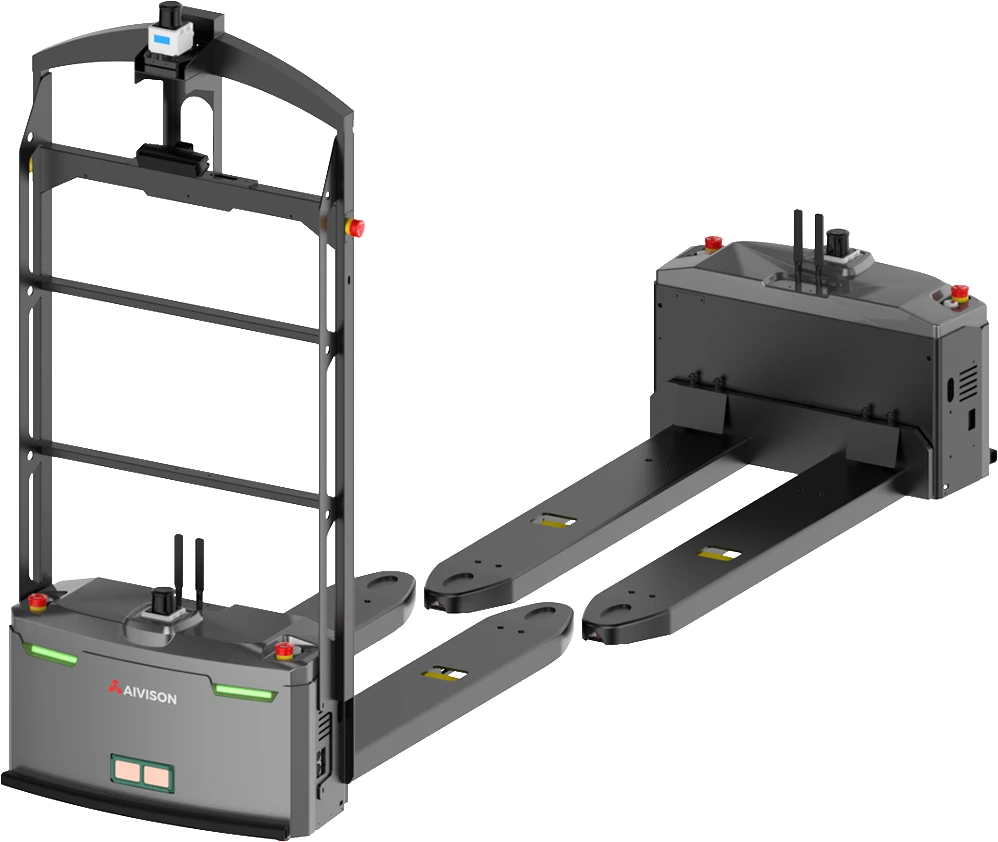

Pallet Recognition, Precise and Efficient
High-precision navigation & recognition, which delivers accurate forking ensuring carrying efficiency.

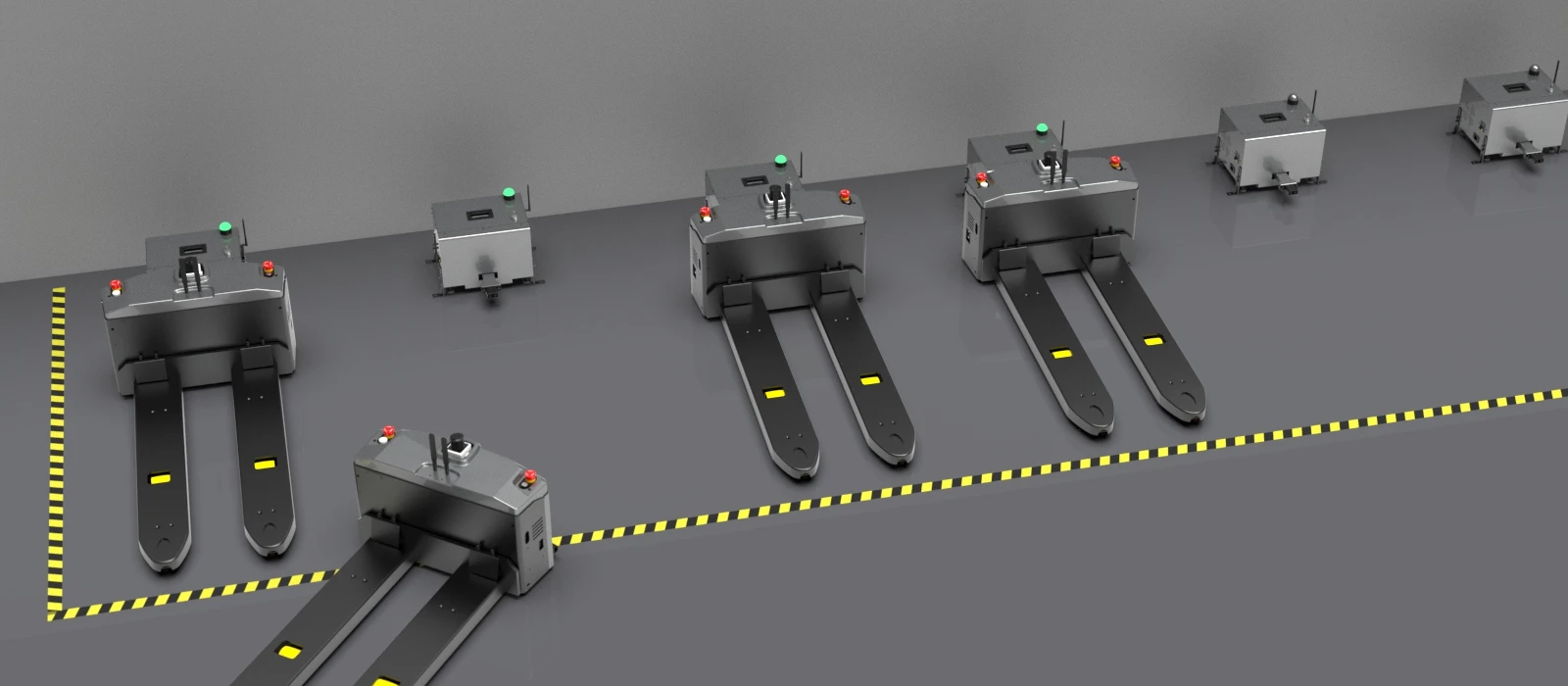

Large Map and More Space
A map of no larger than 400,000 m² is supported, allowing more space for carrying of the vehicle.
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Autonomous Pallet Truck |
| Operation type | Automatic navigation |
| Navigation type | Laser SLAM |
| Pallet type | Open pallet |
| Rated load capacity | 800 kg |
| Load center distance | 600 mm |
| Weight (with battery) | 210 kg |
| Standard lifting height | 70 mm |
| Forklift dimensions: L × W × H | 1515 × 885 × 1885 mm |
| Fork dimensions: L × W × H | 1150 × 186 × 60 mm |
| Fork outer width | 570 / 680 mm |
| Minimum turning radius | 1035 mm |
| Performance parameters | |
|---|---|
| Driving speed: full load / no load | 0.6 / 0.8 m/s |
| Passability (slope / step / gap) | ＜ 5% / 5 mm / 10 mm |
| Navigation position accuracy | ±10 mm |
| Navigation angle accuracy | ±0.5° |
| Battery parameters | |
|---|---|
| Battery specifications | 48 V / 30 Ah（lithium iron phosphate) |
| Comprehensive Battery life | 8 h |
| Charging time （10% to 80% ） | ≤2 h |

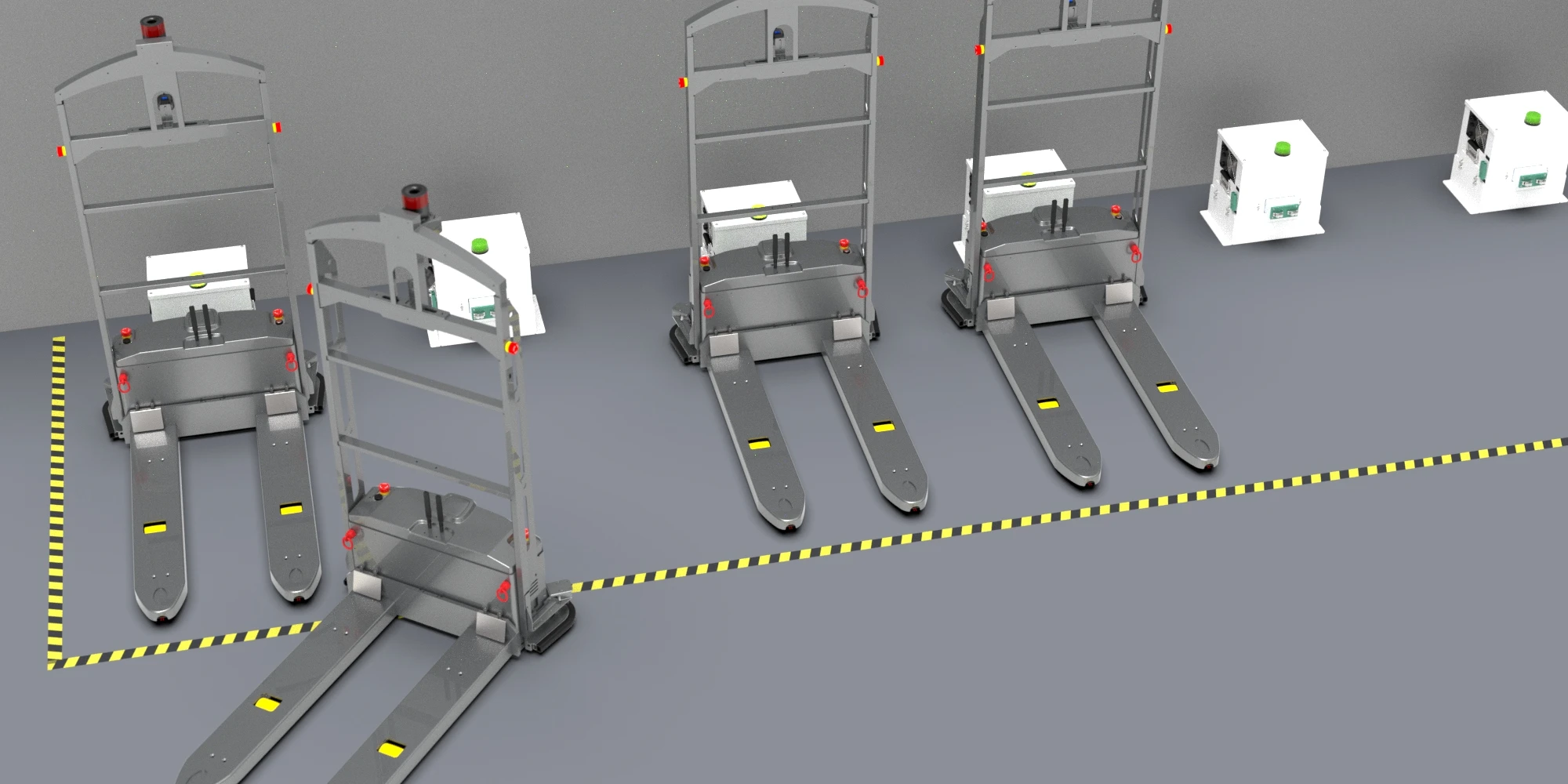

| Charging method | Manual / Automatic |
| Function configurations | |
|---|---|
| Lidar number | 1 (P+F R2000) +1 (OLEI LR-1BS2H) |
| Wi-Fi roaming | ● |
| 3D obstacle avoidance | ○ |
| Pallet recognition | ○ |
| HMI dispaly | - |
| Safety configurations | |
|---|---|
| E-stop button | ● |
| Sound and light indicator | ● |
| Braking distance: 1m/s / 1.5 m/s | ≤ 30 cm / ≤ 50cm |
| Bumper strip | ● |
Related products
-
FB-1600
Laser SLAM Handling Autonomous Forklift
The Strongest Forktlift, Flexible and Efficient
-
FD-1400-CE
Laser SLAM Small Stacker Smart Forklift
Security Updates, Free Even in Narrow Aisles
-
FP-2000
Laser SLAM Counterbalanced Autonomous Forklift
Compactin Size,yet capable of carring 2T Load
-

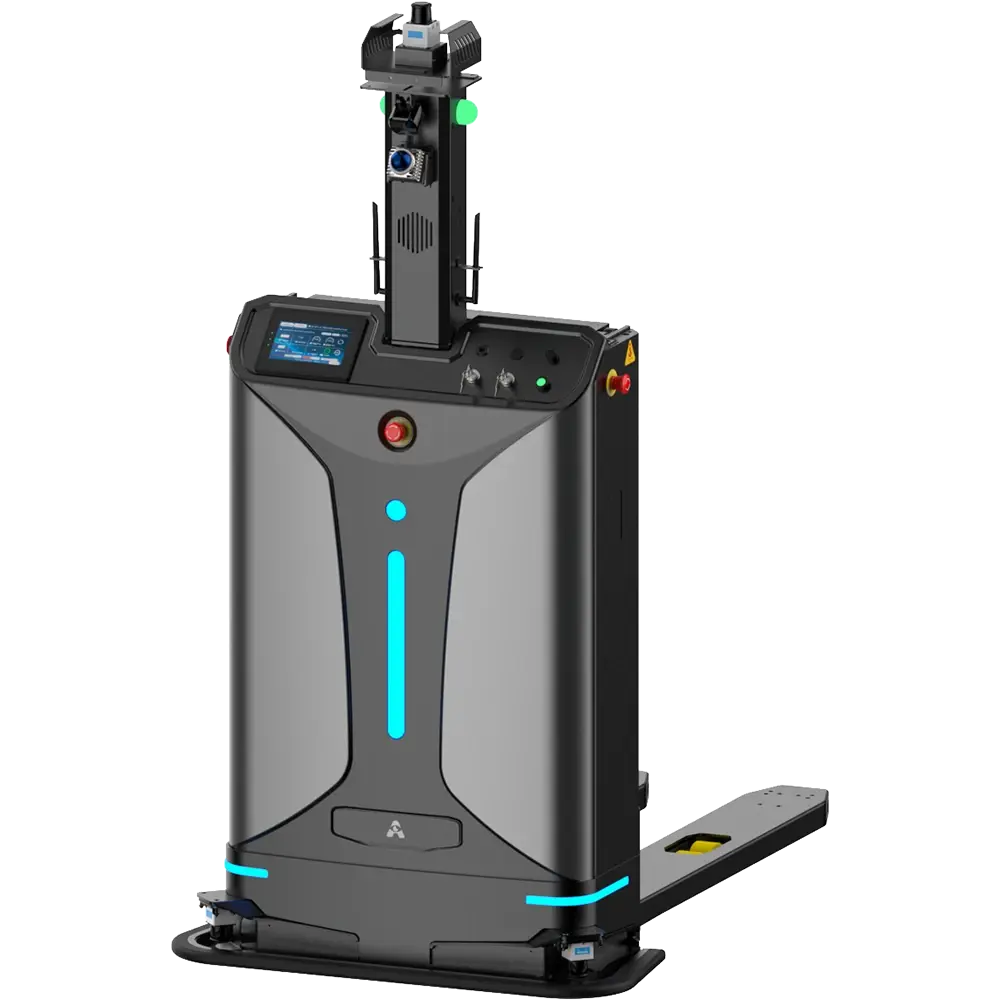

FD-1400
