J-1000
1000 kg
Load Capacity
1344mm
Rotation Diameter
Standard Lifting
Jacking Type
Two-wheel Differential
Drive Mode
Precision, punctuality, safety

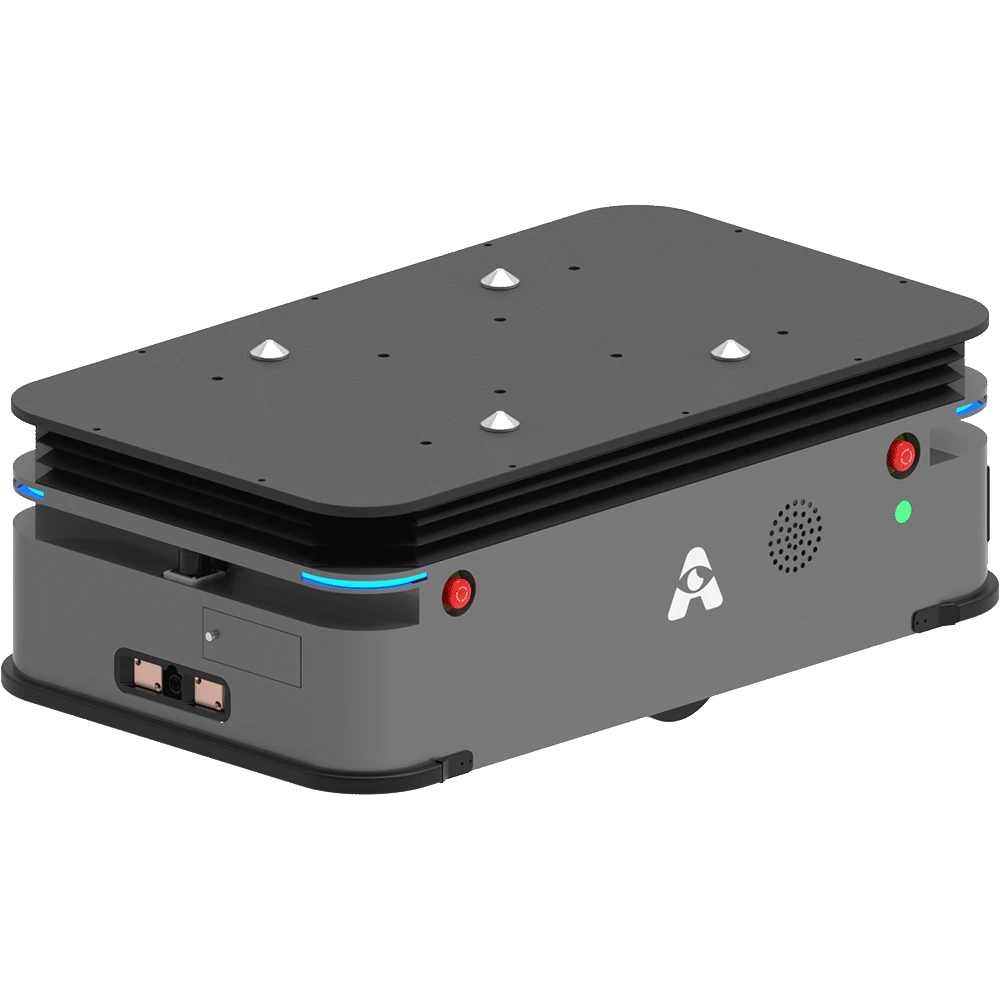

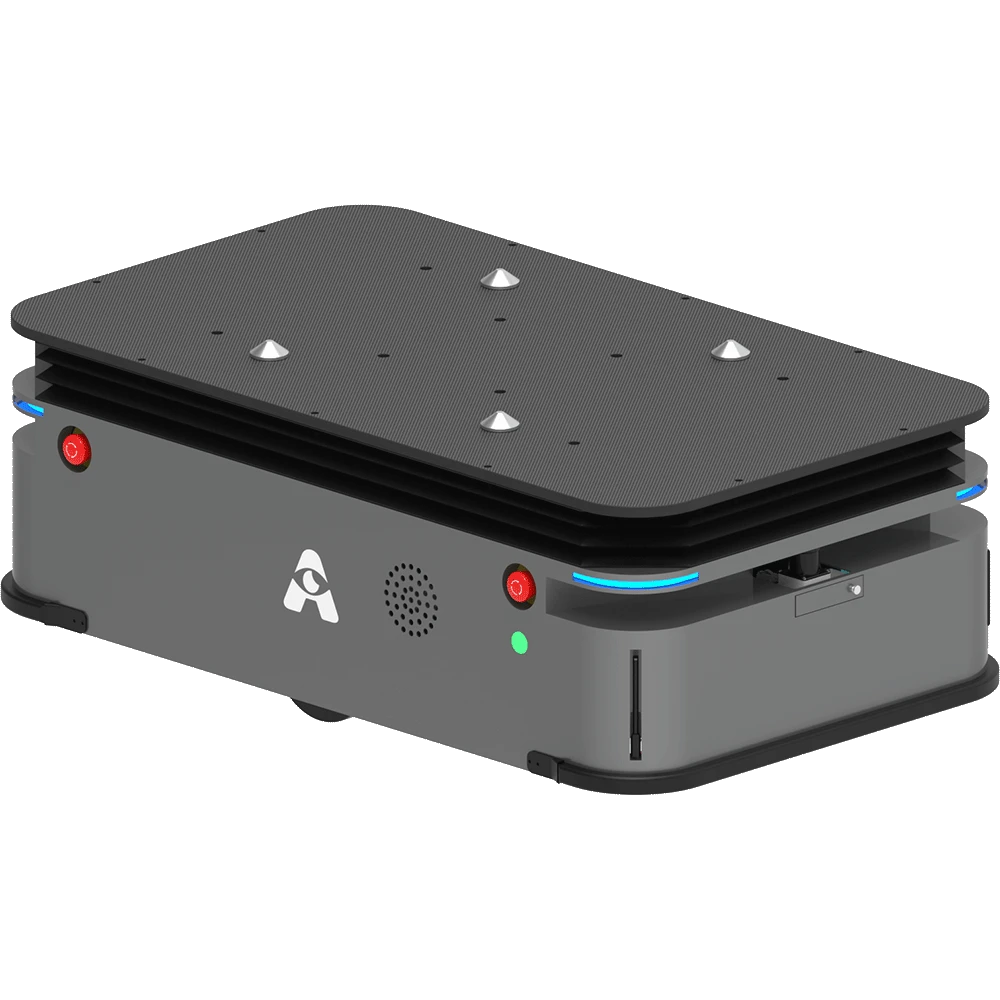

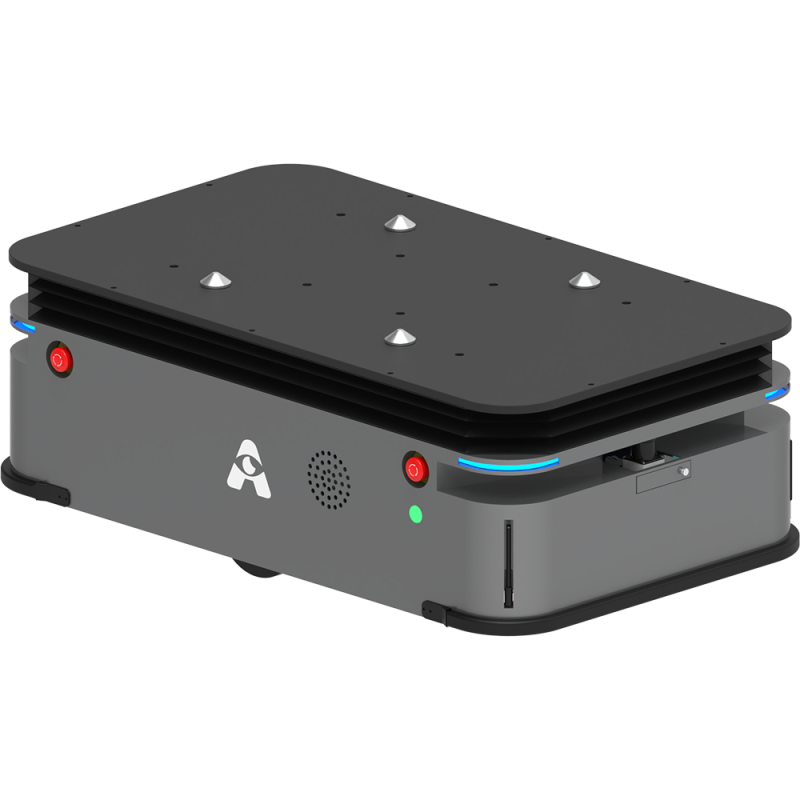

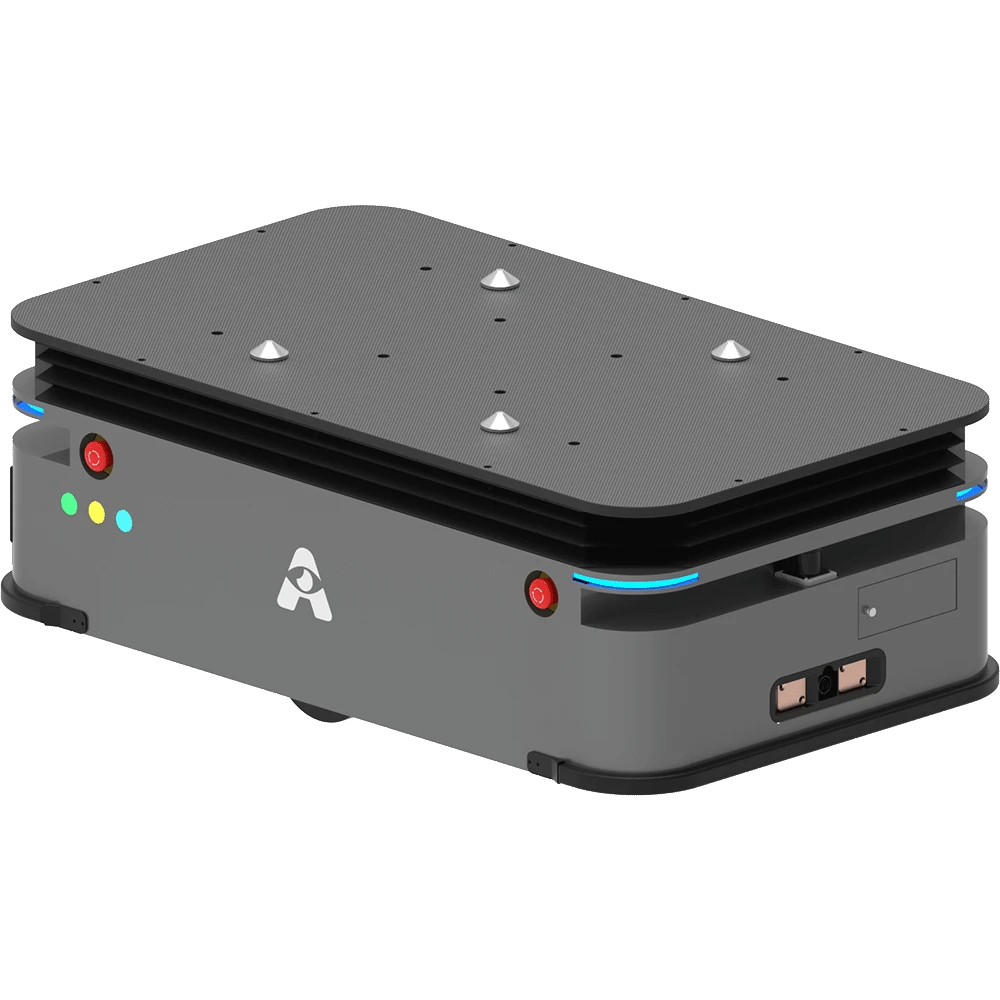

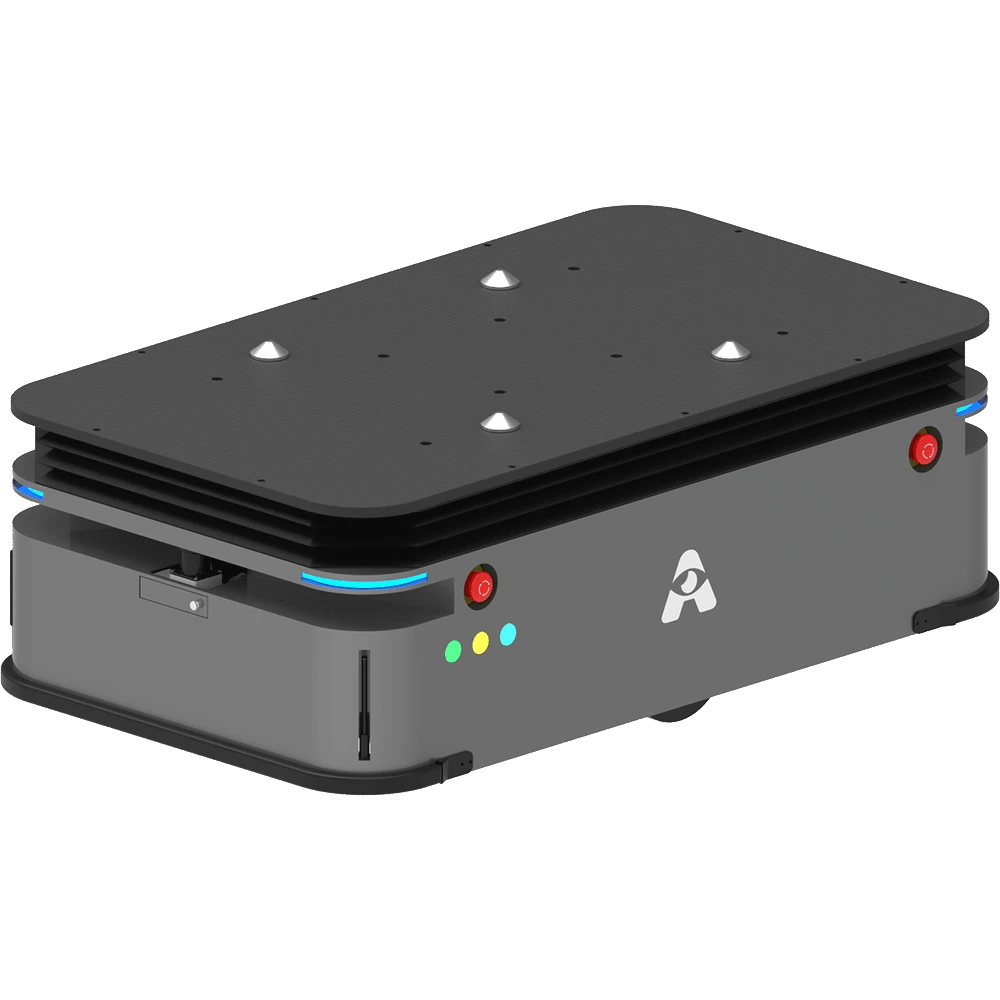

Laser SLAM Lifting Robot
Dramatically reduce costs and improve handling efficiency
Multiple Navigation Options Available
Laser SLAM, QR code and laser reflector positioning and navigation can be opted to meet the requirements for various positioning in multiple scenarios.
Powerful Material Shelf ldentification
Various goods rack identification is supported to meet the carrying requirements in multiple scenarios.
Flexible Moving
The rotating diameter is only 1344 mm, and the minimum passing width is only 870 mm. The small size allows for more flexible movement.
1 T Load Capacity
The load capacity of 1 ton and superb carrying capacity can meet the requirements for carrying large-weight products.
Precise Positioning
Positioning accuracy of ±5 mm for greater precision and efficiency.
Long Battery Life
Large-capacity battery for 6 hours of battery life, meeting the continuous carrying needs of the factory.
Parameter Specification
-None ● Standard ○ Optional
| Basic parameters | |
|---|---|
| Product name | Laser SLAM Lifting Robot |
| Navigationtype | Laser SLAM |
| L × W × H | 1224 × 730 × 420 mm |
| Rotation diamete | 1344 mm |
| Weight (with battery) | 250 kg |
| Maximum load capacity | 1000 kg |
| Chassis ground clearance | 25 mm |

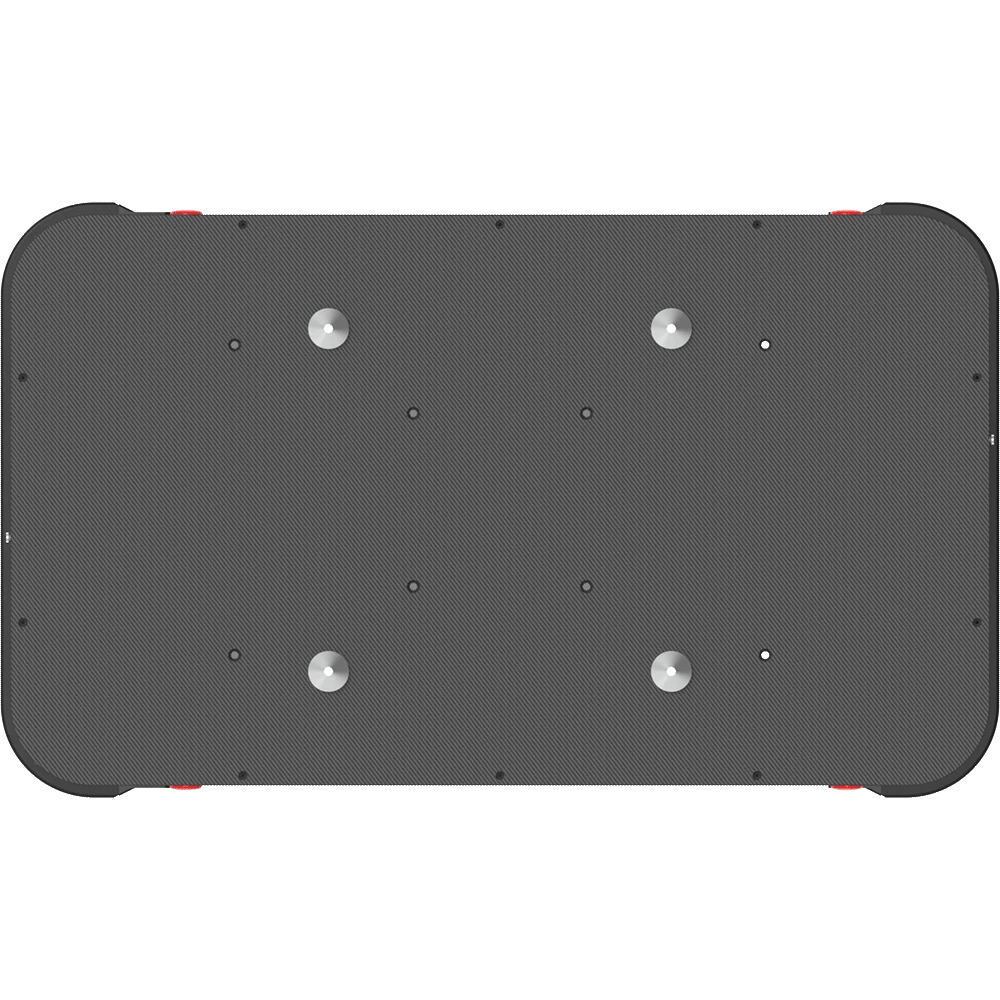

| Lifting platform dimensions | 1200 × 700 mm |
| Maximum lifting height | 60 ± 1 mm |
| Navigation laser scanning height | 267 mm (P+F) / 271 mm(H1) |
| Performance parameters | |
|---|---|
| Passability (slope / step / gap) | ≤ 5% / 5 mm / 30 mm |
| Minimum aisle width | 870 mm |
| Navigation Position accuracy | ±5 mm |
| Navigation angle accuracy | ±0.5° |
| Driving speed | ≤1.67 m/s |
| Battery parameters | |
|---|---|
| Battery specifications | 48 V / 40 Ah（lithium iron phosphate) |
| Comprehensive Battery life | 6 h |
| Charging time （10% to 80% ） | ≤2 h |
| Charging method | Manual / Automatic |
| Configurations | |
|---|---|
| Lidar number | 1 (H1) + 1(C2) |
| E-stop button | ● |
| Speaker | ● |
| Ambient lamp | ● |
| Bumper strip | ● |
| Function configurations | |
|---|---|
| Basic functions | ● |
| Wi-fi roaming | ● |
| Automatic charging | ● |
| Shelf recognition | ● |
| Precise positioning with QR code | ○ |
| QR code navigation | ○ |
| Laser reflector navigation | ○ |
