Automatic Charging Based on AMR from Aivison Robotics
Intelligent Charging: Automatically adjust the power supply strategy according to the battery feedback.
Supports Manual Charging
New Industrial Design
AMR Automatic Charging Station
Automatic charging Station for Autonomous Forklifts
Mobile Robot Series

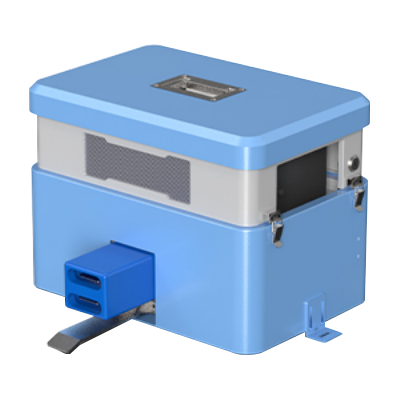

SCS-1500

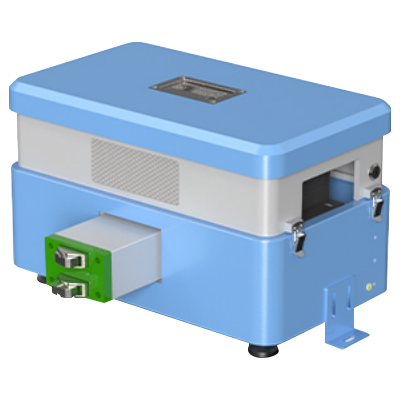

SCS-1502

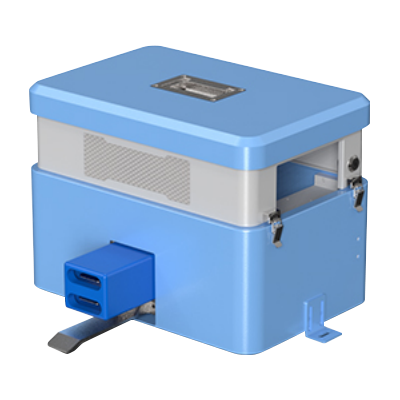

SCS-2001
SCS-2002

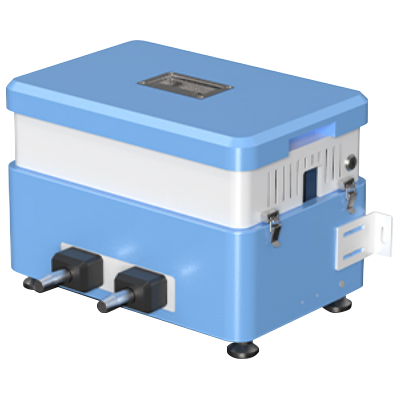

SCS-2502

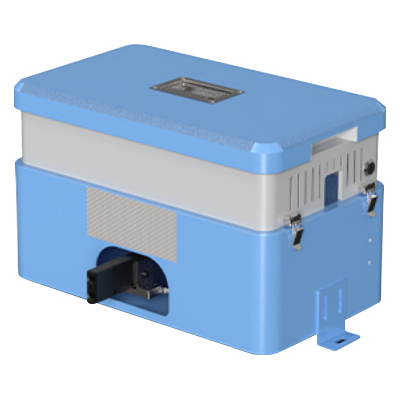

SCS-N4815FV1(JX-800)
| Basic parameters | ||||||
|---|---|---|---|---|---|---|
| SCS-1500 | SCS-1502 | SCS-2001 | SCS-2002 | SCS-2502 | SCS-N4815FV1(JX-800) | |
| L × W × H | 466 × 417 × 299 mm | 520 × 405 × 290 mm | 466 × 417 × 299 mm | 466 × 417 × 299 mm | 480 × 368.5 × 298.5 mm | 520 × 350 × 298.5 mm |
| AC input voltage | 220 V | 220 V | 220 V | 220 V | 220 V | 220 V |
| Input frequency | 50 /60 Hz | 50 /60 Hz | 50 /60 Hz | 50 /60 Hz | 50 /60 Hz | 50 /60 Hz |
| DC output voltage | 48 V | 48 V | 48 V | 48 V | 48 V | 48 V |
| Maximum output voltage | 54.6 ± 0.2 V | 54.6 ± 0.2 V | 54.6 ± 0.2 V | 54.75 ± 0.2 V | 54.6 ± 0.2 V | 54.5 ± 0.2 V |
| DC output current | 15 A | 15 A | 20 A | 20 A | 25 A | 15 A |
| Maximum output current | 15 ± 5% A | 15 ± 5% A | 20 ± 5% A | 20 ± 5% A | 25 ± 5% A | 15 ± 5% A |
| Maximum output power | 900 W | 900 W | 1200 W | 1200 W | 1500 W | 900 W |
| Weight | 18 kg | 18 kg | 19 kg | 19 kg | 20 kg | 20 kg |
| Connector for mamual charging | LP24-4P | Anderson | LP24-4P | LP24-4P | LP24-4P | LP24-4P(equipped with adapter) |
| Plug specification | GB 10A | GB 10A | GB 10A | GB 10A | GB 10A | GB 10A |
| Suitable product model | B & J (new, 15 A) | FB-800 exclusive(15A) | B-300 & B-500 & J-300 (20 A) | New Bassic (lithium iron phosphate battery) | J-series (new, 25 A) | JX-800 exclusive (15 A) |
Maximize Uptime with the Efficient AMR Automatic Charging Pile SCS
Intelligent Power Solutions for AMRs
We propose the AMR Automatic Charging Pile, an advanced solution developed to uphold autonomous forklifts and mobile robots that are powered and ready for action. This intelligent charging system automatically adjusts the power supply strategy based on real time battery feedback, ensuring a precise and efficient recharge every time. Seamlessly integrated into industrial operations, the AMR charging pile guarantees continuous workflow with minimal disruption.
Smart and Flexible Power Management
The AMR Automatic Charging Pile supports both autonomous and manual charging options, adapting perfectly to a wide range of operational demands. Our charging solution is designed with a robust, modern industrial aesthetic and offers compatibility with multiple models like the SCS 1500 and SCS 2502, ensuring it meets diverse needs with precision and reliability. It’s not just about charging; it’s about creating a power ecosystem that drives efficiency.
Uncover how our AMR charging pile can optimize autonomous forklift operations and transform productivity. Reach out to us today to learn more about advanced power solutions.
